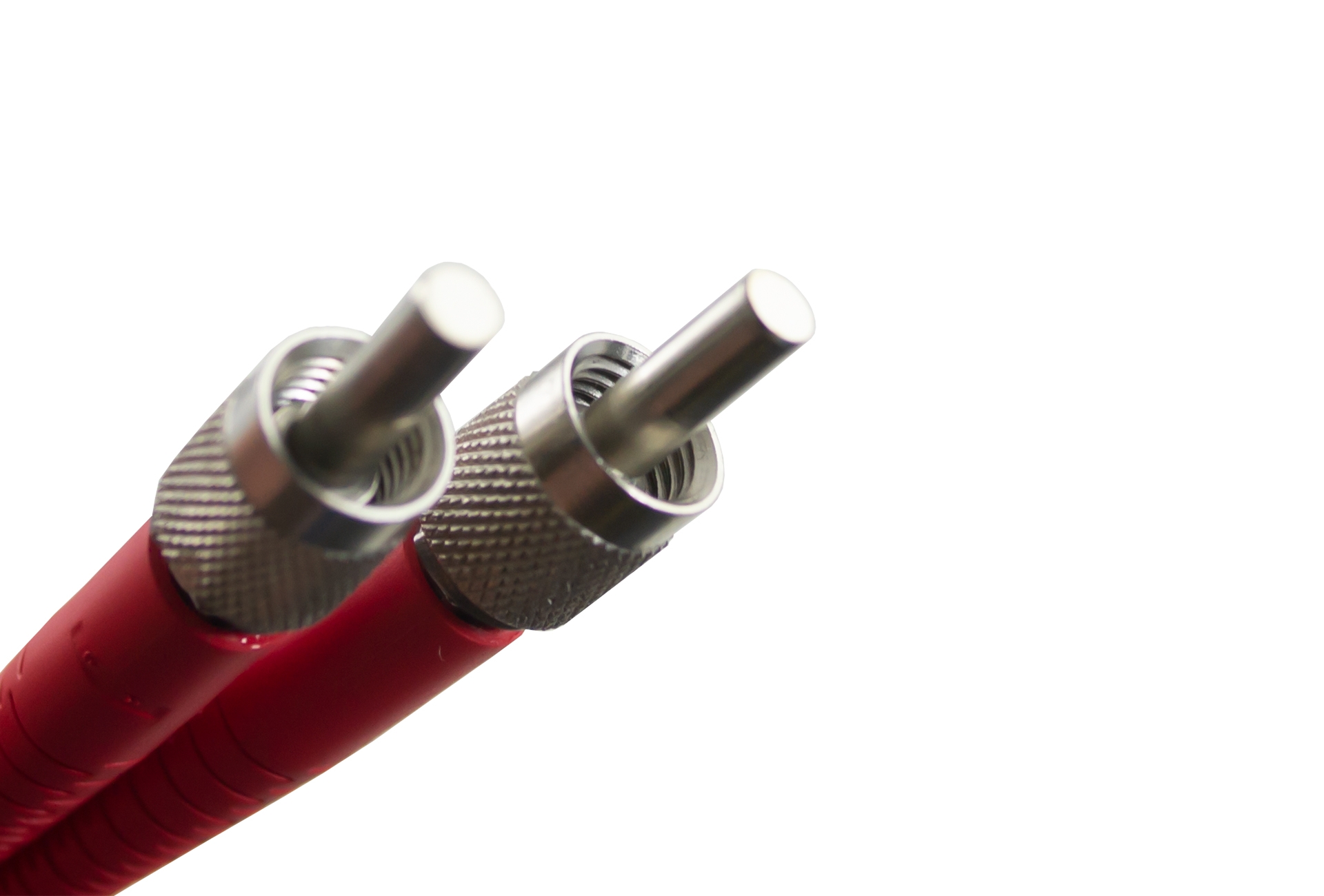

SMA duplex patchcord

Thanks to extraordinary mechanical durability and long-term reliability, SMA assemblies will find applications in many areas like Medical, Sensing, Industrial and even Military. A stainless steel ferrule with threaded coupling provides secure mating of connectors.

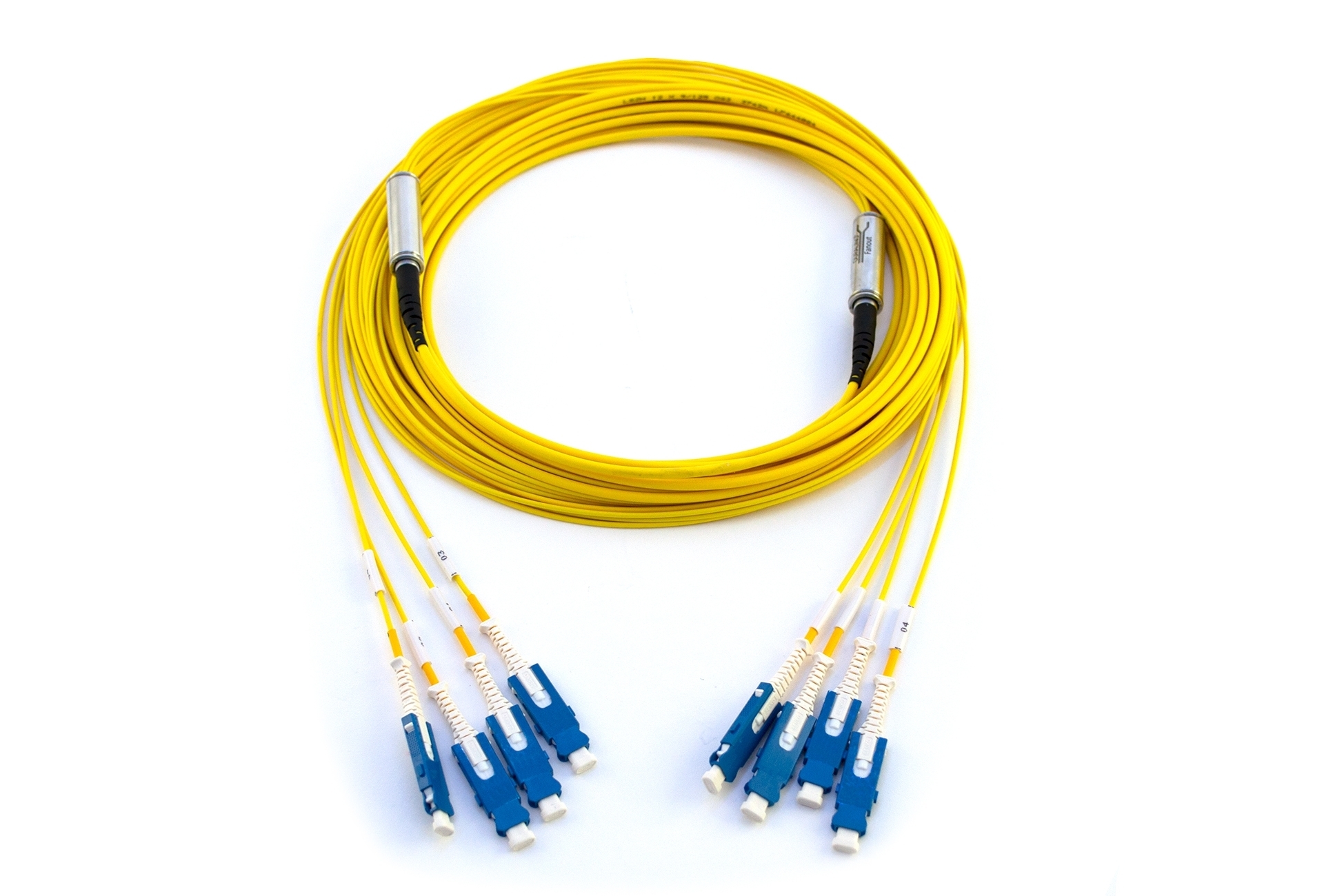

SN – SN 08F-fiber Duralino trunk

The SN duplex trunk is typically terminated with 4 connectors. This simple design can be directly used for cross-connection of the newly designed QSFP-DD (400 to 4x 100 Gbit/sec) or SFP-DD (100 to 4x 25 Gbit/sec) transceivers.
The SN connector is based on the same 125um ferrules as LC connectors, offering equal optical and transmission parameters. In an environment where migration from 10, 40 or 100 Gbit/sec to 400 or 800 Gbit/sec is a must, the SN connector benefits from its size, which allows triple the density in one 1U patch panel as compared to the LC connector.
We can offer you SM (OS2) and MM (OM3, OM4, OM5) versions of trunks up to 144 fibres. Aside from the pure SN connector-based products, the hybrid versions with various types of single-fibre connectors are available as well
OFNP cable option available

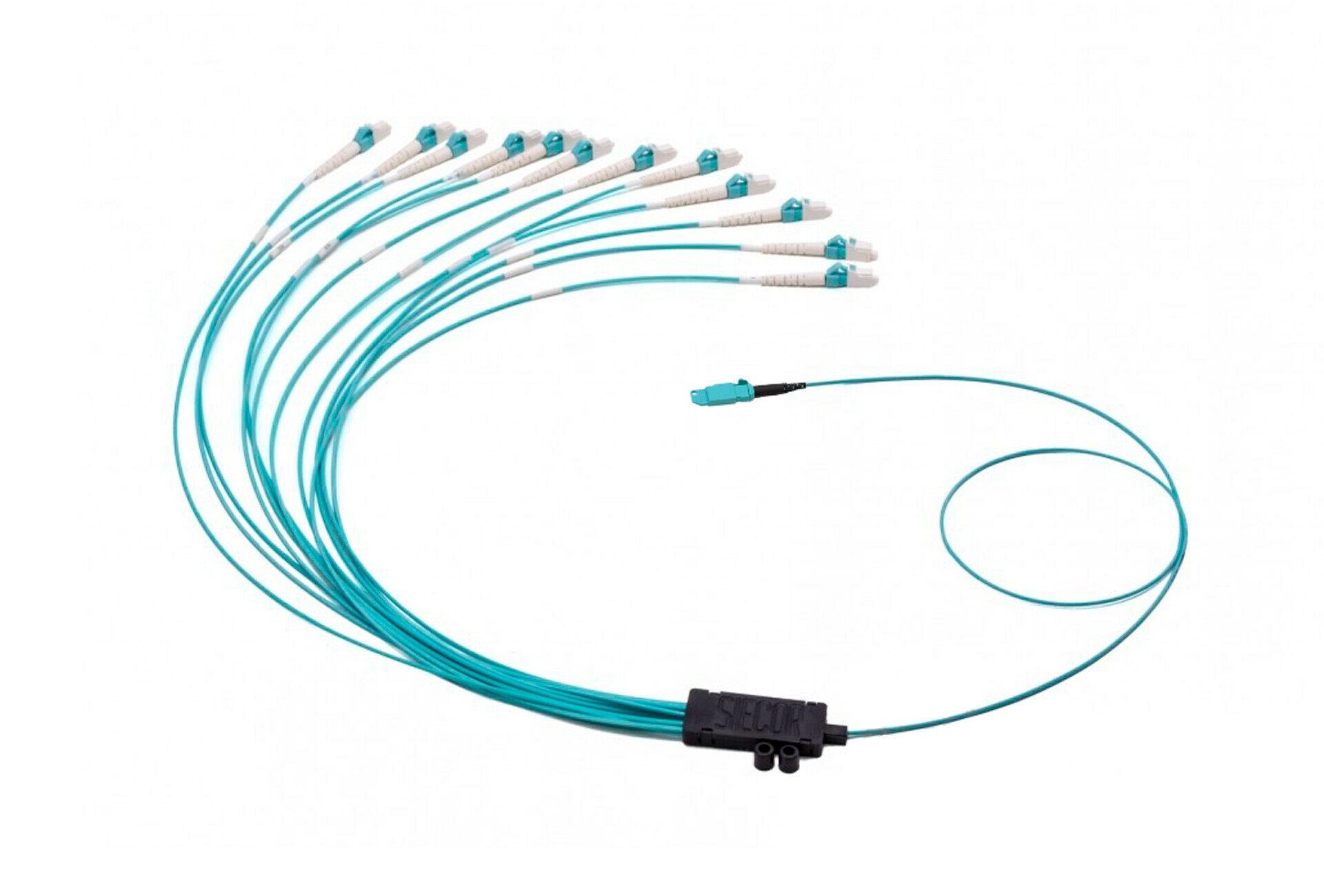

01x MXC – 16x LC/PC 2.0mm 16F ROUND FANOUT

The fanout solution is designed for the testing of individual channels of MXC assemblies in the design stage. Fibres are separated into individual fibres, protected by 2.0mm tubings and terminated by LC connectors with high-precision zirconia ferrules.
Individual channels terminated by LC connectors are identified by marking sleeves for easy identification of each channel.

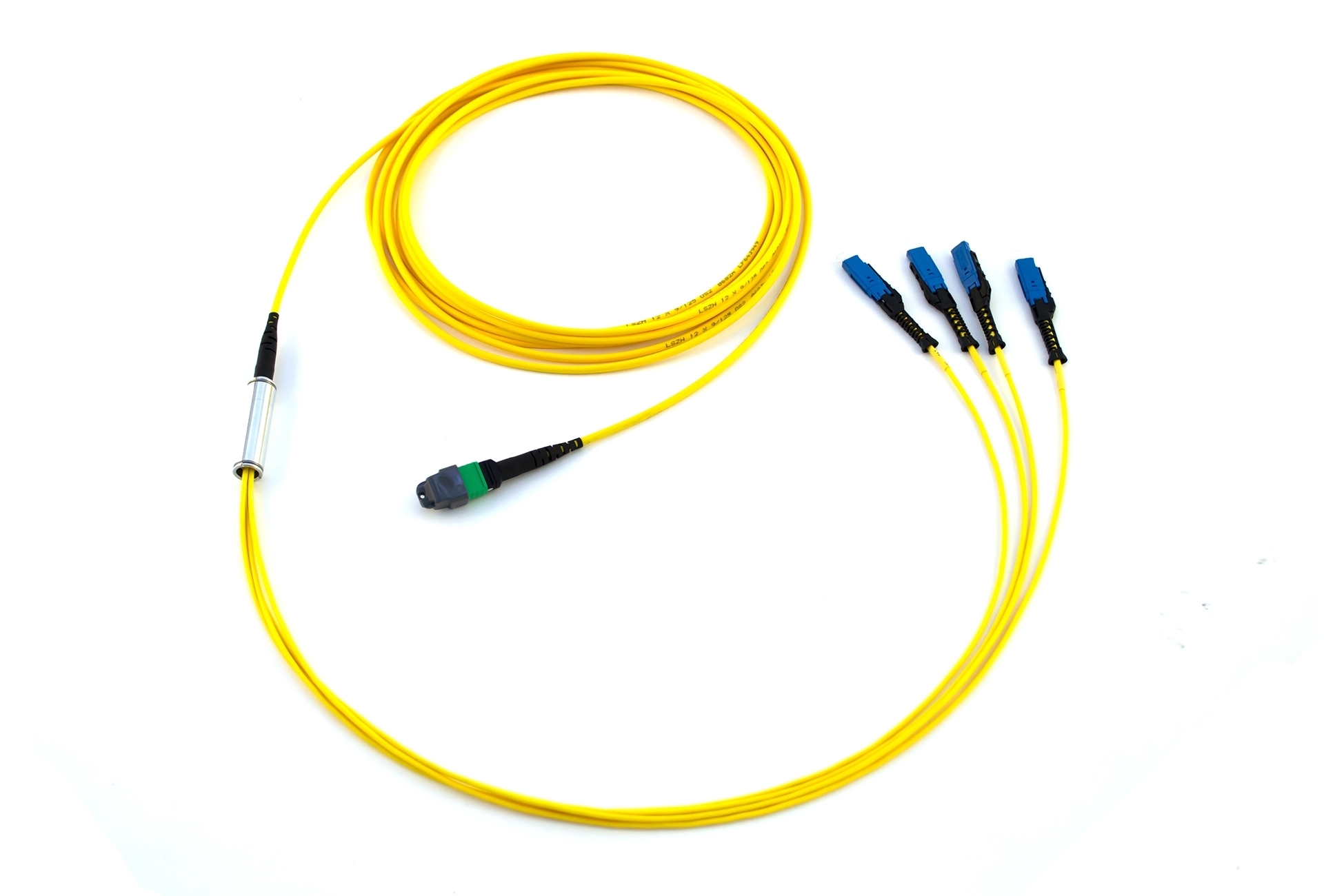

1x12f MTP – 04x MDC 08-fiber Duralino fanout

Splitting the parallel fibre optic links to an “ordinary” full-duplex connection may require certain skills and experienced personnel. With factory pre-terminated, ready-to-go MTP to MDC fanouts, you can build the required optical interconnections within a few moments. As the smallest duplex connector, MDC can be used to plug the breakout fibres directly into a new Tx/Rx device (QSFP-DD or SFP-DD).
Products are also available with MTP® PRO connectors
OFNP cable option available

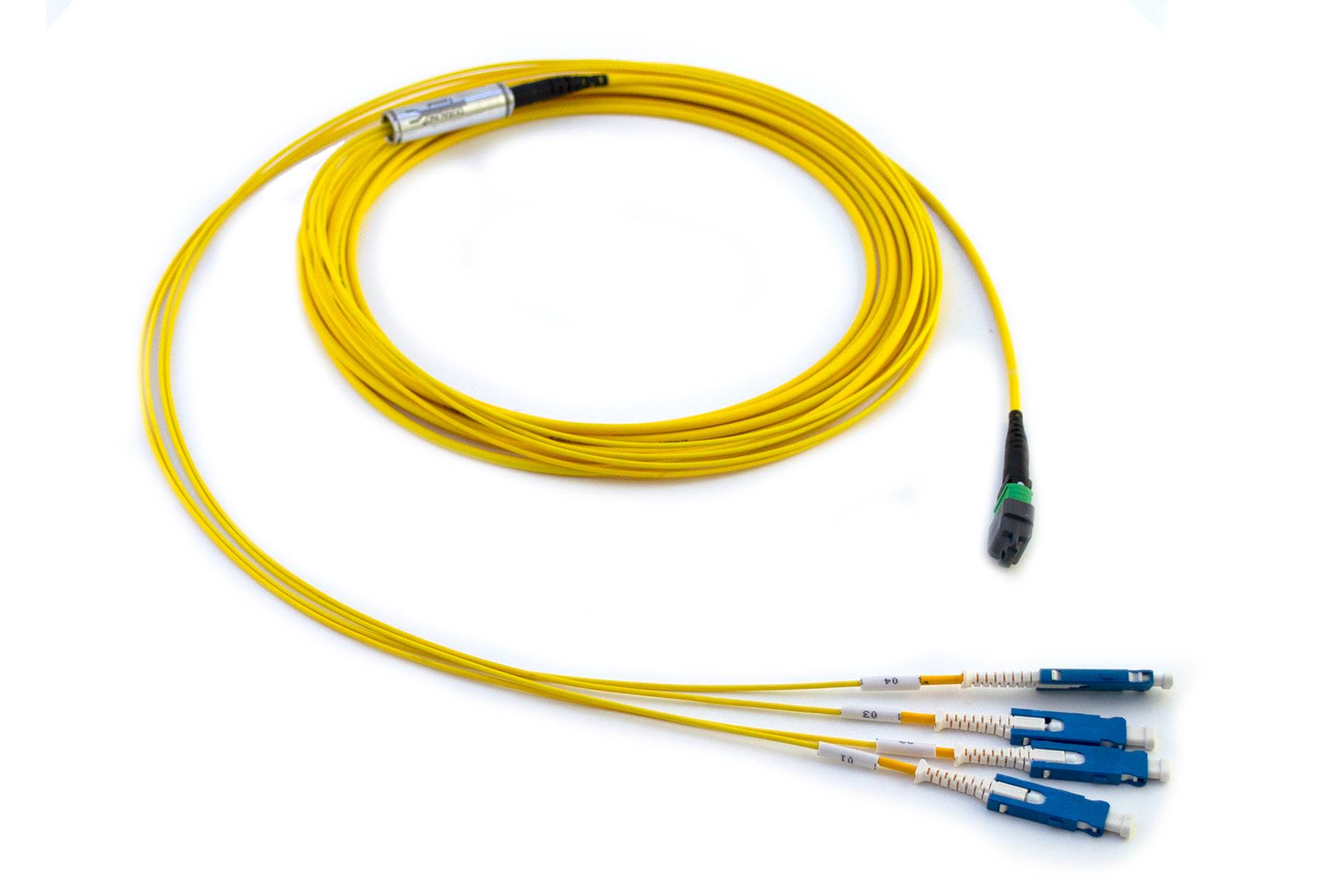

1x12f MTP – 04x SN 08-fiber Duralino fanout

Splitting the parallel fibre optic links to an “ordinary” full-duplex connection may require certain skills and experienced personnel. With factory pre-terminated, ready-to-go MTP to SN fanouts, you can build the required optical interconnections within a few moments. As the smallest duplex connector, SN can be used to plug the breakout fibres directly into a new Tx/Rx device (QSFP-DD or SFP-DD).
Products are also available with MTP® PRO connectors
OFNP cable option available

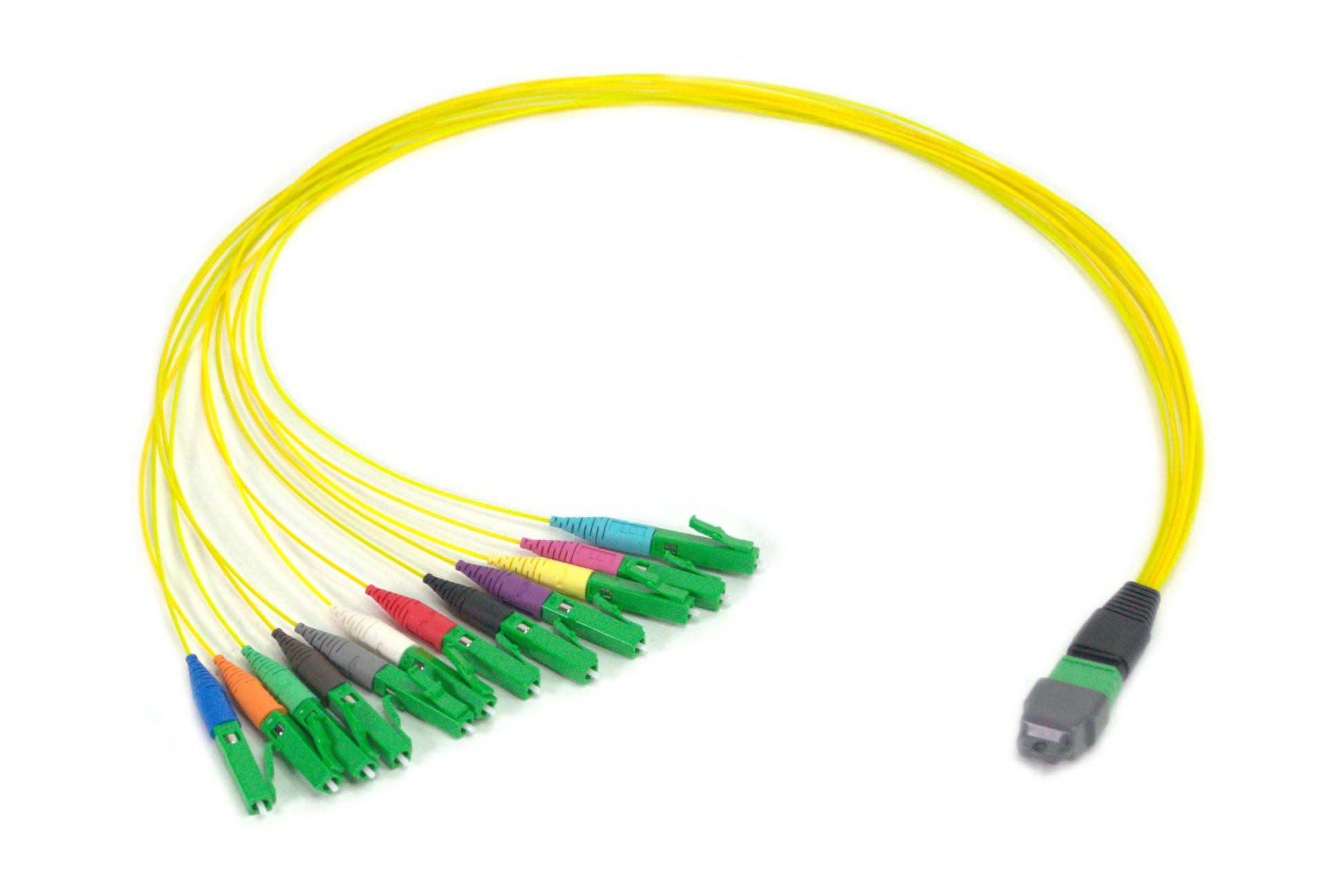

1x24f MTP to 24xLC 900um 24-fiber direct split – ET range

MTP-LC 24-fiber direct split (MTP to LC trunk) with extended temperature range is suitable product for FTTA, broadcast or other harsh environment applications. It is typically mounted in the Plastic distribution plastic box.
Fanouting is made directly in the MTP connector; therefore no additional furcation points are required.

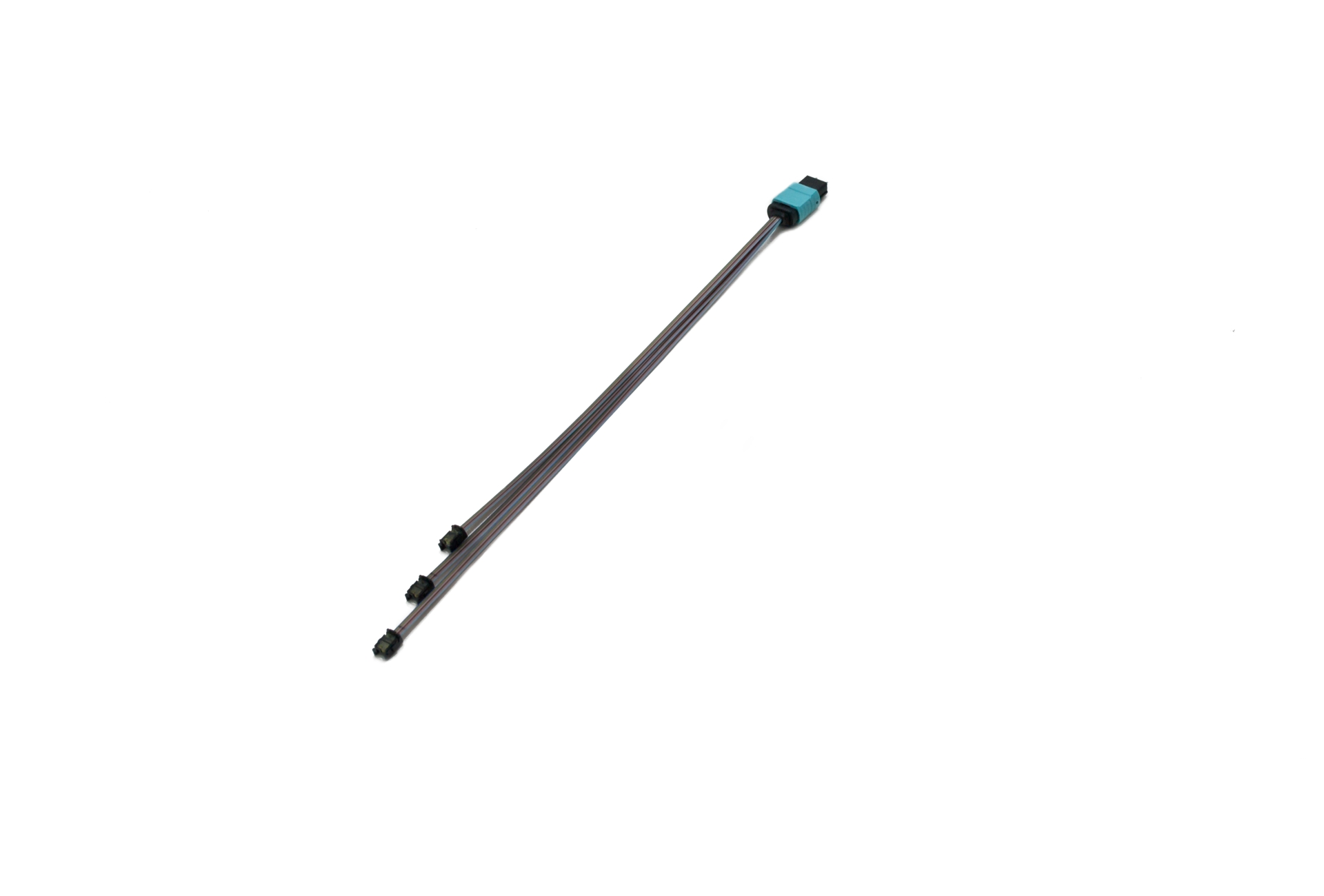

3x PRIZM LT – MT/MTP 36F ribbon jumper

PRIZM® LightTurn® is designed as a miniature detachable connector for high-speed, board-mounted Avago MicroPOD and MiniPOD modules, or for direct mounting on PCB using a mechanical-optical interface (MOI). In combination with standard MTP connectors, it is suitable for a wide range of applications such as use in transceivers, parallel optics and supercomputing.

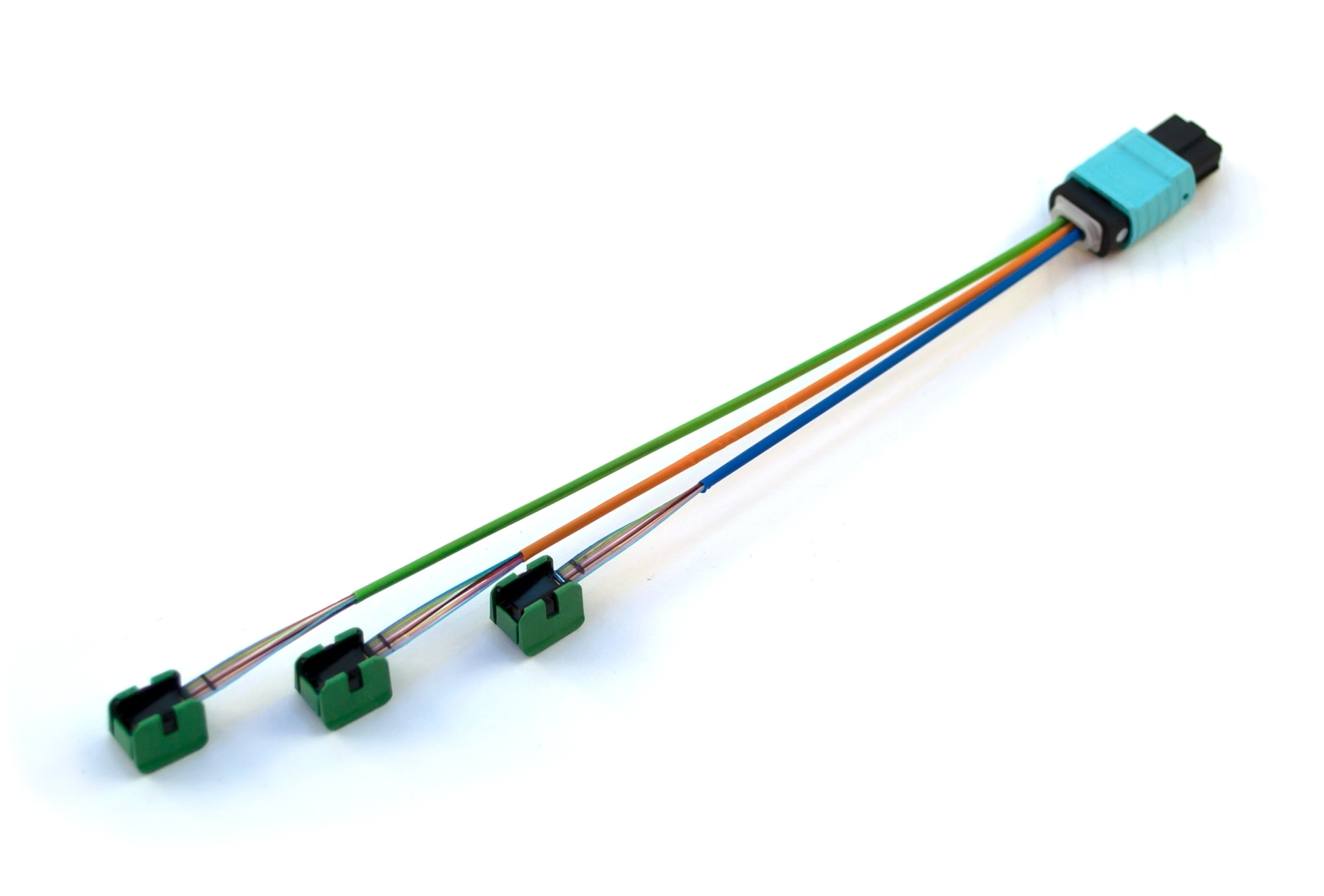

3x PRIZM LT – MT/MTP 36F round jumper

PRIZM® LightTurn® is designed as a miniature detachable connector for high-speed, board-mounted Avago MicroPOD and MiniPOD modules, or for direct mounting on PCB using a mechanical-optical interface (MOI). In combination with standard MTP connectors, it is suitable for a wide range of applications such as use in transceivers, parallel optics and supercomputing.

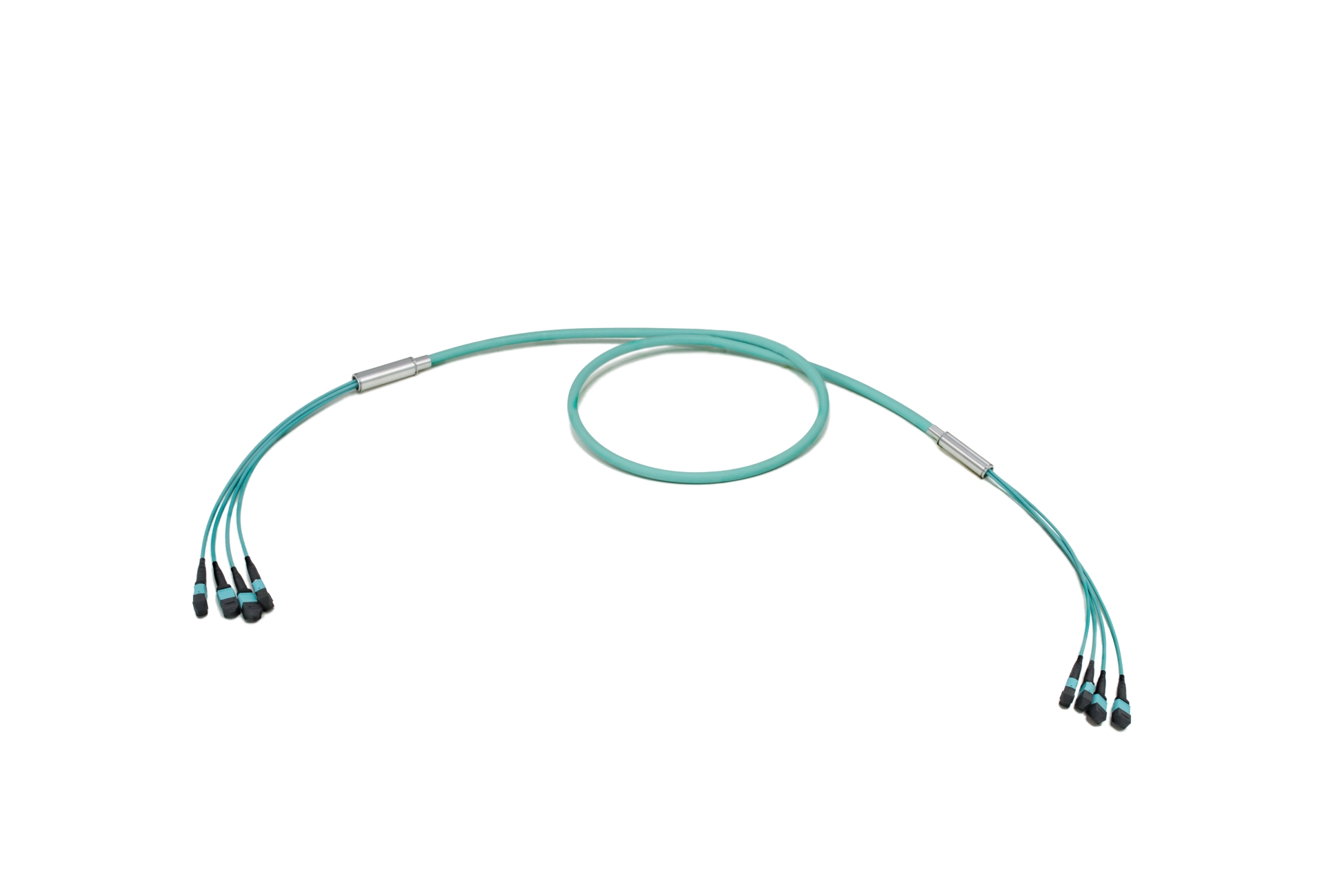

4x12f MTP to 4x12f MTP 48-fiber Duralino trunk cable

48-fiber multi-trunk cable is ideal for the backbone cabling. Offering 4 connectors on each end, this multi-trunk cable is ideal for direct interconnection of 1U P&P patchpanel, equipped with 4 MTP to LC Plug and Play modules. Cable with central strength member offers possibility of puling the cable over the installation.
MTP® PRO connector optional
