Temperature range |
Indoor controlled environment (-10°C/+60°C) | ||
| Cable parameters |
Jacket material |
N/A
|
|
|
Cable construction |
Bare ribbon | ||
|
Outer dimension |
approx. 3,22mm x 0,34mm | ||
|
Fiber count |
12 | ||
|
Fiber type |
MMF OM3/OM4
|
||
|
Temperature range |
operation: -20°C to +70°C
|
||
|
storage: -20°C to +70°C
|
|||
|
installion: 0°C to +70°C
|
|||
| Connector parameters | MXC | LC MM | |
|
Compliance |
US CONEC standard |
Telcordia GR-326 | |
|
Colour of housing
|
Aqua |
Aqua/Magenta | |
|
Colour of boot
|
N/A | White | |
|
Polish
|
N/A | Flat (PC) | |
|
Insertion Loss
(acc. IEC 61300-3-4 method B)
|
<0,6dB (@850nm)
|
<0,25dB (@850nm) | |
|
Return Loss
(GUARANTEED VALUE)
|
>25dB (@850nm)
|
>30dB (@850nm) | |
| Identification | Marking sleeve with unique serial number. | ||
| Packaging |
Each assembly in sealed PE bag, bulk pack in cardboard box. |
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
|
Description |
Partnumber/Ordering code |

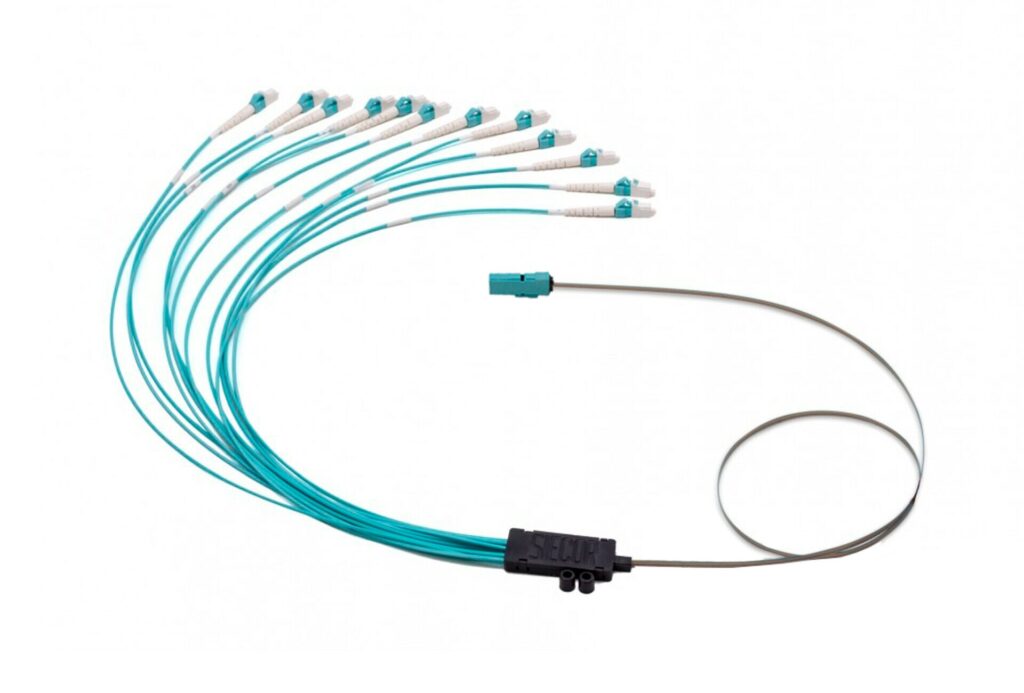

| 01x MXC RECEPTACLE – 12x LC/PC 2.0mm 12F OM3 FANOUT JUMPER |
B123-L14-XXX-1 |
| 01x MXC RECEPTACLE – 12x LC/PC 2.0mm 12F OM4 FANOUT JUMPER |
B124-L14-XXX-1 |
* for more combination please see the drawing
