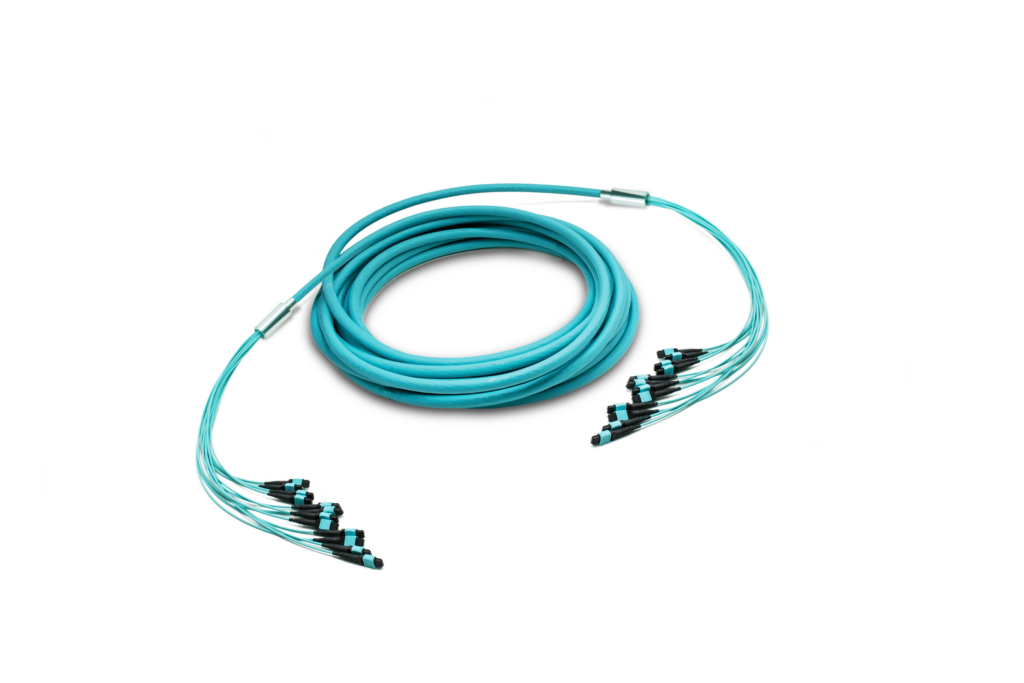

Product Specification
|
Temperature range |
Indoor controlled environment (-10°C/+60°C) | ||
| Cable parameters |
Jacket material |
LSZH
|
|
|
Cable construction |
Micro-Bundle | ||
|
Outer diameter |
8.9mm | ||
|
Fiber count |
144 | ||
|
Fiber type |
SM OS2 or MMF OM3/OM4/OM5
|
||
| Temperature range | Operation: -10°C to +70°C | ||
| Storage: -25°C to +70°C | |||
|
Installation: -5°C to +50°C
|
|||
|
CPR |
Cca-s1a, d1, a1
|
||

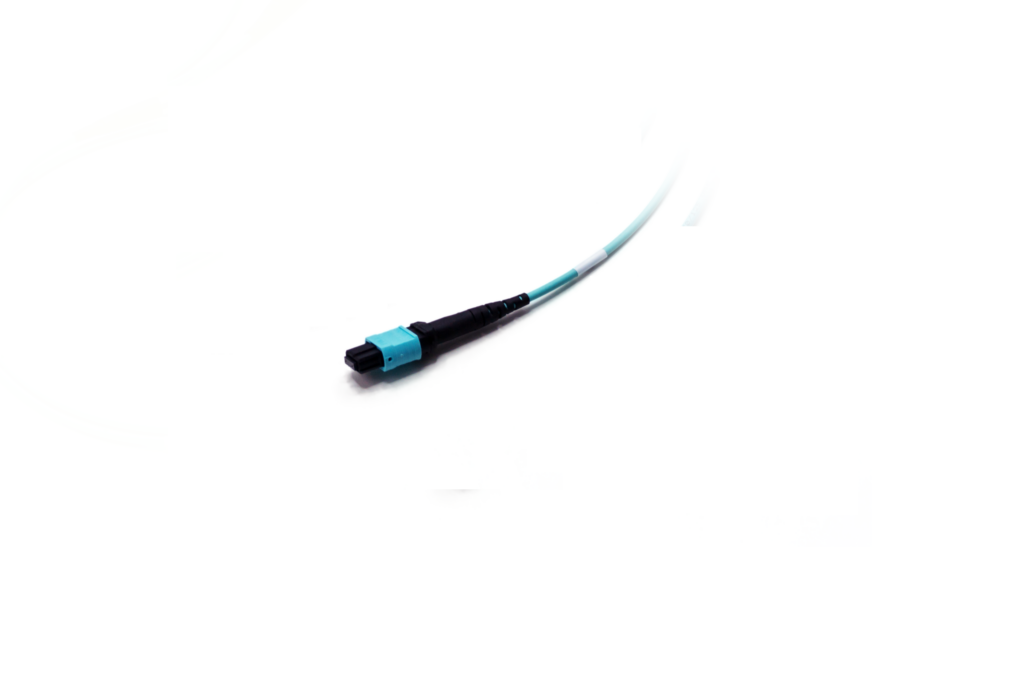

| Connector parameters | MTP/MTP PRO SM | MTP/MTP PRO MM | |
|
Compliance |
US CONEC standard |
US CONEC standard | |
|
Colour of housing
|
Green |
Aqua/Magenta/Lime Green | |
|
Colour of boot
|
Black | Black | |
|
Polish
|
Angled (APC) | Flat (PC) | |
|
Insertion Loss
(acc. IEC 61300-3-4 method B)
|
<0,35dB
(@1310/1550nm)
|
<0,35dB (@850/1300nm) | |
|
Return Loss
(acc. IEC 61300-3-6)
|
>50dB
(@1310/1550nm)
|
>20dB (@850/1300nm) | |

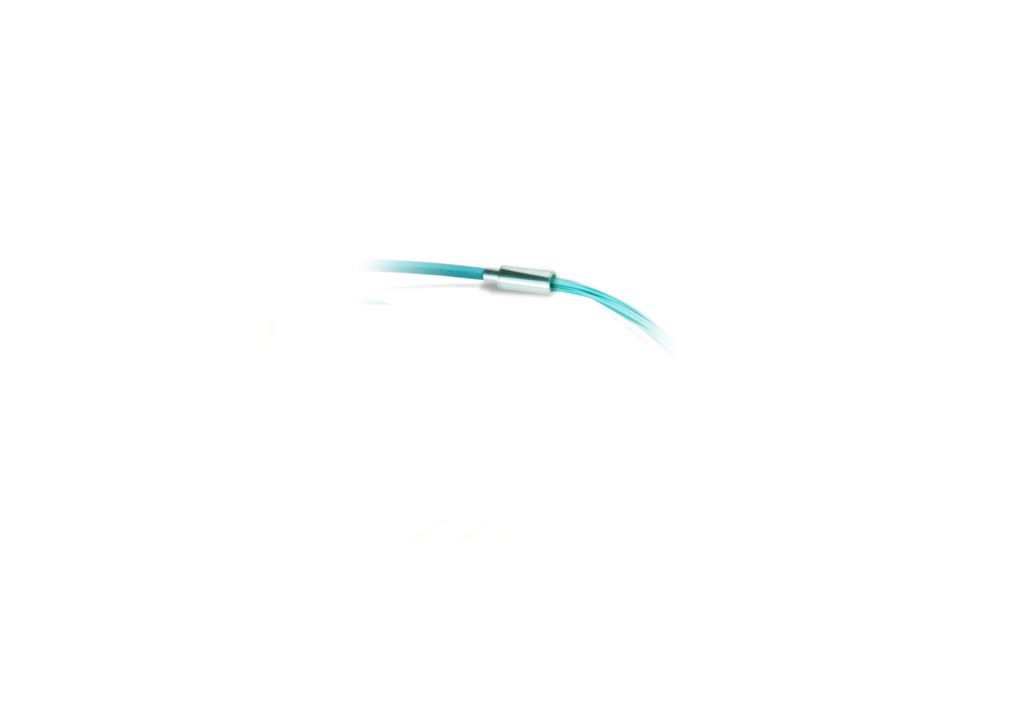

| Fanout |
Material (body / other parts) |
ABS* / metal
|
|
|

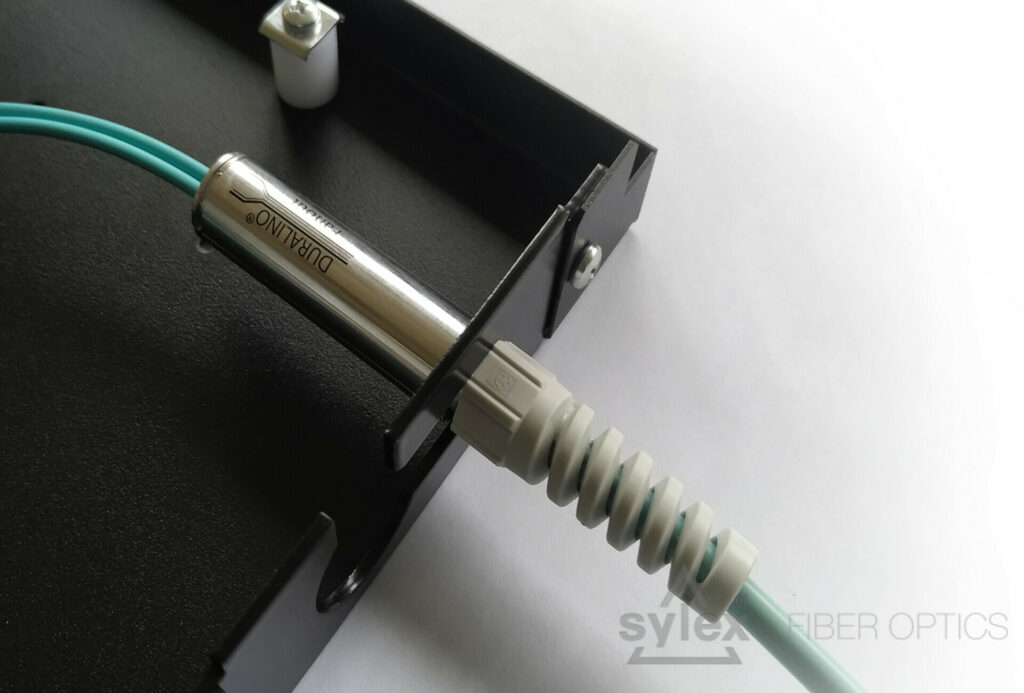

Duralino body diameter |
15.5mm (w/ Extender) / 21mm (w/ Grommet) | ||
|
IP Rating |
IP40 | ||
| Identification | Traceability label with unique serial number on both ends of cable assembly. | ||
| Packaging |
Each assembly in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on cardboard/wooden reel.
|
||
Documents
Partnumbers / Ordering Codes
|
Description
|
Partnumber/Ordering code
|
| 12x12f MTP(F) to 12x12f MTP(F) 144-fiber OS2 trunk cable, Polarity A |
TAA9-FFA-XXX
|
| 12x12f MTP(F) to 12x12f MTP(M) 144-fiber OS2 trunk cable, Polarity A |
TAA9-FMA-XXX
|
| 12x12f MTP(M) to 12x12f MTP(M) 144-fiber OS2 trunk cable, Polarity A |
TAA9-MMA-XXX
|
| 12x12f MTP(F) to 12x12f MTP(F) 144-fiber OM3 trunk cable, Polarity A |
TAA3-FFA-XXX
|
| 12x12f MTP(F) to 12x12f MTP(M) 144-fiber OM3 trunk cable, Polarity A |
TAA3-FMA-XXX
|
| 12x12f MTP(M) to 12x12f MTP(M) 144-fiber OM3 trunk cable, Polarity A |
TAA3-MMA-XXX
|
| 12x12f MTP(F) to 12x12f MTP(F) 144-fiber OM4 trunk cable, Polarity A |
TAA4-FFA-XXX
|
| 12x12f MTP(F) to 12x12f MTP(M) 144-fiber OM4 trunk cable, Polarity A |
TAA4-FMA-XXX
|
| 12x12f MTP(M) to 12x12f MTP(M) 144-fiber OM4 trunk cable, Polarity A |
TAA4-MMA-XXX
|
| 12x12f MTP(F) to 12x12f MTP(F) 144-fiber OM5 trunk cable, Polarity A |
TAA5-FFA-XXX
|
| 12x12f MTP(F) to 12x12f MTP(M) 144-fiber OM5 trunk cable, Polarity A |
TAA5-FMA-XXX
|
| 12x12f MTP(M) to 12x12f MTP(M) 144-fiber OM5 trunk cable, Polarity A |
TAA5-MMA-XXX
|
| 12x12f MTP(F) to 12x12f MTP(F) 144-fiber OS2 trunk cable, Polarity B |
TAA9-FFB-XXX
|
| 12x12f MTP(F) to 12x12f MTP(M) 144-fiber OS2 trunk cable, Polarity B |
TAA9-FMB-XXX
|
| 12x12f MTP(M) to 12x12f MTP(M) 144-fiber OS2 trunk cable, Polarity B |
TAA9-MMB-XXX
|
| 12x12f MTP(F) to 12x12f MTP(F) 144-fiber OM3 trunk cable, Polarity B |
TAA3-FFB-XXX
|
| 12x12f MTP(F) to 12x12f MTP(M) 144-fiber OM3 trunk cable, Polarity B |
TAA3-FMB-XXX
|
| 12x12f MTP(M) to 12x12f MTP(M) 144-fiber OM3 trunk cable, Polarity B |
TAA3-MMB-XXX
|
| 12x12f MTP(F) to 12x12f MTP(F) 144-fiber OM4 trunk cable, Polarity B |
TAA4-FFB-XXX
|
| 12x12f MTP(F) to 12x12f MTP(M) 144-fiber OM4 trunk cable, Polarity B |
TAA4-FMB-XXX
|
| 12x12f MTP(M) to 12x12f MTP(M) 144-fiber OM4 trunk cable, Polarity B |
TAA4-MMB-XXX
|
| 12x12f MTP(F) to 12x12f MTP(F) 144-fiber OM5 trunk cable, Polarity B |
TAA5-FFB-XXX
|
| 12x12f MTP(F) to 12x12f MTP(M) 144-fiber OM5 trunk cable, Polarity B |
TAA5-FMB-XXX
|
| 12x12f MTP(M) to 12x12f MTP(M) 144-fiber OM5 trunk cable, Polarity B |
TAA5-MMB-XXX
|
| 12x12f MTP(F) to 12x12f MTP(F) 144-fiber OS2 trunk cable, Polarity C |
TAA9-FFC-XXX
|
| 12x12f MTP(F) to 12x12f MTP(M) 144-fiber OS2 trunk cable, Polarity C |
TAA9-FMC-XXX
|
| 12x12f MTP(M) to 12x12f MTP(M) 144-fiber OS2 trunk cable, Polarity C |
TAA9-MMC-XXX
|
| 12x12f MTP(F) to 12x12f MTP(F) 144-fiber OM3 trunk cable, Polarity C |
TAA3-FFC-XXX
|
| 12x12f MTP(F) to 12x12f MTP(M) 144-fiber OM3 trunk cable, Polarity C |
TAA3-FMC-XXX
|
| 12x12f MTP(M) to 12x12f MTP(M) 144-fiber OM3 trunk cable, Polarity C |
TAA3-MMC-XXX
|
| 12x12f MTP(F) to 12x12f MTP(F) 144-fiber OM4 trunk cable, Polarity C |
TAA4-FFC-XXX
|
| 12x12f MTP(F) to 12x12f MTP(M) 144-fiber OM4 trunk cable, Polarity C |
TAA4-FMC-XXX
|
| 12x12f MTP(M) to 12x12f MTP(M) 144-fiber OM4 trunk cable, Polarity C |
TAA4-MMC-XXX
|
| 12x12f MTP(F) to 12x12f MTP(F) 144-fiber OM5 trunk cable, Polarity C |
TAA5-FFC-XXX
|
| 12x12f MTP(F) to 12x12f MTP(M) 144-fiber OM5 trunk cable, Polarity C |
TAA5-FMC-XXX
|
| 12x12f MTP(M) to 12x12f MTP(M) 144-fiber OM5 trunk cable, Polarity C |
TAA5-MMC-XXX
|
*also available with grommet and with MTP PRO connector. For more information see the drawing.
