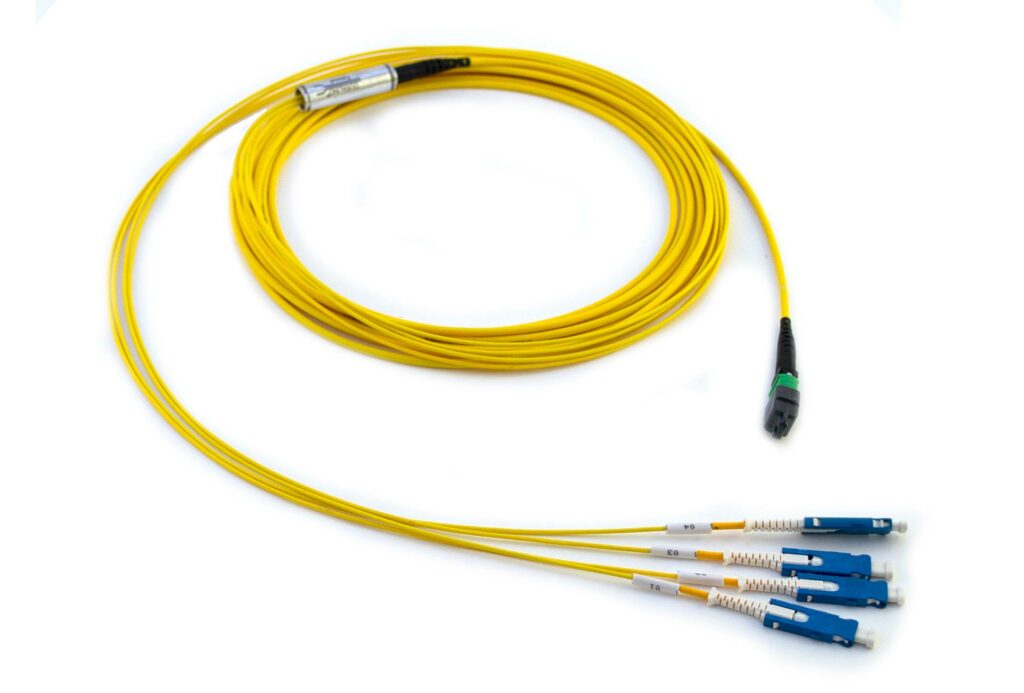

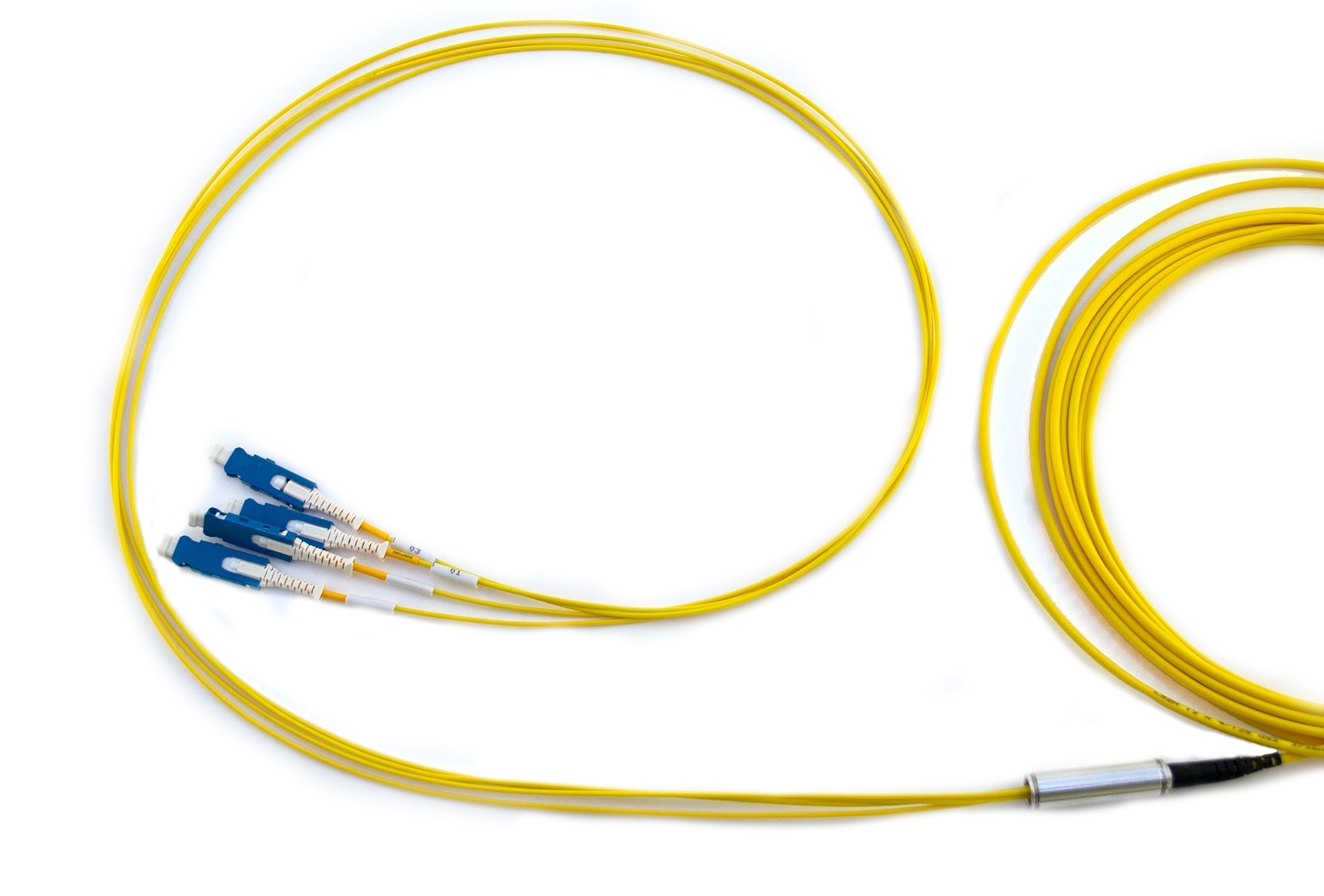

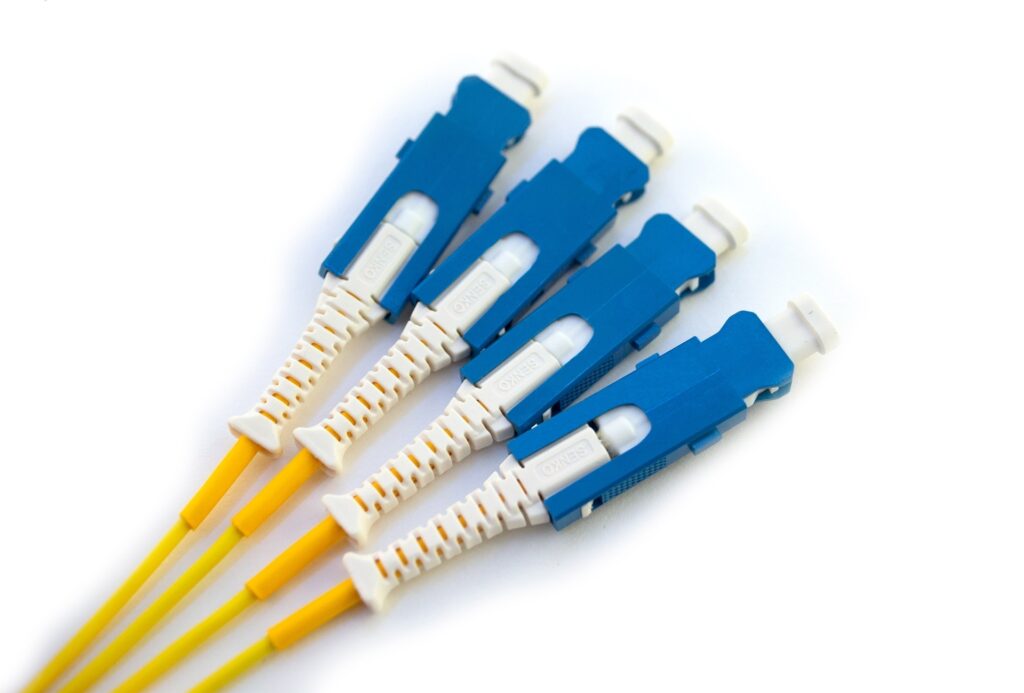

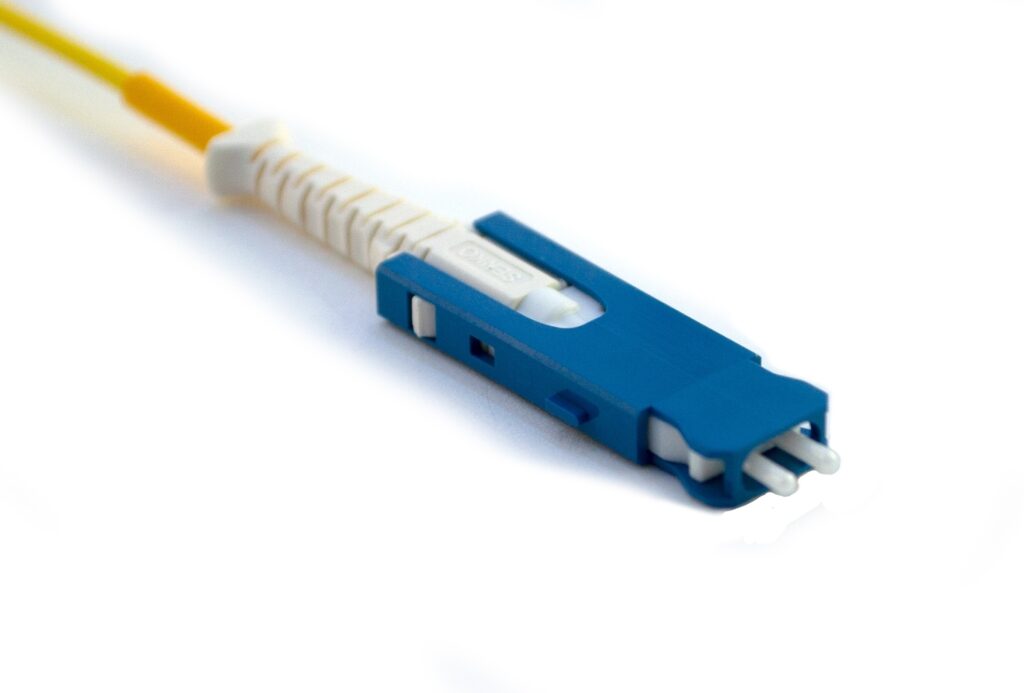

1x12f MTP – 04x SN 08-fiber Duralino fanout

Temperature range	Indoor controlled environment (-10°C/+60°C)
Cable parameters	Jacket material	LSZH
	Cable construction	Round single jacket cable
	Outer diameter	3.0mm
	Fiber count	12
	Fiber type	SM OS2 or MMF OM3/OM4/OM5
	Temperature range	Operation: -10°C to +70°C
		Storage: -25°C to +70°C
		Installation: -5°C to +50°C
	CPR	Cca-s1a, d1, a1 / B2ca-s1a, d1, a2
Connector parameters		MTP/MTP PRO SM / MM	SN SM/MM
	Compliance	US CONEC standard	Telcordia GR-326
	Colour of housing	SM – Green (APC) MM – Aqua/Magenta/Lime Green	SM – Blue (UPC) MM – Aqua/Magenta/Lime Green
	Colour of boot	Black	White (T-boot)
	Polish	Angled (APC) / Flat MM (PC)	Flat SM (UPC) / Flat MM (PC)
	Insertion Loss (acc. IEC 61300-3-4 method B)	<0,35dB (@1310/1550nm & @850/1300nm)	<0,25dB (@850/1300nm & @1310/1550nm)
	Return Loss (acc. IEC 61300-3-6)	>50dB (APC) (@1310/1550nm) >20dB (@850/1300nm)	>50dB (UPC) (@1310/1550nm) >20dB (@850/1300nm)
Fanout	Material (body / other parts)	ABS* / metal
	Duralino body diameter	15.5mm
	IP Rating	IP40
Identification	Traceability label with unique serial number on both ends of cable assembly.
Packaging	Each assembly in sealed PE bag,bulk pack in cardboard box. Longer lengths coiled on reel

* Fanout metal body optional

Description	Partnumber/Ordering code
1x12f MTP(F) – 04x SN/UPC 2.0mm 08-fiber OS2 Duralino fanout	F089-F86-xxx-Q
1x12f MTP(M) – 04x SN/UPC 2.0mm 08-fiber OS2 Duralino fanout	F089-M86-xxx-Q
1x12f MTP(F) – 04x SN/PC 2.0mm 08-fiber OM3 Duralino fanout	F083-F86-xxx-Q
1x12f MTP(M) – 04x SN/PC 2.0mm 08-fiber OM3 Duralino fanout	F083-M86-xxx-Q
1x12f MTP(F) – 04x SN/PC 2.0mm 08-fiber OM4 Duralino fanout	F084-F86-xxx-Q
1x12f MTP(M) – 04x SN/PC 2.0mm 08-fiber OM4 Duralino fanout	F084-M86-xxx-Q
1x12f MTP(F) – 04x SN/PC 2.0mm 08-fiber OM5 Duralino fanout	F085-F86-xxx-Q
1x12f MTP(M) – 04x SN/PC 2.0mm 08-fiber OM5 Duralino fanout	F085-M86-xxx-Q

*also available with MTP PRO connector. For more information see the drawing.
