Temperature range |
Indoor controlled environment (-10°C/+60°C) | ||
| Cable parameters |
Jacket material |
LSZH
|
|
|
Cable construction |
Round single jacket cable | ||
|
Outer diameter |
3.0mm | ||
|
Fiber count |
12 | ||
|
Fiber type |
SM OS2 or MMF OM3/OM4/OM5
|
||
| Temperature range | Operation: -10°C to +70°C | ||
| Storage: -25°C to +70°C | |||
|
Installation: -5°C to +50°C
|
|||
|
CPR |
Cca-s1a, d1, a1 / B2ca-s1a, d1, a2
|
||

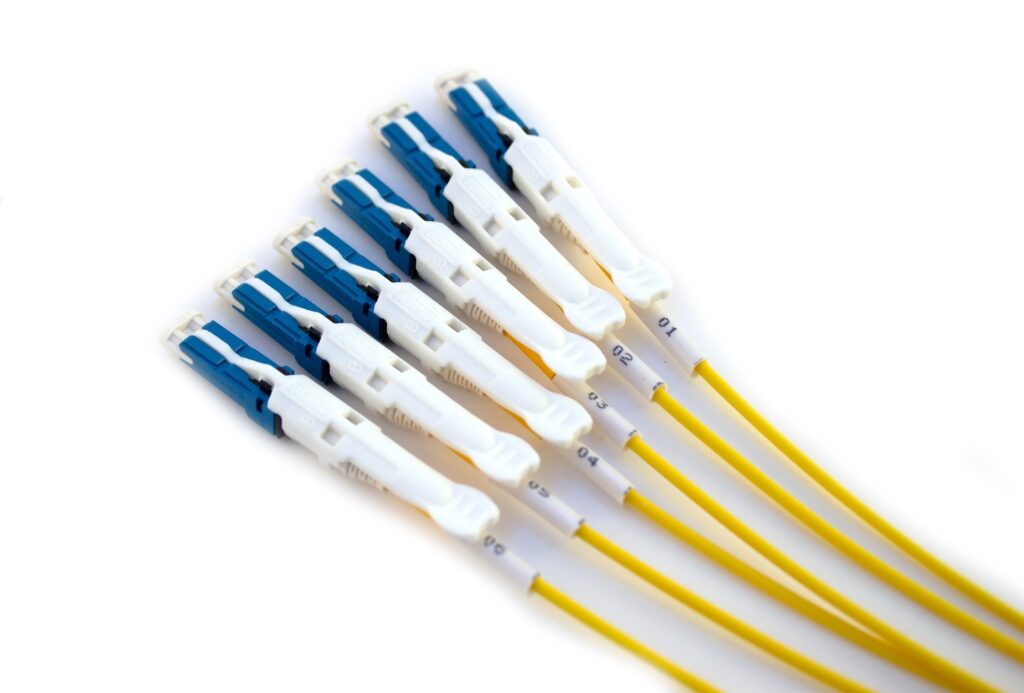

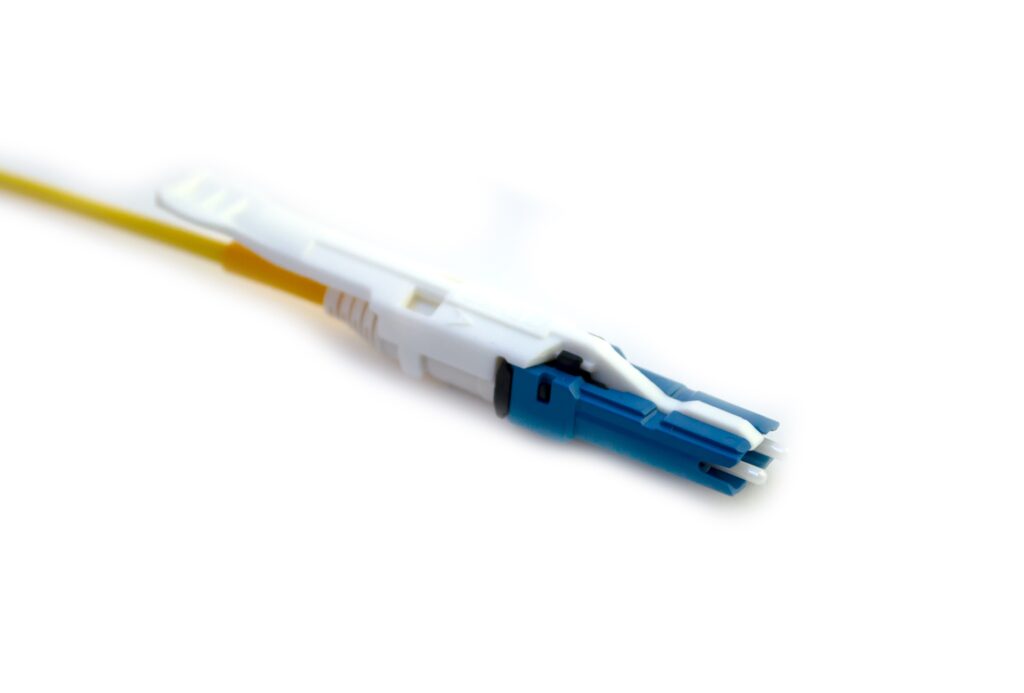

| Connector parameters | MTP/MTP PRO SM / MM | CS SM/MM | |
|
Compliance |
US CONEC standard |
Telcordia GR-326 | |
|
Colour of housing
|
SM – Green (APC)
MM – Aqua/Magenta/Lime Green |
SM – Blue (UPC) MM – Aqua/Magenta/Lime Green |
|
|
Colour of boot
|
Black | White | |
|
Polish
|
Angled (APC) / Flat MM (PC) | Flat SM (UPC) / Flat MM (PC) | |
|
Insertion Loss
(acc. IEC 61300-3-4 method B)
|
<0,35dB
(@1310/1550nm & @850/1300nm)
|
<0,25dB (@850/1300nm & @1310/1550nm) | |
|
Return Loss
(acc. IEC 61300-3-6)
|
>50dB (APC) (@1310/1550nm)
>20dB (@850/1300nm)
|
>50dB (UPC) (@1310/1550nm) >20dB (@850/1300nm) |
|
| Fanout |
Material (body / other parts) |
ABS* / metal
|
|
|
Duralino body diameter |
15.5mm | ||
|
IP Rating |
IP40 | ||
| Identification | Traceability label with unique serial number on both ends of cable assembly. | ||
| Packaging |
Each assembly in sealed PE bag,bulk pack in cardboard box. Longer lengths coiled on reel
|
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
Description | Partnumber/Ordering code |

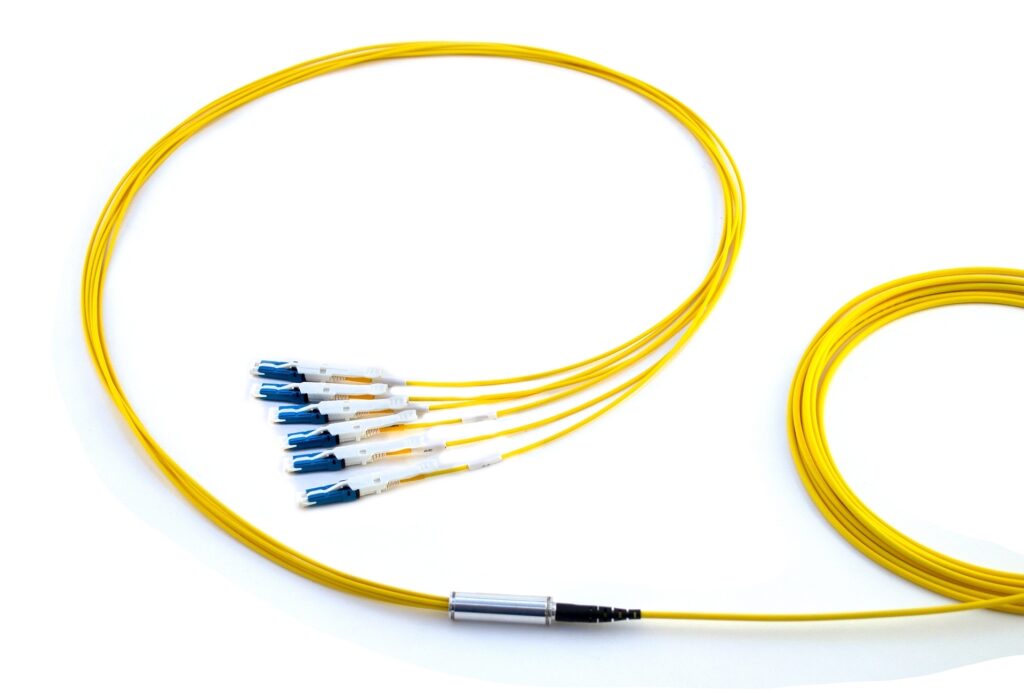

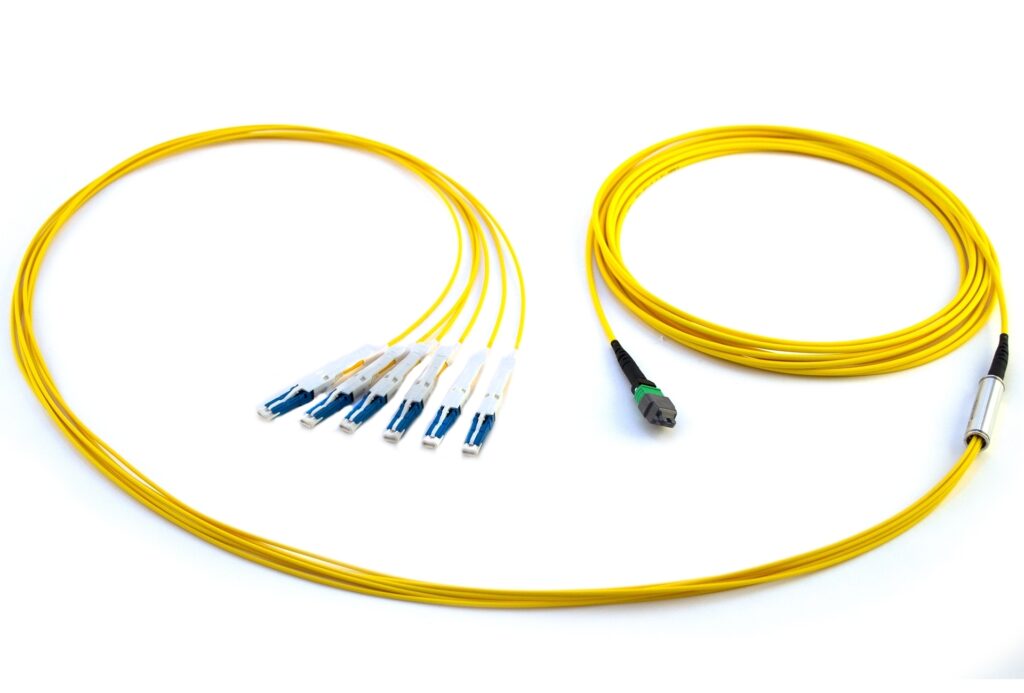

| 1x12f MTP(F) – 06x CS/UPC 2.0mm 12-fiber OS2 Duralino fanout | F129-F02-xxx-Q |
| 1x12f MTP(M) – 06x CS/UPC 2.0mm 12-fiber OS2 Duralino fanout | F129-M02-xxx-Q |
| 1x12f MTP(F) – 06x CS/PC 2.0mm 12-fiber OM3 Duralino fanout | F123-F02-xxx-Q |
| 1x12f MTP(M) – 06x CS/PC 2.0mm 12-fiber OM3 Duralino fanout | F123-M02-xxx-Q |
| 1x12f MTP(F) – 06x CS/PC 2.0mm 12-fiber OM4 Duralino fanout | F124-F02-xxx-Q |
| 1x12f MTP(M) – 06x CS/PC 2.0mm 12-fiber OM4 Duralino fanout | F124-M02-xxx-Q |
| 1x12f MTP(F) – 06x CS/PC 2.0mm 12-fiber OM5 Duralino fanout | F125-F02-xxx-Q |
| 1x12f MTP(M) – 06x CS/PC 2.0mm 12-fiber OM5 Duralino fanout | F125-M02-xxx-Q |
*also available with MTP PRO connector. For more information see the drawing.
