Temperature range |
Extended temperature range (-40°C/+75°C) | ||
| Cable parameters |
Jacket material |
PVDF
|
|
|
Cable construction |
Bare fibers | ||
|
Outer diameter |
0.9mm | ||
|
Fiber count |
12 | ||
|
Fiber type |
SMF OS2 or MMF OM3/OM4
|
||
| Temperature range | Operation: -60°C to +150°C | ||
| Connector parameters | MTP/MTP PRO SM / MM | LC SM / LC MM | |
|
Compliance |
US CONEC standard |
Telcordia GR-326 | |
|
Colour of connector
|
SM – Green (APC)
MM – Aqua/Magenta |
SM – Blue (PC)/Green (APC) MM – Aqua/Magenta | |
|
Colour of boot
|
Black | colored acc. TIA/EIA 598-A | |
|
Polish
|
Angled (APC) / Flat MM (PC) | Angled (APC) / Flat | |
|
Insertion Loss
(acc. IEC 61300-3-4 method B)
|
<0,35dB
(@1310/1550nm / @850/1300nm)
|
<0,25dB (@1310/1550nm / @850/1300nm) | |
|
Return Loss
(acc. IEC 61300-3-6)
|
>50dB (APC) (@1310/1550nm) >20dB (@850/1300nm) |
>50dB (UPC) (@1310/1550nm) >60dB (APC) (@1310/1550nm) >30dB (@850/1300nm) |
|
| Identification | Traceability label with unique serial number on both ends of cable assembly. | ||
| Packaging |
Each assembly in sealed PE bag, bulk pack in cardboard box. |
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
Description | Partnumber/Ordering code |

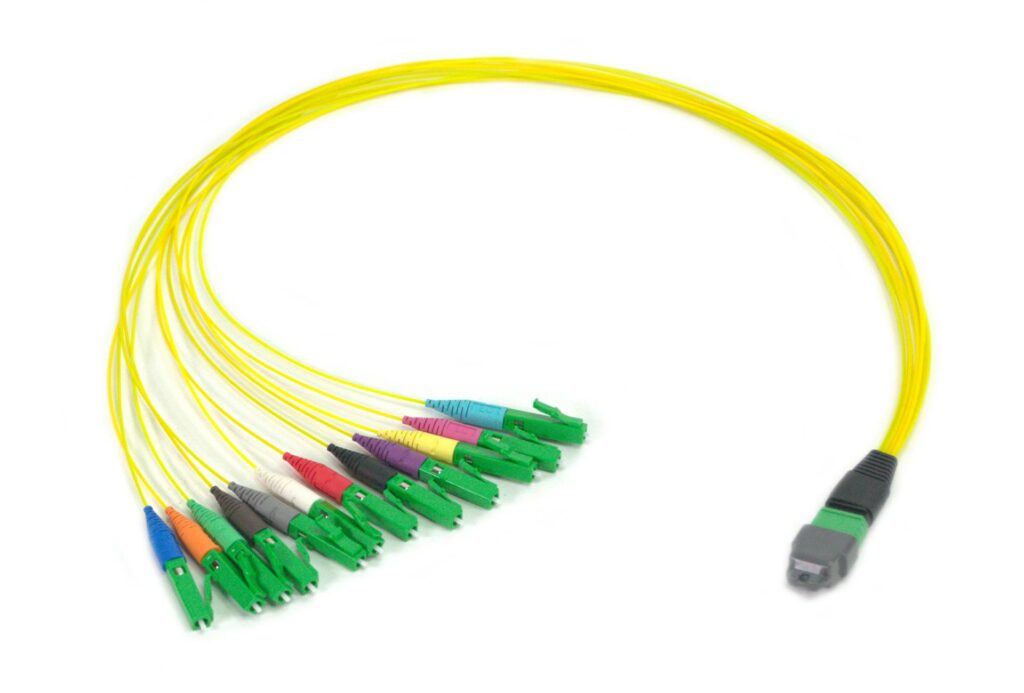

| 1x12f MTP(F) to 12xLC/APC 900um 12-fiber OS2 direct split – ET range | F129-FA9-xxxx-E |
| 1x12f MTP(F) to 12xLC/UPC 900um 12-fiber OS2 direct split – ET range | F129-FL9-xxxx-E |
| 1x12f MTP(F) to 12xLC/PC 900um 12-fiber OM3 direct split – ET range | F123-FL9-xxxx-E |
| 1x12f MTP(F) to 12xLC/PC 900um 12-fiber OM4 direct split – ET range | F124-FL9-xxxx-E |
*also available with MTP PRO connector and MALE MTP. For more information see the drawing.
