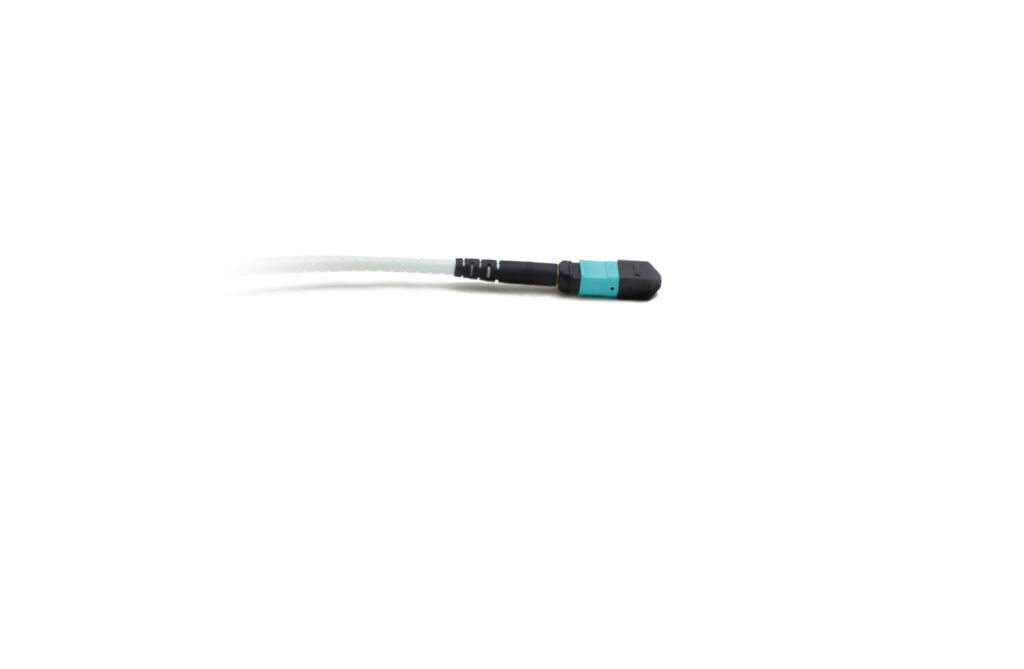

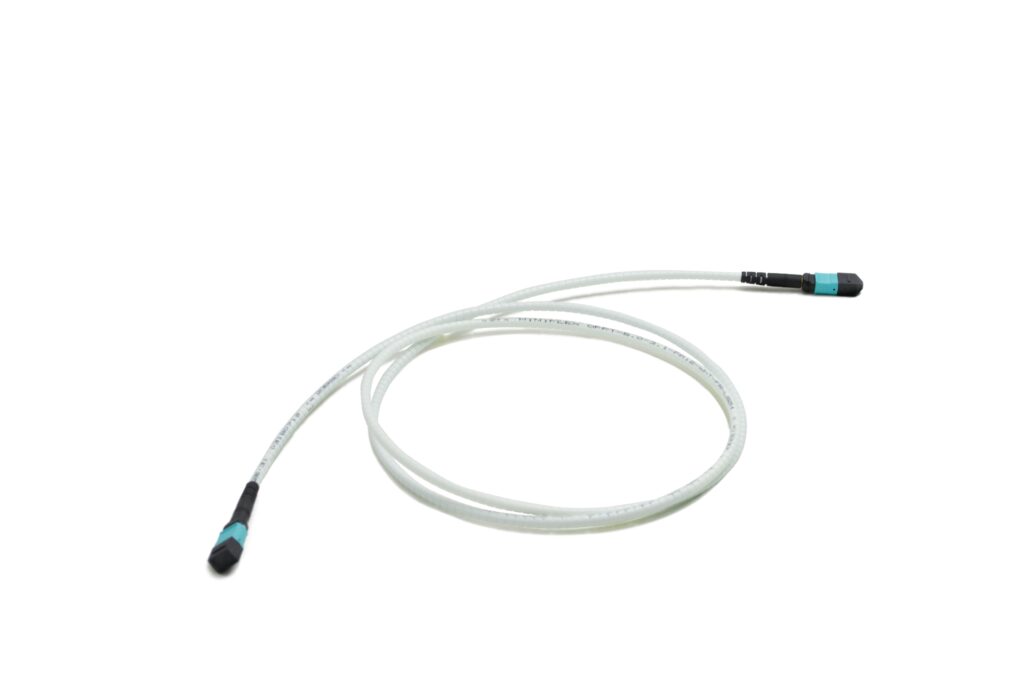

    1x12f MTP to 1x12f MTP 12-fiber Miniflex trunk cable

    • Designed for the application, where additional protection of the fiber is a must. Ruggedized corrugated Miniflex tube withstand any possible damage of the fiber during the installation – thanks to it’s robustness this trunk doesn’t need additional protection by conduit.
    • MTP® PRO connector optional
    Ask a question
    DATASHEET
    DRAWING
    Share this entry
    Temperature range
    		 Indoor controlled environment (-10°C/+60°C)
    Cable parameters
    Jacket material
    LSZH
    Cable construction
    		 Miniflex cable
    Outer diameter
    		 3.0mm
    Fiber count
    		 12
    Fiber type
    SM OS2 or MMF OM3/OM4/OM5
    Temperature range Operation: -20°C to +85°C
    Installation: -20°C to +60°C
    Connector parameters
    		MTP/MTP PRO SM MTP/MTP PRO MM
    Compliance
    US CONEC standard
    		 US CONEC standard
    Colour of housing
    Green
    		 Aqua/Magenta/Lime Green
    Colour of boot
    		 Black Black
    Polish
    		 Angled (APC) Flat (PC)
    Insertion Loss
    (acc. IEC 61300-3-4 method B)
    <0,35dB
    (@1310/1550nm)
    		 <0,35dB (@850/1300nm)
    Return Loss
    (acc. IEC 61300-3-6)
    >50dB
    (@1310/1550nm)
    		 >20dB (@850/1300nm)
    Identification Traceability label with unique serial number on both ends of cable assembly.
    Packaging
    Each assembly in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on cardboard/wooden reel.
    Description
    Partnumber/Ordering code
    1x12f MTP(F) to 1x12f MTP(F) 12-fiber OS2 Miniflex trunk cable, Polarity A
    T129-FFA-XXX-M
    1x12f MTP(F) to 1x12f MTP(M) 12-fiber OS2 Miniflex trunk cable, Polarity A
    T129-FMA-XXX-M
    1x12f MTP(M) to 1x12f MTP(M) 12-fiber OS2 Miniflex trunk cable, Polarity A
    T129-MMA-XXX-M
    1x12f MTP(F) to 1x12f MTP(F) 12-fiber OM3 Miniflex trunk cable, Polarity A
    T123-FFA-XXX-M
    1x12f MTP(F) to 1x12f MTP(M) 12-fiber OM3 Miniflex trunk cable, Polarity A
    T123-FMA-XXX-M
    1x12f MTP(M) to 1x12f MTP(M) 12-fiber OM3 Miniflex trunk cable, Polarity A
    T123-MMA-XXX-M
    1x12f MTP(F) to 1x12f MTP(F) 12-fiber OM4 Miniflex trunk cable, Polarity A
    T124-FFA-XXX-M
    1x12f MTP(F) to 1x12f MTP(M) 12-fiber OM4 Miniflex trunk cable, Polarity A
    T124-FMA-XXX-M
    1x12f MTP(M) to 1x12f MTP(M) 12-fiber OM4 Miniflex trunk cable, Polarity A
    T124-MMA-XXX-M
    1x12f MTP(F) to 1x12f MTP(F) 12-fiber OM5 Miniflex trunk cable, Polarity A
    T125-FFA-XXX-M
    1x12f MTP(F) to 1x12f MTP(M) 12-fiber OM5 Miniflex trunk cable, Polarity A
    T125-FMA-XXX-M
    1x12f MTP(M) to 1x12f MTP(M) 12-fiber OM5 Miniflex trunk cable, Polarity A
    T125-MMA-XXX-M
    1x12f MTP(F) to 1x12f MTP(F) 12-fiber OS2 Miniflex trunk cable, Polarity B
    T129-FFB-XXX-M
    1x12f MTP(F) to 1x12f MTP(M) 12-fiber OS2 Miniflex trunk cable, Polarity B
    T129-FMB-XXX-M
    1x12f MTP(M) to 1x12f MTP(M) 12-fiber OS2 Miniflex trunk cable, Polarity B
    T129-MMB-XXX-M
    1x12f MTP(F) to 1x12f MTP(F) 12-fiber OM3 Miniflex trunk cable, Polarity B
    T123-FFB-XXX-M
    1x12f MTP(F) to 1x12f MTP(M) 12-fiber OM3 Miniflex trunk cable, Polarity B
    T123-FMB-XXX-M
    1x12f MTP(M) to 1x12f MTP(M) 12-fiber OM3 Miniflex trunk cable, Polarity B
    T123-MMB-XXX-M
    1x12f MTP(F) to 1x12f MTP(F) 12-fiber OM4 Miniflex trunk cable, Polarity B
    T124-FFB-XXX-M
    1x12f MTP(F) to 1x12f MTP(M) 12-fiber OM4 Miniflex trunk cable, Polarity B
    T124-FMB-XXX-M
    1x12f MTP(M) to 1x12f MTP(M) 12-fiber OM4 Miniflex trunk cable, Polarity B
    T124-MMB-XXX-M
    1x12f MTP(F) to 1x12f MTP(F) 12-fiber OM5 Miniflex trunk cable, Polarity B
    T125-FFB-XXX-M
    1x12f MTP(F) to 1x12f MTP(M) 12-fiber OM5 Miniflex trunk cable, Polarity B
    T125-FMB-XXX-M
    1x12f MTP(M) to 1x12f MTP(M) 12-fiber OM5 Miniflex trunk cable, Polarity B
    T125-MMB-XXX-M
    1x12f MTP(F) to 1x12f MTP(F) 12-fiber OS2 Miniflex trunk cable, Polarity C
    T129-FFC-XXX-M
    1x12f MTP(F) to 1x12f MTP(M) 12-fiber OS2 Miniflex trunk cable, Polarity C
    T129-FMC-XXX-M
    1x12f MTP(M) to 1x12f MTP(M) 12-fiber OS2 Miniflex trunk cable, Polarity C
    T129-MMC-XXX-M
    1x12f MTP(F) to 1x12f MTP(F) 12-fiber OM3 Miniflex trunk cable, Polarity C
    T123-FFC-XXX-M
    1x12f MTP(F) to 1x12f MTP(M) 12-fiber OM3 Miniflex trunk cable, Polarity C
    T123-FMC-XXX-M
    1x12f MTP(M) to 1x12f MTP(M) 12-fiber OM3 Miniflex trunk cable, Polarity C
    T123-MMC-XXX-M
    1x12f MTP(F) to 1x12f MTP(F) 12-fiber OM4 Miniflex trunk cable, Polarity C
    T124-FFC-XXX-M
    1x12f MTP(F) to 1x12f MTP(M) 12-fiber OM4 Miniflex trunk cable, Polarity C
    T124-FMC-XXX-M
    1x12f MTP(M) to 1x12f MTP(M) 12-fiber OM4 Miniflex trunk cable, Polarity C
    T124-MMC-XXX-M
    1x12f MTP(F) to 1x12f MTP(F) 12-fiber OM5 Miniflex trunk cable, Polarity C
    T125-FFC-XXX-M
    1x12f MTP(F) to 1x12f MTP(M) 12-fiber OM5 Miniflex trunk cable, Polarity C
    T125-FMC-XXX-M
    1x12f MTP(M) to 1x12f MTP(M) 12-fiber OM5 Miniflex trunk cable, Polarity C
    T125-MMC-XXX-M
    *also available with MTP PRO connector. For more information see the drawing.
