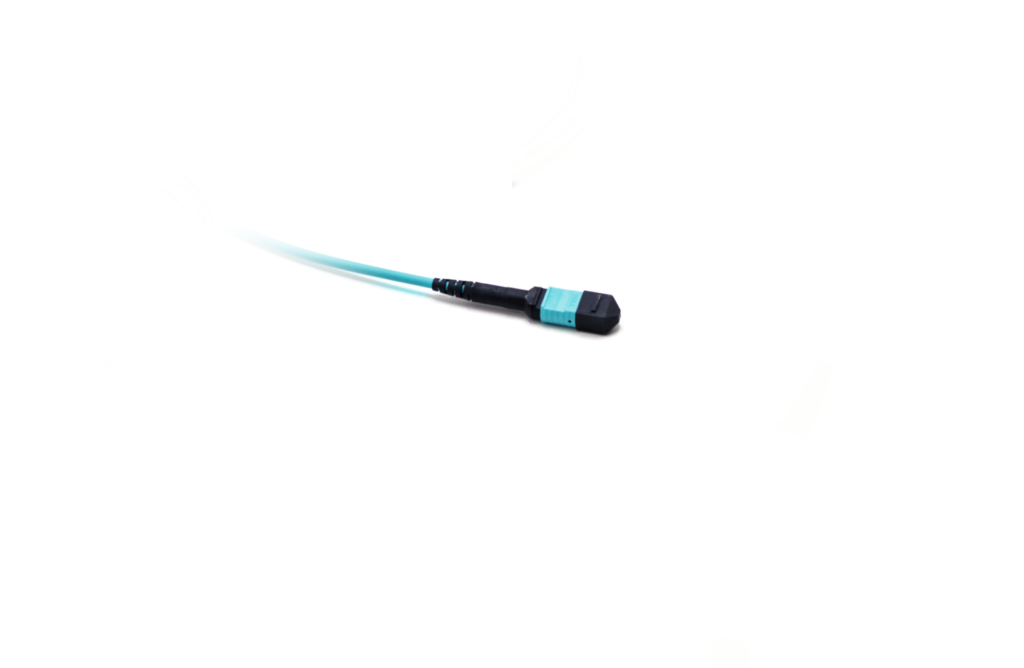

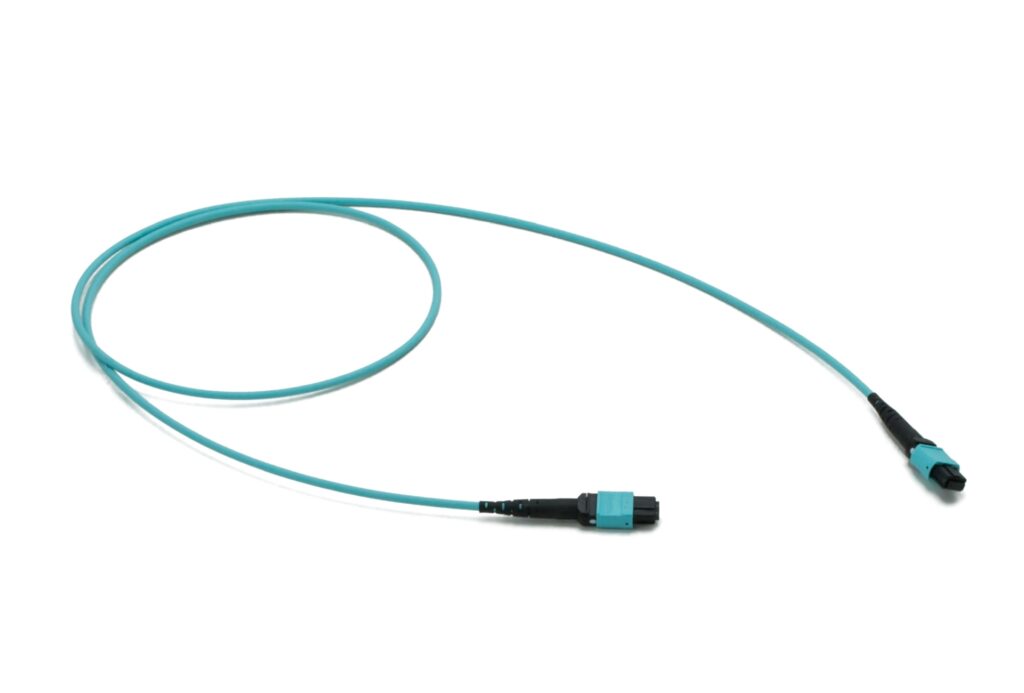

Temperature range |
Indoor controlled environment (-10°C/+60°C) | ||
| Cable parameters |
Jacket material |
LSZH
|
|
|
Cable construction |
Round cable | ||
|
Outer diameter |
3.0mm | ||
|
Fiber count |
12 | ||
|
Fiber type |
SM OS2 or MMF OM3/OM4/OM5
|
||
| Temperature range | Operation: -10°C to +70°C | ||
| Storage: -25°C to +70°C | |||
|
Installation: -5°C to +50°C
|
|||
|
CPR |
Cca-s1a, d1, a1 / B2ca-s1a, d1, a2
|
||
| Connector parameters | MTP/MTP PRO SM | MTP/MTP PRO MM | |
|
Compliance |
US CONEC standard |
US CONEC standard | |
|
Colour of housing
|
Green |
Aqua/Magenta/Lime Green | |
|
Colour of boot
|
Black | Black | |
|
Polish
|
Angled (APC) | Flat (PC) | |
|
Insertion Loss
(acc. IEC 61300-3-4 method B)
|
<0,35dB
(@1310/1550nm)
|
<0,35dB (@850/1300nm) | |
|
Return Loss
(acc. IEC 61300-3-6)
|
>50dB
(@1310/1550nm)
|
>20dB (@850/1300nm) | |
| Identification | Traceability label with unique serial number on both ends of cable assembly. | ||
| Packaging |
Each assembly in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on cardboard/wooden reel. |
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
|
Description |
Partnumber/Ordering code |
| 1x12f MTP(F) to 1x12f MTP(F) 12-fiber OS2 patch cable, Polarity A |
P129-FFA-XXX |
| 1x12f MTP(F) to 1x12f MTP(M) 12-fiber OS2 patch cable, Polarity A |
P129-FMA-XXX |
| 1x12f MTP(M) to 1x12f MTP(M) 12-fiber OS2 patch cable, Polarity A | P129-MMA-XXX |
| 1x12f MTP(F) to 1x12f MTP(F) 12-fiber OM3 patch cable, Polarity A |
P123-FFA-XXX |
| 1x12f MTP(F) to 1x12f MTP(M) 12-fiber OM3 patch cable, Polarity A |
P123-FMA-XXX |
| 1x12f MTP(M) to 1x12f MTP(M) 12-fiber OM3 patch cable, Polarity A | P123-MMA-XXX |
| 1x12f MTP(F) to 1x12f MTP(F) 12-fiber OM4 patch cable, Polarity A |
P124-FFA-XXX |
| 1x12f MTP(F) to 1x12f MTP(M) 12-fiber OM4 patch cable, Polarity A |
P124-FMA-XXX |
| 1x12f MTP(M) to 1x12f MTP(M) 12-fiber OM4 patch cable, Polarity A | P124-MMA-XXX |
| 1x12f MTP(F) to 1x12f MTP(F) 12-fiber OM5 patch cable, Polarity A | P125-FFA-XXX |
| 1x12f MTP(F) to 1x12f MTP(M) 12-fiber OM5 patch cable, Polarity A | P125-FMA-XXX |
| 1x12f MTP(M) to 1x12f MTP(M) 12-fiber OM5 patch cable, Polarity A |
P125-MMA-XXX |
| 1x12f MTP(F) to 1x12f MTP(F) 12-fiber OS2 patch cable, Polarity B | P129-FFB-XXX |
| 1x12f MTP(F) to 1x12f MTP(M) 12-fiber OS2 patch cable, Polarity B | P129-FMB-XXX |
| 1x12f MTP(M) to 1x12f MTP(M) 12-fiber OS2 patch cable, Polarity B |
P129-MMB-XXX |
| 1x12f MTP(F) to 1x12f MTP(F) 12-fiber OM3 patch cable, Polarity B |
P123-FFB-XXX |
| 1x12f MTP(F) to 1x12f MTP(M) 12-fiber OM3 patch cable, Polarity B |
P123-FMB-XXX |
| 1x12f MTP(M) to 1x12f MTP(M) 12-fiber OM3 patch cable, Polarity B | P123-MMB-XXX |
| 1x12f MTP(F) to 1x12f MTP(F) 12-fiber OM4 patch cable, Polarity B | P124-FFB-XXX |
| 1x12f MTP(F) to 1x12f MTP(M) 12-fiber OM4 patch cable, Polarity B | P124-FMB-XXX |
| 1x12f MTP(M) to 1x12f MTP(M) 12-fiber OM4 patch cable, Polarity B | P124-MMB-XXX |
| 1x12f MTP(F) to 1x12f MTP(F) 12-fiber OM5 patch cable, Polarity B | P125-FFB-XXX |
| 1x12f MTP(F) to 1x12f MTP(M) 12-fiber OM5 patch cable, Polarity B | P125-FMB-XXX |
| 1x12f MTP(M) to 1x12f MTP(M) 12-fiber OM5 patch cable, Polarity B | P125-MMB-XXX |
| 1x12f MTP(F) to 1x12f MTP(F) 12-fiber OS2 patch cable, Polarity C | P129-FFC-XXX |
| 1x12f MTP(F) to 1x12f MTP(M) 12-fiber OS2 patch cable, Polarity C | P129-FMC-XXX |
| 1x12f MTP(M) to 1x12f MTP(M) 12-fiber OS2 patch cable, Polarity C | P129-MMC-XXX |
| 1x12f MTP(F) to 1x12f MTP(F) 12-fiber OM3 patch cable, Polarity C | P123-FFC-XXX |
| 1x12f MTP(F) to 1x12f MTP(M) 12-fiber OM3 patch cable, Polarity C | P123-FMC-XXX |
| 1x12f MTP(M) to 1x12f MTP(M) 12-fiber OM3 patch cable, Polarity C | P123-MMC-XXX |
| 1x12f MTP(F) to 1x12f MTP(F) 12-fiber OM4 patch cable, Polarity C | P124-FFC-XXX |
| 1x12f MTP(F) to 1x12f MTP(M) 12-fiber OM4 patch cable, Polarity C | P124-FMC-XXX |
| 1x12f MTP(M) to 1x12f MTP(M) 12-fiber OM4 patch cable, Polarity C |
P124-MMC-XXX |
| 1x12f MTP(F) to 1x12f MTP(F) 12-fiber OM5 patch cable, Polarity C | P125-FFC-XXX |
| 1x12f MTP(F) to 1x12f MTP(M) 12-fiber OM5 patch cable, Polarity C | P125-FMC-XXX |
| 1x12f MTP(M) to 1x12f MTP(M) 12-fiber OM5 patch cable, Polarity C |
P125-MMC-XXX |
*also available with MTP PRO connector. For more information see the drawing.
