Temperature range |
Indoor controlled environment (-10°C/+60°C) | ||
| Cable parameters |
Jacket material |
LSZH/PVC
|
|
|
Cable construction |
Round cable | ||
|
Outer diameter |
3.0mm | ||
|
Fiber count |
16 | ||
|
Fiber type |
SM OS2 or MMF OM3/OM4
|
||
| Temperature range | Operation: -20°C to +70°C (PVC) | ||
| Storage: -40°C to +70°C (PVC) | |||
|
Installation: -0°C to +70°C (PVC)
|
|||

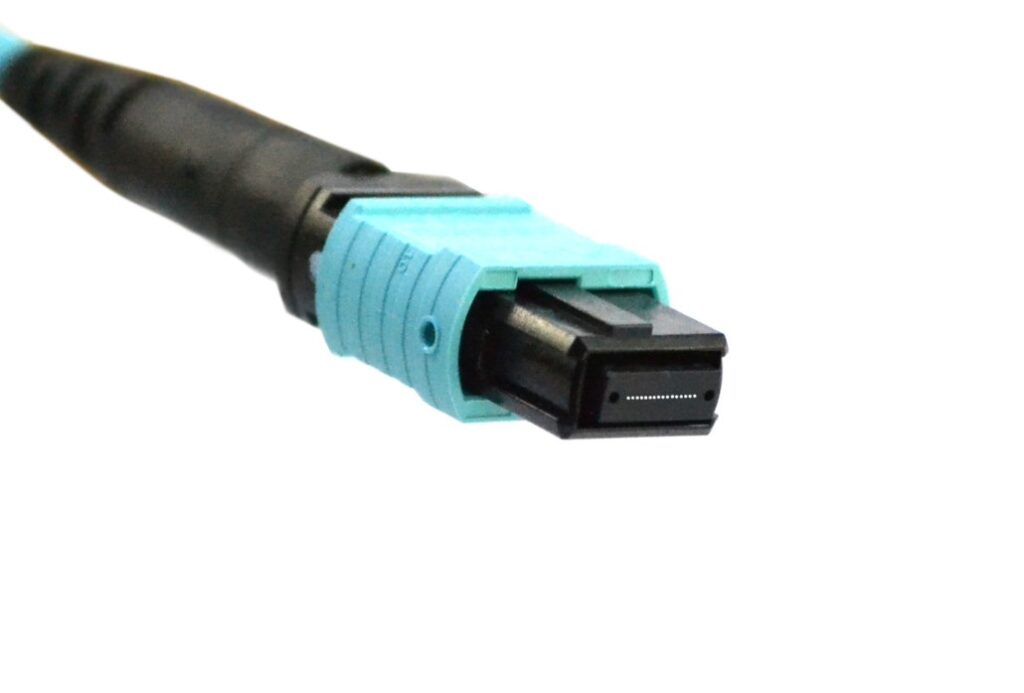

| Connector parameters | MTP® SM | MTP® MM APC | |
|
Compliance |
US CONEC standard |
US CONEC standard | |
|
Colour of housing
|
Green | Aqua / Magenta | |
|
Colour of boot
|
Black | Black | |
|
Polish
|
Angled (APC) | Angled (APC) | |
|
Insertion Loss
(acc. IEC 61300-3-4 method B)
|
<0,35dB (@1310/1550nm) |
<0,35dB (@850/1300nm) | |
|
Return Loss
(acc. IEC 61300-3-6)
|
>50dB (@1310/1550nm) |
>50dB (@850/1300nm) | |
| Identification | Traceability label with unique serial number on both ends of cable assembly. | ||
| Packaging |
Each assembly in plastic bag, bulk pack in cardboard box.Longer lengths coiled on cardboard/wooden reel. |
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
|
Description |
Partnumber/Ordering code |

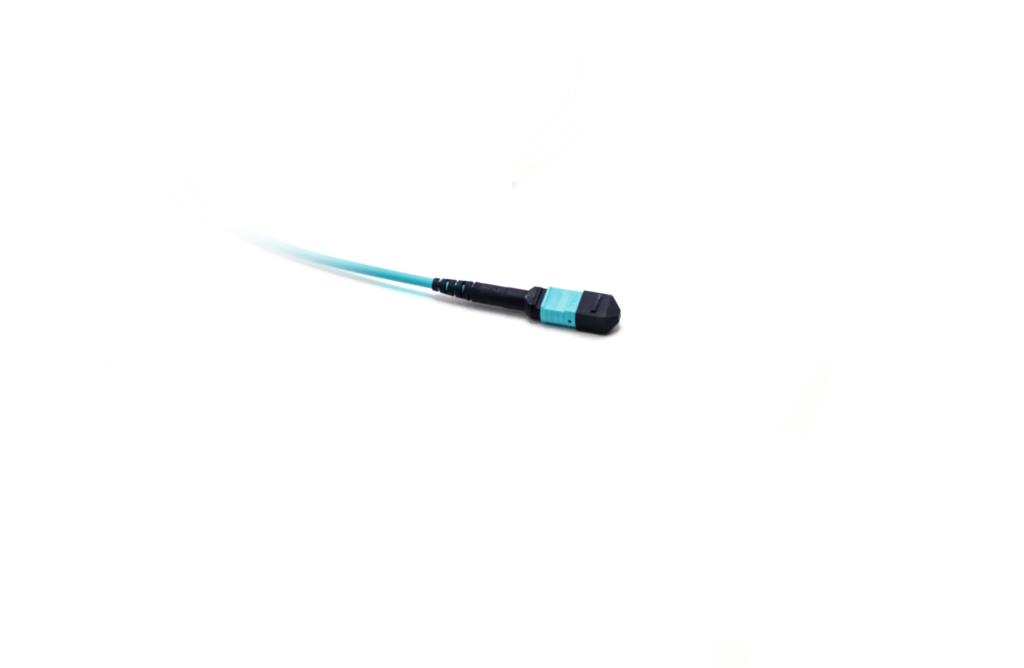

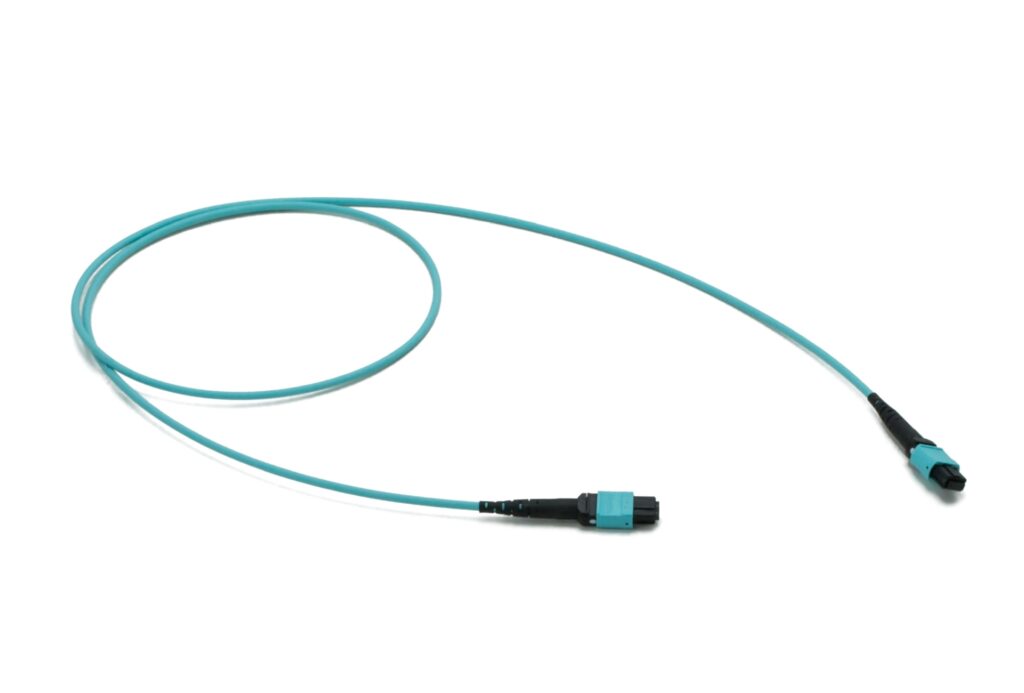

| 1x16f MTP(F)/APC to 1x16f MTP(F)/APC 16-fiber OM3 patch cable, Polarity A |
P163-66A-XXX |
| 1x16f MTP(F)/APC to 1x16f MTP(M)/APC 16-fiber OM3 patch cable, Polarity A |
P163-67A-XXX |
| 1x16f MTP(M)/APC to 1x16f MTP(M)/APC 16-fiber OM3 patch cable, Polarity A | P163-77A-XXX |
| 1x16f MTP(F)/APC to 1x16f MTP(F)/APC 16-fiber OM4 patch cable, Polarity A |
P164-66A-XXX |
| 1x16f MTP(F)/APC to 1x16f MTP(M)/APC 16-fiber OM4 patch cable, Polarity A |
P164-67A-XXX |
| 1x16f MTP(M)/APC to 1x16f MTP(M)/APC 16-fiber OM4 patch cable, Polarity A | P164-77A-XXX |
* for more combination please see the drawing
