Temperature range |
Indoor controlled environment (-10°C/+60°C) | ||
| Cable parameters |
Jacket material |
LSZH
|
|
|
Cable construction |
Round double jacket cable – ruggedized | ||
|
Outer diameter |
3.8mm/5.4mm | ||
|
Fiber count |
24 | ||
|
Fiber type |
SM OS2 or MMF OM3/OM4/OM5
|
||
| Temperature range | Operation: -10°C to +70°C | ||
| Storage: -25°C to +70°C | |||
|
Installation: -5°C to +50°C
|
|||
|
CPR |
Cca-s1a, d1, a1
|
||

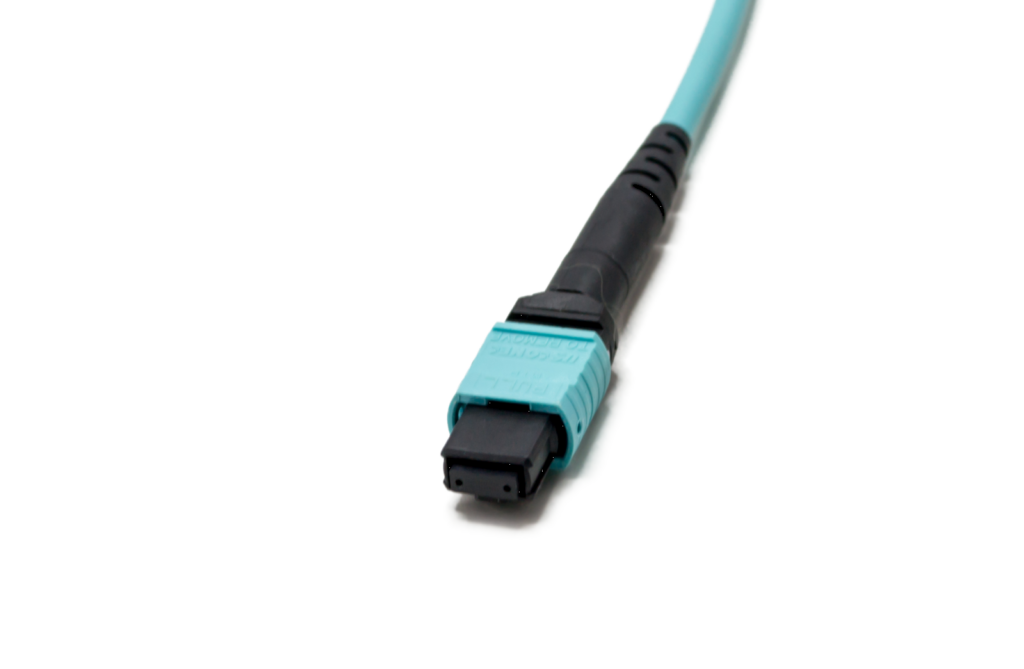

| Connector parameters | MTP/MTP PRO SM | MTP/MTP PRO MM | |
|
Compliance |
US CONEC standard |
US CONEC standard | |
|
Colour of housing
|
Green |
Aqua/Magenta/Lime Green | |
|
Colour of boot
|
Black | Black | |
|
Polish
|
Angled (APC) | Flat (PC) | |
|
Insertion Loss
(acc. IEC 61300-3-4 method B)
|
<0,35dB
(@1310/1550nm)
|
<0,35dB (@850/1300nm) | |
|
Return Loss
(acc. IEC 61300-3-6)
|
>50dB
(@1310/1550nm)
|
>20dB (@850/1300nm) | |
| Identification | Traceability label with unique serial number on both ends of cable assembly. | ||
| Packaging |
Each assembly in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on cardboard/wooden reel. |
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
|
Description |
Partnumber/Ordering code |

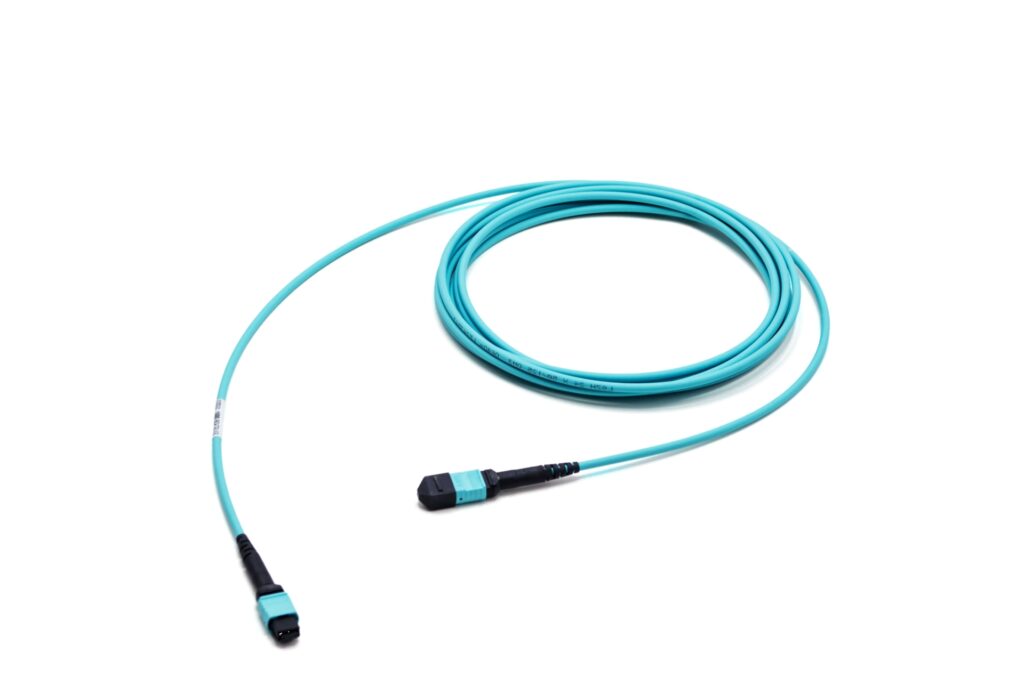

| 1x24f MTP(F) to 1x24f MTP(F) 24-fiber OS2 ruggedized trunk cable, Polarity A |
T249-GGA-XXX |
| 1x24f MTP(F) to 1x24f MTP(F) 24-fiber OS2 ruggedized trunk cable, Polarity C |
T249-GGC-XXX |
| 1x24f MTP(F) to 1x24f MTP(F) 24-fiber OS2 ruggedized trunk cable, Polarity X |
T249-GGX-XXX |
| 1x24f MTP(F) to 1x24f MTP(F) 24-fiber OM3 ruggedized trunk cable, Polarity A |
T243-GGA-XXX |
| 1x24f MTP(F) to 1x24f MTP(F) 24-fiber OM3 ruggedized trunk cable, Polarity B |
T243-GGB-XXX |
| 1x24f MTP(F) to 1x24f MTP(F) 24-fiber OM3 ruggedized trunk cable, Polarity C |
T243-GGC-XXX |
| 1x24f MTP(F) to 1x24f MTP(F) 24-fiber OM3 ruggedized trunk cable, Polarity X |
T243-GGX-XXX |
| 1x24f MTP(F) to 1x24f MTP(F) 24-fiber OM4 ruggedized trunk cable, Polarity A |
T244-GGA-XXX |
| 1x24f MTP(F) to 1x24f MTP(F) 24-fiber OM4 ruggedized trunk cable, Polarity B |
T244-GGB-XXX
|
| 1x24f MTP(F) to 1x24f MTP(F) 24-fiber OM4 ruggedized trunk cable, Polarity C |
T244-GGC-XXX
|
| 1x24f MTP(F) to 1x24f MTP(F) 24-fiber OM4 ruggedized trunk cable, Polarity X |
T244-GGX-XXX |
| 1x24f MTP(F) to 1x24f MTP(M) 24-fiber OS2 ruggedized trunk cable, Polarity A |
T249-GNA-XXX |
| 1x24f MTP(F) to 1x24f MTP(M) 24-fiber OS2 ruggedized trunk cable, Polarity C |
T249-GNC-XXX |
| 1x24f MTP(F) to 1x24f MTP(M) 24-fiber OS2 ruggedized trunk cable, Polarity X |
T249-GNX-XXX |
| 1x24f MTP(F) to 1x24f MTP(M) 24-fiber OM3 ruggedized trunk cable, Polarity A |
T243-GNA-XXX |
| 1x24f MTP(F) to 1x24f MTP(M) 24-fiber OM3 ruggedized trunk cable, Polarity B |
T243-GNB-XXX |
| 1x24f MTP(F) to 1x24f MTP(M) 24-fiber OM3 ruggedized trunk cable, Polarity C |
T243-GNC-XXX |
| 1x24f MTP(F) to 1x24f MTP(M) 24-fiber OM3 ruggedized trunk cable, Polarity X |
T243-GNX-XXX |
| 1x24f MTP(F) to 1x24f MTP(M) 24-fiber OM4 ruggedized trunk cable, Polarity A |
T244-GNA-XXX |
| 1x24f MTP(F) to 1x24f MTP(M) 24-fiber OM4 ruggedized trunk cable, Polarity B |
T244-GNB-XXX
|
| 1x24f MTP(F) to 1x24f MTP(M) 24-fiber OM4 ruggedized trunk cable, Polarity C |
T244-GNC-XXX
|
| 1x24f MTP(F) to 1x24f MTP(M) 24-fiber OM4 ruggedized trunk cable, Polarity X |
T244-GNX-XXX |
| 1x24f MTP(M) to 1x24f MTP(M) 24-fiber OS2 ruggedized trunk cable, Polarity A |
T249-NNA-XXX |
| 1x24f MTP(M) to 1x24f MTP(M) 24-fiber OS2 ruggedized trunk cable, Polarity C |
T249-NNC-XXX |
| 1x24f MTP(M) to 1x24f MTP(M) 24-fiber OS2 ruggedized trunk cable, Polarity X |
T249-NNX-XXX |
| 1x24f MTP(M) to 1x24f MTP(M) 24-fiber OM3 ruggedized trunk cable, Polarity A |
T243-NNA-XXX |
| 1x24f MTP(M) to 1x24f MTP(M) 24-fiber OM3 ruggedized trunk cable, Polarity B |
T243-NNB-XXX |
| 1x24f MTP(M) to 1x24f MTP(M) 24-fiber OM3 ruggedized trunk cable, Polarity C |
T243-NNC-XXX |
| 1x24f MTP(M) to 1x24f MTP(M) 24-fiber OM3 ruggedized trunk cable, Polarity X |
T243-NNX-XXX |
| 1x24f MTP(M) to 1x24f MTP(M) 24-fiber OM4 ruggedized trunk cable, Polarity A |
T244-NNA-XXX |
| 1x24f MTP(M) to 1x24f MTP(M) 24-fiber OM4 ruggedized trunk cable, Polarity B |
T244-NNB-XXX
|
| 1x24f MTP(M) to 1x24f MTP(M) 24-fiber OM4 ruggedized trunk cable, Polarity C |
T244-NNC-XXX
|
| 1x24f MTP(M) to 1x24f MTP(M) 24-fiber OM4 ruggedized trunk cable, Polarity X |
T244-NNX-XXX |
*also available with MTP PRO connector. For more information see the drawing.
