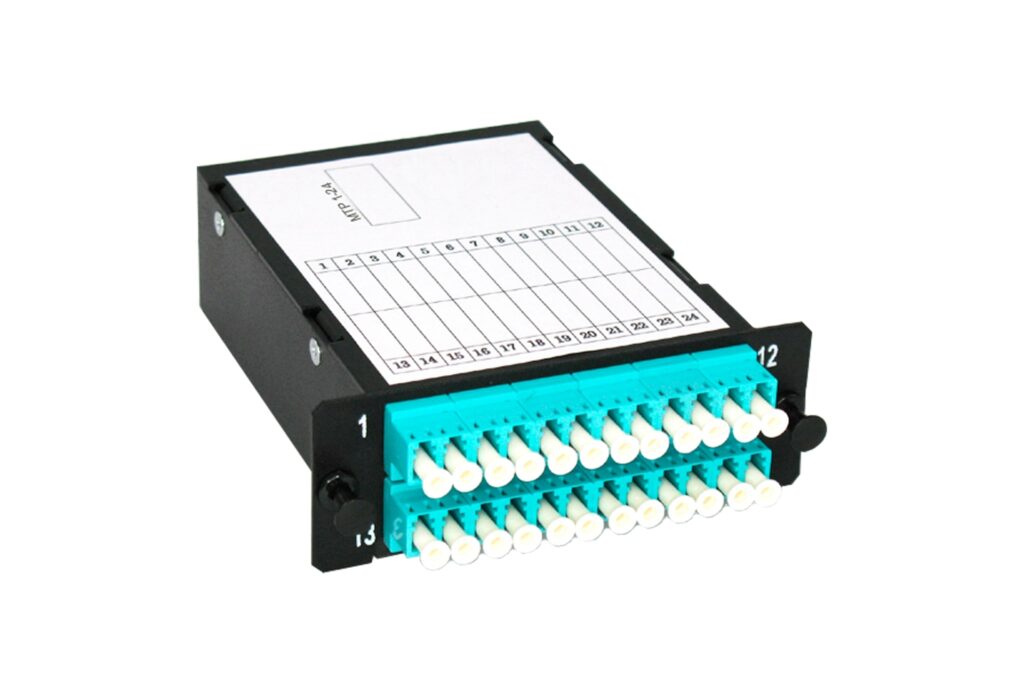

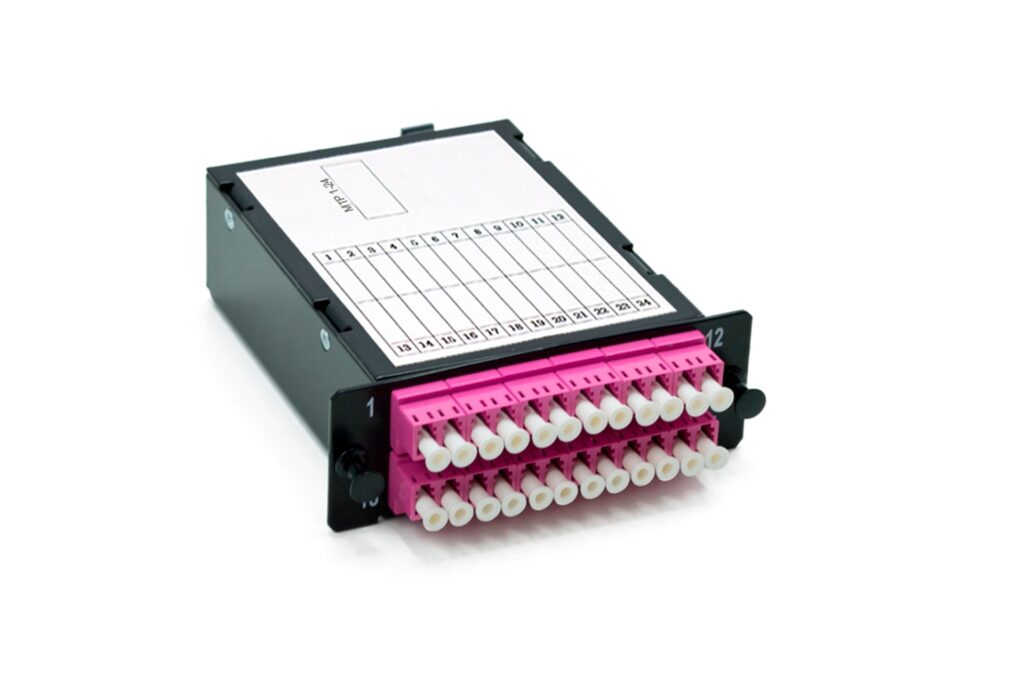

2x12f MTP to 12xLC duplex module

Temperature range	Controlled environment (-10°C/+60°C)
Parameters	Dimensions	116 x 108,2 x 38 mm
	Material	painted steel
	Colour	deep black RAL9005
	Fixation method	Snap in latch
	Colour of adapters	LC: blue (UPC), green (APC), aqua (OM3), magenta (OM4), lime (OM5) MTP: green (OS2), aqua (OM3), magenta (OM4), lime (OM5)
	Capacity	2×12 fibers
	Optical performance	IL<0,6dB per channel, (OS2/OM3/OM4/OM5) RL>19,6dB per channel, (OM3/OM4/OM5) RL>47dB per channel, (OS2-UPC) RL>49,6dB per channel, (OS2-APC) more details in section MTP to LC direct split
Identification	Label with unique serial number
Packaging	Each module in cardboard box, bulk pack in master cardboard box

Description	Partnumber/Ordering code
P&P MODULE 02x MTP(F) GN – 12x LCD/UPC BU OS2 Standard Size	M249-LF2-BLS
P&P MODULE 02x MTP(F) GN – 12x LCD/APC GR OS2 Standard Size	M249-AF2-BLS
P&P MODULE 02x MTP(F) AQ – 12x LCD/PC AQ OM3 Standard Size	M243-LF2-BLS
P&P MODULE 02x MTP(F) MA – 12x LCD/PC MA OM4 Standard Size	M244-LF2-BLS
P&P MODULE 02x MTP(F) LI – 12x LCD/PC LI OM5 Standard Size	M245-LF2-BLS
P&P MODULE 02x MTP(M) GN – 12x LCD/UPC BU OS2 Standard Size	M249-LM2-BLS
P&P MODULE 02x MTP(M) GN – 12x LCD/APC GR OS2 Standard Size	M249-AM2-BLS
P&P MODULE 02x MTP(M) AQ – 12x LCD/PC AQ OM3 Standard Size	M243-LM2-BLS
P&P MODULE 02x MTP(M) MA – 12x LCD/PC MA OM4 Standard Size	M244-LM2-BLS
P&P MODULE 02x MTP(M) LI – 12x LCD/PC LI OM5 Standard Size	M245-LM2-BLS

Interconnections
