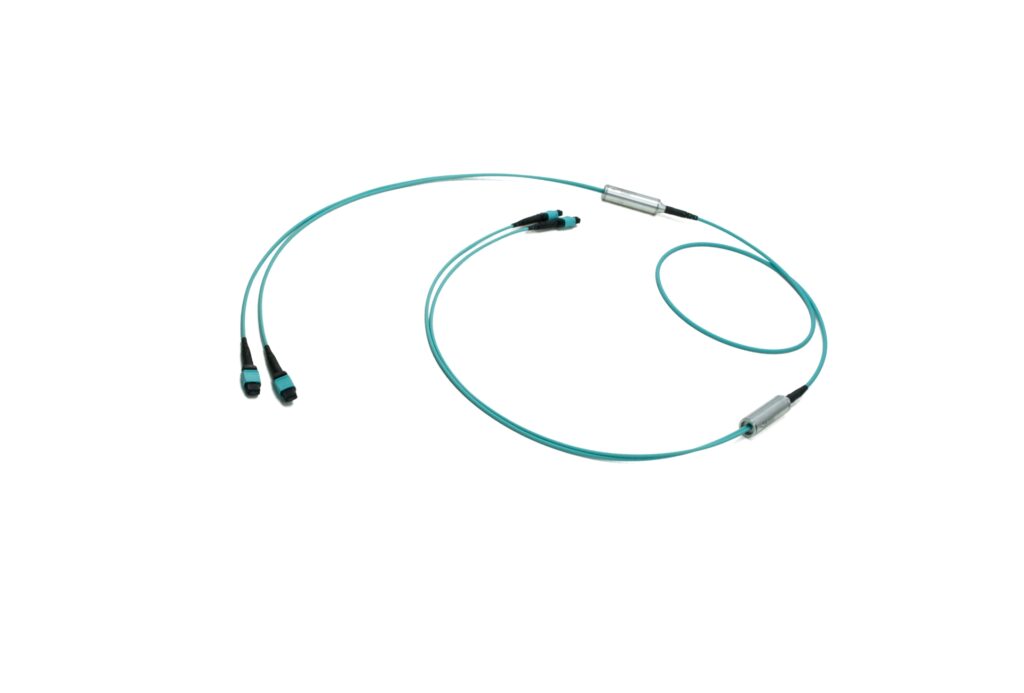

    2x12f MTP to 2x12f MTP 24-fiber Duralino trunk cable

    • 2xMTP to 2xMTP multi-trunk cable combines the need for thin and very small space consuming cable and need for high bandwidth parallel connection. Double jacket 5.4mm cable containing 24-fibers offers portable and compact cabling creating 2x40G parallel interconnection.
    • MTP® PRO connector optional
    Ask a question
    DATASHEET
    DRAWING
    Share this entry
    Temperature range
    		 Indoor controlled environment (-10°C/+60°C)
    Cable parameters
    Jacket material
    LSZH
    Cable construction
    		 Round double jacket cable – ruggedized
    Outer diameter
    		 3.8mm/5.4mm
    Fiber count
    		 24
    Fiber type
    SM OS2 or MMF OM3/OM4/OM5
    Temperature range Operation: -10°C to +70°C
    Storage: -25°C to +70°C
    Installation: -5°C to +50°C
    CPR
    Cca-s1a, d1, a1

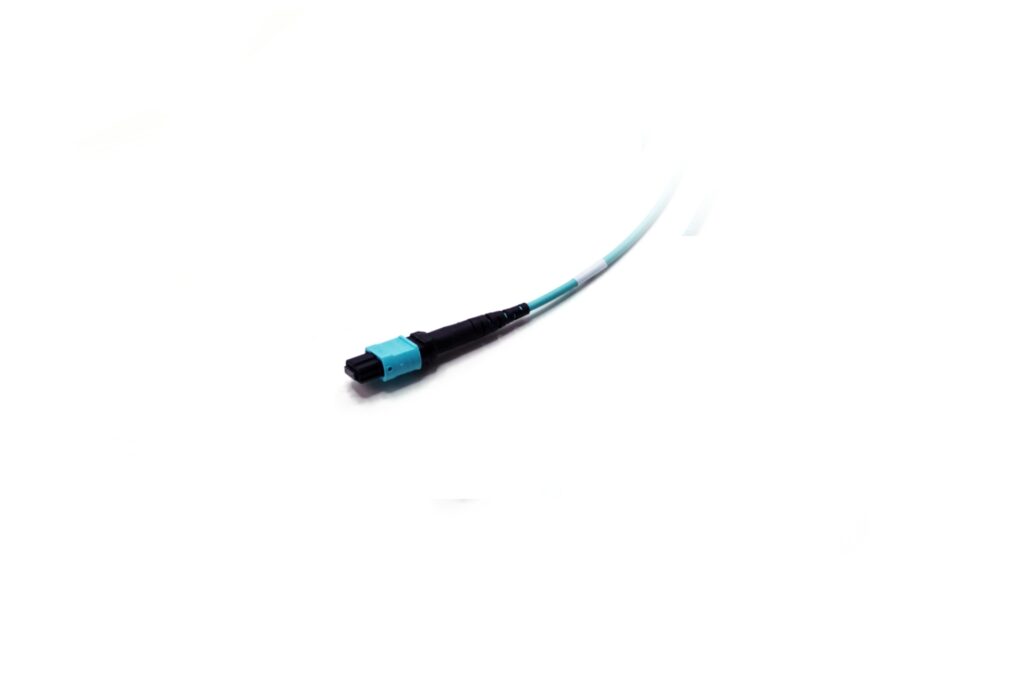

    Connector parameters
    		MTP/MTP PRO SM MTP/MTP PRO MM
    Compliance
    US CONEC standard
    		 US CONEC standard
    Colour of housing
    Green
    		 Aqua/Magenta/Lime Green
    Colour of boot
    		 Black Black
    Polish
    		 Angled (APC) Flat (PC)
    Insertion Loss
    (acc. IEC 61300-3-4 method B)
    <0,35dB
    (@1310/1550nm)
    		 <0,35dB (@850/1300nm)
    Return Loss
    (acc. IEC 61300-3-6)
    >50dB
    (@1310/1550nm)
    		 >20dB (@850/1300nm)

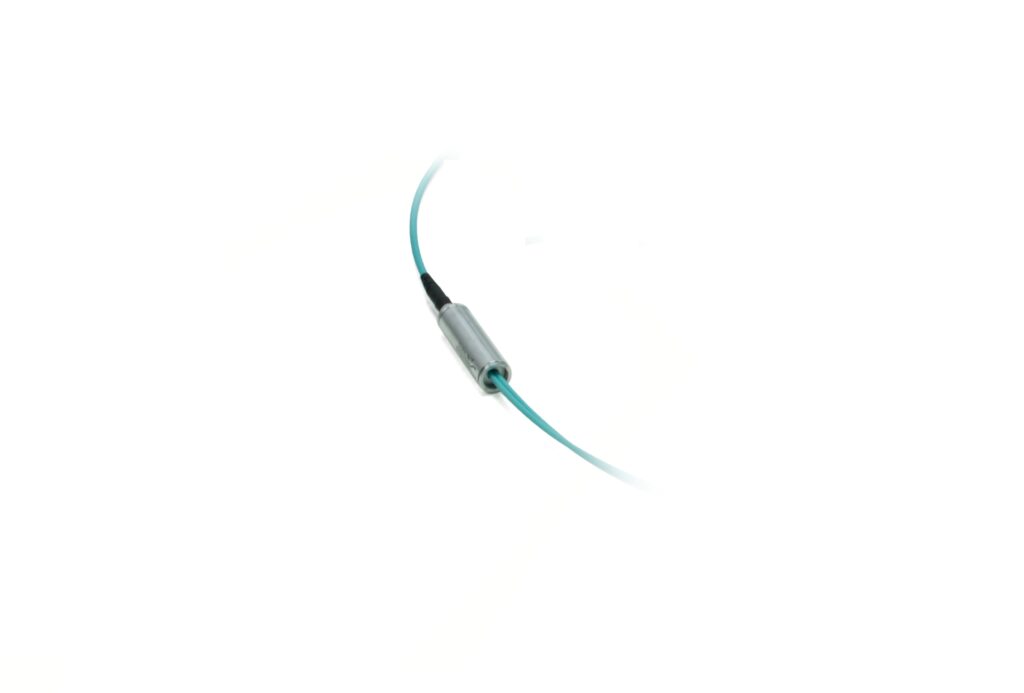

    Fanout
    Material (body / other parts)
    ABS* / metal
    Duralino body diameter
    		 15.5mm
    IP Rating
    		 IP40
    Identification Traceability label with unique serial number on both ends of cable assembly.
    Packaging
    Each assembly in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on cardboard/wooden reel.
    * Fanout metal body optional
    Description
    Partnumber/Ordering code
    2x12f MTP(F) to 2x12f MTP(F) 24-fiber OS2 ruggedized trunk cable, Polarity A
    T249-FFA-XXX
    2x12f MTP(F) to 2x12f MTP(M) 24-fiber OS2 ruggedized trunk cable, Polarity A
    T249-FMA-XXX
    2x12f MTP(M) to 2x12f MTP(M) 24-fiber OS2 ruggedized trunk cable, Polarity A
    T249-MMA-XXX
    2x12f MTP(F) to 2x12f MTP(F) 24-fiber OM3 ruggedized trunk cable, Polarity A
    T243-FFA-XXX
    2x12f MTP(F) to 2x12f MTP(M) 24-fiber OM3 ruggedized trunk cable, Polarity A
    T243-FMA-XXX
    2x12f MTP(M) to 2x12f MTP(M) 24-fiber OM3 ruggedized trunk cable, Polarity A
    T243-MMA-XXX
    2x12f MTP(F) to 2x12f MTP(F) 24-fiber OM4 ruggedized trunk cable, Polarity A
    T244-FFA-XXX
    2x12f MTP(F) to 2x12f MTP(M) 24-fiber OM4 ruggedized trunk cable, Polarity A
    T244-FMA-XXX
    2x12f MTP(M) to 2x12f MTP(M) 24-fiber OM4 ruggedized trunk cable, Polarity A
    T244-MMA-XXX
    2x12f MTP(F) to 2x12f MTP(F) 24-fiber OM5 ruggedized trunk cable, Polarity A
    T245-FFA-XXX
    2x12f MTP(F) to 2x12f MTP(M) 24-fiber OM5 ruggedized trunk cable, Polarity A
    T245-FMA-XXX
    2x12f MTP(M) to 2x12f MTP(M) 24-fiber OM5 ruggedized trunk cable, Polarity A
    T245-MMA-XXX
    2x12f MTP(F) to 2x12f MTP(F) 24-fiber OS2 ruggedized trunk cable, Polarity B
    T249-FFB-XXX
    2x12f MTP(F) to 2x12f MTP(M) 24-fiber OS2 ruggedized trunk cable, Polarity B
    T249-FMB-XXX
    2x12f MTP(M) to 2x12f MTP(M) 24-fiber OS2 ruggedized trunk cable, Polarity B
    T249-MMB-XXX
    2x12f MTP(F) to 2x12f MTP(F) 24-fiber OM3 ruggedized trunk cable, Polarity B
    T243-FFB-XXX
    2x12f MTP(F) to 2x12f MTP(M) 24-fiber OM3 ruggedized trunk cable, Polarity B
    T243-FMB-XXX
    2x12f MTP(M) to 2x12f MTP(M) 24-fiber OM3 ruggedized trunk cable, Polarity B
    T243-MMB-XXX
    2x12f MTP(F) to 2x12f MTP(F) 24-fiber OM4 ruggedized trunk cable, Polarity B
    T244-FFB-XXX
    2x12f MTP(F) to 2x12f MTP(M) 24-fiber OM4 ruggedized trunk cable, Polarity B
    T244-FMB-XXX
    2x12f MTP(M) to 2x12f MTP(M) 24-fiber OM4 ruggedized trunk cable, Polarity B
    T244-MMB-XXX
    2x12f MTP(F) to 2x12f MTP(F) 24-fiber OM5 ruggedized trunk cable, Polarity B
    T245-FFB-XXX
    2x12f MTP(F) to 2x12f MTP(M) 24-fiber OM5 ruggedized trunk cable, Polarity B
    T245-FMB-XXX
    2x12f MTP(M) to 2x12f MTP(M) 24-fiber OM5 ruggedized trunk cable, Polarity B
    T245-MMB-XXX
    2x12f MTP(F) to 2x12f MTP(F) 24-fiber OS2 ruggedized trunk cable, Polarity C
    T249-FFC-XXX
    2x12f MTP(F) to 2x12f MTP(M) 24-fiber OS2 ruggedized trunk cable, Polarity C
    T249-FMC-XXX
    2x12f MTP(M) to 2x12f MTP(M) 24-fiber OS2 ruggedized trunk cable, Polarity C
    T249-MMC-XXX
    2x12f MTP(F) to 2x12f MTP(F) 24-fiber OM3 ruggedized trunk cable, Polarity C
    T243-FFC-XXX
    2x12f MTP(F) to 2x12f MTP(M) 24-fiber OM3 ruggedized trunk cable, Polarity C
    T243-FMC-XXX
    2x12f MTP(M) to 2x12f MTP(M) 24-fiber OM3 ruggedized trunk cable, Polarity C
    T243-MMC-XXX
    2x12f MTP(F) to 2x12f MTP(F) 24-fiber OM4 ruggedized trunk cable, Polarity C
    T244-FFC-XXX
    2x12f MTP(F) to 2x12f MTP(M) 24-fiber OM4 ruggedized trunk cable, Polarity C
    T244-FMC-XXX
    2x12f MTP(M) to 2x12f MTP(M) 24-fiber OM4 ruggedized trunk cable, Polarity C
    T244-MMC-XXX
    2x12f MTP(F) to 2x12f MTP(F) 24-fiber OM5 ruggedized trunk cable, Polarity C
    T245-FFC-XXX
    2x12f MTP(F) to 2x12f MTP(M) 24-fiber OM5 ruggedized trunk cable, Polarity C
    T245-FMC-XXX
    2x12f MTP(M) to 2x12f MTP(M) 24-fiber OM5 ruggedized trunk cable, Polarity C
    T245-MMC-XXX
    *also available with grommet and with MTP PRO connector. For more information see the drawing.
