Temperature range | Indoor controlled environment (-10°C/+60°C) | ||
Cable parameters | Jacket material | LSZH | |
Cable construction | Micro-Bundle | ||
Outer diameter | 5.7mm | ||
Fiber count | 48 | ||
Fiber type | SM OS2 or MMF OM3/OM4/OM5 | ||
Temperature range | Operation: -10°C to +70°C | ||
Storage: -25°C to +70°C | |||
Installation: -5°C to +50°C | |||
CPR | Cca-s1a, d1, a1 | ||

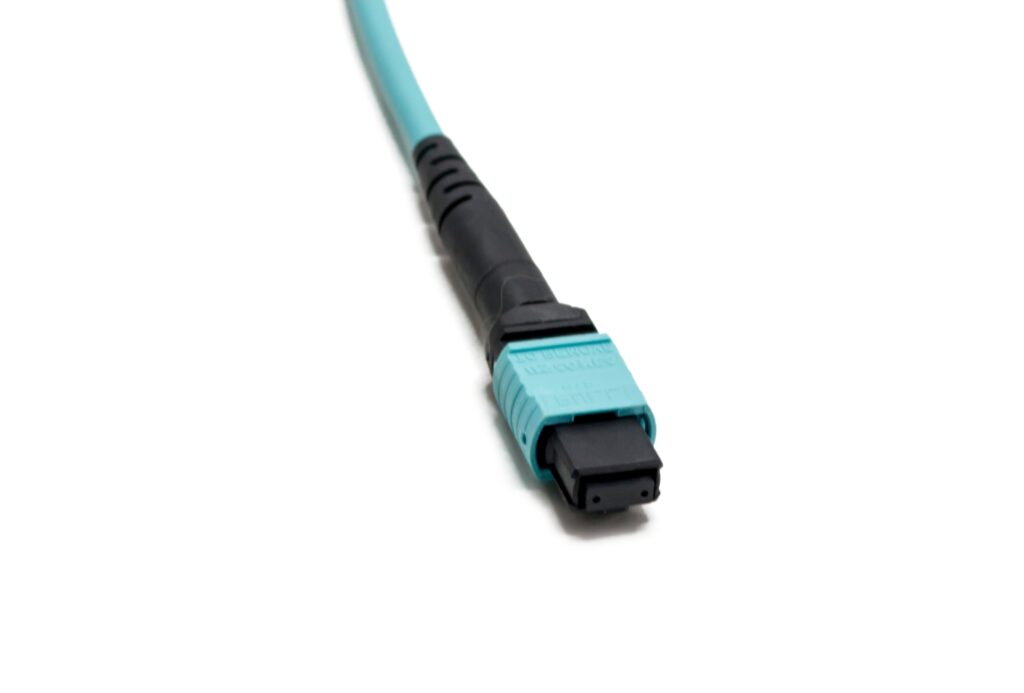

Connector parameters | MTP/MTP PRO SM | MTP/MTP PRO MM | |
Compliance | US CONEC standard | US CONEC standard | |
Colour of housing | Green | Aqua/Magenta/Lime Green | |
Colour of boot | Black | Black | |
Polish | Angled (APC) | Flat (PC) | |
Insertion Loss (acc. IEC 61300-3-4 method B) | <0,35dB (@1310/1550nm) | <0,35dB (@850/1300nm) | |
Return Loss (acc. IEC 61300-3-6) | >50dB (@1310/1550nm) | >20dB (@850/1300nm) | |
Fanout | Material (body / other parts) | ABS* / metal | |
Duralino body diameter | 15.5mm | ||
IP Rating | IP40 | ||
Identification | Traceability label with unique serial number on both ends of cable assembly. | ||
Packaging | Each assembly in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on cardboard/wooden reel. |
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
Description | Partnumber/Ordering code |
2x24f MTP(F) to 2x24f MTP(F) 48-fiber OS2 trunk cable, Polarity A | T489-GGA-XXX |
2x24f MTP(F) to 2x24f MTP(F) 48-fiber OS2 trunk cable, Polarity C | T489-GGC-XXX |
2x24f MTP(F) to 2x24f MTP(F) 48-fiber OS2 trunk cable, Polarity X | T489-GGX-XXX |
2x24f MTP(F) to 2x24f MTP(F) 48-fiber OM3 trunk cable, Polarity A | T483-GGA-XXX |
2x24f MTP(F) to 2x24f MTP(F) 48-fiber OM3 trunk cable, Polarity B | T483-GGB-XXX |
2x24f MTP(F) to 2x24f MTP(F) 48-fiber OM3 trunk cable, Polarity C | T483-GGC-XXX |
2x24f MTP(F) to 2x24f MTP(F) 48-fiber OM3 trunk cable, Polarity X | T483-GGX-XXX |
2x24f MTP(F) to 2x24f MTP(F) 48-fiber OM4 trunk cable, Polarity A | T484-GGA-XXX |
2x24f MTP(F) to 2x24f MTP(F) 48-fiber OM4 trunk cable, Polarity B | T484-GGB-XXX |
2x24f MTP(F) to 2x24f MTP(F) 48-fiber OM4 trunk cable, Polarity C | T484-GGC-XXX |
2x24f MTP(F) to 2x24f MTP(F) 48-fiber OM4 trunk cable, Polarity X | T484-GGX-XXX |
2x24f MTP(F) to 2x24f MTP(M) 48-fiber OS2 trunk cable, Polarity A | T489-GNA-XXX |
2x24f MTP(F) to 2x24f MTP(M) 48-fiber OS2 trunk cable, Polarity C | T489-GNC-XXX |
2x24f MTP(F) to 2x24f MTP(M) 48-fiber OS2 trunk cable, Polarity X | T489-GNX-XXX |
2x24f MTP(F) to 2x24f MTP(M) 48-fiber OM3 trunk cable, Polarity A | T483-GNA-XXX |
2x24f MTP(F) to 2x24f MTP(M) 48-fiber OM3 trunk cable, Polarity B | T483-GNB-XXX |
2x24f MTP(F) to 2x24f MTP(M) 48-fiber OM3 trunk cable, Polarity C | T483-GNC-XXX |
2x24f MTP(F) to 2x24f MTP(M) 48-fiber OM3 trunk cable, Polarity X | T483-GNX-XXX |
2x24f MTP(F) to 2x24f MTP(M) 48-fiber OM4 trunk cable, Polarity A | T484-GNA-XXX |
2x24f MTP(F) to 2x24f MTP(M) 48-fiber OM4 trunk cable, Polarity B | T484-GNB-XXX |
2x24f MTP(F) to 2x24f MTP(M) 48-fiber OM4 trunk cable, Polarity C | T484-GNC-XXX |
2x24f MTP(F) to 2x24f MTP(M) 48-fiber OM4 trunk cable, Polarity X | T484-GNX-XXX |
2x24f MTP(M) to 2x24f MTP(M) 48-fiber OS2 trunk cable, Polarity A | T489-NNA-XXX |
2x24f MTP(M) to 2x24f MTP(M) 48-fiber OS2 trunk cable, Polarity C | T489-NNC-XXX |
2x24f MTP(M) to 2x24f MTP(M) 48-fiber OS2 trunk cable, Polarity X | T489-NNX-XXX |
2x24f MTP(M) to 2x24f MTP(M) 48-fiber OM3 trunk cable, Polarity A | T483-NNA-XXX |
2x24f MTP(M) to 2x24f MTP(M) 48-fiber OM3 trunk cable, Polarity B | T483-NNB-XXX |
2x24f MTP(M) to 2x24f MTP(M) 48-fiber OM3 trunk cable, Polarity C | T483-NNC-XXX |
2x24f MTP(M) to 2x24f MTP(M) 48-fiber OM3 trunk cable, Polarity X | T483-NNX-XXX |
2x24f MTP(M) to 2x24f MTP(M) 48-fiber OM4 trunk cable, Polarity A | T484-NNA-XXX |
2x24f MTP(M) to 2x24f MTP(M) 48-fiber OM4 trunk cable, Polarity B | T484-NNB-XXX |
2x24f MTP(M) to 2x24f MTP(M) 48-fiber OM4 trunk cable, Polarity C | T484-NNC-XXX |
2x24f MTP(M) to 2x24f MTP(M) 48-fiber OM4 trunk cable, Polarity X | T484-NNX-XXX |
*also available with grommet and with MTP PRO connector. For more information see the drawing.
