Temperature range
|
Indoor controlled environment (-10°C/+60°C) | ||
| Cable parameters |
Jacket material |
N/A
|
|
|
Cable construction |
Bare ribbon | ||
| Outer diameter | approx. 3,2mm x 0,35mm | ||
|
Fiber count |
48 | ||
|
Fiber type |
MMF OM3 / OM4
|
||
|
Temperature range |
Operation: -20°C to +70°C
|
||
|
Storage: -20°C to +70°C
|

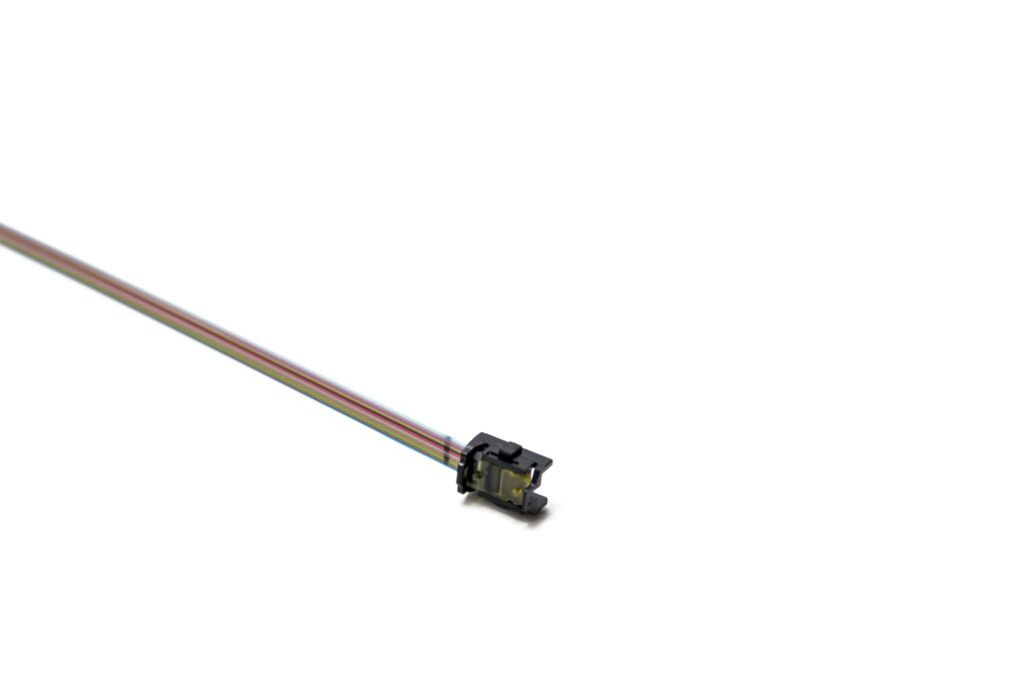

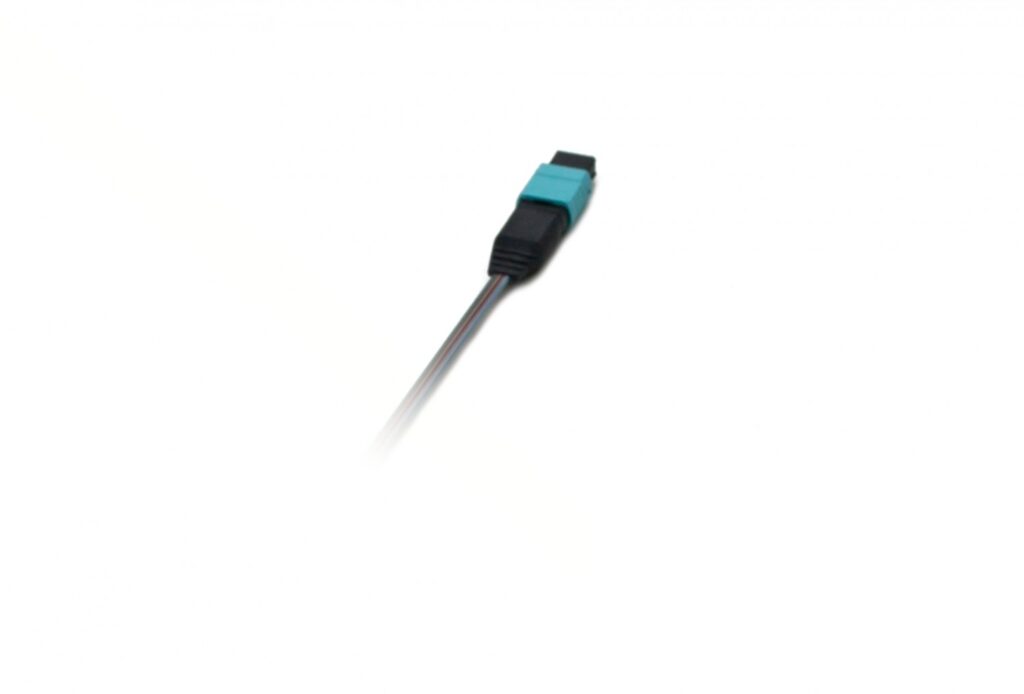

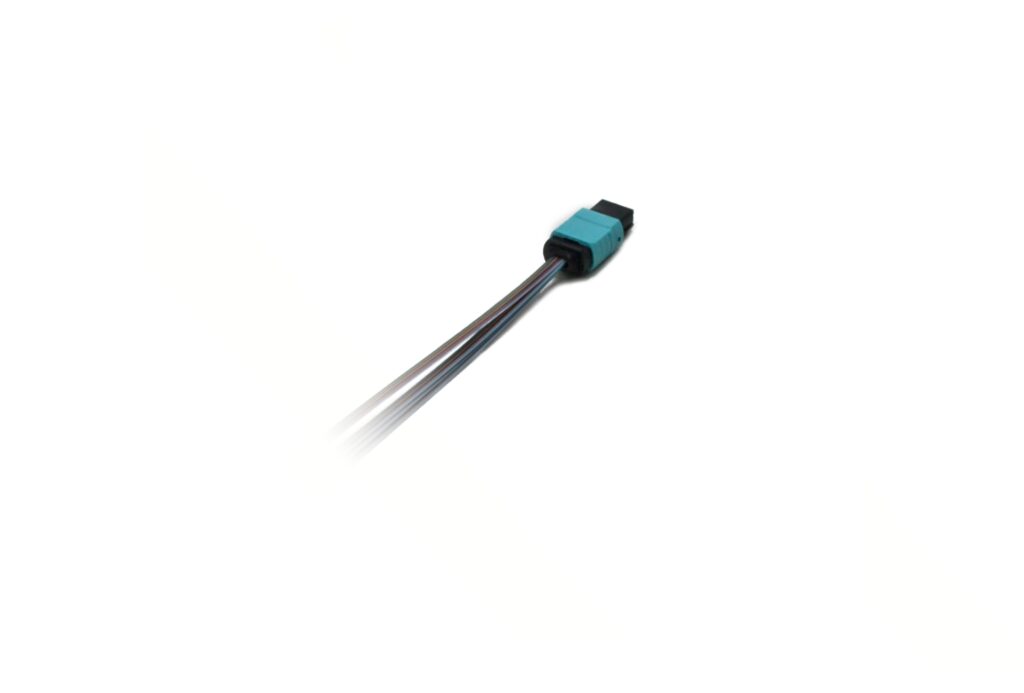

|||
| Installation: 0°C to +70°C | |||
| Connector parameters | PRIZM LT | MTP | |
| Compliance |
US CONEC standard |
US CONEC standard | |
|
Colour of housing |
N/A |
Aqua/ Magenta | |
|
Colour of boot
|
N/A | N/A | |
|
Polish
|
N/A | Flat (PC) | |
|
Insertion Loss
(acc. IEC 61300-3-4 method B)
|
<2,0dB (@850nm)
|
<0,6dB (@850nm) | |
| Identification | Traceability label with unique serial number on both ends of cable assembly. | ||
| Packaging |
Each assembly in sealed PE bag, bulk pack in cardboard box. |
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
Description | Partnumber/Ordering code |

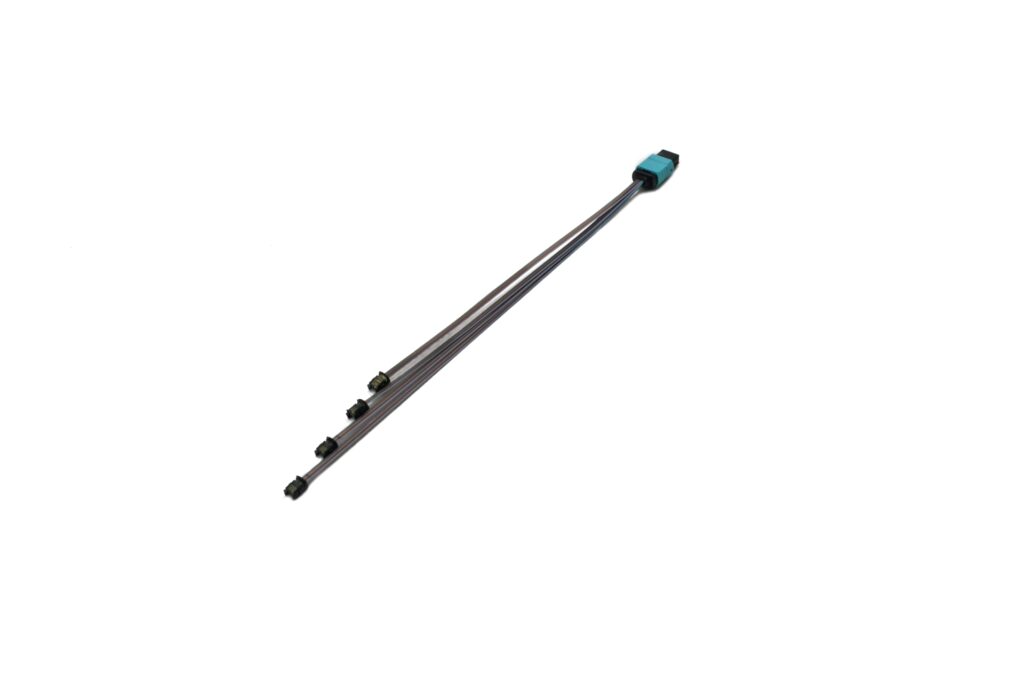

| 01x MTP(F) – 04x PRIZM LT 48F OM3 JUMPER TYPE A (RIBBON PEELABLE) | B483-O22-xxxx-1A |
| 01x MTP(M) – 04x PRIZM LT 48F OM3 JUMPER TYPE A (RIBBON PEELABLE) | B483-O32-xxxx-1A |
| 01x MTP(F) – 04x PRIZM LT 48F OM3 JUMPER TYPE A (RIBBON NON-PEELABLE) | B483-O22-xxxx-2A |
| 01x MTP(M) – 04x PRIZM LT 48F OM3 JUMPER TYPE A (RIBBON NON-PEELABLE) | B483-O32-xxxx-2A |
| 01x MTP(F) – 04x PRIZM LT 48F OM4 JUMPER TYPE A (RIBBON PEELABLE) | B484-O22-xxxx-1A |
| 01x MTP(M) – 04x PRIZM LT 48F OM4 JUMPER TYPE A (RIBBON PEELABLE) | B484-O32-xxxx-1A |
| 01x MTP(F) – 04x PRIZM LT 48F OM4 JUMPER TYPE A (RIBBON NON-PEELABLE) | B484-O22-xxxx-2A |
| 01x MTP(M) – 04x PRIZM LT 48F OM4 JUMPER TYPE A (RIBBON NON-PEELABLE) | B484-O32-xxxx-2A |
* For more information see the drawing.
