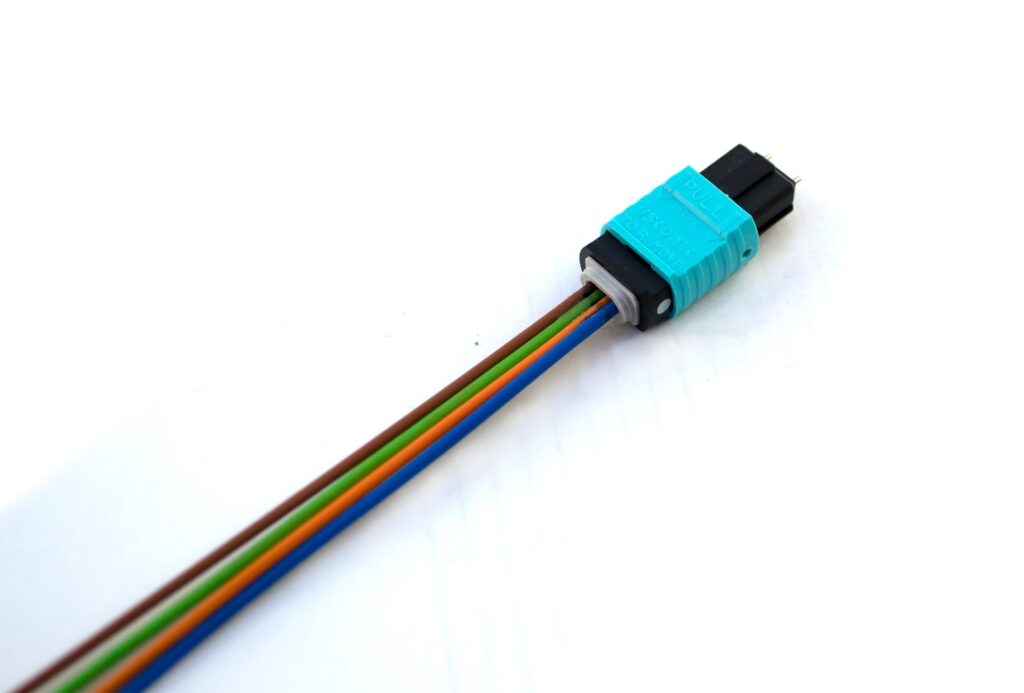

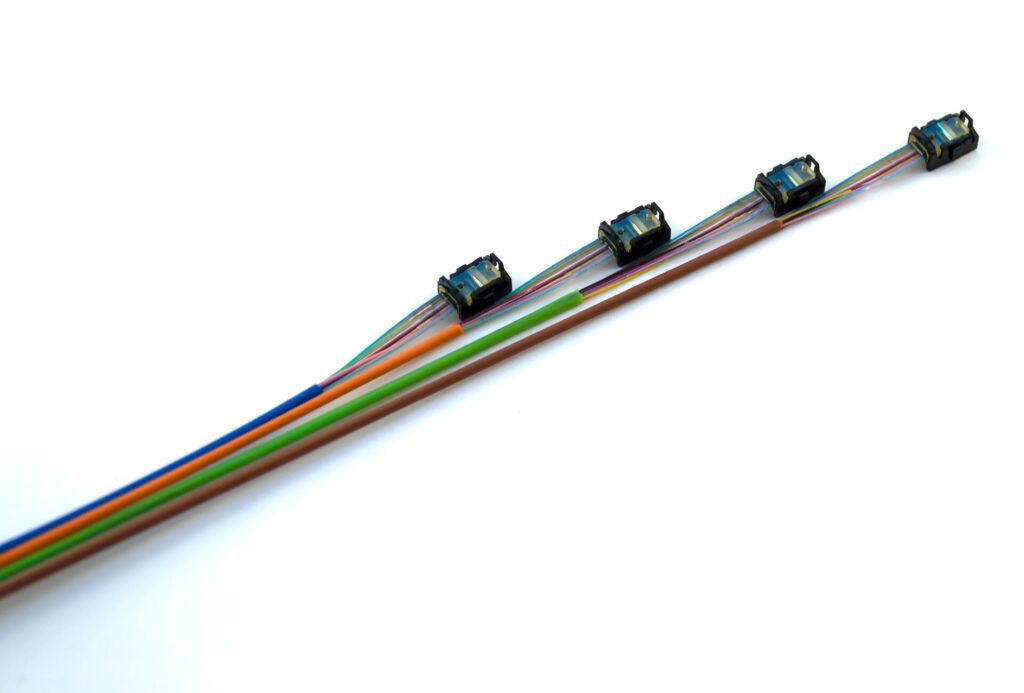

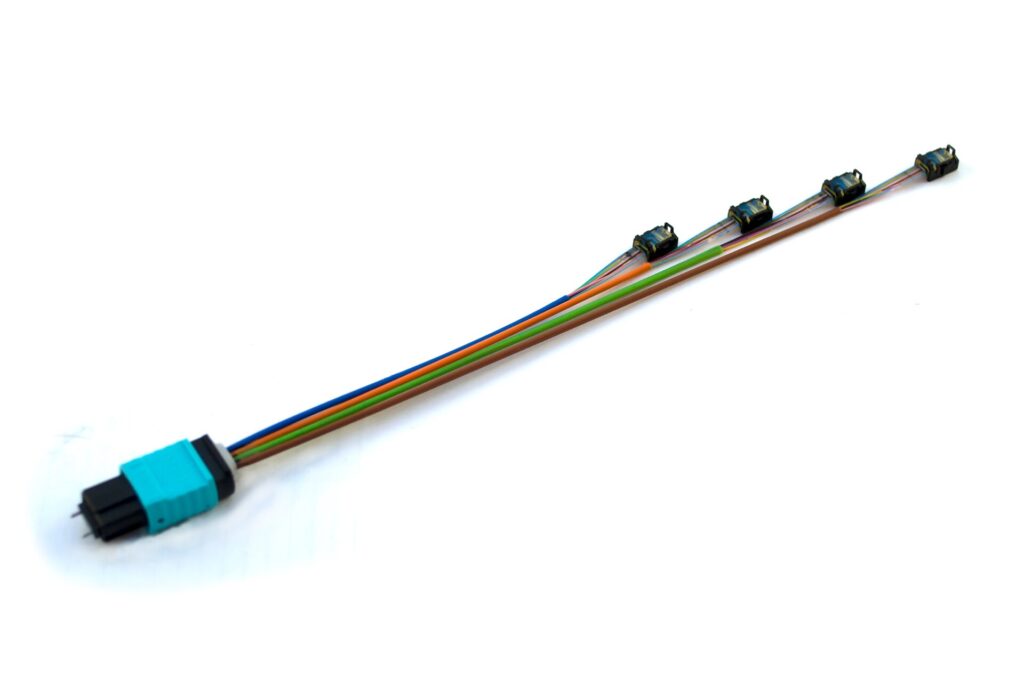

4x PRIZM LT - MT/MTP 48F round jumper

4x PRIZM LT – MT/MTP 48F round jumper

PRIZM® LightTurn® is designed as a miniature detachable connector for high-speed, board-mounted Avago MicroPOD and MiniPOD modules, or for direct mounting on PCB using a mechanical-optical interface (MOI). In combination with standard MTP connectors, it is suitable for a wide range of applications such as use in transceivers, parallel optics and supercomputing.

Share this entry

Temperature range	Indoor controlled environment (-10°C/+60°C)
Cable parameters	Jacket material	LSZH
	Cable construction	Round cable
	Outer diameter	4x 1,2mm
	Fiber count	48
	Fiber type	MMF OM3 / OM4
	Temperature range	Operation: -10°C to +60°C
		Storage: -10°C to +60°C
		Installion: N/A
Connector parameters		PRIZM LT	MTP
	Compliance	US CONEC standard	US CONEC standard
	Colour of housing	N/A	Aqua / Magenta
	Colour of boot	N/A	Black
	Polish	N/A	Flat (PC)
	Insertion Loss (acc. IEC 61300-3-4 method B)	<2,0dB (@850nm)	<0,6dB (@850nm)
Identification	Marking sleeve with unique serial number.
Packaging	Each assembly in antistatic bag, bulk pack in cardboard box.

Description	Partnumber/Ordering code
01x MTP(F) – 04x PRIZM LT 48F OM3 ROUND JUMPER TYPE A	B483-O22-xxxx-3A
01x MTP(M) – 04x PRIZM LT 48F OM3 ROUND JUMPER TYPE A	B483-O32-xxxx-3A
01x MTP(F) – 04x PRIZM LT 48F OM4 ROUND JUMPER TYPE A	B484-O22-xxxx-3A
01x MTP(M) – 04x PRIZM LT 48F OM4 ROUND JUMPER TYPE A	B484-O32-xxxx-3A

* for more combination please see the drawing.
