Temperature range | Indoor controlled environment (-10°C/+60°C) | ||
Cable parameters | Jacket material | LSZH | |
Cable construction | Micro-Bundle | ||
Outer diameter | 7.5mm | ||
Fiber count | 96 | ||
Fiber type | SM OS2 or MMF OM3/OM4/OM5 | ||
Temperature range | Operation: -10°C to +70°C | ||
Storage: -25°C to +70°C | |||
Installation: -5°C to +50°C | |||
CPR | Cca-s1a, d1, a1 | ||

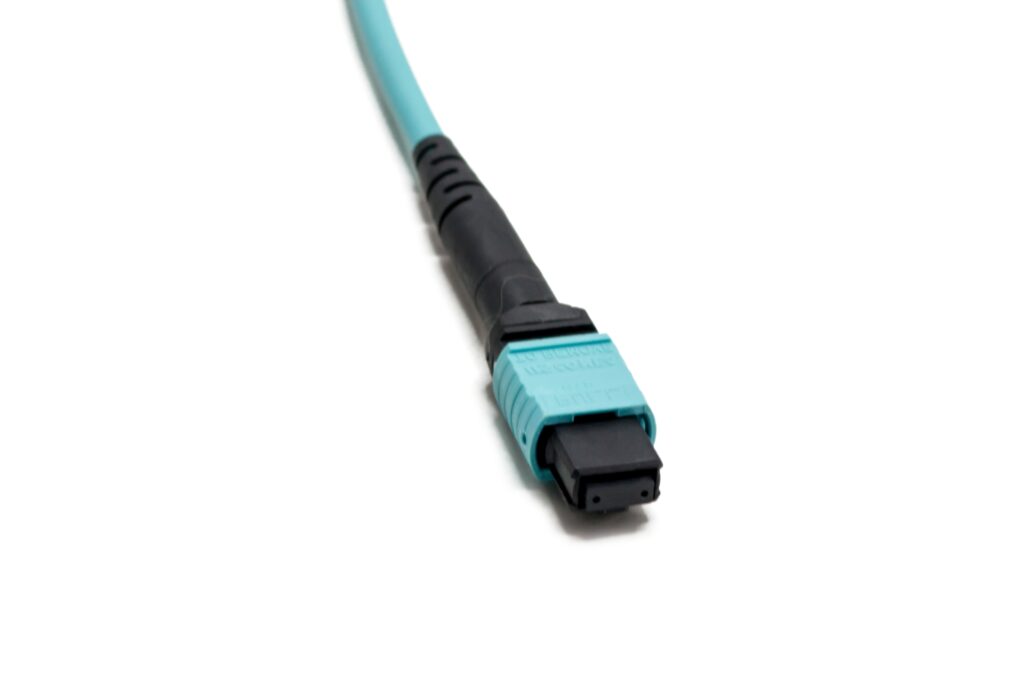

Connector parameters | MTP/MTP PRO SM | MTP/MTP PRO MM | |
Compliance | US CONEC standard | US CONEC standard | |
Colour of housing | Green | Aqua/Magenta/Lime Green | |
Colour of boot | Black | Black | |
Polish | Angled (APC) | Flat (PC) | |
Insertion Loss (acc. IEC 61300-3-4 method B) | <0,35dB (@1310/1550nm) | <0,35dB (@850/1300nm) | |
Return Loss (acc. IEC 61300-3-6) | >50dB (@1310/1550nm) | >20dB (@850/1300nm) | |

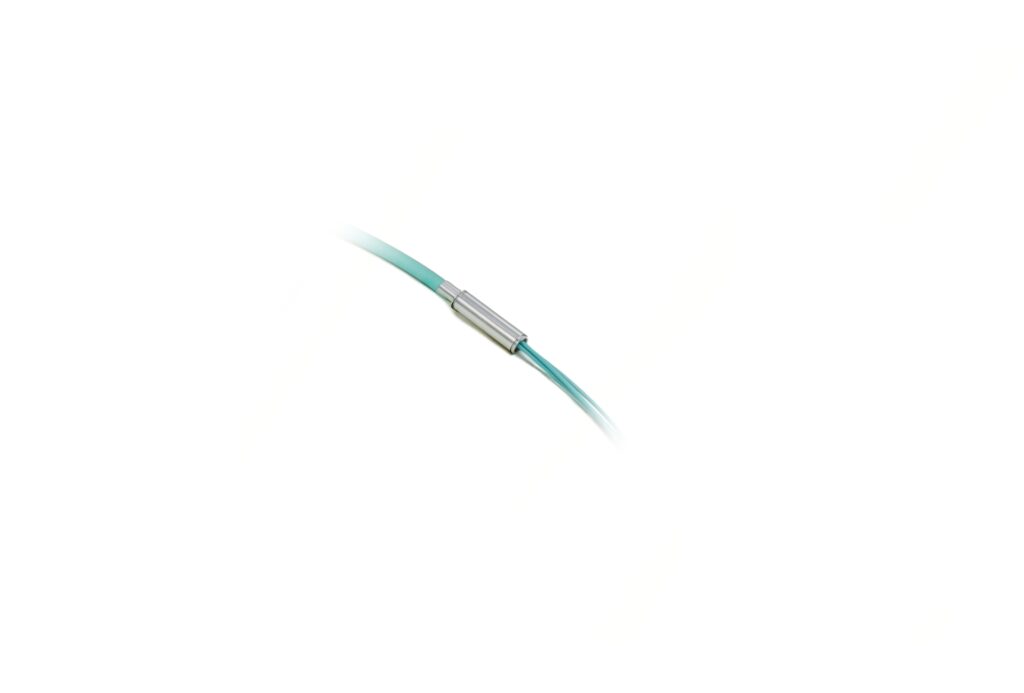

Fanout | Material (body / other parts) | metal / metal | |

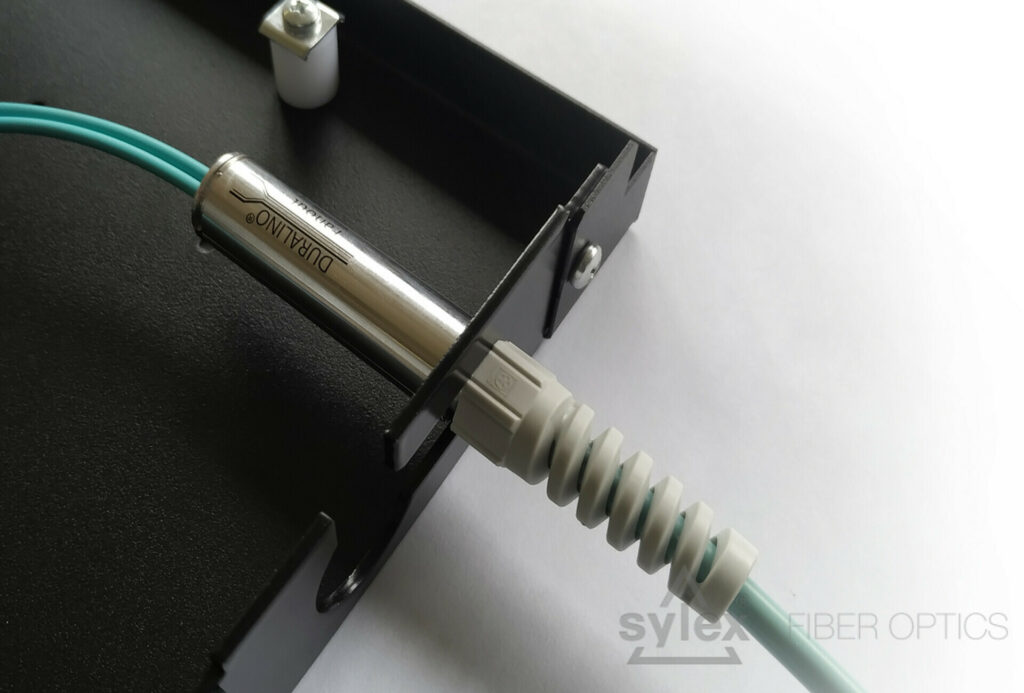

Duralino body diameter | 15.5mm (w/ Extender) / 21mm (w/ Grommet) | ||
IP Rating | IP40 | ||
Identification | Traceability label with unique serial number on both ends of cable assembly. | ||
Packaging | Each assembly in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on cardboard/wooden reel. |
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation

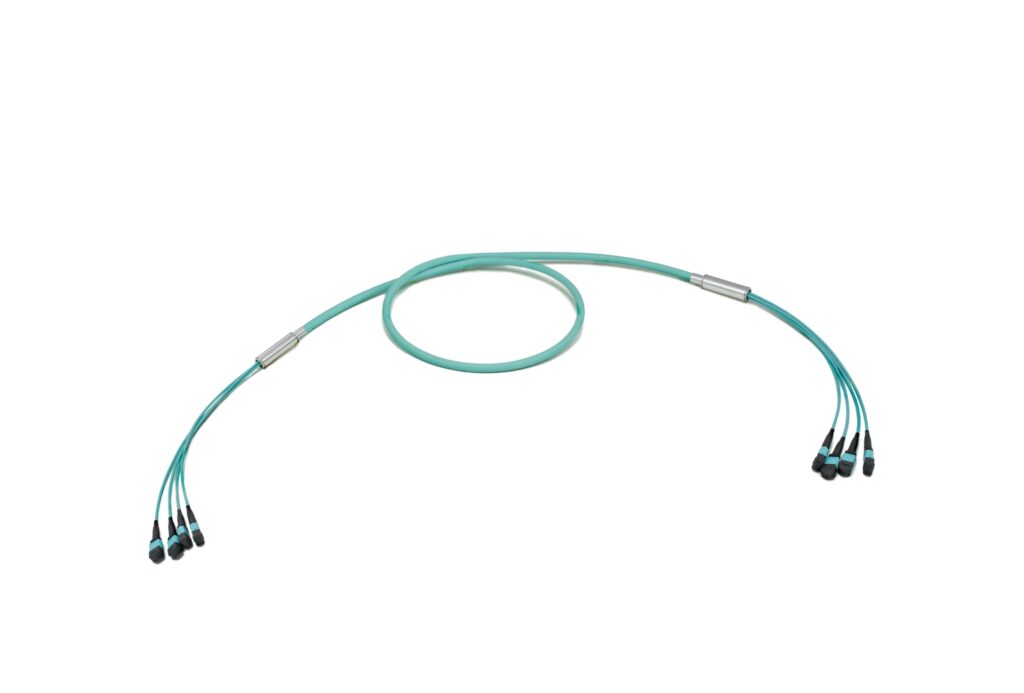

Description | Partnumber/Ordering code |
4x24f MTP(F) to 4x24f MTP(F) 96-fiber OS2 trunk cable, Polarity A | T969-GGA-XXX |
4x24f MTP(F) to 4x24f MTP(F) 96-fiber OS2 trunk cable, Polarity C | T969-GGC-XXX |
4x24f MTP(F) to 4x24f MTP(F) 96-fiber OS2 trunk cable, Polarity X | T969-GGX-XXX |
4x24f MTP(F) to 4x24f MTP(F) 96-fiber OM3 trunk cable, Polarity A | T963-GGA-XXX |
4x24f MTP(F) to 4x24f MTP(F) 96-fiber OM3 trunk cable, Polarity B | T963-GGB-XXX |
4x24f MTP(F) to 4x24f MTP(F) 96-fiber OM3 trunk cable, Polarity C | T963-GGC-XXX |
4x24f MTP(F) to 4x24f MTP(F) 96-fiber OM3 trunk cable, Polarity X | T963-GGX-XXX |
4x24f MTP(F) to 4x24f MTP(F) 96-fiber OM4 trunk cable, Polarity A | T964-GGA-XXX |
4x24f MTP(F) to 4x24f MTP(F) 96-fiber OM4 trunk cable, Polarity B | T964-GGB-XXX |
4x24f MTP(F) to 4x24f MTP(F) 96-fiber OM4 trunk cable, Polarity C | T964-GGC-XXX |
4x24f MTP(F) to 4x24f MTP(F) 96-fiber OM4 trunk cable, Polarity X | T964-GGX-XXX |
4x24f MTP(F) to 4x24f MTP(M) 96-fiber OS2 trunk cable, Polarity A | T969-GNA-XXX |
4x24f MTP(F) to 4x24f MTP(M) 96-fiber OS2 trunk cable, Polarity C | T969-GNC-XXX |
4x24f MTP(F) to 4x24f MTP(M) 96-fiber OS2 trunk cable, Polarity X | T969-GNX-XXX |
4x24f MTP(F) to 4x24f MTP(M) 96-fiber OM3 trunk cable, Polarity A | T963-GNA-XXX |
4x24f MTP(F) to 4x24f MTP(M) 96-fiber OM3 trunk cable, Polarity B | T963-GNB-XXX |
4x24f MTP(F) to 4x24f MTP(M) 96-fiber OM3 trunk cable, Polarity C | T963-GNC-XXX |
4x24f MTP(F) to 4x24f MTP(M) 96-fiber OM3 trunk cable, Polarity X | T963-GNX-XXX |
4x24f MTP(F) to 4x24f MTP(M) 96-fiber OM4 trunk cable, Polarity A | T964-GNA-XXX |
4x24f MTP(F) to 4x24f MTP(M) 96-fiber OM4 trunk cable, Polarity B | T964-GNB-XXX |
4x24f MTP(F) to 4x24f MTP(M) 96-fiber OM4 trunk cable, Polarity C | T964-GNC-XXX |
4x24f MTP(F) to 4x24f MTP(M) 96-fiber OM4 trunk cable, Polarity X | T964-GNX-XXX |
4x24f MTP(M) to 4x24f MTP(M) 96-fiber OS2 trunk cable, Polarity A | T969-NNA-XXX |
4x24f MTP(M) to 4x24f MTP(M) 96-fiber OS2 trunk cable, Polarity C | T969-NNC-XXX |
4x24f MTP(M) to 4x24f MTP(M) 96-fiber OS2 trunk cable, Polarity X | T969-NNX-XXX |
4x24f MTP(M) to 4x24f MTP(M) 96-fiber OM3 trunk cable, Polarity A | T963-NNA-XXX |
4x24f MTP(M) to 4x24f MTP(M) 96-fiber OM3 trunk cable, Polarity B | T963-NNB-XXX |
4x24f MTP(M) to 4x24f MTP(M) 96-fiber OM3 trunk cable, Polarity C | T963-NNC-XXX |
4x24f MTP(M) to 4x24f MTP(M) 96-fiber OM3 trunk cable, Polarity X | T963-NNX-XXX |
4x24f MTP(M) to 4x24f MTP(M) 96-fiber OM4 trunk cable, Polarity A | T964-NNA-XXX |
4x24f MTP(M) to 4x24f MTP(M) 96-fiber OM4 trunk cable, Polarity B | T964-NNB-XXX |
4x24f MTP(M) to 4x24f MTP(M) 96-fiber OM4 trunk cable, Polarity C | T964-NNC-XXX |
4x24f MTP(M) to 4x24f MTP(M) 96-fiber OM4 trunk cable, Polarity X | T964-NNX-XXX |
*also available with grommet and with MTP PRO connector. For more information see the drawing.
