Temperature range |
Indoor controlled environment (-10°C/+60°C) | ||
| Cable parameters |
Dimensions |
129 x 268 x 35 mm
|
|
|
Material |
Aluminum/ABS plastic | ||
|
Colour |
silver (frontpanel)/ RAL 9001 (body) | ||
|
Fixation method |
screws | ||
|
Colour of LC adapters |
blue (UPC), green (APC), aqua (OM3), magenta (OM4) | ||
|
Capacity |
12 fibers | ||
|
Cable entry |
5mm speed pipe (from MTCD) | ||
|
Optical performance |
IL<0,25dB per connector, (@1310/1550nm) RL>50dB (UPC), RL>60dB (APC) per connector, (@1310/1550nm) |
||
| Identification | Label with serial number | ||
| Packaging |
Each module in cardboard box, bulk pack in master cardboard box |
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
|
Description |
Partnumber/Ordering code |

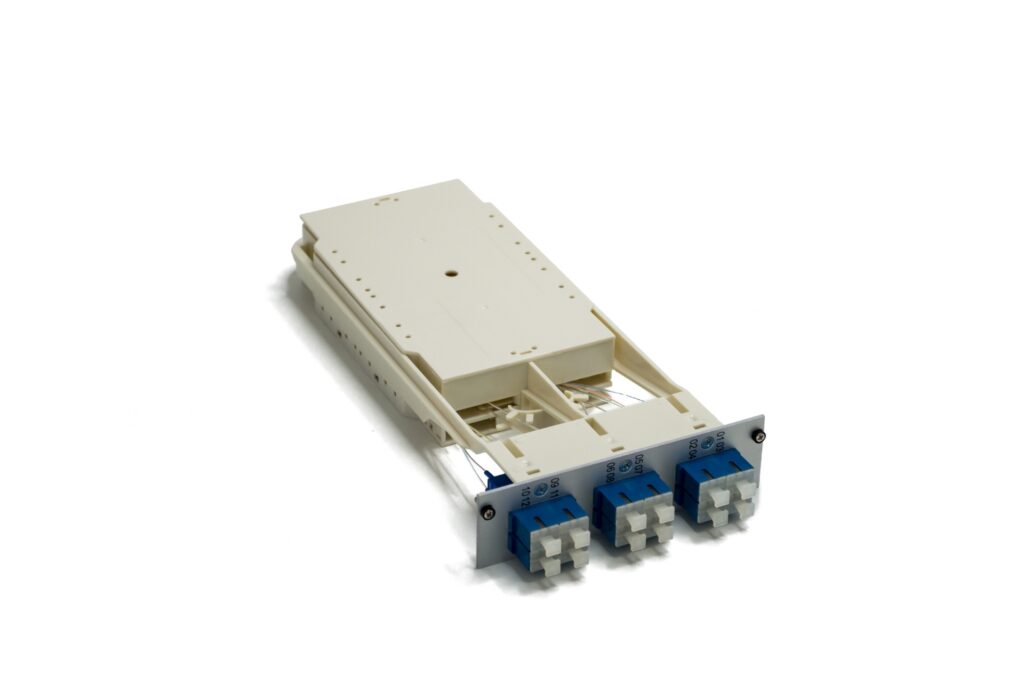

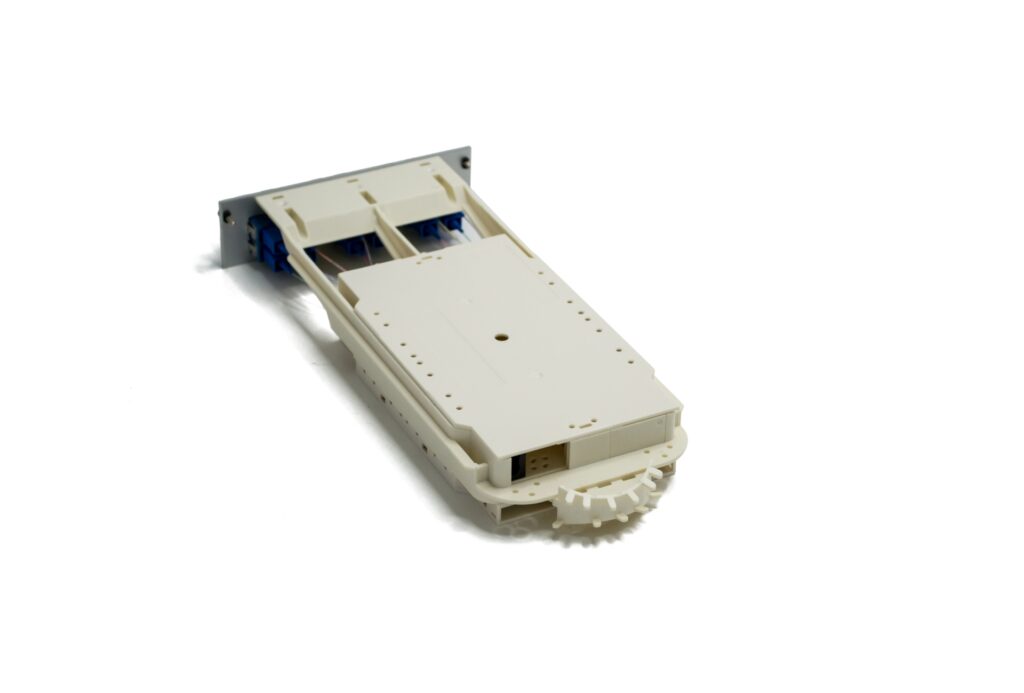

| Wendy splice module 06x SCD (12xSC/UPC OS2 pigtail) |
W129-SDX-ALM |
| Wendy splice module 06x SCD (12xSC/APC OS2 pigtail) |
W129-BDX-ALM |
| Wendy splice module 06x SCD (12xSC/PC OM3 pigtail) |
W123-SDX-ALM |
| Wendy splice module 06x SCD (12xSC/PC OM4 pigtail) |
W124-SDX-ALM |
