Temperature range |
Outdoor environment (-40°C/+70°C) | ||
| Parameters |
Dimensions |
252 × 150 × 85 mm
|
|
|
Number of LC adapters |
6x LC Duplex | ||
|
Number of RRHs |
Up to 6 RRH | ||
|
Cable sizes |
Compatible with cables with OD 3–8mm
|
||
|
Weight |
1 kg
|
||
|
Colour of box |
Light grey RAL 7035
|
||
|
Ingress protection |
IP65
|
||
|
Impact resistance |
IK10
|
||
|
Flammability degree |
UL94 – V0
|
||
|
Material |
PC/ASA
|
||
| Identification | Traceability label with unique serial number on each box. | ||
|
Packaging |
Each assembly in cardboard box. |
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
|
Description |
Partnumber/Ordering code |

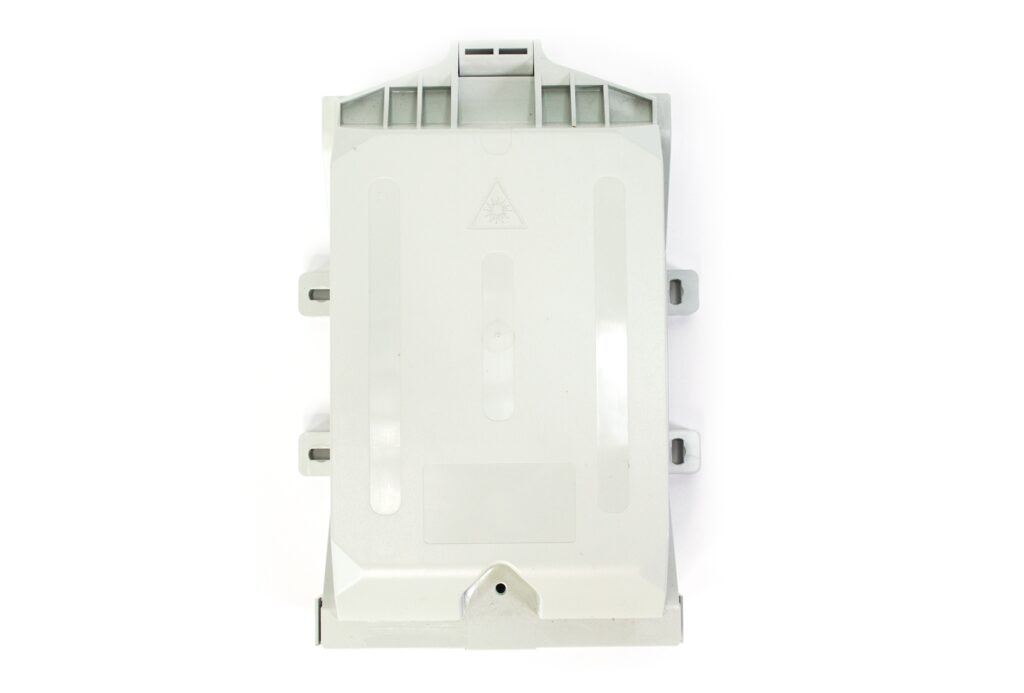

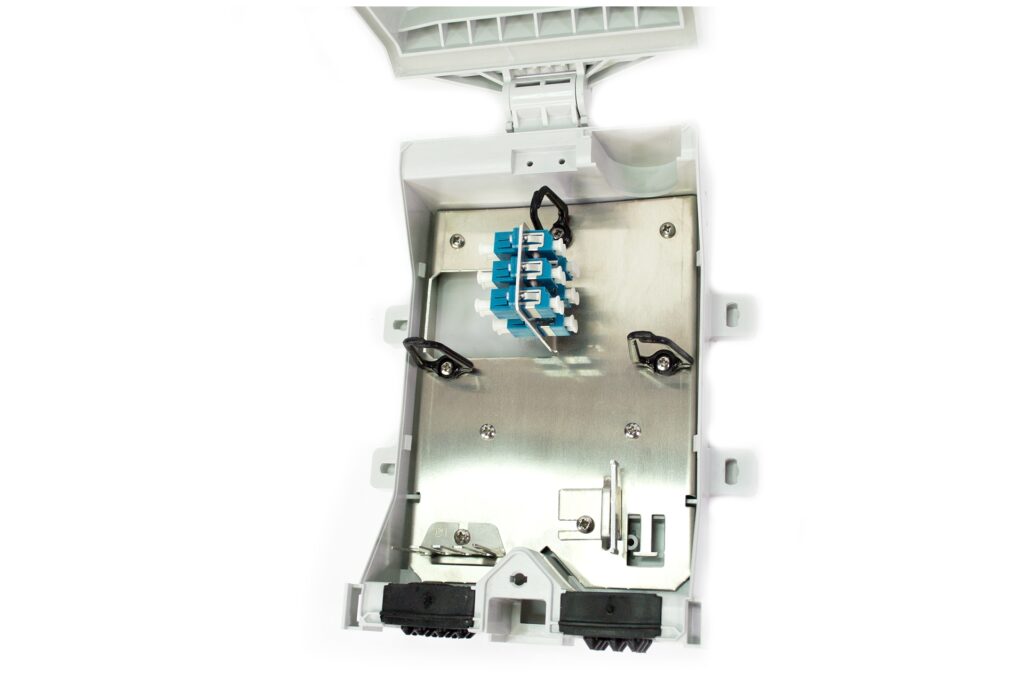

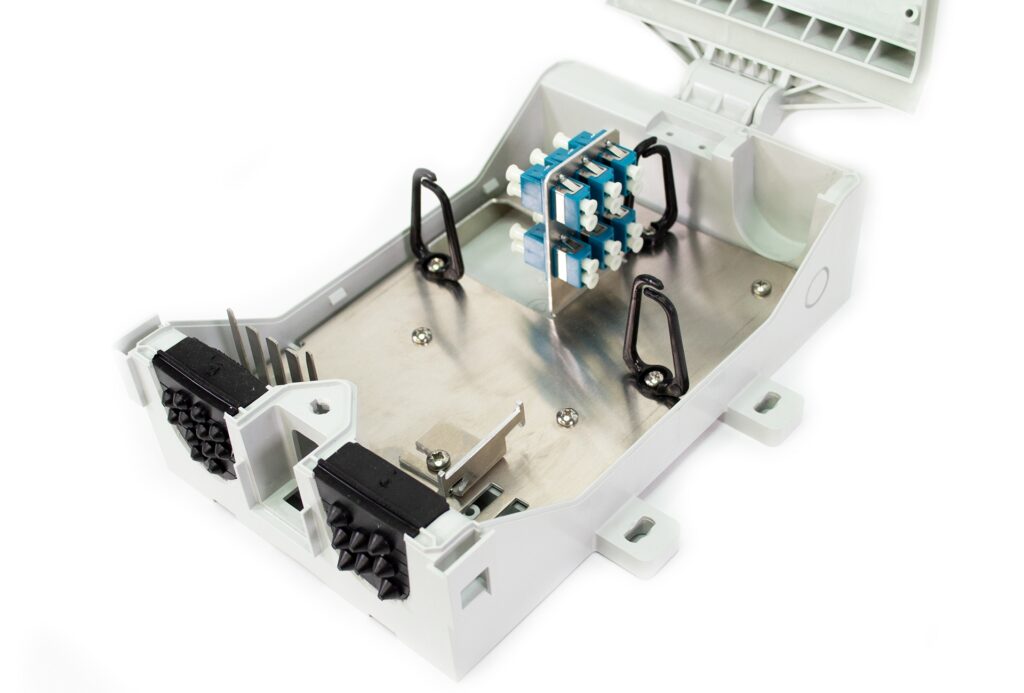

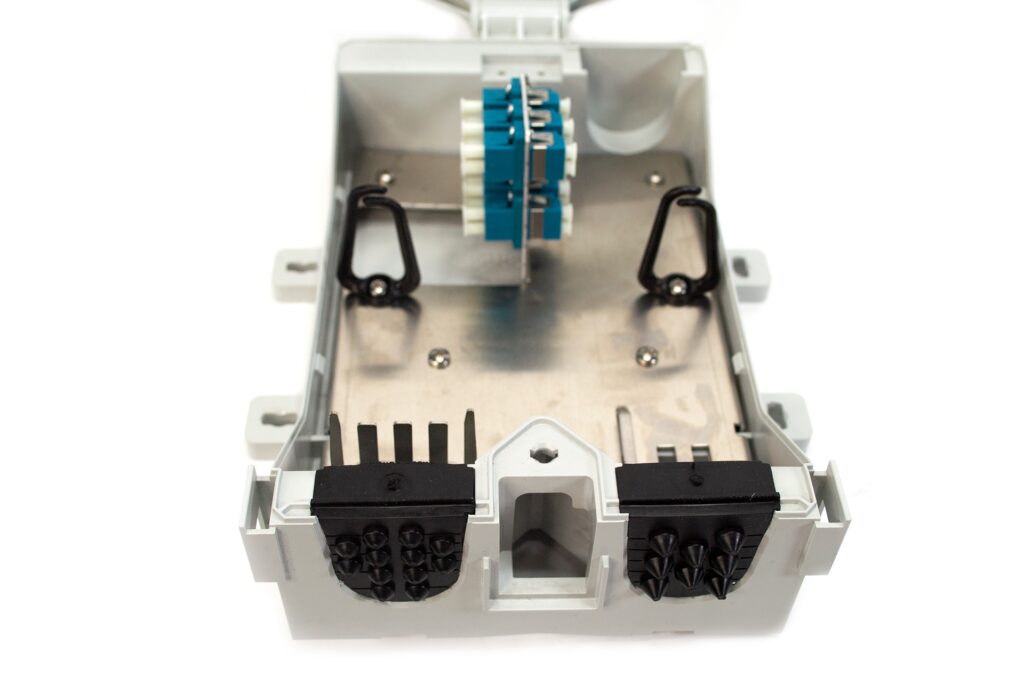

| FTTA distribution box S (12F) | 5SXB-LX2-XXX |
