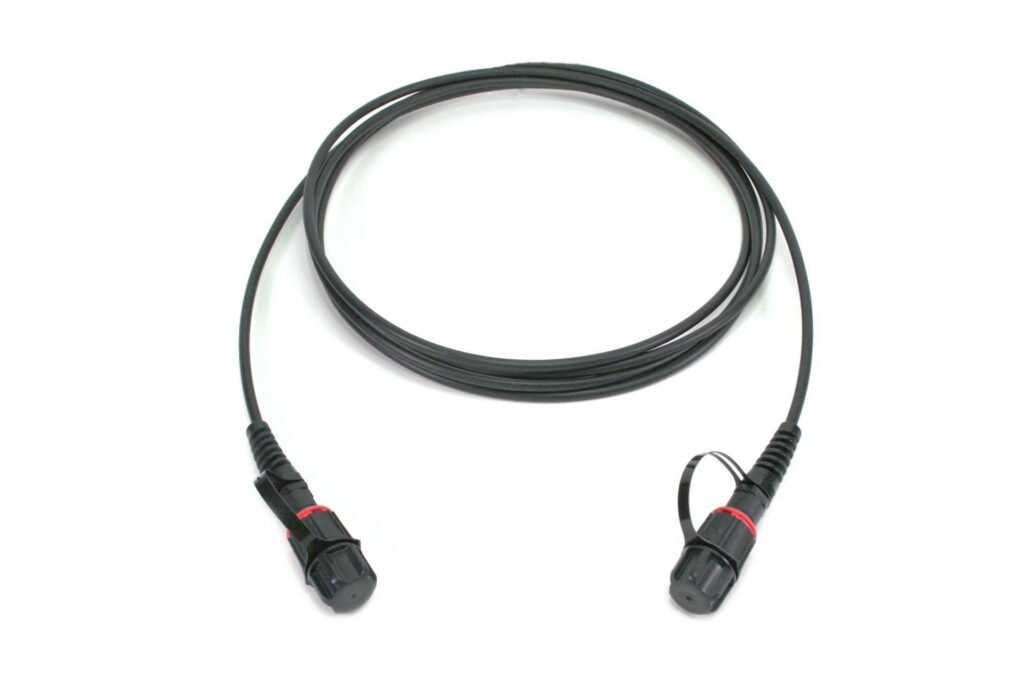

    IP MPO to IP MPO 12/24-fiber trunk cable

    • IP MPO trunk cables with robust flexible cable and multi-fiber connector provide ideal solution for cross-connection patching for FTTA, broadcast networks or other harsh environment applications.
    • We can offer you SM (OS2) and MM (OM3 and OM4) trunks as well as bend insensitive single mode patch cords with fiber G657.A. Round 7.0mm (12 fibres) or 7.5mm (24 fibres) resistant cable optimise for outdoor applications or underground lying, with very high pulling force element.

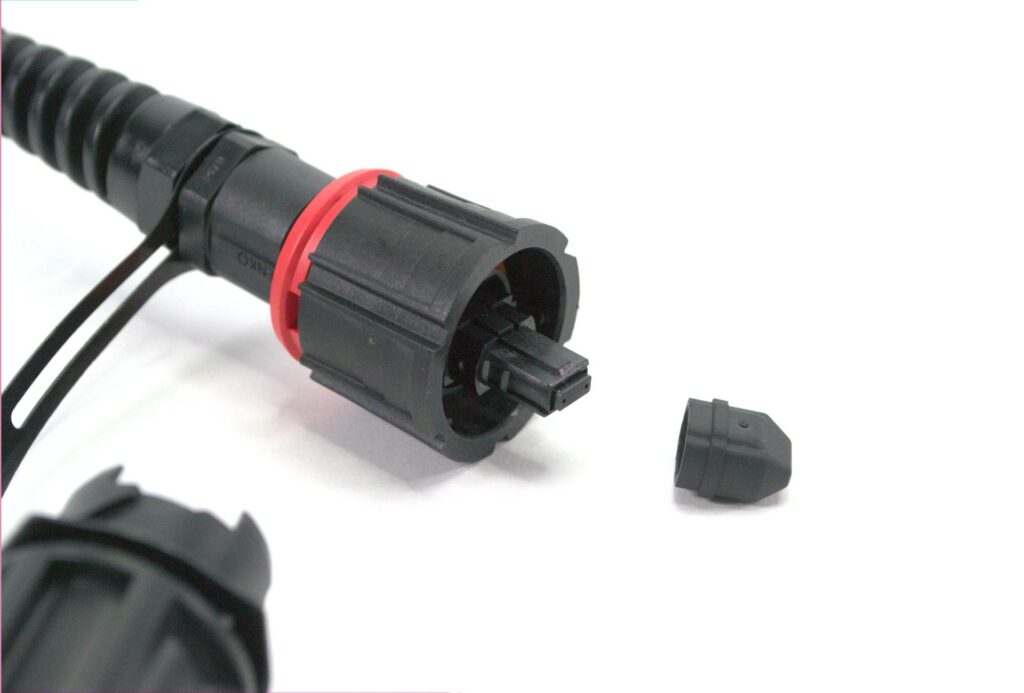

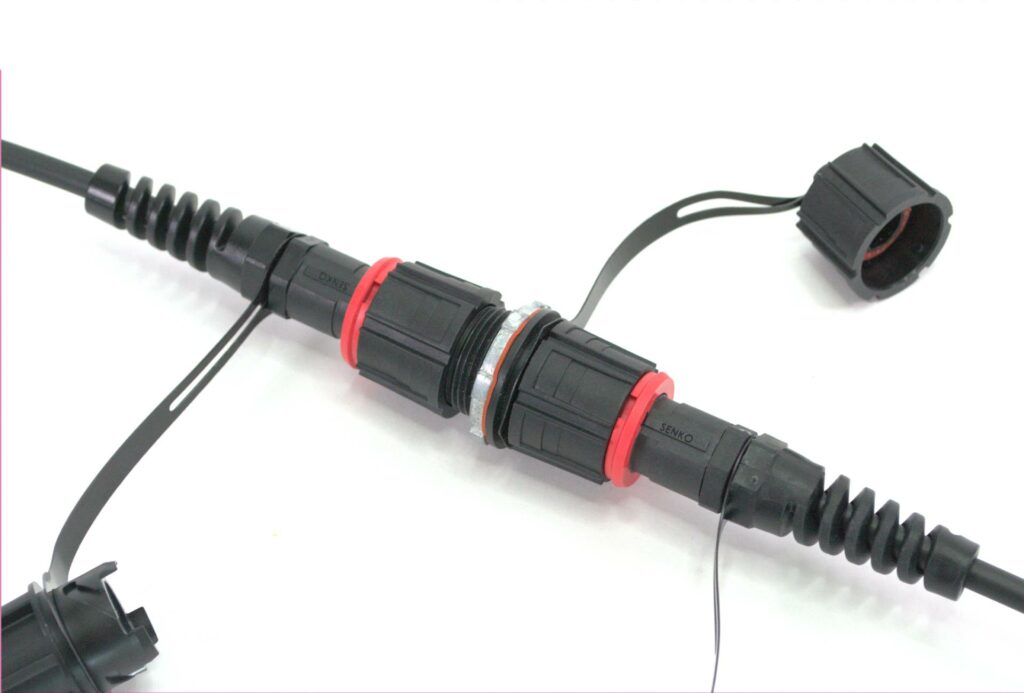

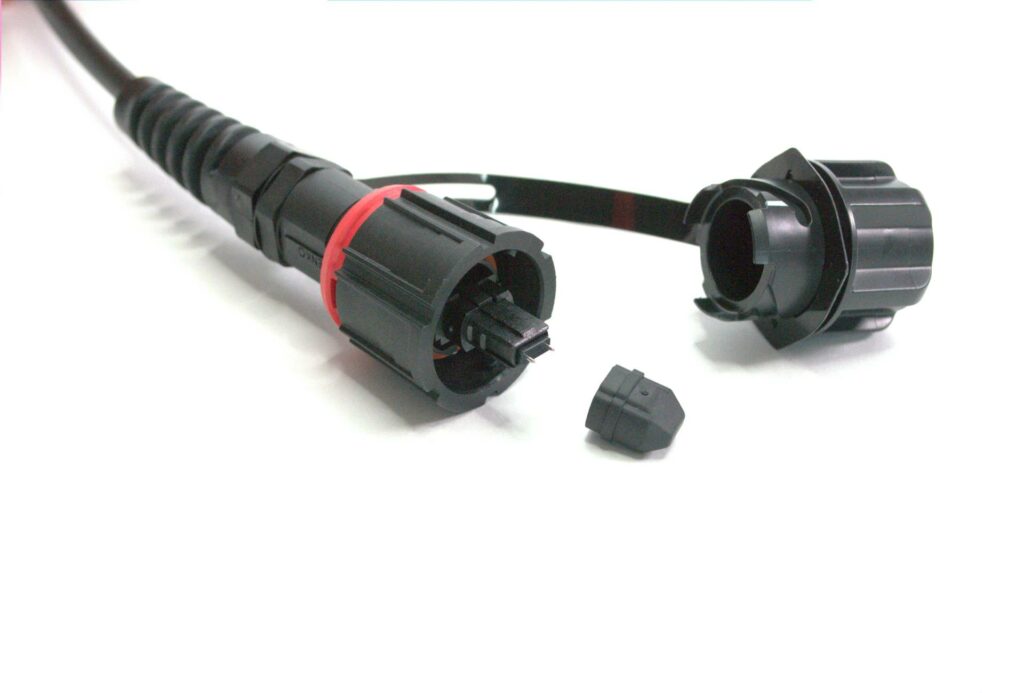

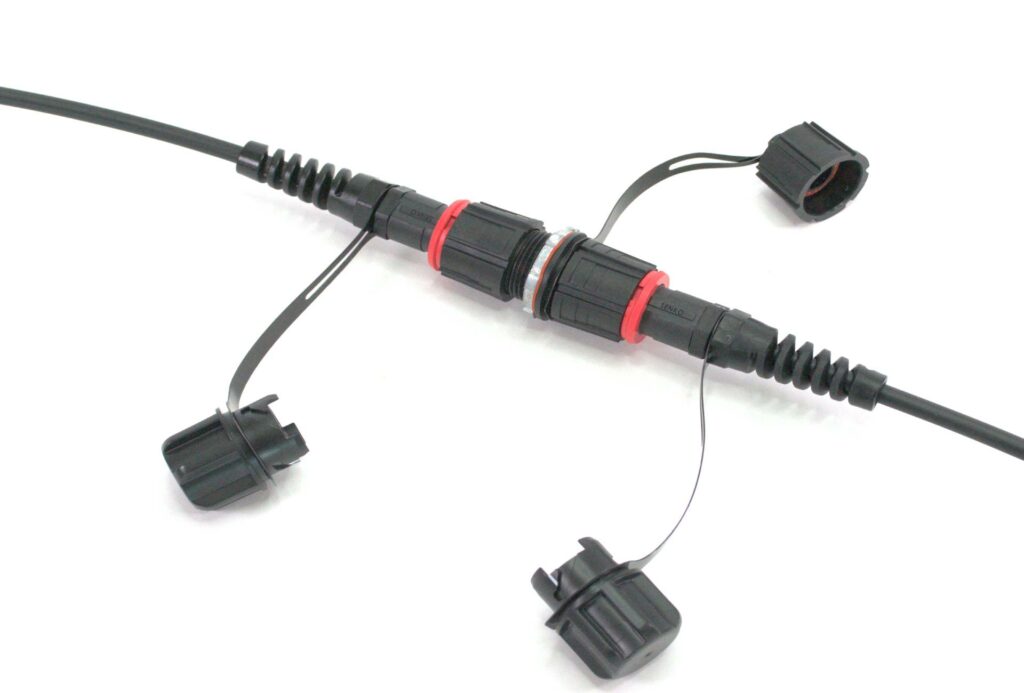

    • The IP connectors are fully IP68 rated for water immersion and dust protection.
    Ask a question
    DATASHEET
    DRAWING
    Share this entry
    Temperature range
    		 Outdoor environment (-40°C/+60°C)
    Cable parameters
    Jacket material
    PE
    Cable construction
    		 Unitube outdoor cable
    Outer diameter
    		 12F: 7.0mm24F: 7.5mm
    Fiber count
    		 12 or 24
    Fiber type
    SMF OS2 or MMF OM3/OM4
    Temperature range Operation: -40°C to +60°C
    Storage: -40°C to +70°C
    Installation: -5°C to +50°C
    Connector parameters
    		IP MPO SM IP MPO MM
    Compliance
    SENKO standard
    		 SENKO standard
    Colour of IP connector housing
    Black
    		 Black
    Colour of MPO connector housing
    		 Green Aqua / Magenta
    Colour of boot
    		 Black Black
    Polish
    		 Angled (APC) Flat (PC)
    Insertion Loss
    (acc. IEC 61300-3-4 method B)
    <0,35dB
    (@1310/1550nm)
    		 <0,30dB (@850/1300nm)
    Return Loss
    (acc. IEC 61300-3-6)
    >60dB
    (@1310/1550nm)
    		 >25dB (@850/1300nm)
    Identification Traceability label with unique serial number on both ends of cable assembly.
    Packaging
    Each assembly in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on cardboard/wooden reel.
    Description
    Partnumber/Ordering code
    1x12f MPO(F) IP to 1x12f MPO(F) IP 12-fiber OS2 trunk cable, Polarity A
    R129-AAA-XXX
    1x12f MPO(M) IP to 1x12f MPO(M) IP 12-fiber OS2 trunk cable, Polarity A
    R129-BBA-XXX
    1x12f MPO(F) IP to 1x12f MPO(F) IP 12-fiber OM3 trunk cable, Polarity A
    R123-AAA-XXX
    1x12f MPO(M) IP to 1x12f MPO(M) IP 12-fiber OM3 trunk cable, Polarity A
    R123-BBA-XXX
    1x12f MPO(F) IP to 1x12f MPO(F) IP 12-fiber OM4 trunk cable, Polarity A
    R124-AAA-XXX
    1x12f MPO(M) IP to 1x12f MPO(M) IP 12-fiber OM4 trunk cable, Polarity A
    R124-BBA-XXX
    1x24f MPO(F) IP to 1x24f MPO(F) IP 24-fiber OS2 trunk cable, Polarity A
    R249-CCA-XXX
    1x24f MPO(M) IP to 1x24f MPO(M) IP 24-fiber OS2 trunk cable, Polarity A
    R249-DDA-XXX
    1x24f MPO(F) IP to 1x24f MPO(F) IP 24-fiber OM3 trunk cable, Polarity A
    R243-CCA-XXX
    1x24f MPO(M) IP to 1x24f MPO(M) IP 24-fiber OM3 trunk cable, Polarity A
    R243-DDA-XXX
    1x24f MPO(F) IP to 1x24f MPO(F) IP 24-fiber OM4 trunk cable, Polarity A
    R244-CCA-XXX
    1x24f MPO(M) IP to 1x24f MPO(M) IP 24-fiber OM4 trunk cable, Polarity A
    R244-DDA-XXX
    * For more information please see the drawing.

    Related products

    • Designed for the application, where additional protection of the fiber is a must. Ruggedized corrugated Miniflex tube withstand any possible damage of the fiber during the installation – thanks to it’s robustness this trunk doesn’t need additional protection by conduit.
    • MTP® PRO connector optional

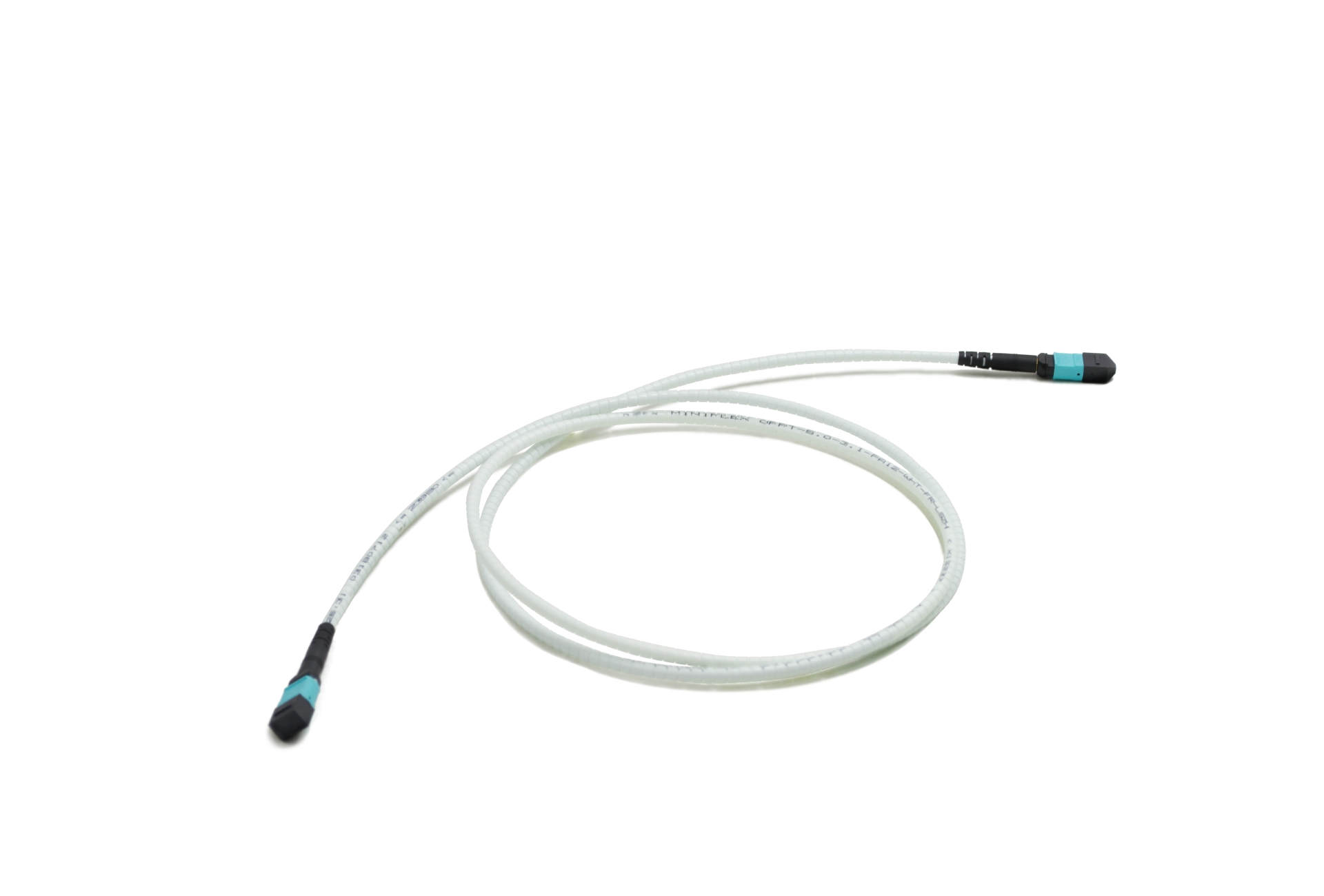

    • MTP patch cables with thin flexible cable and multi-fiber MTP® connector provide ideal solution for cross-connection patching within DataCenter network. Round thin 3.0mm cable optimise the DataCenter airflow and reduces the cable bulk of installation.
