LC 1U patch panel – fully loaded

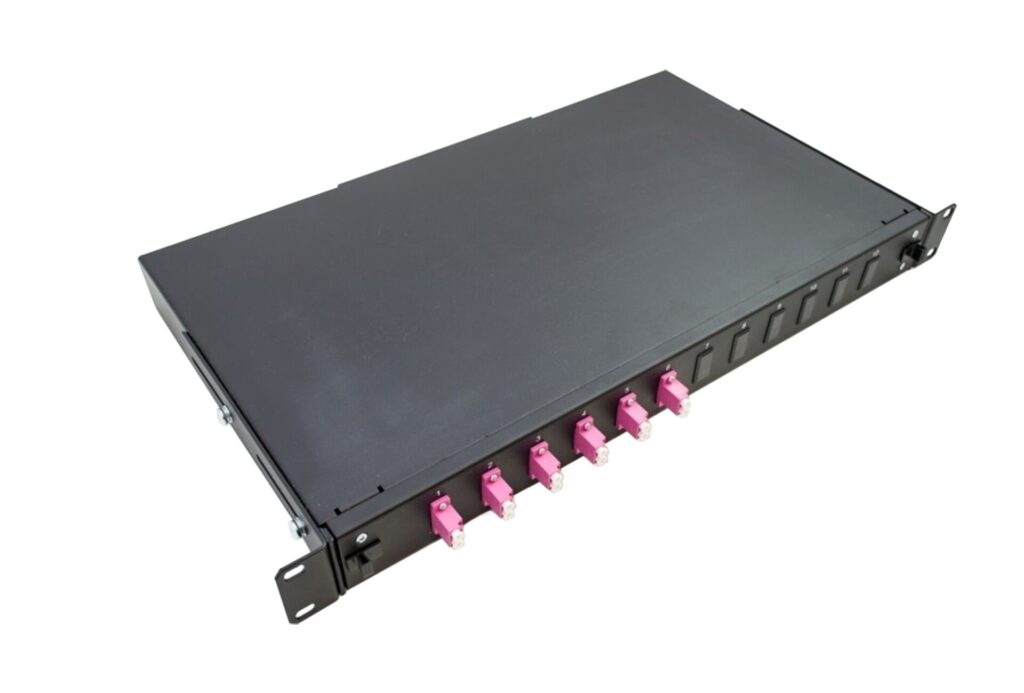

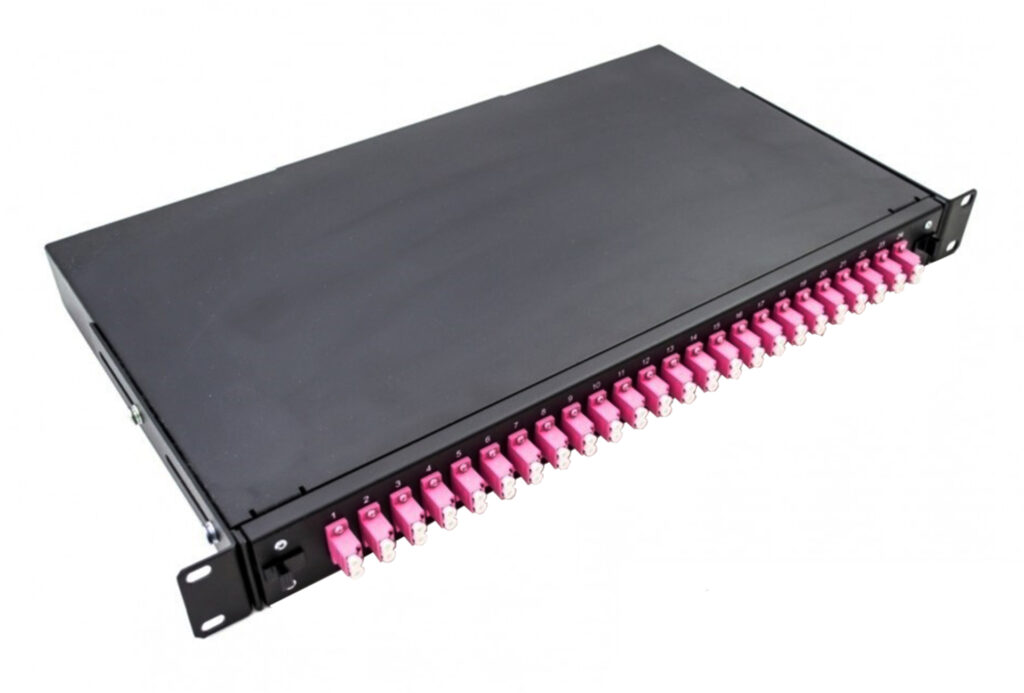

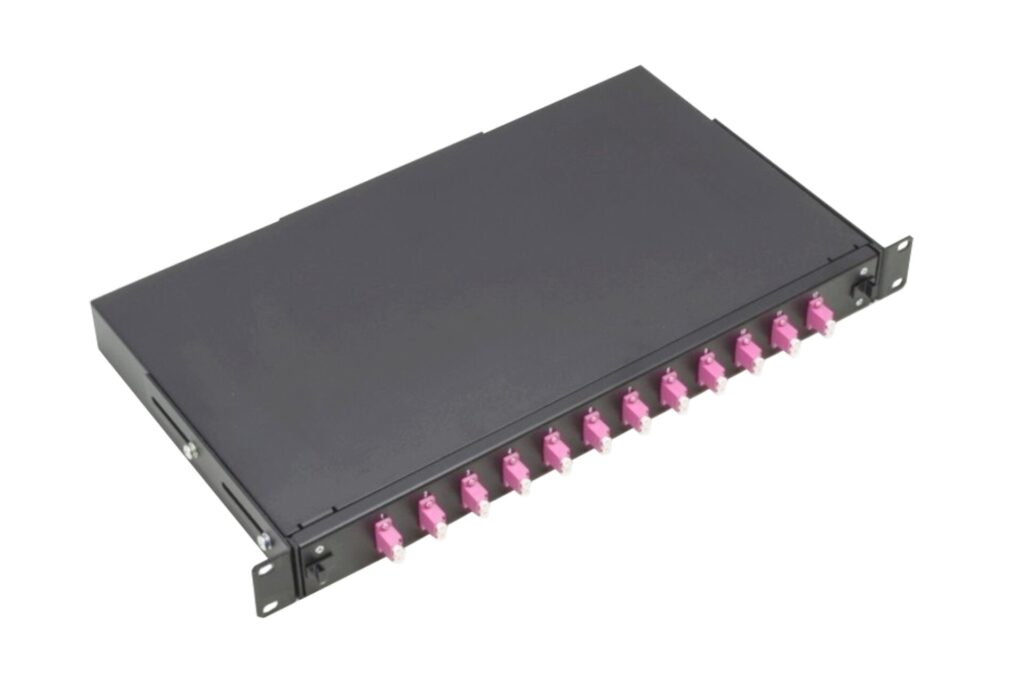

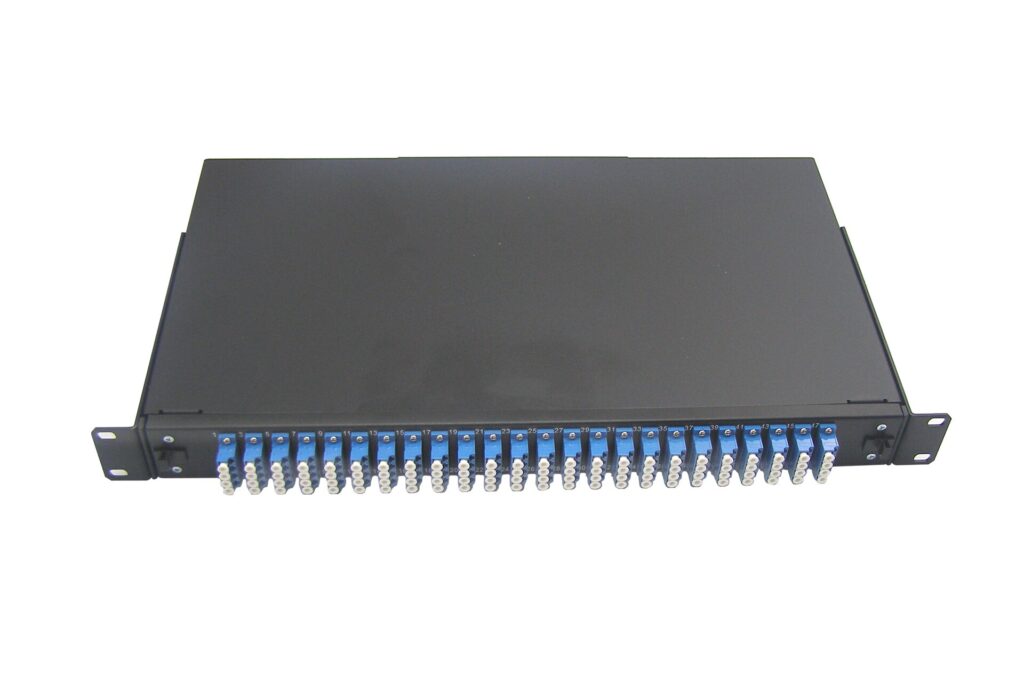

  • 1U 19” sliding patchpanel offered by our company with LC front panel with simplex, duplex or quad holes and back plates. Inside is a central spike, which is used as a fixing element for splice cassettes. Fully loaded with low loss pigtails and LC simplex, duplex or quad adapters. It is easy to open them by a pair of plastic latches. Ejected patchpanel is hanging down in angle of 40 degrees and is easily accessible by operating staff.
Share this entry
Temperature range
Indoor controlled environment (-10°C/+60°C)
Parameters
Dimensions
482 x 251 x 44 mm (1U)
Material
powdered coating steel
Colour light gray RAL7035
deep black RAL9005
Capacity
up to 96 fibers
Cable entry ports
grommet/gland
2x PG13,5/M20 or 4x PG7/M12
Duralino fanout®
2xDuralino fanout® size XL/L or
4xDuralino fanout® size S
Insertion Loss (acc. IEC 61300-3-4 method B) <0,25dB (@1310/1550nm)
<0,25dB (@850/1300nm)
Return Loss (acc. IEC 61300-3-6) >50dB(UPC) / >60dB(APC) (@1310/1550nm)
>30dB (@850/1300nm)
details in section pigtails
Identification Label with unique serial number.
Packaging
Each patchpanel in cardboard box, bulk pack on palette.
Description
Partnumber/Ordering code
PATCHPANEL 1U 12x LC/UPC (06xLCD) OS2 fully loaded
O129-LL2-GRY (grey) / O129-LL2-BLK (black)
PATCHPANEL 1U 12x LC/APC (06xLCD) OS2 fully loaded O129-LA2-GRY (grey) / O129-LA2-BLK (black)
PATCHPANEL 1U 12x LC/PC (06xLCD) OM4 fully loaded O124-LL2-GRY (grey) / O124-LL2-BLK (black)
PATCHPANEL 1U 24x LC/UPC (12xLCD) OS2 fully loaded
O249-LL2-GRY (grey) / O249-LL2-BLK (black)
PATCHPANEL 1U 24x LC/APC (12xLCD) OS2 fully loaded
O249-LA2-GRY (grey) / O249-LA2-BLK (black)
PATCHPANEL 1U 24x LC/PC (12xLCD) OM4 fully loaded
O244-LL2-GRY (grey) / O244-LL2-BLK (black)
PATCHPANEL 1U 48x LC/UPC (24xLCD) OS2 fully loade
O489-LL2-GRY (grey) / O489-LL2-BLK (black)
PATCHPANEL 1U 48x LC/APC (24xLCD) OS2 fully loaded
O489-LA2-GRY (grey) / O489-LA2-BLK (black)
PATCHPANEL 1U 48x LC/PC (24xLCD) OM4 fully loaded
O484-LL2-GRY (grey) / O484-LL2-BLK (black)
PATCHPANEL 1U 48x LC/UPC (12xLCQ) OS2 fully loaded
O489-LL4-GRY (grey) / O489-LL4-BLK (black)
PATCHPANEL 1U 48x LC/APC (12xLCQ) OS2 fully loaded
O489-LA4-GRY (grey) / O489-LA4-BLK (black)
PATCHPANEL 1U 48x LC/PC (12xLCQ) OM4 fully loaded
O484-LL4-GRY (grey) / O484-LL4-BLK (black)
PATCHPANEL 1U 96x LC/UPC (24xLCQ) OS2 fully loaded
O969-LL4-GRY (grey) / O969-LL4-BLK (black)
PATCHPANEL 1U 96x LC/APC (24xLCQ) OS2 fully loaded
O969-LA4-GRY (grey) / O969-LA4-BLK (black)
PATCHPANEL 1U 96x LC/PC (24xLCQ) OM4 fully loaded
O964-LL4-GRY (grey) / O964-LL4-BLK (black)
