Temperature range |
Indoor controlled environment (-10°C/+60°C) | ||
| Parameters |
Dimensions |
482 x 251 x 44 mm (1U)
|
|
|
Material |
powdered coating steel | ||
| Colour | light gray RAL7035 | ||
| deep black RAL9005 | |||
|
Capacity |
up to 96 fibers | ||
| Cable entry ports |
grommet/gland |
2x PG13,5/M20 or 4x PG7/M12
|
|
|
Duralino fanout® |
2xDuralino fanout® size XL/L or
4xDuralino fanout® size S
|
||
| Identification | Label with unique serial number. | ||
| Packaging |
Each patchpanel in cardboard box, bulk pack on palette. |
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
|
Description |
Partnumber/Ordering code |
|
PATCHPANEL 1U with 06x LCD blue adapter (12 LC port) |
O12B-LX2-GRY (grey) / O12B-LX2-BLK (black) |
| PATCHPANEL 1U with 06x LCD green adapter (12 LC port) | O12G-LX2-GRY (grey) / O12G-LX2-BLK (black) |
| PATCHPANEL 1U with 06x LCD aqua adapter (12 LC port) | O12A-LX2-GRY (grey) / O12A-LX2-BLK (black) |
|

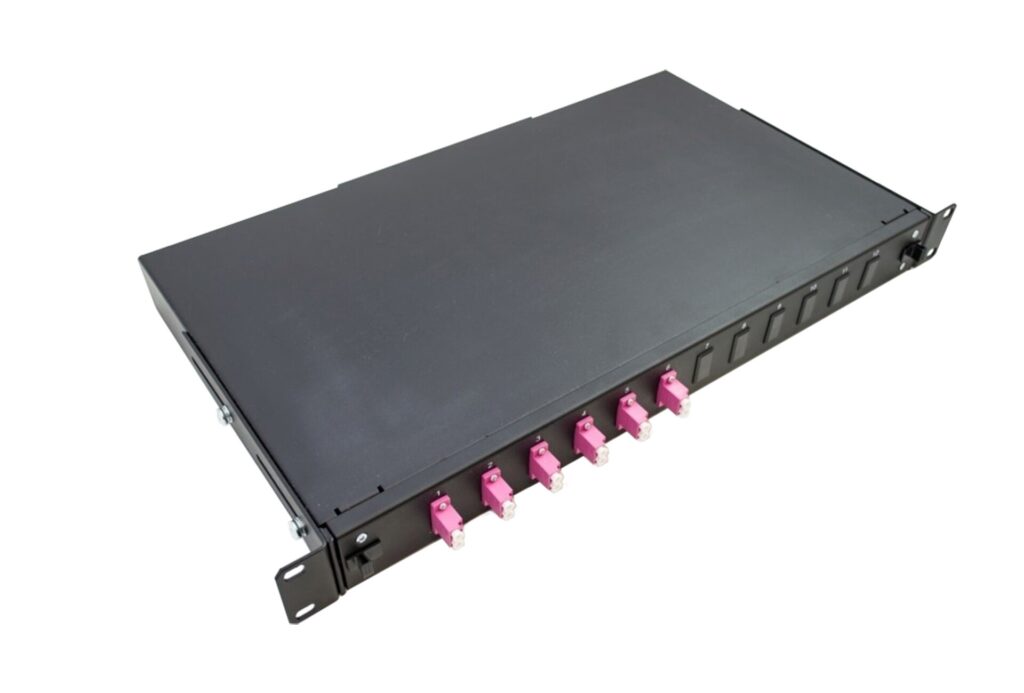

PATCHPANEL 1U with 06x LCD magenta adapter (12 LC port) |
O12M-LX2-GRY (grey) / O12M-LX2-BLK (black) |
|
PATCHPANEL 1U with 12x LCD blue adapter (24 LC port) |
O24B-LX2-GRY (grey) / O24B-LX2-BLK (black) |
|
PATCHPANEL 1U with 12x LCD green adapter (24 LC port) |
O24G-LX2-GRY (grey) / O24G-LX2-BLK (black) |
|
PATCHPANEL 1U with 12x LCD aqua adapter (24 LC port) |
O24A-LX2-GRY (grey) / O24A-LX2-BLK (black) |
|

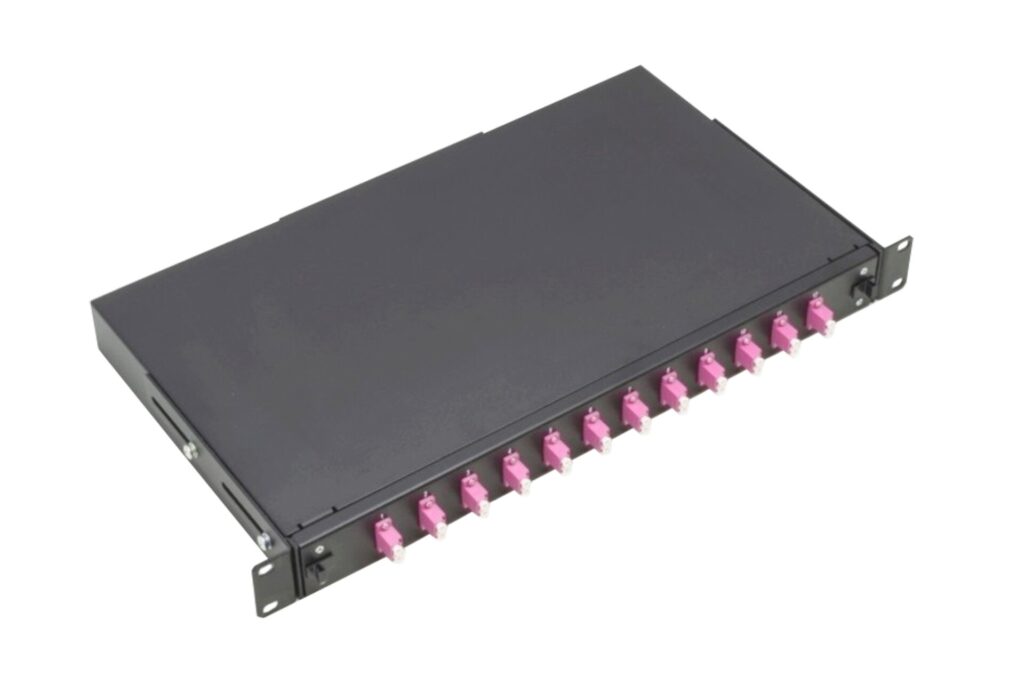

PATCHPANEL 1U with 12x LCD magenta adapter (24 LC port) |
O24M-LX2-GRY (grey) / O24M-LX2-BLK (black) |
|

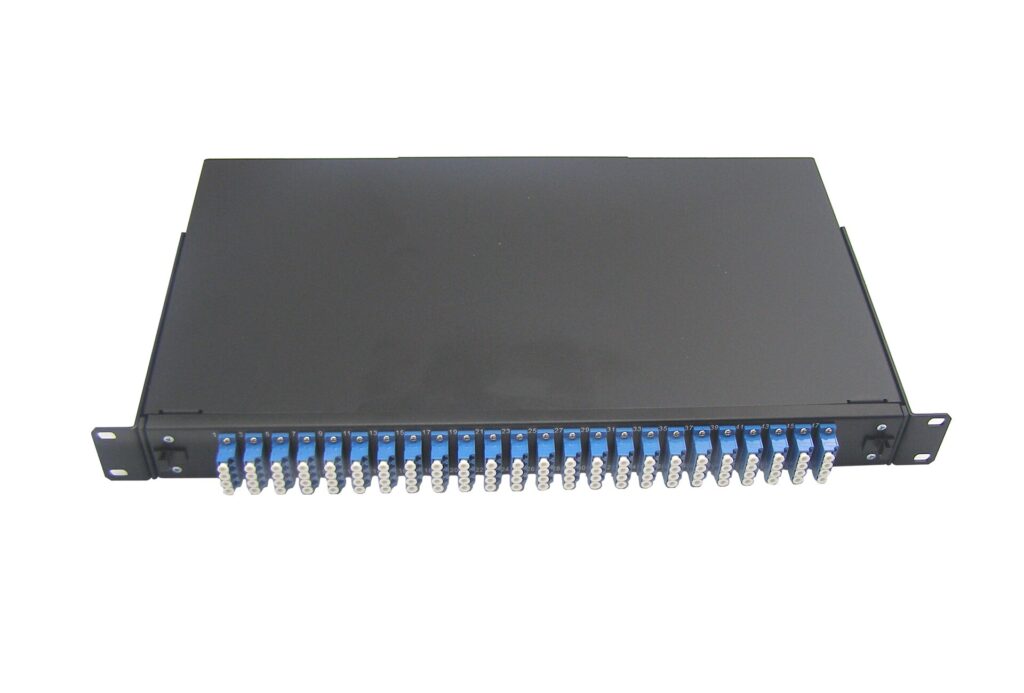

PATCHPANEL 1U with 24x LCD blue adapter (48 LC port) |
O48B-LX2-GRY (grey) / O48B-LX2-BLK (black) |
|
PATCHPANEL 1U with 24x LCD green adapter (48 LC port) |
O48G-LX2-GRY (grey) / O48G-LX2-BLK (black) |
|
PATCHPANEL 1U with 24x LCD aqua adapter (48 LC port) |
O48A-LX2-GRY (grey) / O48A-LX2-BLK (black) |
|

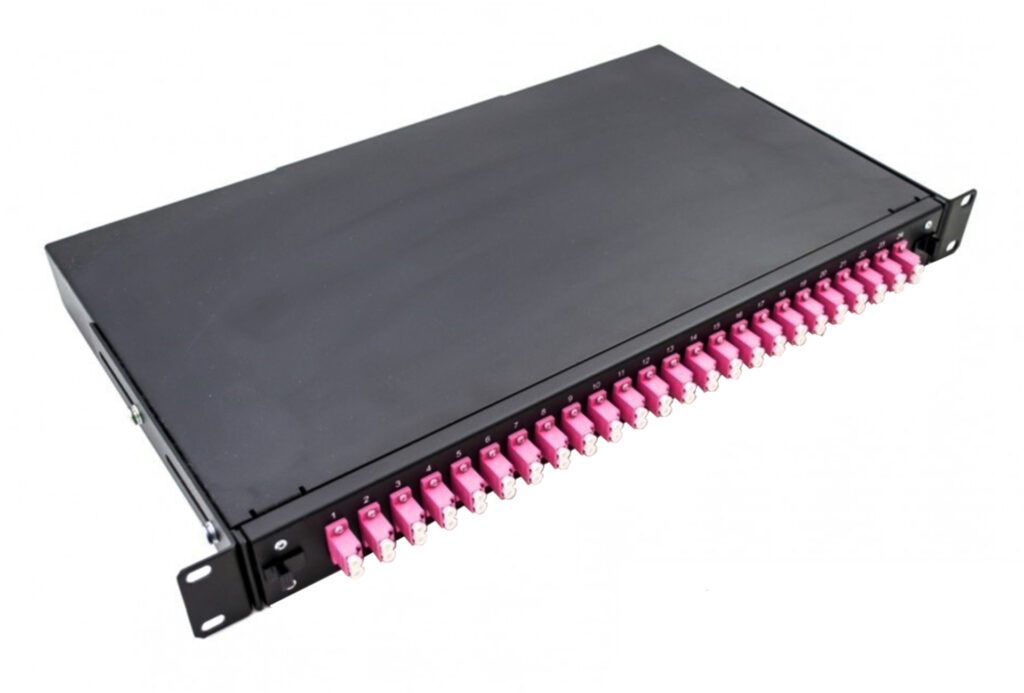

PATCHPANEL 1U with 24x LCD magenta adapter (48 LC port) |
O48M-LX2-GRY (grey) / O48M-LX2-BLK (black) |
|
PATCHPANEL 1U with 12x LCQ blue adapter (48 LC port) |
O48B-LX4-GRY (grey) / O48B-LX4-BLK (black) |
|
PATCHPANEL 1U with 12x LCQ green adapter (48 LC port) |
O48G-LX4-GRY (grey) / O48G-LX4-BLK (black) |
|
PATCHPANEL 1U with 12x LCQ aqua adapter (48 LC port) |
O48A-LX4-GRY (grey) / O48A-LX4-BLK (black) |
|
PATCHPANEL 1U with 12x LCQ magenta adapter (48 LC port) |
O48M-LX4-GRY (grey) / O48M-LX4-BLK (black) |
|
PATCHPANEL 1U with 24x LCQ blue adapter (96 LC port) |
O96B-LX4-GRY (grey) / O96B-LX4-BLK (black) |
|
PATCHPANEL 1U with 24x LCQ green adapter (96 LC port) |
O96G-LX4-GRY (grey) / O96G-LX4-BLK (black) |
|
PATCHPANEL 1U with 24x LCQ aqua adapter (96 LC port) |
O96A-LX4-GRY (grey) / O96A-LX4-BLK (black) |
|
PATCHPANEL 1U with 24x LCQ magenta adapter (96 LC port) |
O96M-LX4-GRY (grey) / O96M-LX4-BLK (black) |
