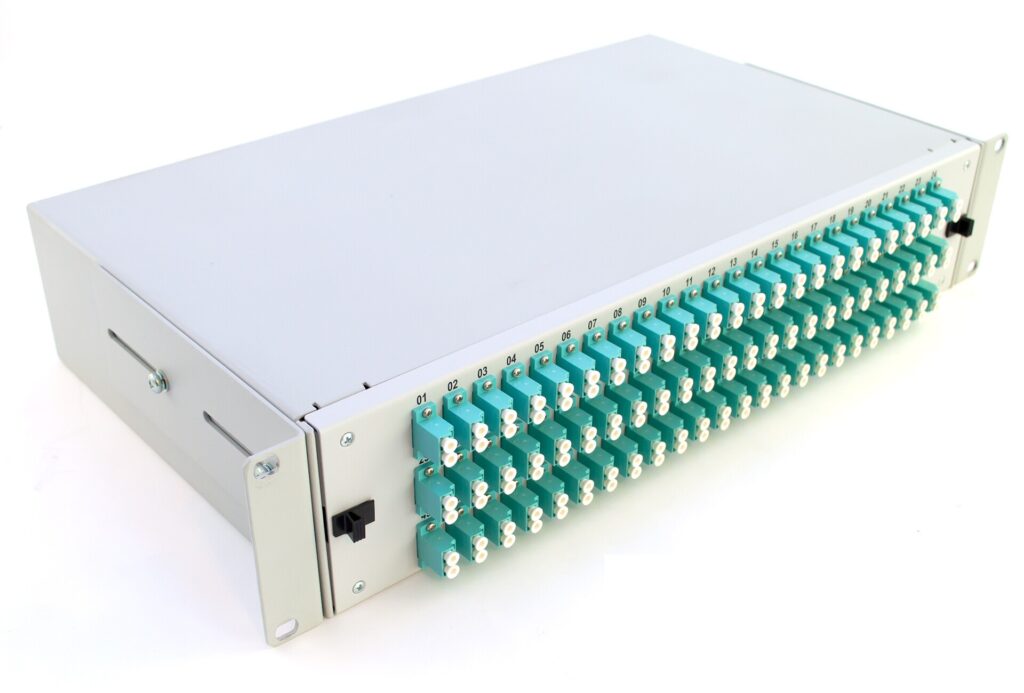

LC 2U patch panel – with adapters

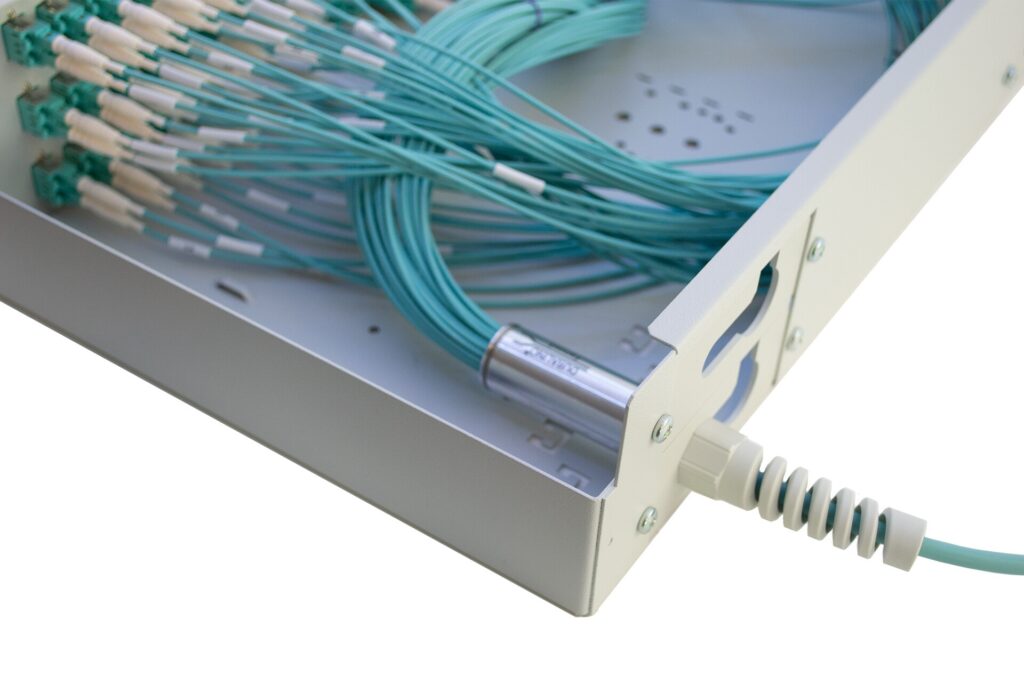

2U 19” sliding patchpanel offered by our company with LC front panel with simplex, duplex or quad holes and back plates. Inside is a central spike, which is used as a fixing element for splice cassettes. Loaded with LC simplex, duplex or quad adapters. It is easy to open them by a pair of plastic latches. Ejected patchpanel is hanging down in angle of 40 degrees and is easily accessible by operating staff.

Share this entry

Temperature range	Indoor controlled environment (-10°C/+60°C)
Parameters	Dimensions	482 x 251 x 88 mm (2U)
	Material	powdered coating steel
	Colour	light gray RAL7035
	Capacity	up to 192 fibers
	Cable entry ports	grommet/gland	4x PG13,5/M20 or 8x PG7/M12

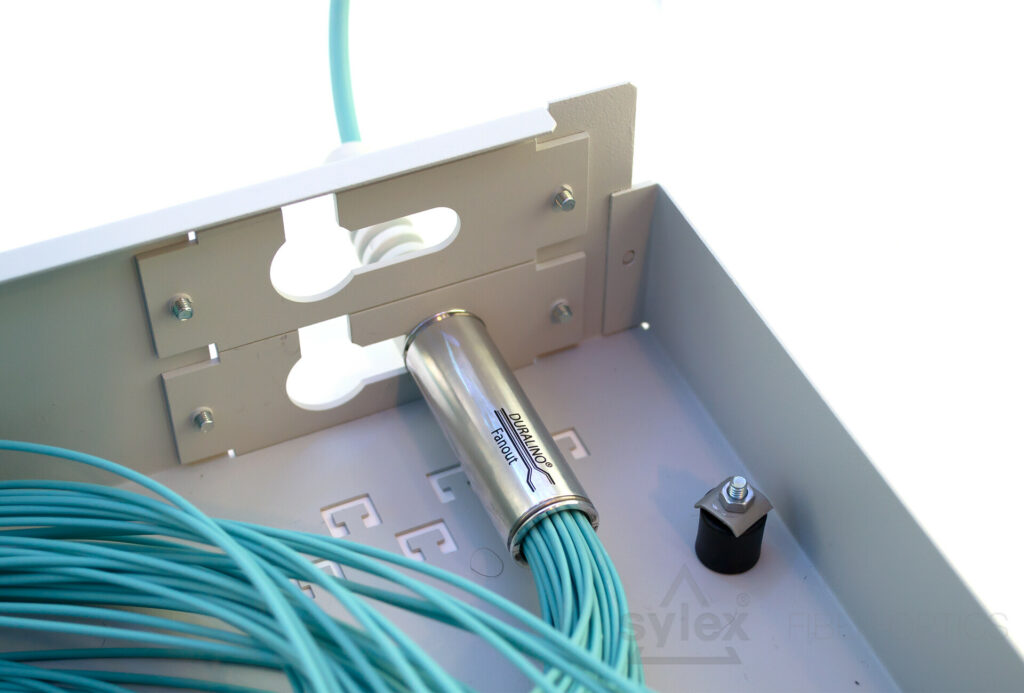

		Duralino fanout®	4x Duralino fanout® size XL/L or 8x Duralino fanout® size S
Identification	Label with unique serial number.
Packaging	Each patchpanel in cardboard box, bulk pack on palette.

Product drawing
Product drawing
Product sheet
Product sheet
Product sheet
Product sheet
Product sheet
Product sheet
Cable Datasheet
Cable Datasheet
Packaging specification
Optical Connector cleaning procedure
Polarities
Cable installation
Cable installation
Cable installation

Description	Partnumber/Ordering code
PATCHPANEL 2U with 48x LCD blue adapter	O96B-LX2-GR2
PATCHPANEL 2U with 48x LCD green adapter	O96G-LX2-GR2
PATCHPANEL 2U with 48x LCD aqua adapter	O96A-LX2-GR2
PATCHPANEL 2U with 48x LCD magenta adapter	O96M-LX2-GR2
PATCHPANEL 2U with 72x LCD blue adapter	OAAB-LX2-GR2
PATCHPANEL 2U with 72x LCD green adapter	OAAG-LX2-GR2
PATCHPANEL 2U with 72x LCD aqua adapter	OAAA-LX2-GR2
PATCHPANEL 2U with 72x LCD magenta adapter	OAAM-LX2-GR2
PATCHPANEL 2U with 48x LCQ blue adapter	OABB-LX4-GR2
PATCHPANEL 2U with 48x LCQ green adapte	OABG-LX4-GR2
PATCHPANEL 2U with 48x LCQ aqua adapte	OABA-LX4-GR2
PATCHPANEL 2U with 48x LCQ magenta adapter	OABM-LX4-GR2

Related products

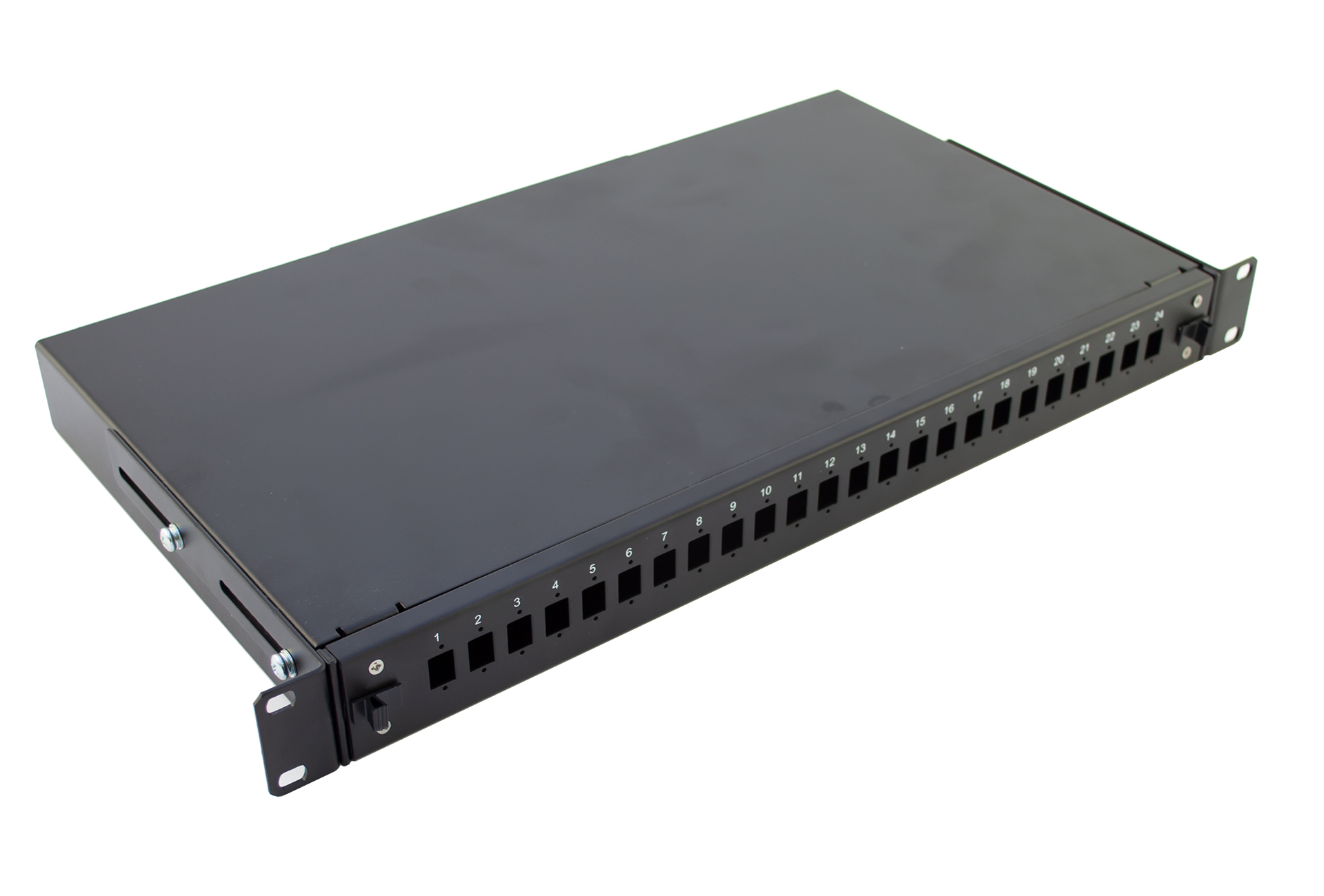

Empty 1U patch panel with LC front panel

1U 19” sliding patchpanel offered by our company with LC front panel with simplex, duplex or quad holes and back plates. Inside is a central spike, which is used as a fixing element for splice cassettes. It is easy to open them by a pair of plastic latches. Ejected patchpanel is hanging down in angle of 40 degrees and is easily accessible by operating staff.

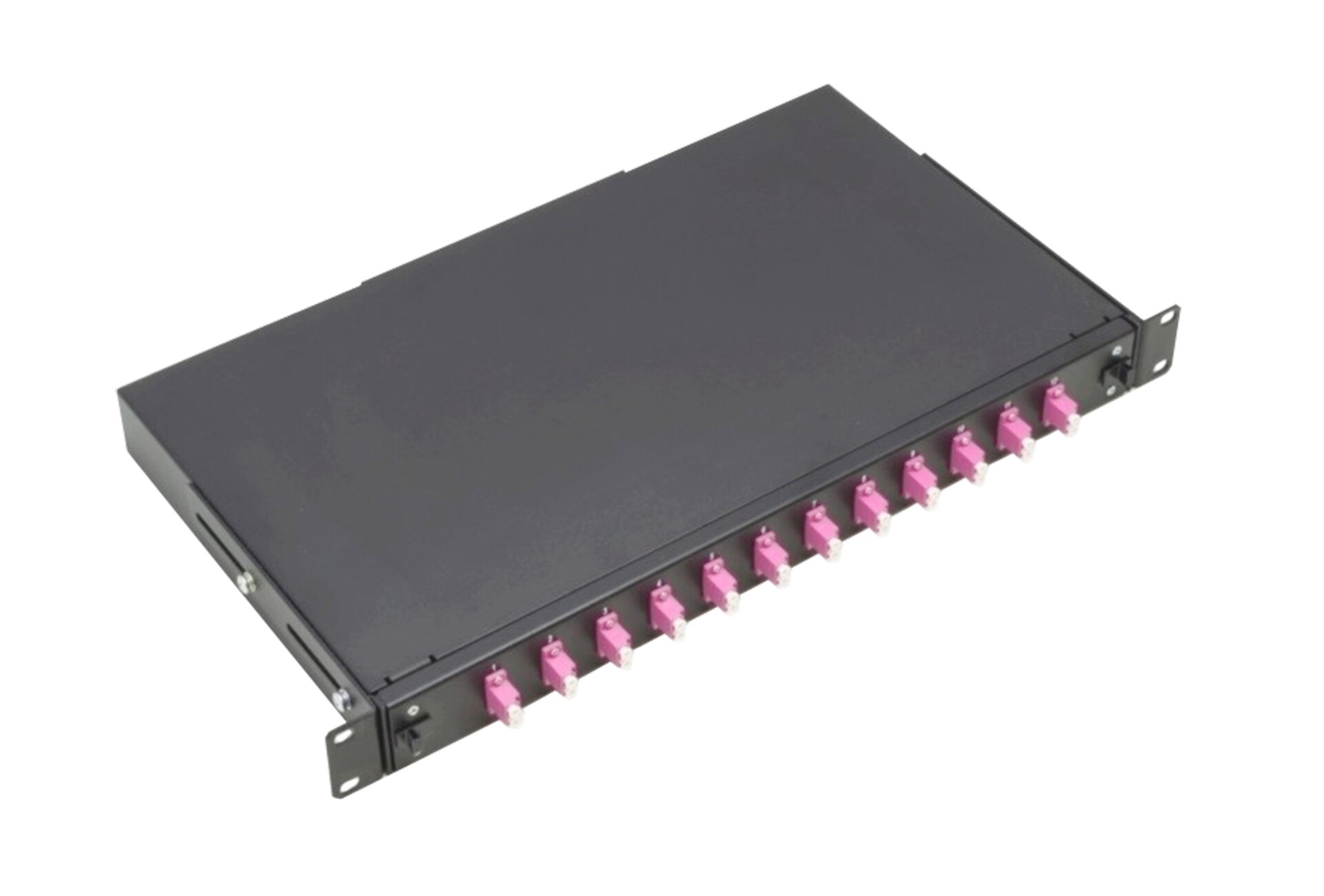

LC 1U patch panel – fully loaded
