Temperature range |
Outdoor environment (-40°C/+70°C) | ||
| Cable parameters |
Jacket material |
LSZH
|
|
|
Cable construction |
Universal round cable | ||
|
Outer diameter |
4.8mm | ||
|
Fiber count |
2 | ||
|
Fiber type |
SMF OS2
|
||
|
Temperature range |
Operation: -40°C to +70°C
|
||
|
Storage: -40°C to +70°C
|
|||
|
Installion: -5°C to +50°C
|
|||
| Connector parameters | IP LCD SM | LC/LCD SM | |
|
Compliance |
Telcordia GR-326 |
Telcordia GR-326 | |
|
Colour of housing
|
Blue (UPC) / Green (APC) |
Blue (UPC) / Green (APC) | |
|
Colour of boot
|
N/A | White | |
|
Polish
|
Flat (UPC) / Angled (APC) | Flat (UPC) / Angled (APC) | |
|
Insertion Loss
(acc. IEC 61300-3-4 method B)
|
<0,25dB
(@1310/1550nm)
|
<0,25dB (@850/1300nm) | |
|
Return Loss
(acc. IEC 61300-3-6) |
>50dB (UPC)/>60dB (APC)
(@1310/1550nm)
|
>50dB (UPC)/>60dB (APC)
(@1310/1550nm) |
|
| Identification | Traceability label with unique serial number on both ends of cable assembly. | ||
| Packaging |
Each assembly in sealed PE bag, bulk pack in cardboard box. |
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
|
Description |
Partnumber/Ordering code |

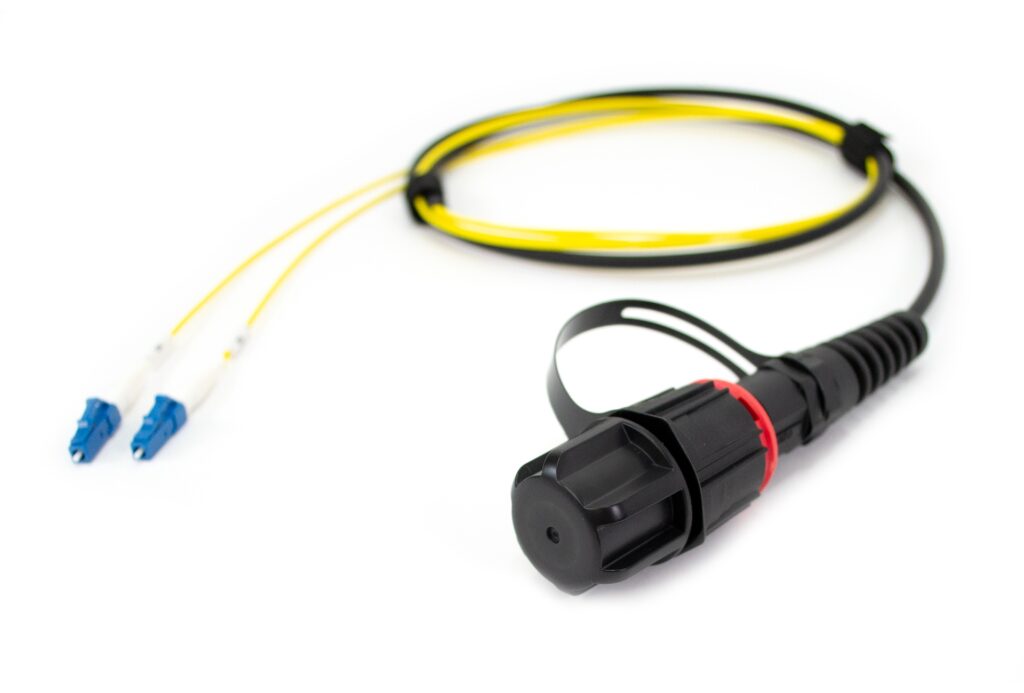

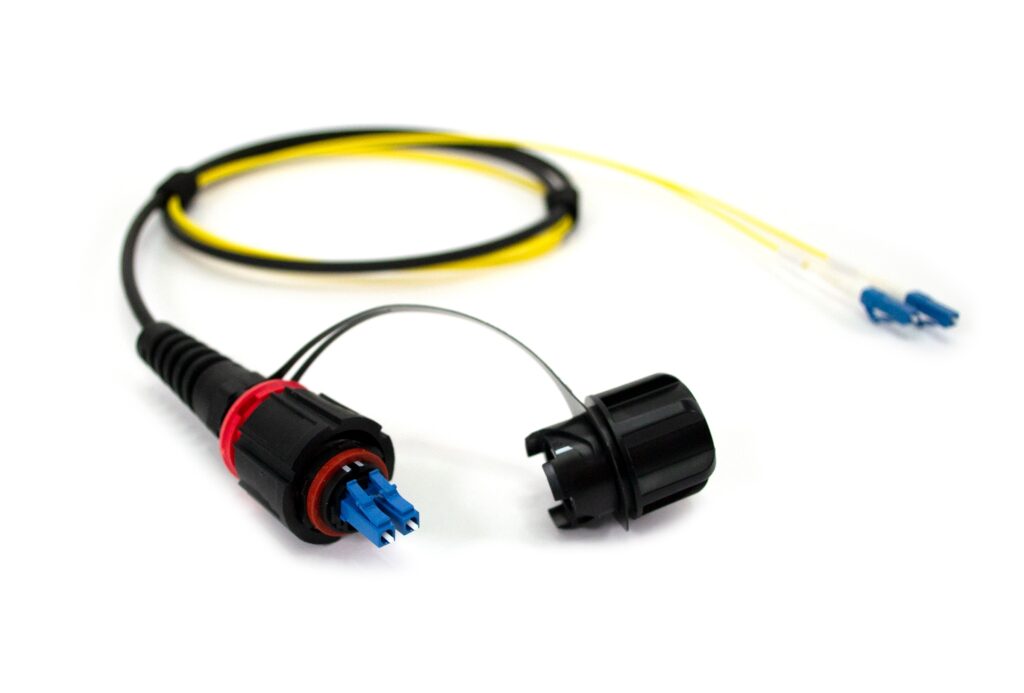

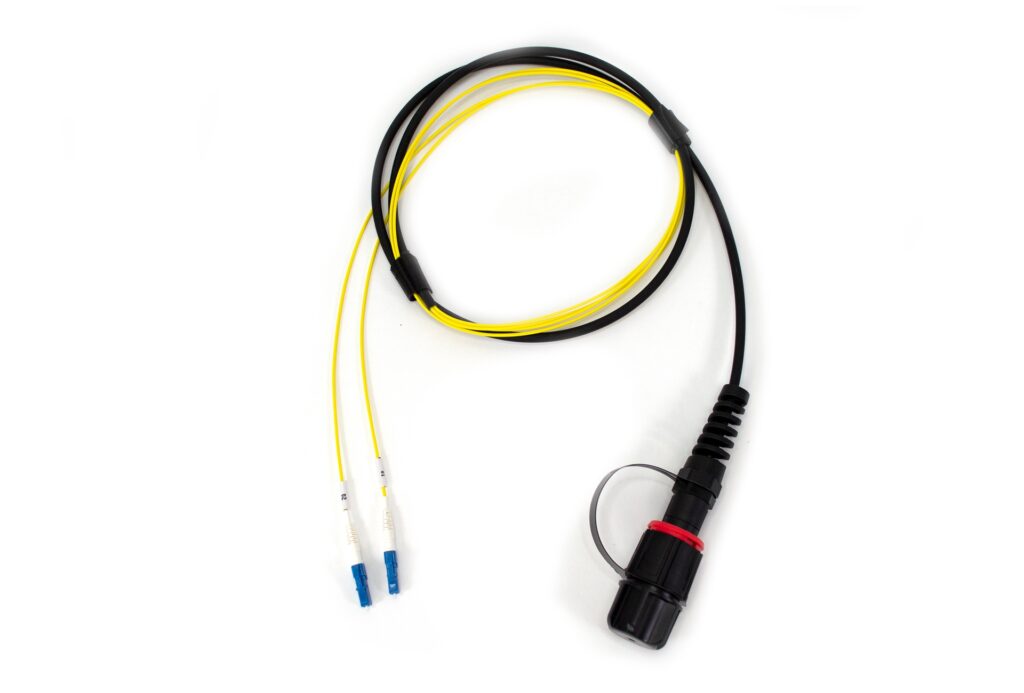

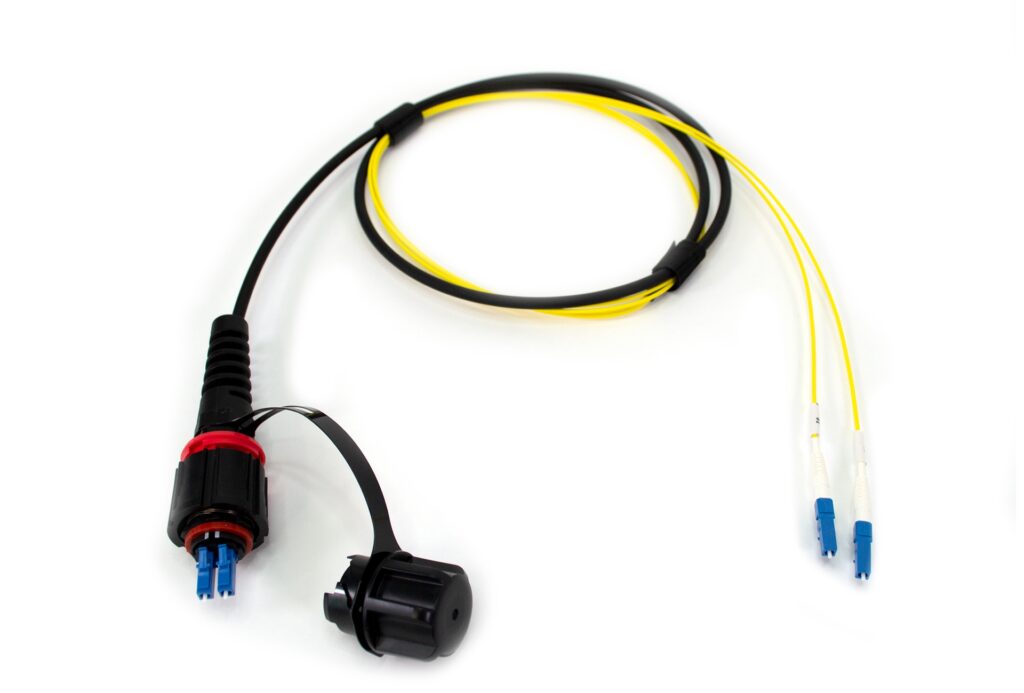

| LC/APC – IP LCD/APC 02-fiber OS2 Drop cable 3M | 5029-AAI-003 |
| LC/APC – IP LCD/APC 02-fiber OS2 Drop cable 5M | 5029-AAI-005 |
| LC/PC – IP LC/PCD 02-fiber OS2 Drop cable 3M | 5029-LLI-003 |
| LC/PC – IP LCD/PC 02-fiber OS2 Drop cable 5M | 5029-LLI-005 |
