Temperature range |
Indoor controlled environment (-10°C/+60°C) | ||
Cable parameters |
Jacket material |
LSZH
|
|
Cable construction |
Miniflex cable | ||
Outer diameter |
3.0mm | ||
Fiber count |
12 | ||
Fiber type |
SM OS2 or MMF OM3/OM4/OM5
|
||
Temperature range |
Operation: -20°C to +85°C
|
||
Installion: -20°C to +60°C
|
|||
Connector parameters | LC SM | LC MM | |
Compliance |
Telcordia GR-326 |
Telcordia GR-326 | |
Colour of connector
|
Blue (UPC)/Green (APC) |
Aqua/Magenta/Lime Green | |
Colour of boot
|
White (UPC) or Green (APC) | White | |
Polish
|
Flat (UPC) or Angled (APC) | Flat (PC) | |
Insertion Loss
(acc. IEC 61300-3-4 method B)
|
<0,25dB
(@1310/1550nm)
|
<0,25dB (@850/1300nm) | |
Return Loss
(acc. IEC 61300-3-6) |
>50dB (UPC)/>60dB (APC)
(@1310/1550nm)
|
>30dB (@850/1300nm) | |
Fanout |
Material (body / other parts) |
ABS* / metal
|
|
Duralino body diameter |
15.5mm | ||
IP Rating |
IP40 | ||
Identification | Traceability label with unique serial number on both ends of cable assembly. | ||
Packaging |
Each assembly in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on cardboard/wooden reel.
|
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
Description |
Partnumber/Ordering code |

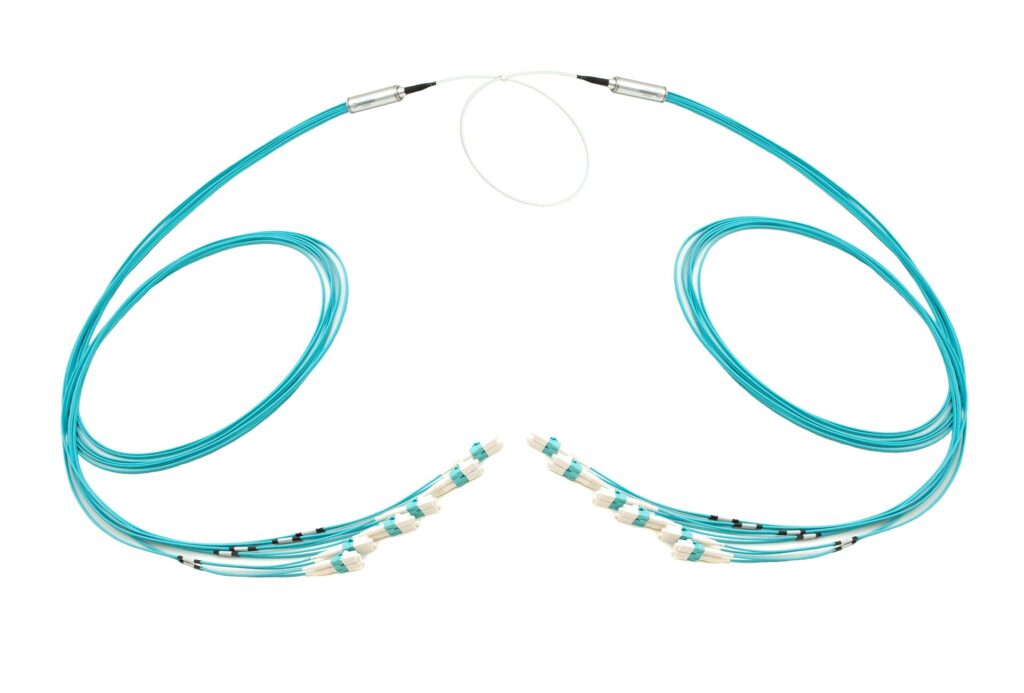

LC/APC – LC/APC 12-fiber OS2 Duralino Miniflex trunk – Duplex |
T129-AAD-XXX-M |
LC/PC – LC/PC 12-fiber OS2 Duralino Miniflex trunk – Duplex |
T129-LLD-XXX-M |
LC/PC – LC/PC 12-fiber OM3 Duralino Miniflex trunk – Duplex | T123-LLD-XXX-M |
LC/PC – LC/PC 12-fiber OM4 Duralino Miniflex trunk – Duplex | T124-LLD-XXX-M |
LC/APC – LC/APC 12-fiber OS2 Duralino Miniflex trunk – Duplex – with grommet | G129-AAD-XXX-M |
LC/PC – LC/PC 12-fiber OS2 Duralino Miniflex trunk – Duplex – with grommet | G129-LLD-XXX-M |
LC/PC – LC/PC 12-fiber OM3 Duralino Miniflex trunk – Duplex – with grommet | G123-LLD-XXX-M |
LC/PC – LC/PC 12-fiber OM4 Duralino Miniflex trunk – Duplex – with grommet | G124-LLD-XXX-M |
