Temperature range |
Indoor controlled environment (-10°C/+60°C) | ||
| Cable parameters |
Jacket material |
LSZH
|
|
|
Cable construction |
Round double jacket cable – ruggedized | ||
|
Outer diameter |
3.0mm/4.5mm | ||
|
Fiber count |
12 | ||
|
Fiber type |
SM OS2 or MMF OM3/OM4/OM5
|
||
|
Temperature range |
Operation: -10°C to +70°C
|
||
|
Storage: -25°C to +70°C
|
|||
|
Installion: -5°C to +50°C
|
|||
|
CPR |
Cca-s1a, d1, a1 / Cca-s1a, d1, a2
|
||
| Connector parameters | LC SM | LC MM | |
|
Compliance |
Telcordia GR-326 |
Telcordia GR-326 | |
|
Colour of connector
|
Blue (UPC)/Green (APC) |
Aqua/Magenta/Lime Green | |
|
Colour of boot
|
White (UPC) or Green (APC) | White | |
|
Polish
|
Flat (UPC) or Angled (APC) | Flat (PC) | |
|
Insertion Loss
(acc. IEC 61300-3-4 method B)
|
<0,25dB
(@1310/1550nm)
|
<0,25dB (@850/1300nm) | |
|
Return Loss
(acc. IEC 61300-3-6) |
>50dB (UPC)/>60dB (APC)
(@1310/1550nm)
|
>30dB (@850/1300nm) | |
| Fanout |
Material (body / other parts) |
ABS* / metal
|
|
|
Duralino body diameter |
15.5mm | ||
|
IP Rating |
IP40 | ||
| Identification | Traceability label with unique serial number on both ends of cable assembly. | ||
| Packaging |
Each assembly in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on cardboard/wooden reel.
|
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
|
Description |
Partnumber/Ordering code |

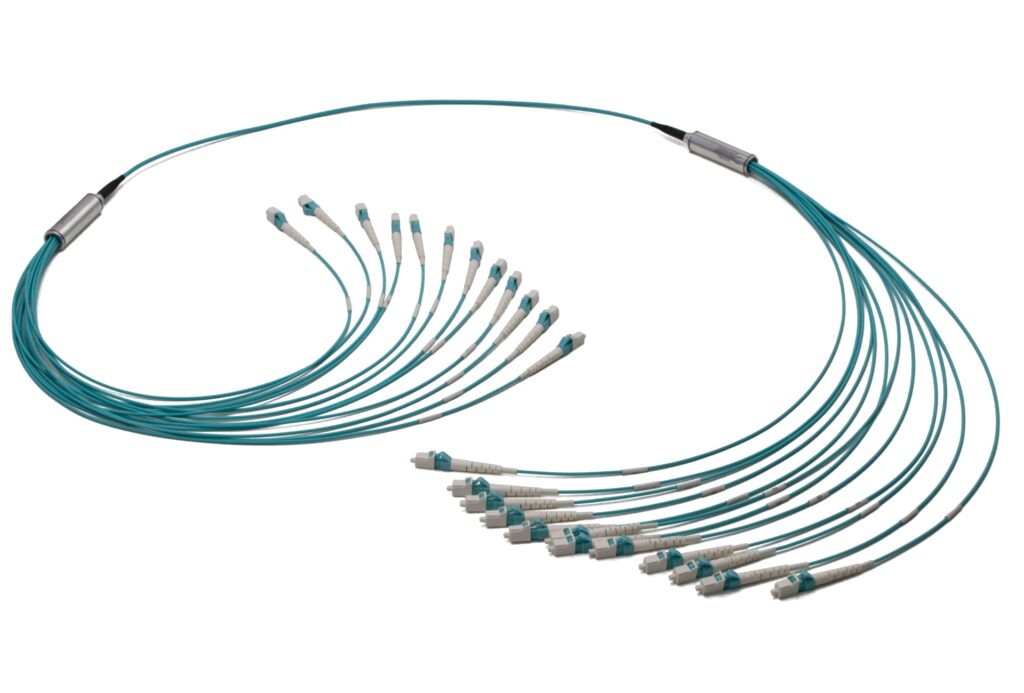

| LC/APC – LC/APC 12-fiber OS2 Duralino trunk – simplex | T129-AAS-XXX |
| LC/PC – LC/PC 12-fiber OS2 Duralino trunk – simplex | T129-LLS-XXX |
| LC/PC – LC/PC 12-fiber OM3 Duralino trunk – simplex | T123-LLS-XXX |
| LC/PC – LC/PC 12-fiber OM4 Duralino trunk – simplex | T124-LLS-XXX |
| LC/PC – LC/PC 12-fiber OM5 Duralino trunk – simplex | T125-LLS-XXX |
| LC/APC – LC/APC 12-fiber OS2 Duralino trunk – simplex – with grommet | G129-AAS-XXX |
| LC/PC – LC/PC 12-fiber OS2 Duralino trunk – simplex – with grommet | G129-LLS-XXX |
| LC/PC – LC/PC 12-fiber OM3 Duralino trunk – simplex – with grommet | G123-LLS-XXX |
| LC/PC – LC/PC 12-fiber OM4 Duralino trunk – simplex – with grommet | G124-LLS-XXX |
| LC/PC – LC/PC 12-fiber OM5 Duralino trunk – simplex – with grommet |
G125-LLS-XXX |
