Temperature range |
Outdoor environment (-40°C/+70°C) | ||
| Cable parameters |
Jacket material |
LLDPE 1.1mm
|
|
| Cable construction | Stranded loose tube, gel filled | ||
| Outer diameter | 7.0mm | ||
| Fiber count | 24 | ||
| Fiber type | SMF OS2 | ||
| Temperature range | Operation: -40°C to +70°C | ||
| Storage: -40°C to +70°C | |||
| Installation: -5°C to +50°C | |||
| Connector parameters |
LC/LCD SM
|
||
| Compliance | Telecordia GR-326 | ||
| Colour of housing | Blue (PC) / Green (APC) | ||
| Colour of boot | White | ||
| Polish | Flat SM (UPC) / Angled (APC) | ||
| Insertion Loss (acc. IEC 61300-3-4 method B) | <0,25dB (@1310/1550nm) | ||
| Return Loss (acc. IEC 61300-3-6) | >50dB (UPC) (@1310/1550nm) >60dB (APC) (@1310/1550nm) | ||
| Identification | Traceability label with unique serial number on both ends of cable assembly. | ||
| Packaging |
Each assembly in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on cardboard/wooden reel. |
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
|
Description |
Partnumber/Ordering code |

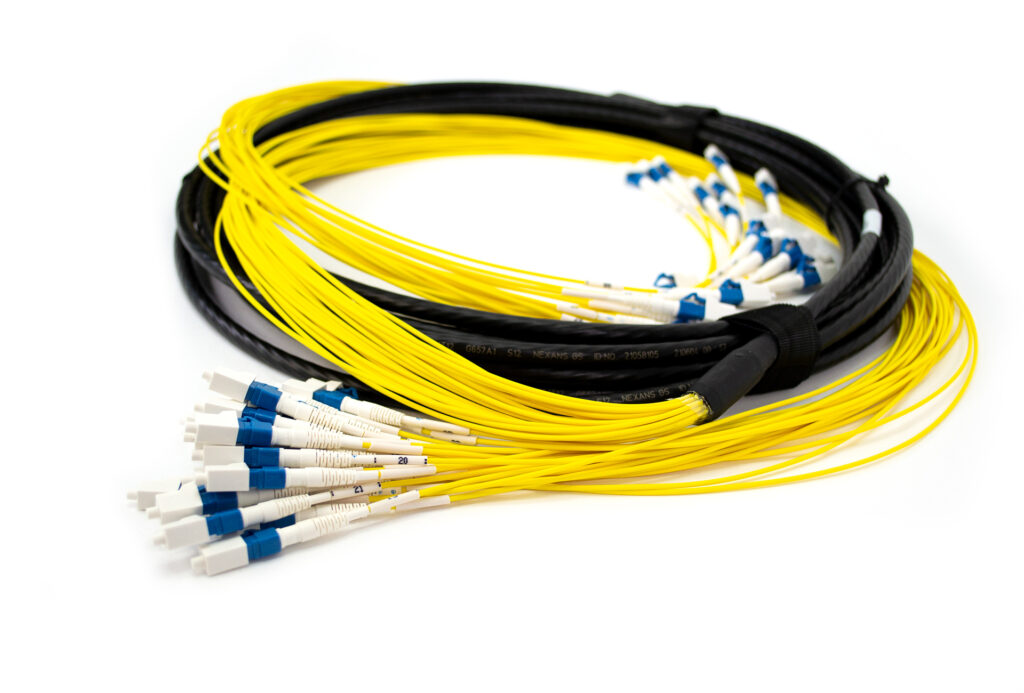

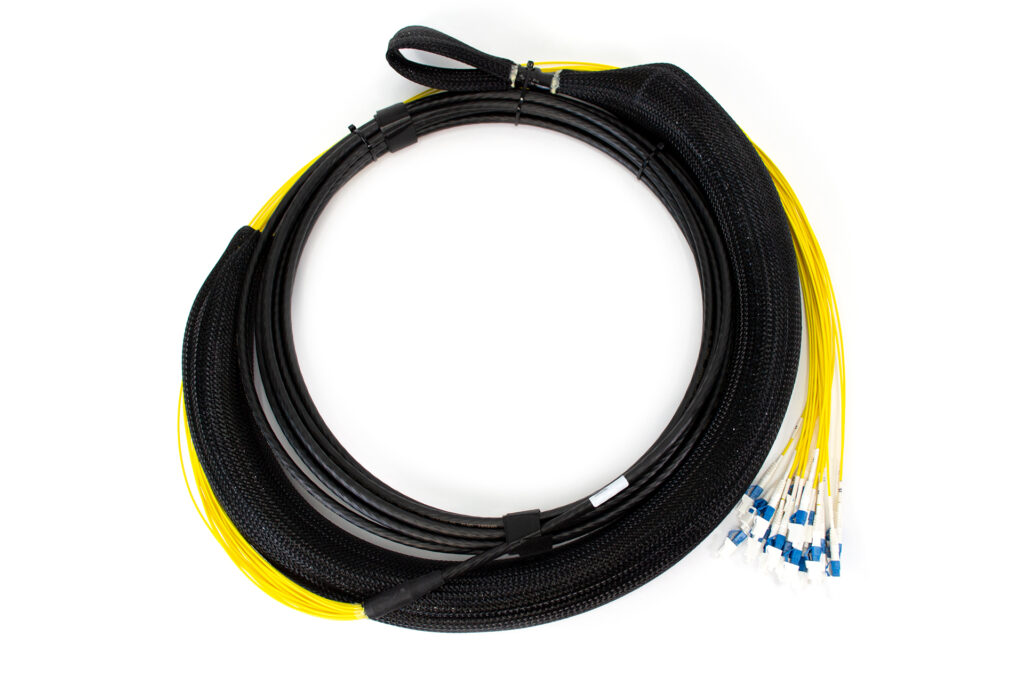

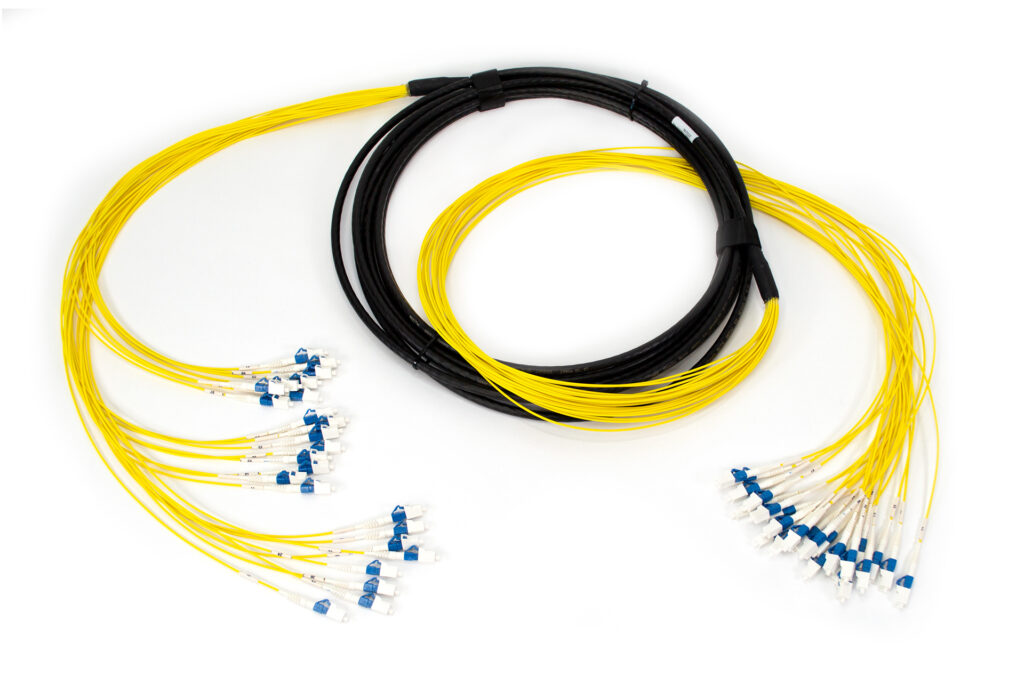

| LC/APC – LC/APC 24-fiber OS2 Feeder cable | 5249-AA2-xxx |
| LC/PC – LC/PC 24-fiber OS2 Feeder cable | 5249-LL2-xxx |
| LC/APC – LC/PC 24-fiber OS2 Feeder cable | 5249-AL2-xxx |
