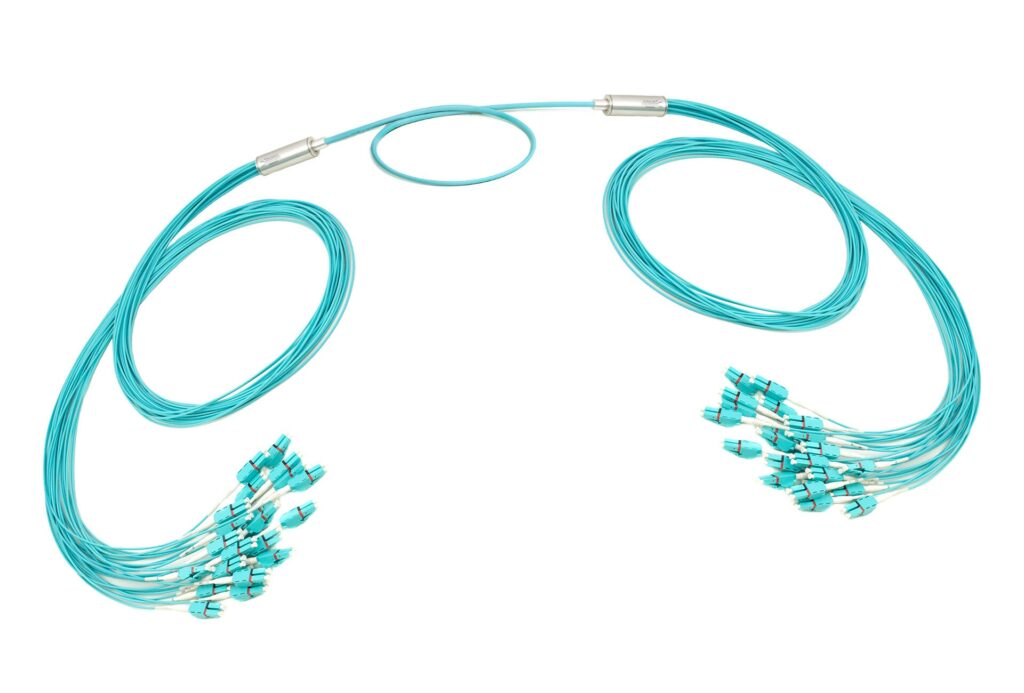

    LC – LC 48-fiber Duralino trunk – Uniboot

    • The handy and compact Duralino fanout design is capable of carrying nearly every cable design and gives SYLEX the opportunity to offer various solutions for trunks tailored to customer requirements, no matter whether you are building high-broadband backbone links, DataCenter/Telehouse interconnections or simple rack-to-rack cabling.
    • Factory pre-terminated trunk cables with Duralino fanout offers hi-fiber density interconnection links based on microbundle cables, offering thin, compact and flexible easy-to-install trunk. Complex 48-fiber Duralino trunk suits wide range of application where fast and simple installation is needed.
    Ask a question
    DATASHEET
    DRAWING
    Share this entry
    Temperature range
    		 Indoor controlled environment (-10°C/+60°C)
    Cable parameters
    Jacket material
    LSZH
    Cable construction
    		 Micro-Bundle
    Outer diameter
    		 5.7mm
    Fiber count
    		 48
    Fiber type
    SM OS2 or MMF OM3/OM4/OM5
    Temperature range
    Operation: -10°C to +70°C
    Storage: -25°C to +70°C
    Installion: -5°C to +50°C
    CPR
    Cca-s1a, d1, a1
    Connector parameters
    		LC SM LC MM
    Compliance
    Telcordia GR-326
    		 Telcordia GR-326
    Colour of connector
    Blue (UPC)/Green (APC)
    		 Aqua/Magenta/Lime Green
    Colour of boot
    		 White (UPC) or Green (APC) White
    Polish
    		 Flat (UPC) or Angled (APC) Flat (PC)
    Insertion Loss
    (acc. IEC 61300-3-4 method B)
    <0,25dB
    (@1310/1550nm)
    		 <0,25dB (@850/1300nm)
    Return Loss
    (acc. IEC 61300-3-6)
    >50dB (UPC)/>60dB (APC)
    (@1310/1550nm)
    		 >30dB (@850/1300nm)
    Fanout
    Material (body / other parts)
    metal / metal
    Duralino body diameter
    		 17 mm (w/ Extender) / 21mm (w/ Grommet)
    IP Rating
    		 IP40
    Identification Traceability label with unique serial number on both ends of cable assembly.
    Packaging
    Each assembly in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on cardboard/wooden reel.
    Description
    Partnumber/Ordering code
    LCD/APC – LCD/APC 48-fiber OS2 Duralino trunk – Uniboot T489-AAU-XXX
    LCD/PC – LCD/PC 48-fiber OS2 Duralino trunk – Uniboot T489-LLU-XXX
    LCD/PC – LCD/PC 48-fiber OM3 Duralino trunk – Uniboot T483-LLU-XXX
    LCD/PC – LCD/PC 48-fiber OM4 Duralino trunk – Uniboot T484-LLU-XXX
    LCD/PC – LCD/PC 48-fiber OM5 Duralino trunk – Uniboot T485-LLU-XXX
    LCD/APC – LCD/APC 48-fiber OS2 Duralino trunk – Uniboot – with grommet G489-AAU-XXX
    LCD/PC – LCD/PC 48-fiber OS2 Duralino trunk – Uniboot – with grommet G489-LLU-XXX
    LCD/PC – LCD/PC 48-fiber OM3 Duralino trunk – Uniboot – with grommet G483-LLU-XXX
    LCD/PC – LCD/PC 48-fiber OM4 Duralino trunk – Uniboot – with grommet G484-LLU-XXX
    LCD/PC – LCD/PC 48-fiber OM5 Duralino trunk – Uniboot – with grommet
    G485-LLU-XXX
