Temperature range |
Indoor controlled environment (-10°C/+60°C) | ||
| Cable parameters |
Jacket material |
FRNC
|
|
|
Cable construction |
Loose Tube cable | ||
|
Outer diameter |
11.2mm | ||
|
Fiber count |
48 | ||
|
Fiber type |
SM OS2 or MMF OM4
|
||
|
Temperature range |
Operation: -20°C to +60°C
|
||
|
Storage: -25°C to +70°C
|
|||
|
Installion: -5°C to +50°C
|
|||
|
CPR |
Dca-s2, d2, a1
|
||
| Connector parameters | LC SM | LC MM | |
|
Compliance |
Telcordia GR-326 |
Telcordia GR-326 | |
|
Colour of connector
|
Blue (UPC)/Green (APC) |
Magenta | |
|
Colour of boot
|
White (UPC) or Green (APC) | White | |
|
Polish
|
Flat (UPC) or Angled (APC) | Flat (PC) | |
|
Insertion Loss
(acc. IEC 61300-3-4 method B)
|
<0,25dB
(@1310/1550nm)
|
<0,25dB (@850/1300nm) | |
|
Return Loss
(acc. IEC 61300-3-6) |
>50dB (UPC)/>60dB (APC)
(@1310/1550nm)
|
>30dB (@850/1300nm) | |

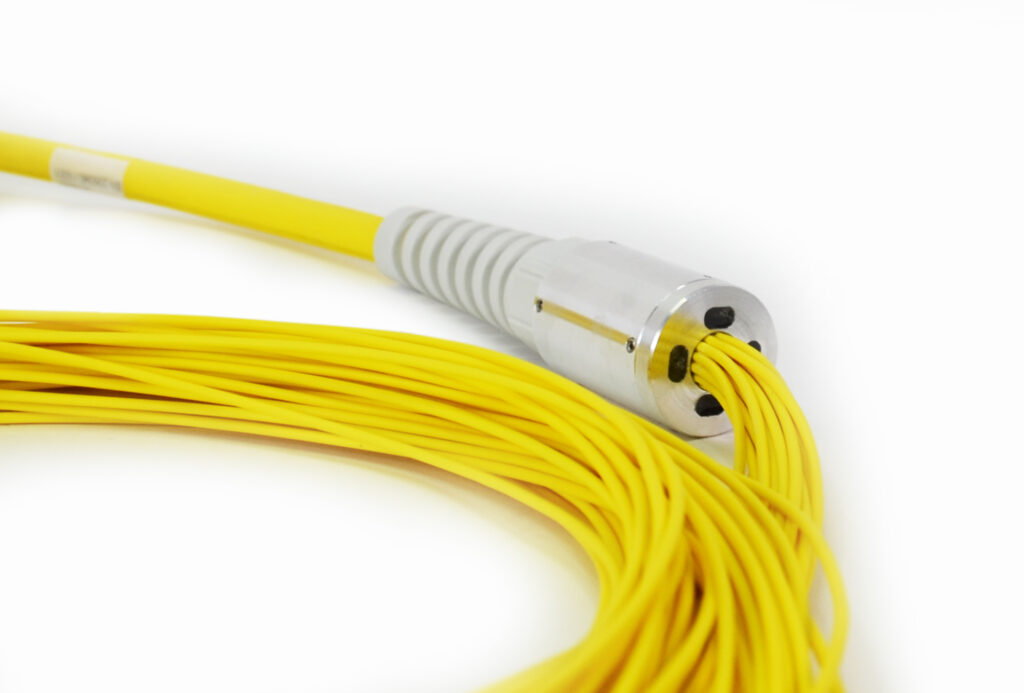

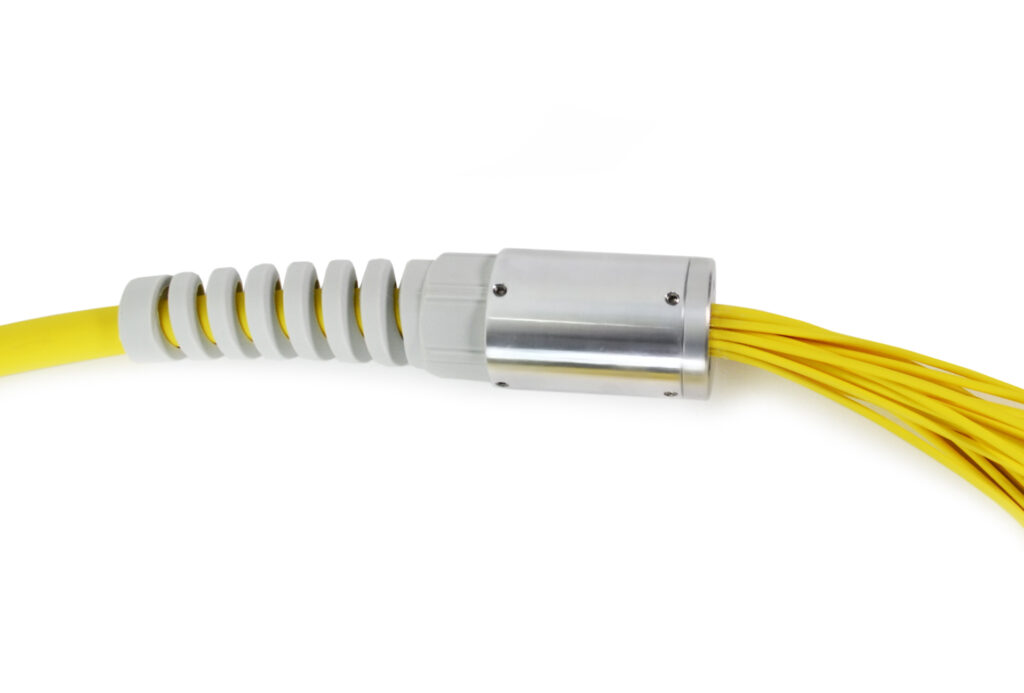

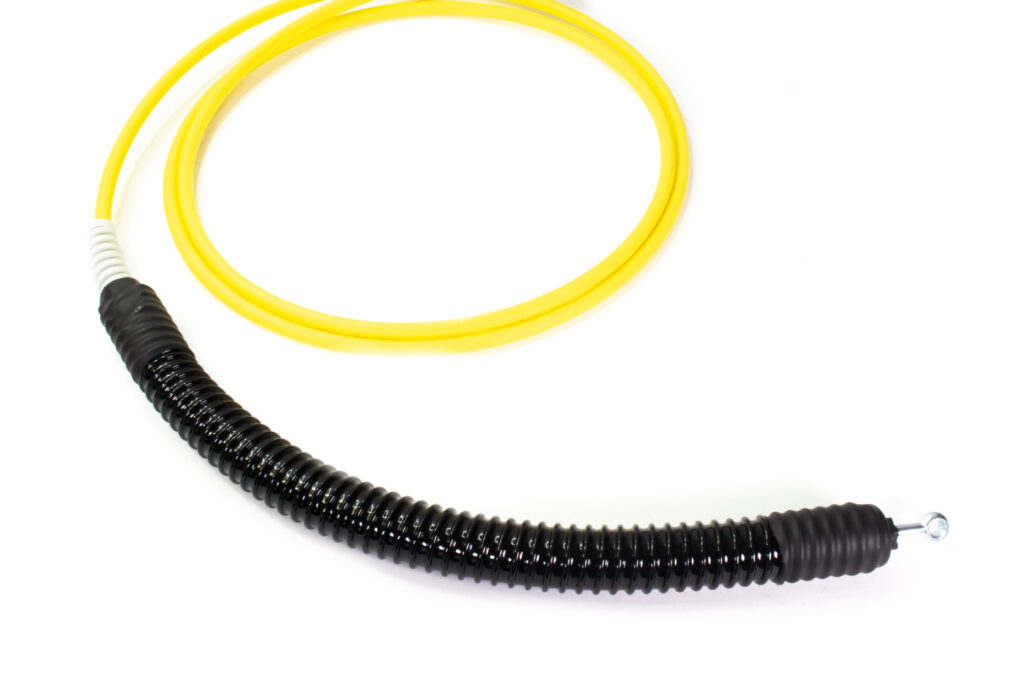

| Fanout |
Material (body / other parts) |
Aluminum / Polyamide
|
|
|
Flexo body diameter |
30mm | ||
|
Grommet diameter |
M20 (25mm) | ||
| Identification | Traceability label with unique serial number on both ends of cable assembly. | ||
| Packaging |
Each assembly in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on cardboard/wooden reel. |
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
|
Description |
Partnumber/Ordering code |

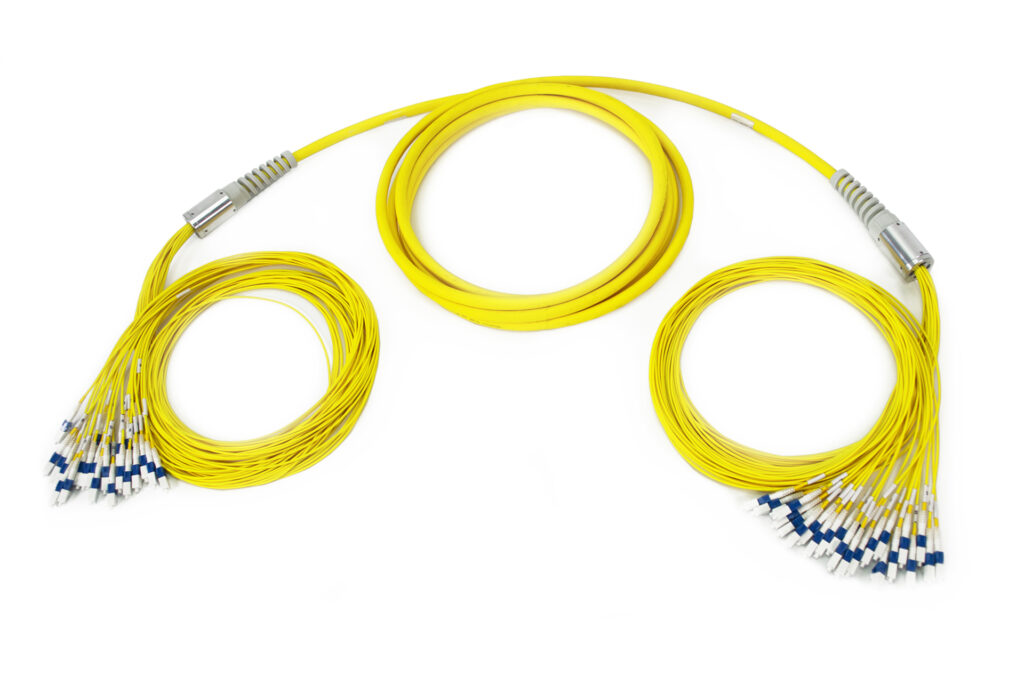

| LC/APC – LC/APC 48-fiber OS2 U-DQ FLEXO trunk | Q489-AAS-XXX |
| LC/PC – LC/PC 48-fiber OS2 U-DQ FLEXO trunk | Q489-LLS-XXX |
| LC/PC – LC/PC 48-fiber OM4 U-DQ FLEXO trunk | Q484-LLS-XXX |
