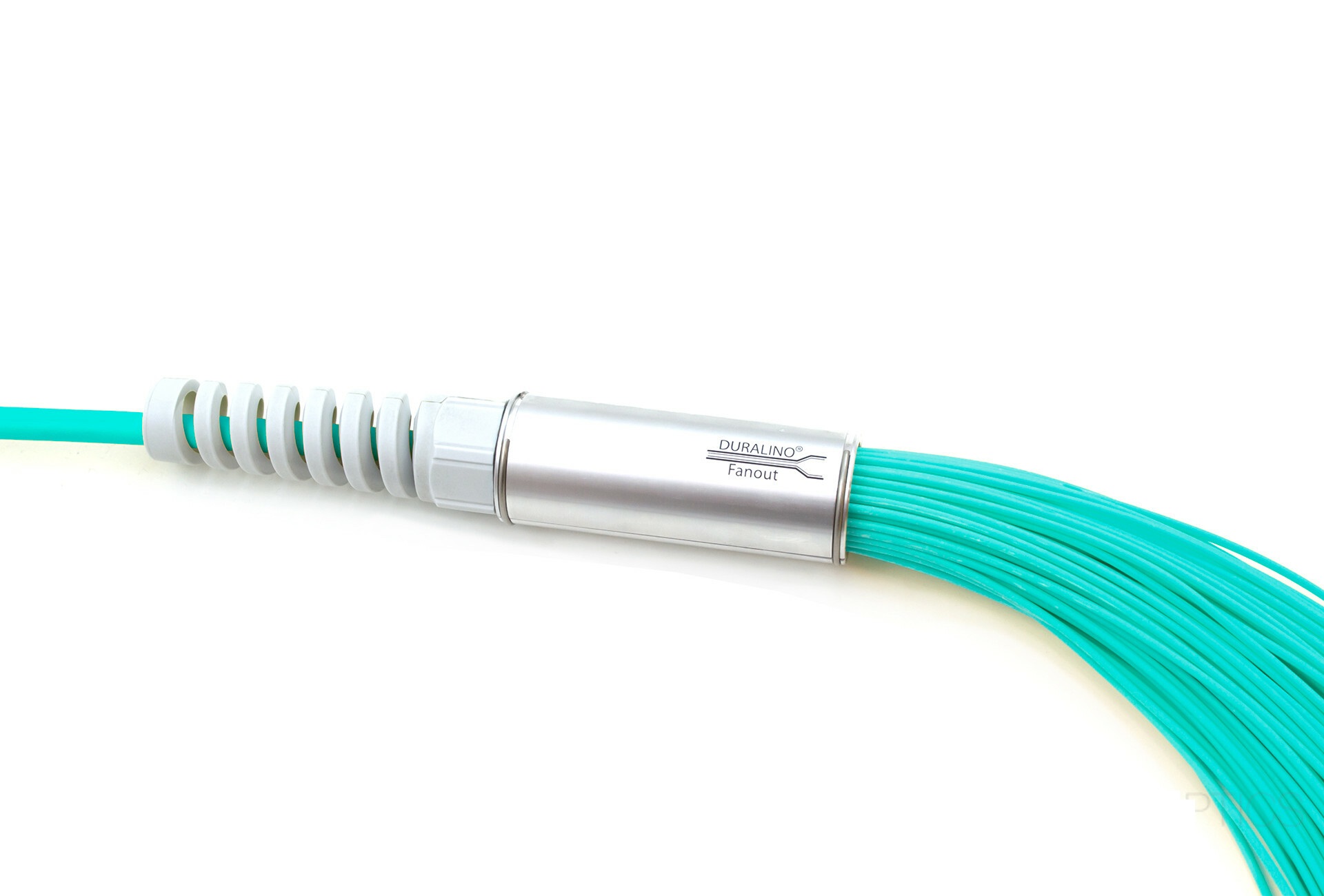

    LC – LC 72-fiber Duralino trunk – 900um

    • The handy and compact Duralino fanout design is capable of carrying nearly every cable design and gives SYLEX the opportunity to offer various solutions for trunks tailored to customer requirements, no matter whether you are building high-broadband backbone links, DataCenter/Telehouse interconnections or simple rack-to-rack cabling.
    • Cost, space and installation time-saving solutions for handy fiber optic network deployment – 72-fiber factory pre-terminated trunk cables with Duralino fanout offers hi-fiber density interconnection links based on compact micro-bundle cable which is complaint with CPR regulation. Option with 900um tubings is dedicated for patching inside of patchpanels.
    Ask a question
    DATASHEET
    DRAWING
    Share this entry
    Temperature range
    		 Indoor controlled environment (-10°C/+60°C)
    Cable parameters
    Jacket material
    LSZH
    Cable construction
    		 Micro-Bundle
    Outer diameter
    		 6.3mm
    Fiber count
    		 72
    Fiber type
    SM OS2 or MMF OM3/OM4/OM5
    Temperature range
    Operation: -10°C to +70°C
    Storage: -25°C to +70°C
    Installion: -5°C to +50°C
    CPR
    Cca-s1a, d1, a1
    Connector parameters
    		LC SM LC MM
    Compliance
    Telcordia GR-326
    		 Telcordia GR-326
    Colour of connector
    Blue (UPC)/Green (APC)
    		 Aqua/Magenta/Lime Green
    Colour of boot
    		 colored acc. TIA/EIA 598-A colored acc. TIA/EIA 598-A
    Polish
    		 Flat (UPC) or Angled (APC) Flat (PC)
    Insertion Loss
    (acc. IEC 61300-3-4 method B)
    <0,25dB
    (@1310/1550nm)
    		 <0,25dB (@850/1300nm)
    Return Loss
    (acc. IEC 61300-3-6)
    >50dB (UPC)/>60dB (APC)
    (@1310/1550nm)
    		 >30dB (@850/1300nm)
    Fanout
    Material (body / other parts)
    ABS* / metal
    Duralino body diameter
    		 15.5mm
    IP Rating
    		 IP40
    Identification Traceability label with unique serial number on both ends of cable assembly.
    Packaging
    Each assembly in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on cardboard/wooden reel.
    * Fanout metal body optional
    Description
    Partnumber/Ordering code
    LC/APC – LC/APC 72-fiber OS2 Duralino trunk – 900um T729-AA9-XXX
    LC/PC – LC/PC 72-fiber OS2 Duralino trunk – 900um T729-LL9-XXX
    LC/PC – LC/PC 72-fiber OM3 Duralino trunk – 900um T723-LL9-XXX
    LC/PC – LC/PC 72-fiber OM4 Duralino trunk – 900um T724-LL9-XXX
    LC/PC – LC/PC 72-fiber OM5 Duralino trunk – 900um T725-LL9-XXX
    LC/APC – LC/APC 72-fiber OS2 Duralino trunk – 900um – with grommet
    G729-AA9-XXX
    LC/PC – LC/PC 72-fiber OS2 Duralino trunk – 900um – with grommet G729-LL9-XXX
    LC/PC – LC/PC 72-fiber OM3 Duralino trunk – 900um – with grommet G723-LL9-XXX
    LC/PC – LC/PC 72-fiber OM4 Duralino trunk – 900um – with grommet G724-LL9-XXX
    LC/PC – LC/PC 72-fiber OM5 Duralino trunk – 900um – with grommet
    G725-LL9-XXX
