    MBx-01 Mounting Brackets for SC-01, MSA-01 sensors

    Type: Mounting bracket

    Installation: Glue, screw, spot welding

    Material: Stainless steel

    Downloads
    • Datasheet
    • Drawing
    • Installation Manual
    • Standard WL configuration
    • Cleaning and Mating Manual
    • Calibration sheet
    • Packaging specification
    • Product manual
    • S-line Sentinel D software
    • S-line Sentinel 2.0 datalog example
    • 3D file .STEP
    • Energy cross table
    Ask a question
    Share this entry

    Characteristics

    • Designed for SC-01, and MSA-01 sensors surface mounting.

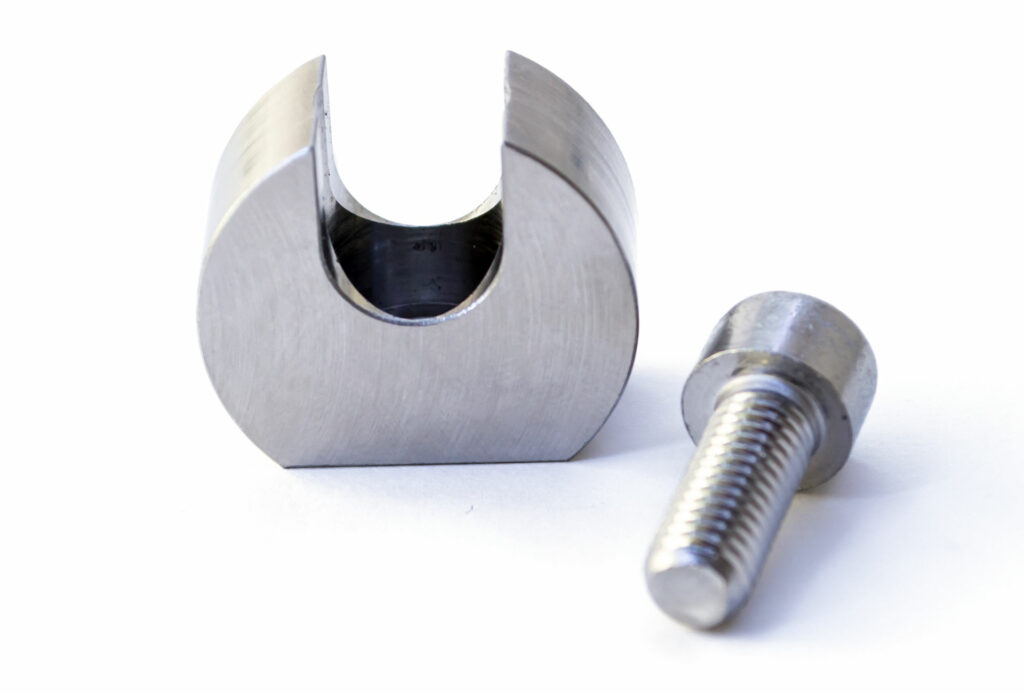

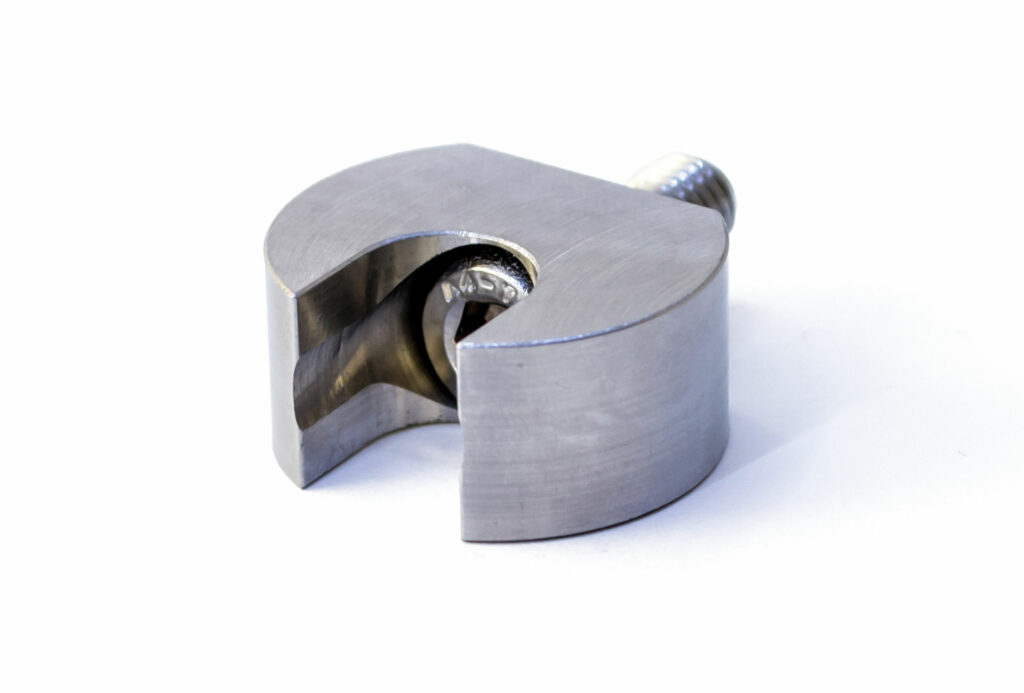

    • Provided as pair of brackets, together with screws.

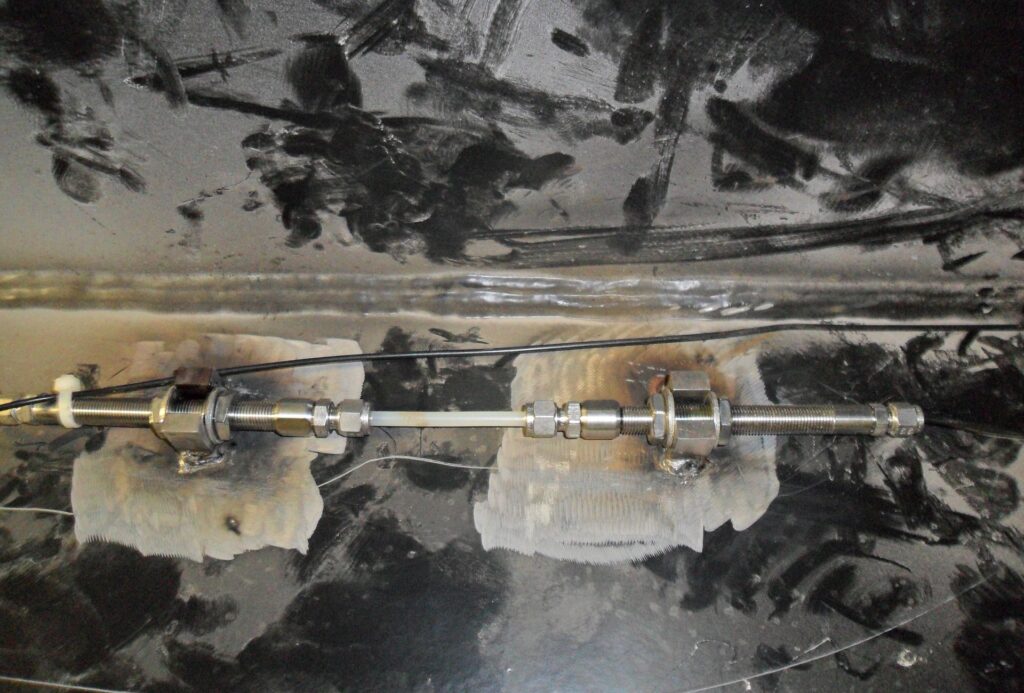

    • MBS-01 mounting brackets can be screwed, welded or glued to the surface.

    Related products

    SC-01 Strain cable sensor

    Type: Long-gauge strain sensors

    Application: Concrete or grout embeddable, surface mountable

    Installation method: Mounting brackets – weldable, screwable

    Pre-strain setup: At installation

    Temperature compensation: Integrated in the sensor body

    MSA-01 Mountable strain array sensor

    Type: Multiple-gauge strain sensor

    Application: Concrete or grout embeddable, surface mountable

    Installation method: Mounting brackets – weldable, screwable

    Pre-strain setup: At installation

    Temperature compensation: Through external temperature sensor
