    MDC – MDC 08F-fiber Duralino trunk

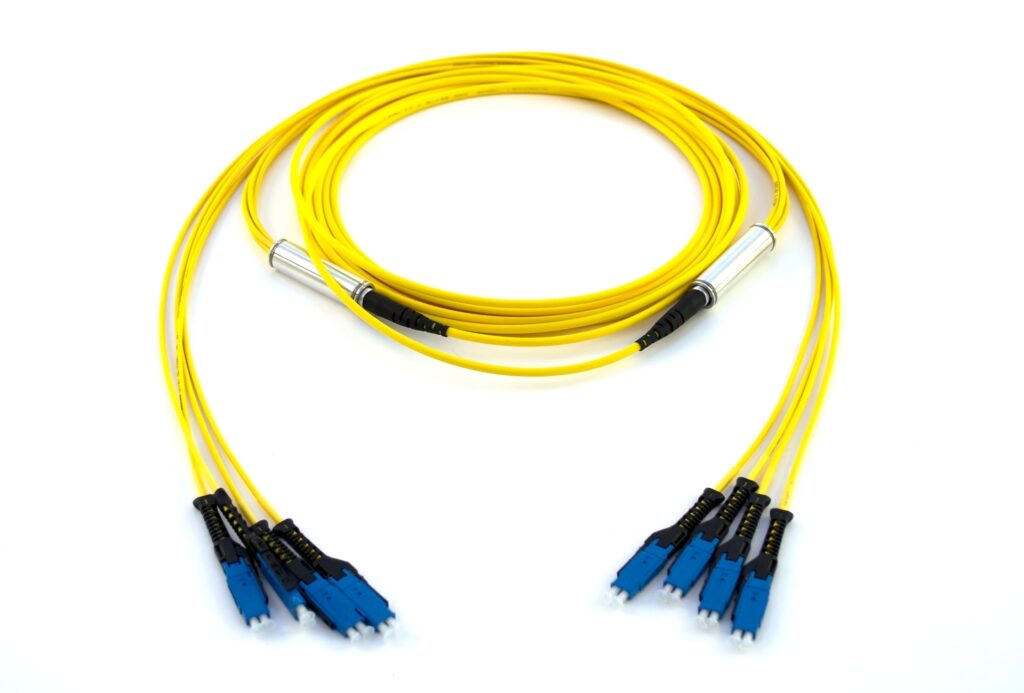

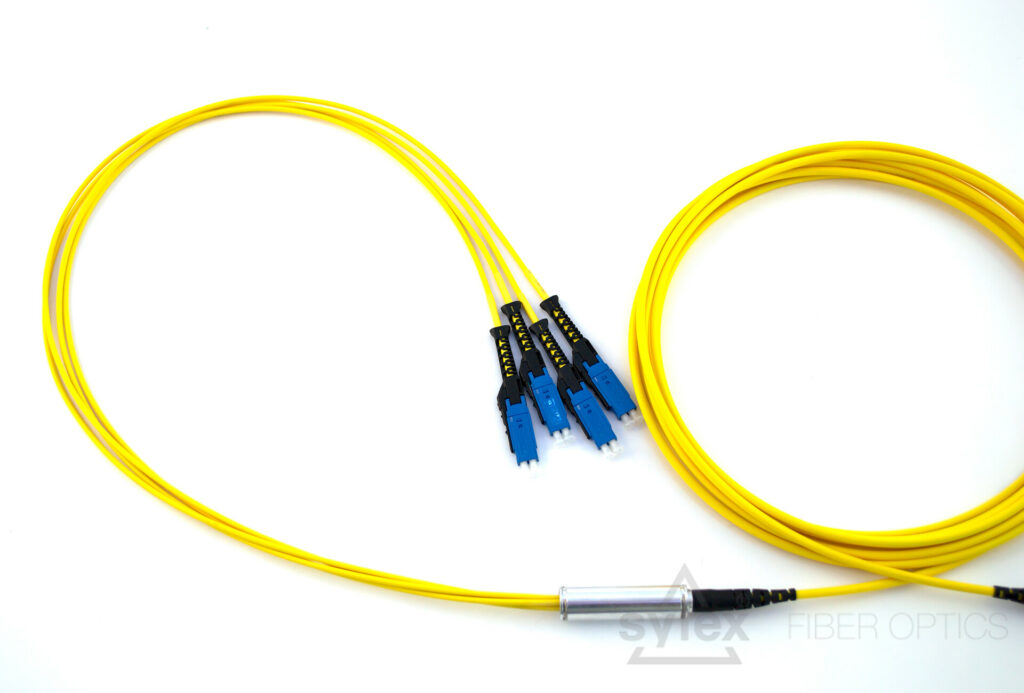

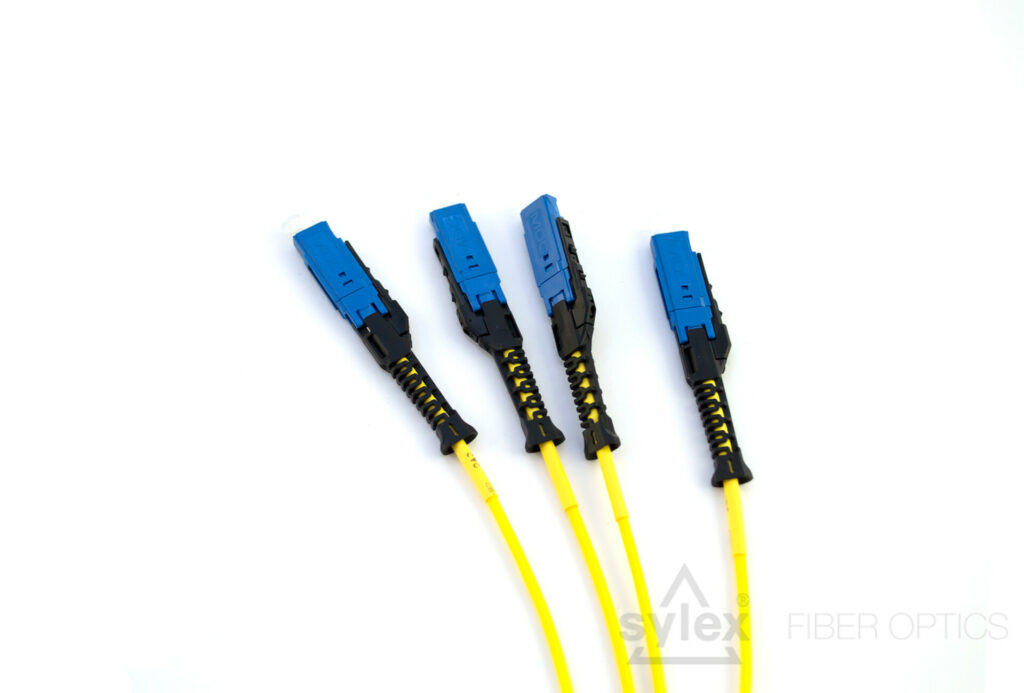

    • The MDC duplex trunk is typically terminated with 4 connectors. This simple design can be directly used for cross-connection of the newly designed QSFP-DD (400 to 4x 100 Gbit/sec) or SFP-DD (100 to 4x 25 Gbit/sec) transceivers.

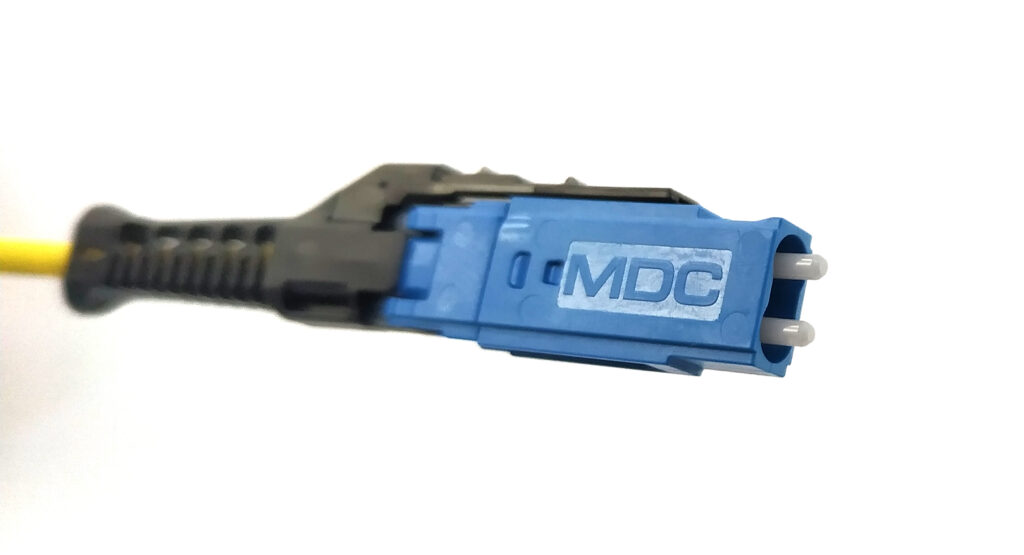

    • The MDC connector is based on the same 125um ferrules as LC connectors, offering equal optical and transmission parameters. In an environment where migration from 10, 40 or 100 Gbit/sec to 400 or 800 Gbit/sec is a must, the MDC connector benefits from its size, which allows triple the density in one 1U patch panel as compared to the LC connector.
    • We can offer you SM (OS2) and MM (OM3, OM4, OM5) versions of trunks up to 144 fibres. Aside from the pure MDC connector-based products, the hybrid versions with various types of single-fibre connectors are available as well
    • OFNP cable option available
    Ask a question
    DATASHEET
    DRAWING
    Share this entry
    Temperature range
    		 Indoor controlled environment (-10°C/+60°C)
    Cable parameters
    Jacket material
    LSZH
    Cable construction Round double jacket cable
    Outer diameter 3,0/4.5mm
    Fiber count 12
    Fiber type SMF OS2, MMF OM1/OM3/OM4/OM5
    Temperature range Operation: -10°C to +70°C
    Storage: -25°C to +70°C
    Installation: -5°C to +50°C
    CPR
    Cca-s1a, d1, a2
    Connector parameters
    MDC Sr. SM/MM
    Compliance Telecordia GR-326
    Colour of housing SM – Blue (PC)/Green (APC) MM – Aqua/Magenta/Lime Green
    Colour of boot Black
    Polish Flat SM (UPC) / Angled (APC) / Flat MM (PC)
    Insertion Loss (acc. IEC 61300-3-4 method B) <0,25dB (@850/1300nm & @1310/1550nm)
    Return Loss (acc. IEC 61300-3-6) >50dB (UPC) (@1310/1550nm)
    >60dB (APC) (@1310/1550nm)
    >20dB (@850/1300nm)
    Fanout
    Material (body / other parts)
    ABS* / metal
    Duralino body diameter
    		 15.5mm
    IP Rating
    		 IP40
    Identification Traceability label with unique serial number on both ends of cable assembly.
    Packaging
    Each assembly in sealed PE bag, bulk pack in cardboard box.
    * Fanout metal body optional
    Description
    Partnumber/Ordering code
    MDC/UPC – MDC/UPC 8F-fiber Duralino trunk OS2T089-VV2-xxx
    MDC/PC – MDC/PC 08F-fiber Duralino trunk OM3T083-VV2-xxx
    MDC/PC – MDC/PC 08F-fiber Duralino trunk OM4T084-VV2-xxx
    MDC/PC – MDC/PC 08F-fiber Duralino trunk OM5T085-VV2-xxx
