Temperature range |
Indoor controlled environment (-10°C/+60°C) | ||
| Cable parameters |
Jacket material |
LSZH
|
|
|
Cable construction |
Round cable | ||
|
Outer diameter |
3,8mm | ||
|
Fiber count |
24 | ||
|
Fiber type |
MMF OM3/OM4
|
||
| Temperature range | Operation: -10°C to +70°C | ||
| Storage: -25°C to +70°C | |||
|
Installion: -5°C to +50°C
|
|||
|
CPR |
Cca-s1a, d1, a1
B2ca-s1a, d1, a1
|
||

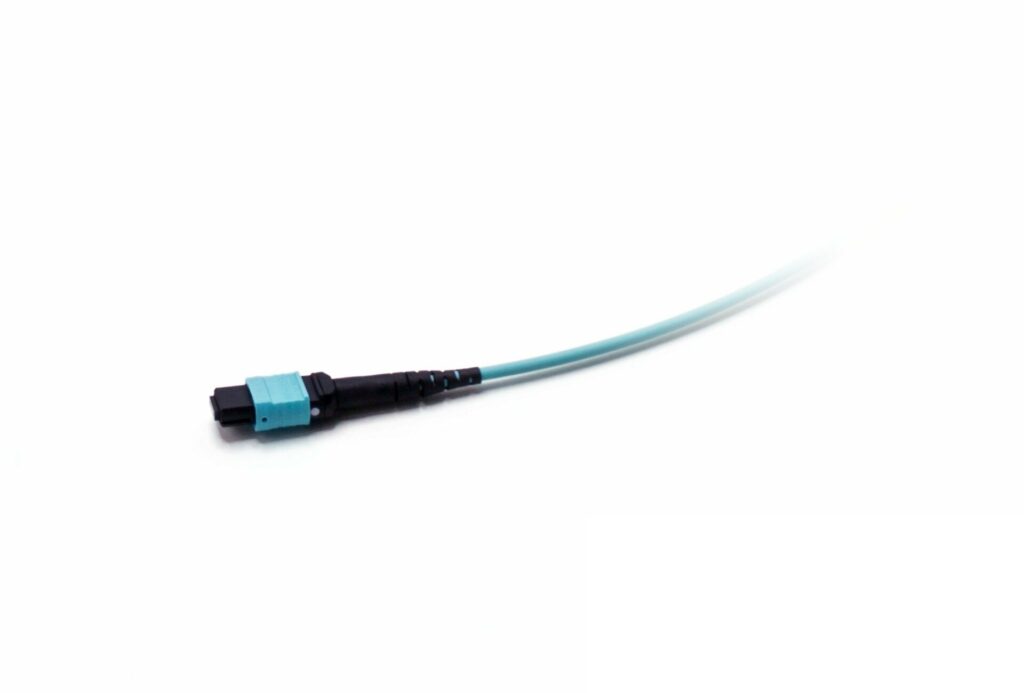

| Connector parameters | 24F MTP/MTP PRO | 12F MTP/MTP PRO | |
|
Compliance |
US CONEC standard |
US CONEC standard | |
|
Colour of housing
|
Aqua/Magenta |
Aqua/Magenta | |
|
Colour of boot
|
Black | Black | |
|
Polish
|
Flat (PC) | Flat (PC) | |
|
Insertion Loss
(acc. IEC 61300-3-4 method B)
|
<0,35dB
(@850/1300nm)
|
<0,35dB
(@850/1300nm) |
|
|
Return Loss
(acc. IEC 61300-3-6)
|
>20dB
(@850/1300nm)
|
>20dB
(@850/1300nm) |
|

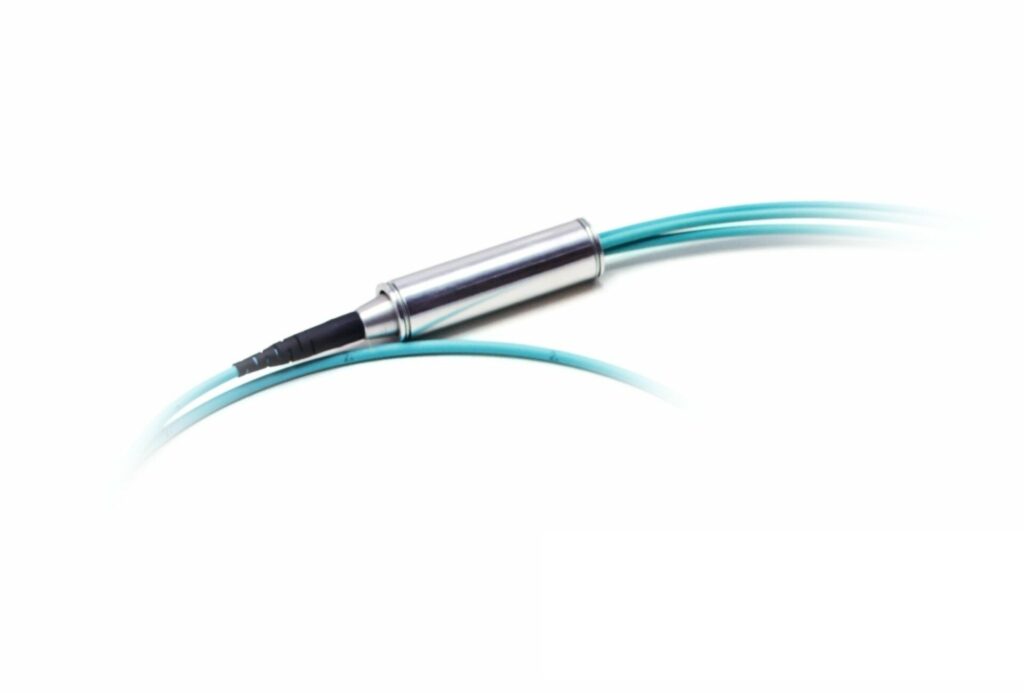

| Fanout |
Material (body / other parts) |
ABS* / metal
|
|
|
Duralino body diameter |
15.5mm | ||
|
IP Rating |
IP40 | ||
| Identification | Traceability label with unique serial number on both ends of cable assembly. | ||
| Packaging |
Each assembly in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on cardboard/wooden reel.
|
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
|
Description |
Partnumber/Ordering code |

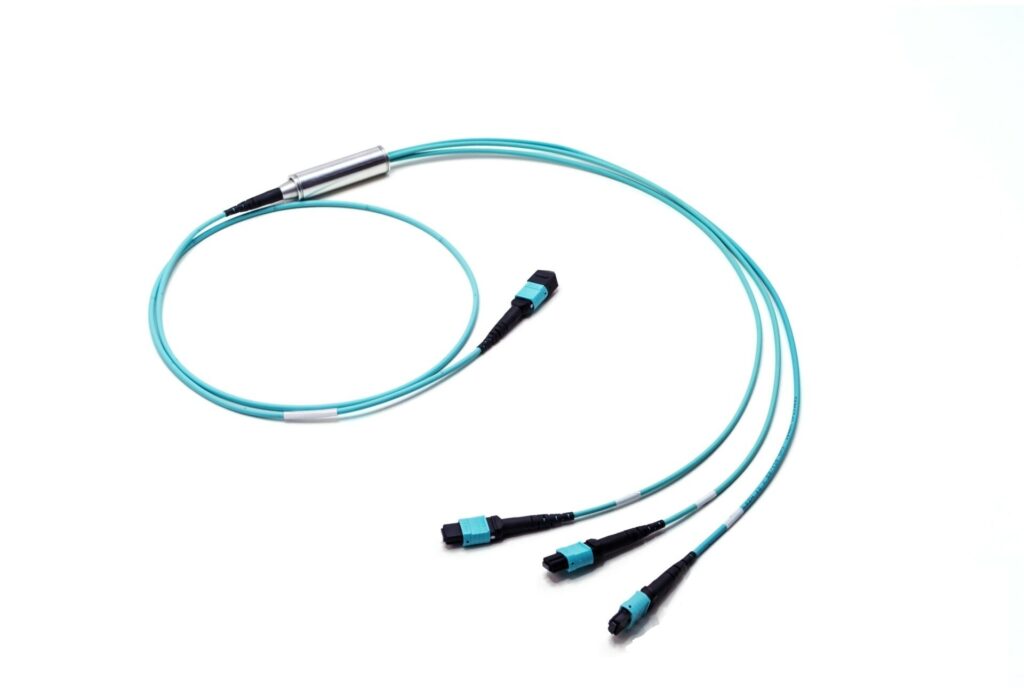

| 1x24f MTP(F) to 3x12f MTP(F) 24-fiber OM3 trunk cable, CXP/QSFP | T243-GFQ-XXX |
| 1x24f MTP(F) to 3x12f MTP(F) 24-fiber OM4 trunk cable, CXP/QSFP | T244-GFQ-XXX |
*also available with MTP PRO connector. For more information see the drawing.
