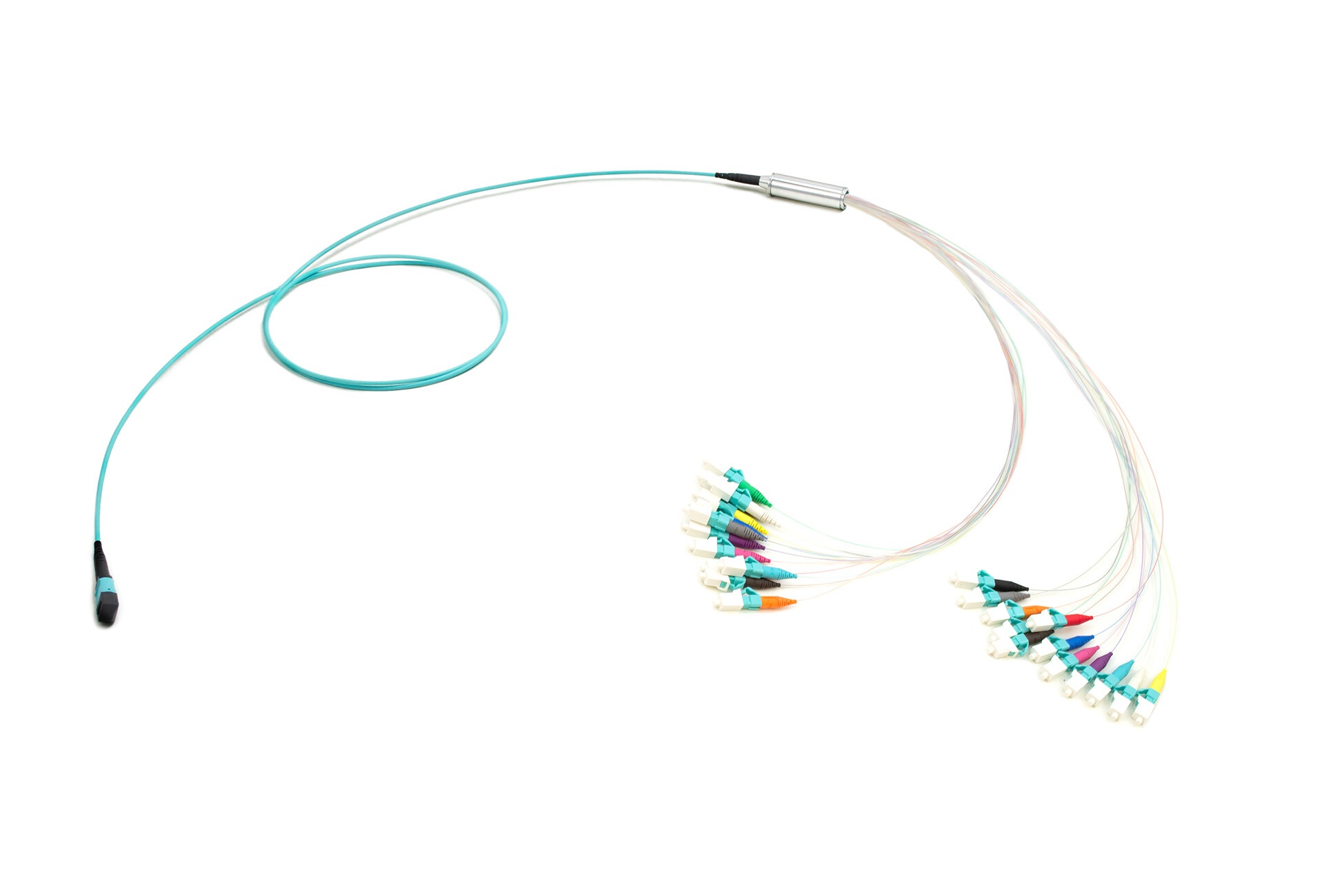

Temperature range |
Indoor controlled environment (-10°C/+60°C) | ||
| Cable parameters |
Jacket material |
LSZH
|
|
|
Cable construction |
Round jacket cable | ||
|
Outer diameter |
3.8mm | ||
|
Fiber count |
24 | ||
|
Fiber type |
SM OS2 or MMF OM3/OM4/OM5
|
||
| Temperature range | Operation: -10°C to +70°C | ||
| Storage: -25°C to +70°C | |||
|
Installation: -5°C to +50°C
|
|||
|
CPR |
Cca-s1a, d1, a1
B2ca-s1a, d1, a1
|
||
| Connector parameters | MTP/MTP PRO SM / MM | LC SM / LC MM | |
|
Compliance |
US CONEC standard |
Telcordia GR-326 | |
|
Colour of housing
|
SM – Green (APC)
MM – Aqua/Magenta/Lime Green |
SM – Blue (PC)/Green (APC) MM – Aqua/Magenta/Lime Green | |
|
Colour of boot
|
Black | Green (APC)/White | |
|
Polish
|
Angled (APC) / Flat (PC) | Angled (APC) / Flat (PC) | |
|
Insertion Loss
(acc. IEC 61300-3-4 method B)
|
<0,35dB
(@1310/1550nm / @850/1300nm)
|
<0,25dB (@1310/1550nm / @850/1300nm) | |
|
Return Loss
(acc. IEC 61300-3-6)
|
>50dB(APC) / >20dB
(@1310/1550nm / @850/1300nm)
|
>50dB(UPC)/>60dB(APC) / >30dB (@1310/1550nm / @850/1300nm) | |

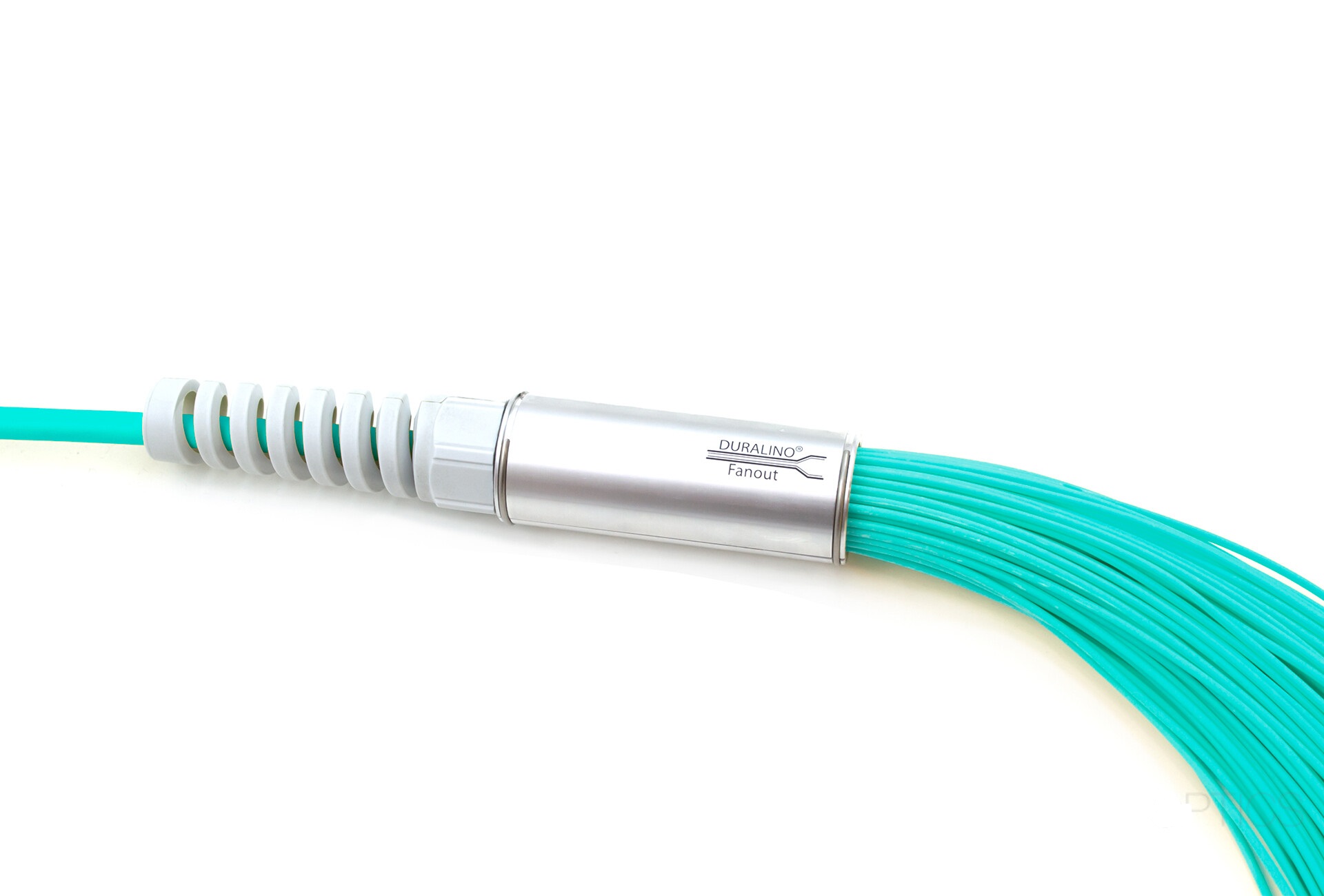

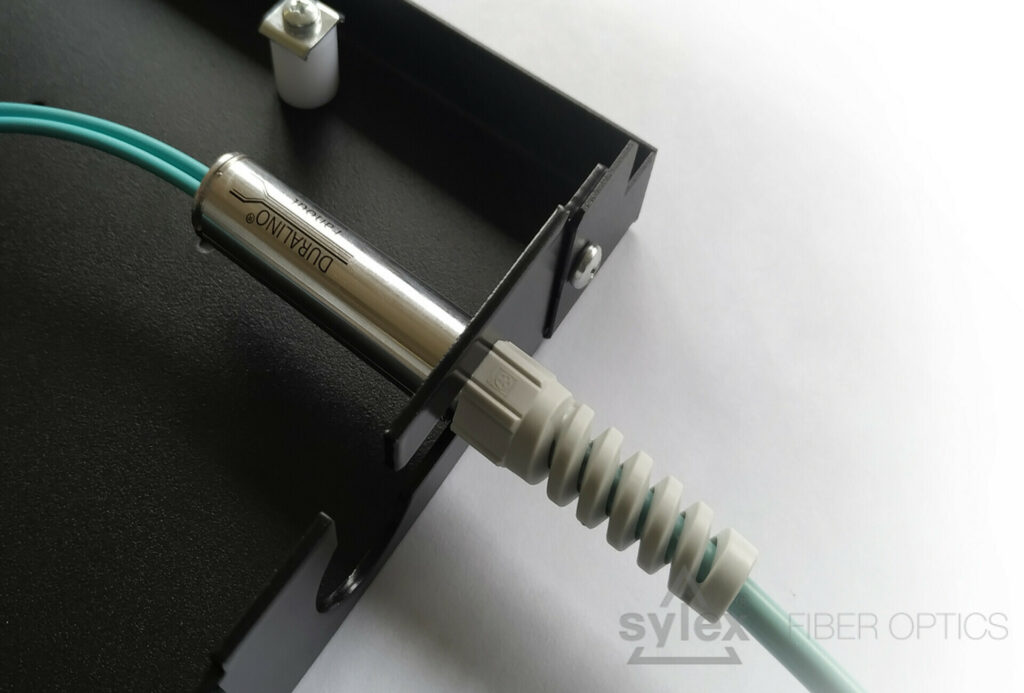

| Fanout |
Material (body / other parts) |
ABS* / metal
|
|
|
Duralino body diameter |
15.5mm | ||
|
IP Rating |
IP40 | ||
| Identification | Traceability label with unique serial number on both ends of cable assembly. | ||

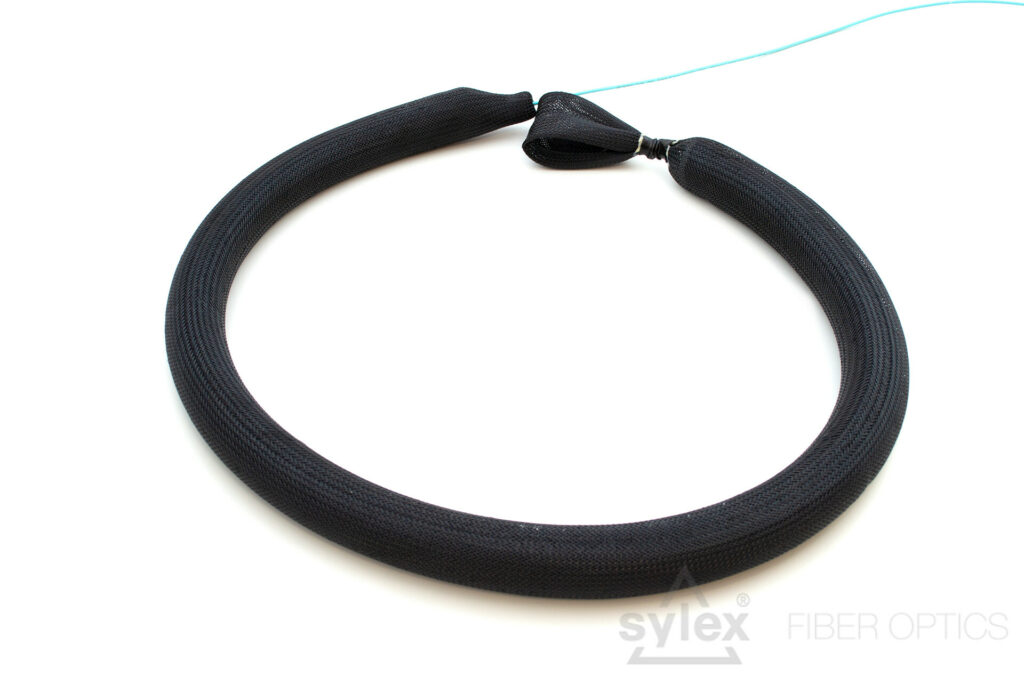

| Packaging |
Each assembly in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on cardboard/wooden reel.
|
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
|
Description |
Partnumber/Ordering code |
| 1x24f MTP(F) to 24xLC/APC 24-fiber OS2 Duralino fanout, 900um | F249-GA9-xxx |
| 1x24f MTP(F) to 24xLC/PC 24-fiber OS2 Duralino fanout, 900um | F249-GL9-xxx |
| 1x24f MTP(F) to 24xLC/PC 24-fiber OM3 Duralino fanout, 900um | F243-GL9-xxx |
| 1x24f MTP(F) to 24xLC/PC 24-fiber OM4 Duralino fanout, 900um | F244-GL9-xxx |
| 1x24f MTP(F) to 24xLC/PC 24-fiber OM5 Duralino fanout, 900um | F245-GL9-xxx |
| 1x24f MTP(M) to 24xLC/APC 24-fiber OS2 Duralino fanout, 900um | F249-NA9-xxx |
| 1x24f MTP(M) to 24xLC/PC 24-fiber OS2 Duralino fanout, 900um | F249-NL9-xxx |
| 1x24f MTP(M) to 24xLC/PC 24-fiber OM3 Duralino fanout, 900um | F243-NL9-xxx |
| 1x24f MTP(M) to 24xLC/PC 24-fiber OM4 Duralino fanout, 900um | F244-NL9-xxx |
| 1x24f MTP(M) to 24xLC/PC 24-fiber OM5 Duralino fanout, 900um | F245-NL9-xxx |
| 1x24f MTP(F) PRO to 24xLC/APC 24-fiber OS2 Duralino fanout, 900um | F249-JA9-xxx |
| 1x24f MTP(F) PRO to 24xLC/PC 24-fiber OS2 Duralino fanout, 900um | F249-KL9-xxx |
| 1x24f MTP(F) PRO to 24xLC/PC 24-fiber OM3 Duralino fanout, 900um | F243-KL9-xxx |
| 1x24f MTP(F) PRO to 24xLC/PC 24-fiber OM4 Duralino fanout, 900um | F244-KL9-xxx |
| 1x24f MTP(F) PRO to 24xLC/PC 24-fiber OM5 Duralino fanout, 900um | F245-KL9-xxx |
| 1x24f MTP(M) PRO to 24xLC/APC 24-fiber OS2 Duralino fanout, 900um | F249-RA9-xxx |
| 1x24f MTP(M) PRO to 24xLC/PC 24-fiber OS2 Duralino fanout, 900um | F249-RL9-xxx |
| 1x24f MTP(M) PRO to 24xLC/PC 24-fiber OM3 Duralino fanout, 900um | F243-RL9-xxx |
| 1x24f MTP(M) PRO to 24xLC/PC 24-fiber OM4 Duralino fanout, 900um | F244-RL9-xxx |
| 1x24f MTP(M) PRO to 24xLC/PC 24-fiber OM5 Duralino fanout, 900um | F245-RL9-xxx |
| 1x24f MTP(F) to 24xLC/APC 24-fiber OS2 Duralino fanout with grommet, 900um | H249-GA9-xxx |
| 1x24f MTP(F) to 24xLC/PC 24-fiber OS2 Duralino fanout with grommet, 900um | H249-GL9-xxx |
| 1x24f MTP(F) to 24xLC/PC 24-fiber OM3 Duralino fanout with grommet, 900um | H243-GL9-xxx |
| 1x24f MTP(F) to 24xLC/PC 24-fiber OM4 Duralino fanout with grommet, 900um | H244-GL9-xxx |
| 1x24f MTP(F) to 24xLC/PC 24-fiber OM5 Duralino fanout with grommet, 900um | H245-GL9-xxx |
| 1x24f MTP(M) to 24xLC/APC 24-fiber OS2 Duralino fanout with grommet, 900um | H249-NA9-xxx |
| 1x24f MTP(M) to 24xLC/PC 24-fiber OS2 Duralino fanout with grommet, 900um | H249-NL9-xxx |
| 1x24f MTP(M) to 24xLC/PC 24-fiber OM3 Duralino fanout with grommet, 900um | H243-NL9-xxx |
| 1x24f MTP(M) to 24xLC/PC 24-fiber OM4 Duralino fanout with grommet, 900um | H244-NL9-xxx |
| 1x24f MTP(M) to 24xLC/PC 24-fiber OM5 Duralino fanout with grommet, 900um | H245-NL9-xxx |
| 1x24f MTP(F) PRO to 24xLC/APC 24-fiber OS2 Duralino fanout with grommet, 900um | H249-KA9-xxx |
| 1x24f MTP(F) PRO to 24xLC/PC 24-fiber OS2 Duralino fanout with grommet, 900um | H249-KL9-xxx |
| 1x24f MTP(F) PRO to 24xLC/PC 24-fiber OM3 Duralino fanout with grommet, 900um | H243-KL9-xxx |
| 1x24f MTP(F) PRO to 24xLC/PC 24-fiber OM4 Duralino fanout with grommet, 900um | H244-KL9-xxx |
| 1x24f MTP(F) PRO to 24xLC/PC 24-fiber OM5 Duralino fanout with grommet, 900um | H245-KL9-xxx |
| 1x24f MTP(M) PRO to 24xLC/APC 24-fiber OS2 Duralino fanout with grommet, 900um | H249-RA9-xxx |
| 1x24f MTP(M) PRO to 24xLC/PC 24-fiber OS2 Duralino fanout with grommet, 900um | H249-RL9-xxx |
| 1x24f MTP(M) PRO to 24xLC/PC 24-fiber OM3 Duralino fanout with grommet, 900um | H243-RL9-xxx |
| 1x24f MTP(M) PRO to 24xLC/PC 24-fiber OM4 Duralino fanout with grommet, 900um | H244-RL9-xxx |
| 1x24f MTP(M) PRO to 24xLC/PC 24-fiber OM5 Duralino fanout with grommet, 900um | H245-RL9-xxx |
