Temperature range |
Indoor controlled environment (-10°C/+60°C) | ||
| Cable parameters |
Jacket material |
LSZH
|
|
|
Cable construction |
Micro-Bundle | ||
|
Outer diameter |
6.3mm | ||
|
Fiber count |
72 | ||
|
Fiber type |
SM OS2 or MMF OM3/OM4/OM5
|
||
| Temperature range | Operation: -10°C to +70°C | ||
| Storage: -25°C to +70°C | |||
|
Installation: -5°C to +50°C
|
|||
|
CPR |
Cca-s1a, d1, a1
|
||
| Connector parameters | MTP/MTP PRO SM / MM | LC SM / LC MM | |
|
Compliance |
US CONEC standard |
Telcordia GR-326 | |
|
Colour of housing
|
SM – Green (APC)
MM – Aqua/Magenta/Lime Green |
SM – Blue (PC)/Green (APC) MM – Aqua/Magenta/Lime Green | |
|
Colour of boot
|
Black | Green (APC)/White | |
|
Polish
|
Angled (APC) / Flat (PC) | Angled (APC) / Flat (PC) | |
|
Insertion Loss
(acc. IEC 61300-3-4 method B)
|
<0,35dB
(@1310/1550nm / @850/1300nm)
|
<0,25dB (@1310/1550nm / @850/1300nm) | |
|
Return Loss
(acc. IEC 61300-3-6)
|
>50dB(APC) / >20dB
(@1310/1550nm / @850/1300nm)
|
>50dB(UPC)/>60dB(APC) / >30dB (@1310/1550nm / @850/1300nm) | |
| Fanout |
Material (body / other parts) |
ABS* / metal
|
|
|

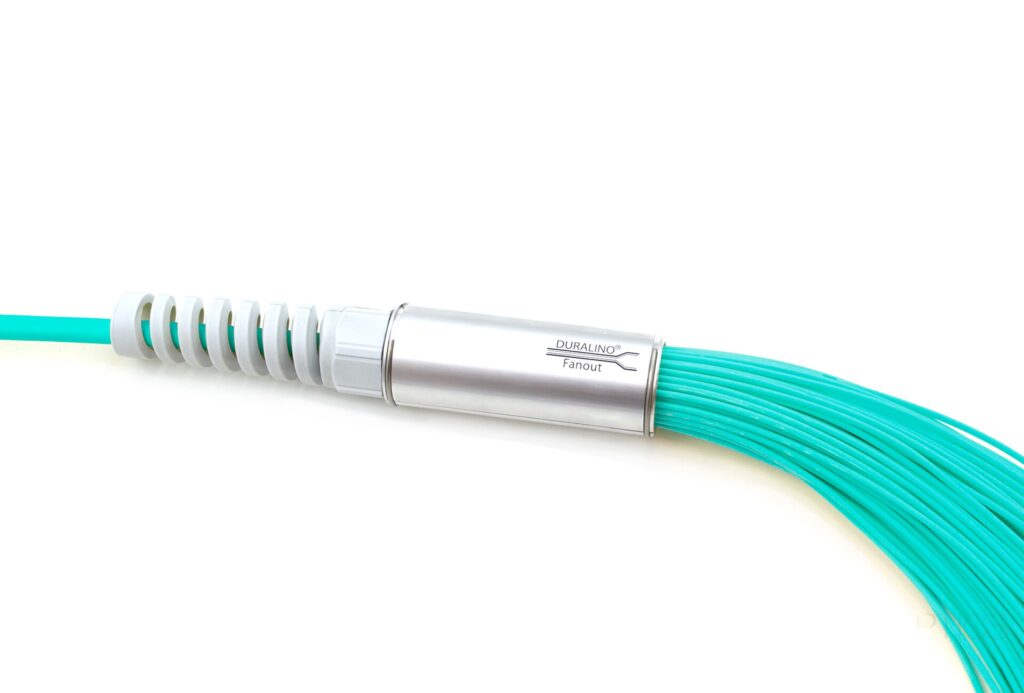

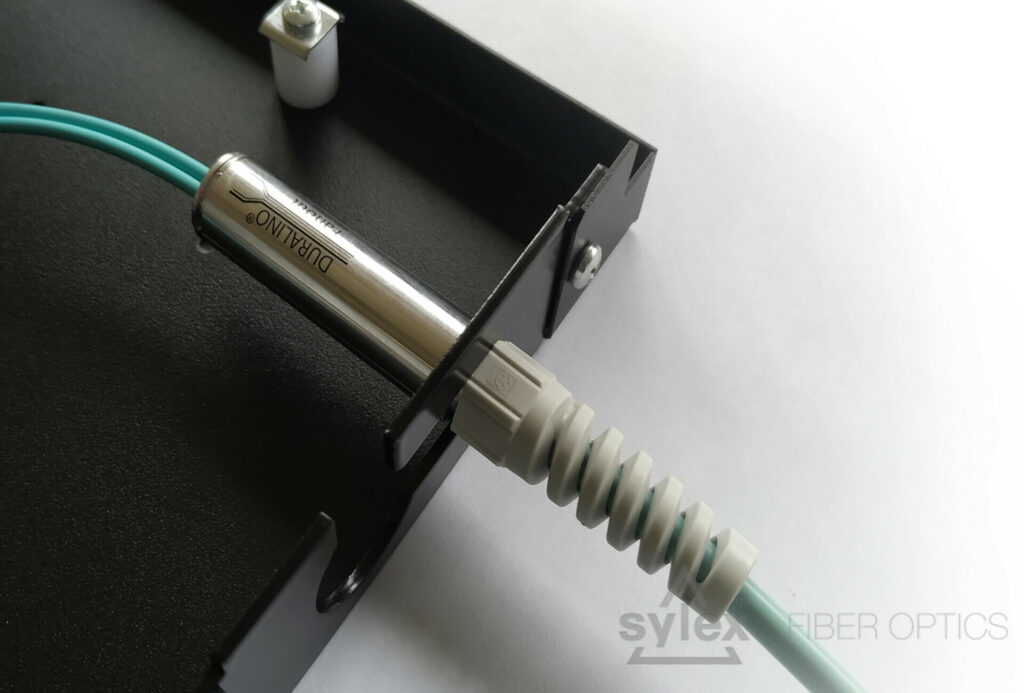

Duralino body diameter |
15.5mm | ||
|
IP Rating |
IP40 | ||
| Identification | Traceability label with unique serial number on both ends of cable assembly. | ||
| Packaging |
Each assembly in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on cardboard/wooden reel.
|
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities

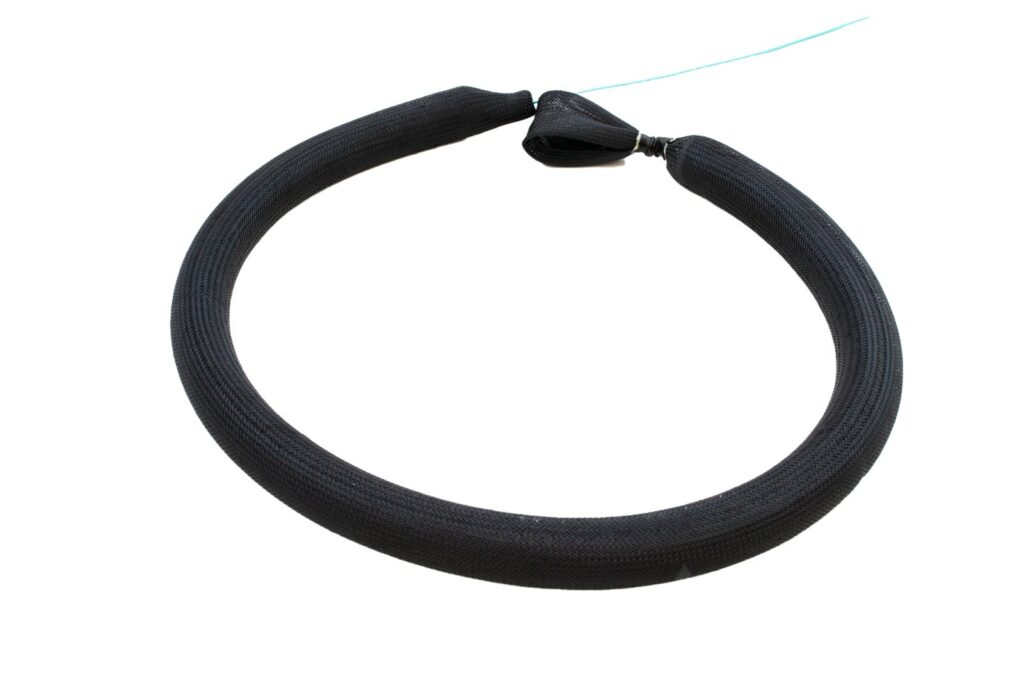

- Cable installation
- Cable installation
- Cable installation
|
Description |
Partnumber/Ordering code |

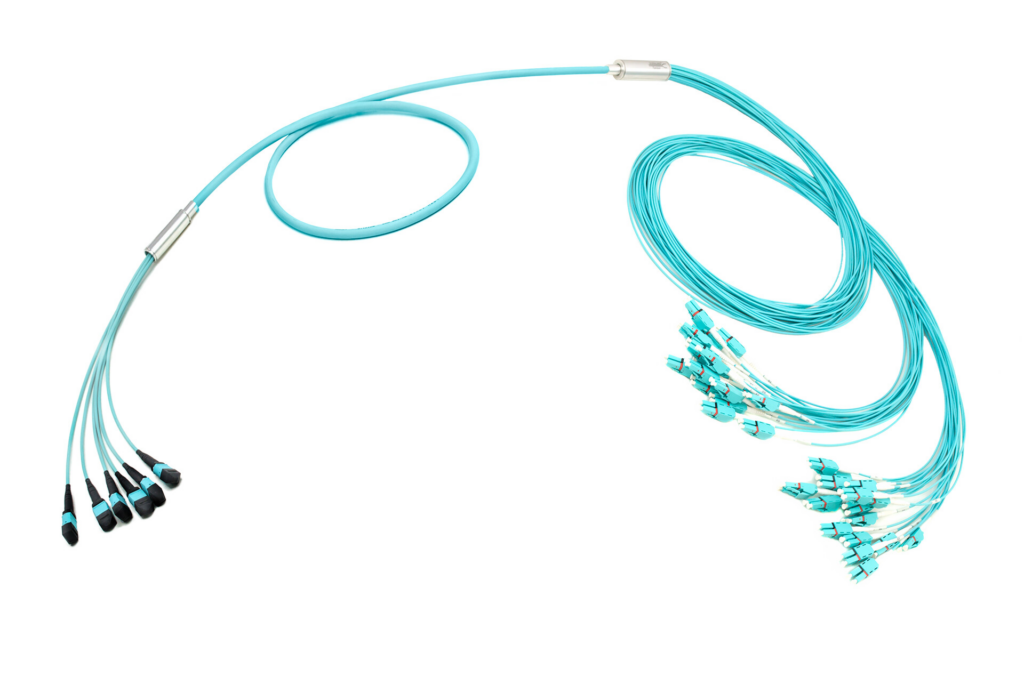

| 6x12f MTP(F) to 72xLC/APC 72-fiber OS2 Duralino fanout uniboot, straight connection | F729-FAU-xxx-S |
| 6x12f MTP(F) to 72xLC 72-fiber OS2 Duralino fanout uniboot, straight connection | F729-FLU-xxx-S |
| 6x12f MTP(F) to 72xLC 72-fiber OM3 Duralino fanout uniboot, straight connection | F723-FLU-xxx-S |
| 6x12f MTP(F) to 72xLC 72-fiber OM4 Duralino fanout uniboot, straight connection | F724-FLU-xxx-S |
| 6x12f MTP(F) to 72xLC 72-fiber OM5 Duralino fanout uniboot, straight connection | F725-FLU-xxx-S |
| 6x12f MTP(M) to 72xLC/APC 72-fiber OS2 Duralino fanout uniboot, straight connection | F729-MAU-xxx-S |
| 6x12f MTP(M) to 72xLC 72-fiber OS2 Duralino fanout uniboot, straight connection | F729-MLU-xxx-S |
| 6x12f MTP(M) to 72xLC 72-fiber OM3 Duralino fanout uniboot, straight connection | F723-MLU-xxx-S |
| 6x12f MTP(M) to 72xLC 72-fiber OM4 Duralino fanout uniboot, straight connection | F724-MLU-xxx-S |
| 6x12f MTP(M) to 72xLC 72-fiber OM5 Duralino fanout uniboot, straight connection | F725-MLU-xxx-S |
| 6x12f MTP(F) PRO to 72xLC/APC 72-fiber OS2 Duralino fanout uniboot, straight connection | F729-JAU-xxx-S |
| 6x12f MTP(F) PRO to 72xLC 72-fiber OS2 Duralino fanout uniboot, straight connection | F729-JLU-xxx-S |
| 6x12f MTP(F) PRO to 72xLC 72-fiber OM3 Duralino fanout uniboot, straight connection | F723-JLU-xxx-S |
| 6x12f MTP(F) PRO to 72xLC 72-fiber OM4 Duralino fanout uniboot, straight connection | F724-JLU-xxx-S |
| 6x12f MTP(F) PRO to 72xLC 72-fiber OM5 Duralino fanout uniboot, straight connection | F725-JLU-xxx-S |
| 6x12f MTP(M) PRO to 72xLC/APC 72-fiber OS2 Duralino fanout uniboot, straight connection | F729-PAU-xxx-S |
| 6x12f MTP(M) PRO to 72xLC 72-fiber OS2 Duralino fanout uniboot, straight connection | F729-PLU-xxx-S |
| 6x12f MTP(M) PRO to 72xLC 72-fiber OM3 Duralino fanout uniboot, straight connection | F723-PLU-xxx-S |
| 6x12f MTP(M) PRO to 72xLC 72-fiber OM4 Duralino fanout uniboot, straight connection | F724-PLU-xxx-S |
| 6x12f MTP(M) PRO to 72xLC 72-fiber OM5 Duralino fanout uniboot, straight connection | F725-PLU-xxx-S |
| 6x12f MTP(F) to 72xLC/APC 72-fiber OS2 Duralino fanout with grommet uniboot, straight connection | H729-FAU-xxx-S |
| 6x12f MTP(F) to 72xLC 72-fiber OS2 Duralino fanout with grommet uniboot, straight connection | H729-FLU-xxx-S |
| 6x12f MTP(F) to 72xLC 72-fiber OM3 Duralino fanout with grommet uniboot, straight connection | H723-FLU-xxx-S |
| 6x12f MTP(F) to 72xLC 72-fiber OM4 Duralino fanout with grommet uniboot, straight connection | H724-FLU-xxx-S |
| 6x12f MTP(F) to 72xLC 72-fiber OM5 Duralino fanout with grommet uniboot, straight connection | H725-FLU-xxx-S |
| 6x12f MTP(M) to 72xLC/APC 72-fiber OS2 Duralino fanout with grommet uniboot, straight connection | H729-MAU-xxx-S |
| 6x12f MTP(M) to 72xLC 72-fiber OS2 Duralino fanout with grommet uniboot, straight connection | H729-MLU-xxx-S |
| 6x12f MTP(M) to 72xLC 72-fiber OM3 Duralino fanout with grommet uniboot, straight connection | H723-MLU-xxx-S |
| 6x12f MTP(M) to 72xLC 72-fiber OM4 Duralino fanout with grommet uniboot, straight connection | H724-MLU-xxx-S |
| 6x12f MTP(M) to 72xLC 72-fiber OM5 Duralino fanout with grommet uniboot, straight connection | H725-MLU-xxx-S |
| 6x12f MTP(F) PRO to 72xLC/APC 72-fiber OS2 Duralino fanout with grommet uniboot, straight connection | H729-JAU-xxx-S |
| 6x12f MTP(F) PRO to 72xLC 72-fiber OS2 Duralino fanout with grommet uniboot, straight connection | H729-JLU-xxx-S |
| 6x12f MTP(F) PRO to 72xLC 72-fiber OM3 Duralino fanout with grommet uniboot, straight connection | H723-JLU-xxx-S |
| 6x12f MTP(F) PRO to 72xLC 72-fiber OM4 Duralino fanout with grommet uniboot, straight connection | H724-JLU-xxx-S |
| 6x12f MTP(F) PRO to 72xLC 72-fiber OM5 Duralino fanout with grommet uniboot, straight connection | H725-JLU-xxx-S |
| 6x12f MTP(M) PRO to 72xLC/APC 72-fiber OS2 Duralino fanout with grommet uniboot, straight connection | H729-PAU-xxx-S |
| 6x12f MTP(M) PRO to 72xLC 72-fiber OS2 Duralino fanout with grommet uniboot, straight connection | H729-PLU-xxx-S |
| 6x12f MTP(M) PRO to 72xLC 72-fiber OM3 Duralino fanout with grommet uniboot, straight connection | H723-PLU-xxx-S |
| 6x12f MTP(M) PRO to 72xLC 72-fiber OM4 Duralino fanout with grommet uniboot, straight connection | H724-PLU-xxx-S |
| 6x12f MTP(M) PRO to 72xLC 72-fiber OM5 Duralino fanout with grommet uniboot, straight connection | H725-PLU-xxx-S |
*also available with cross connection, for more information see the drawing
