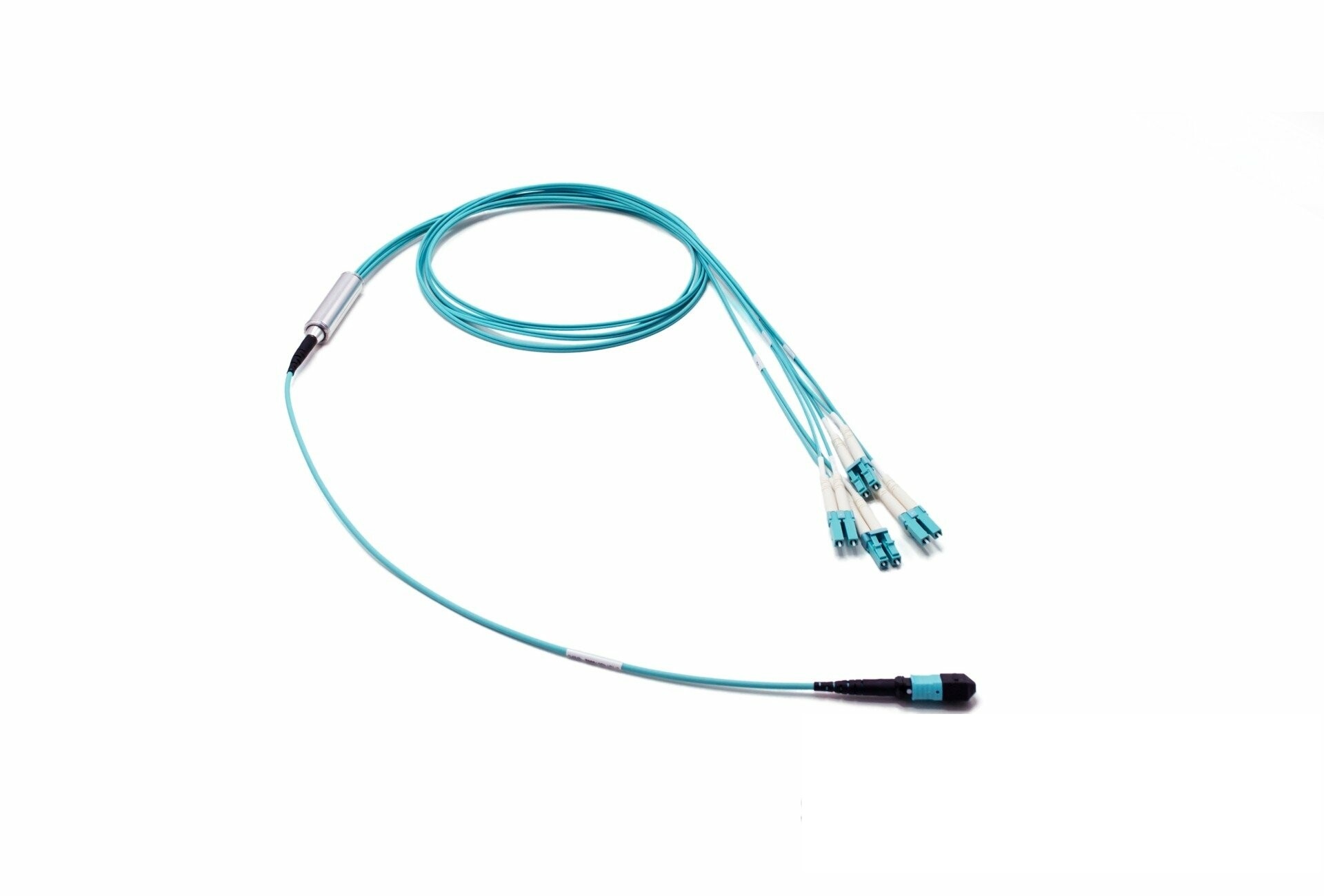

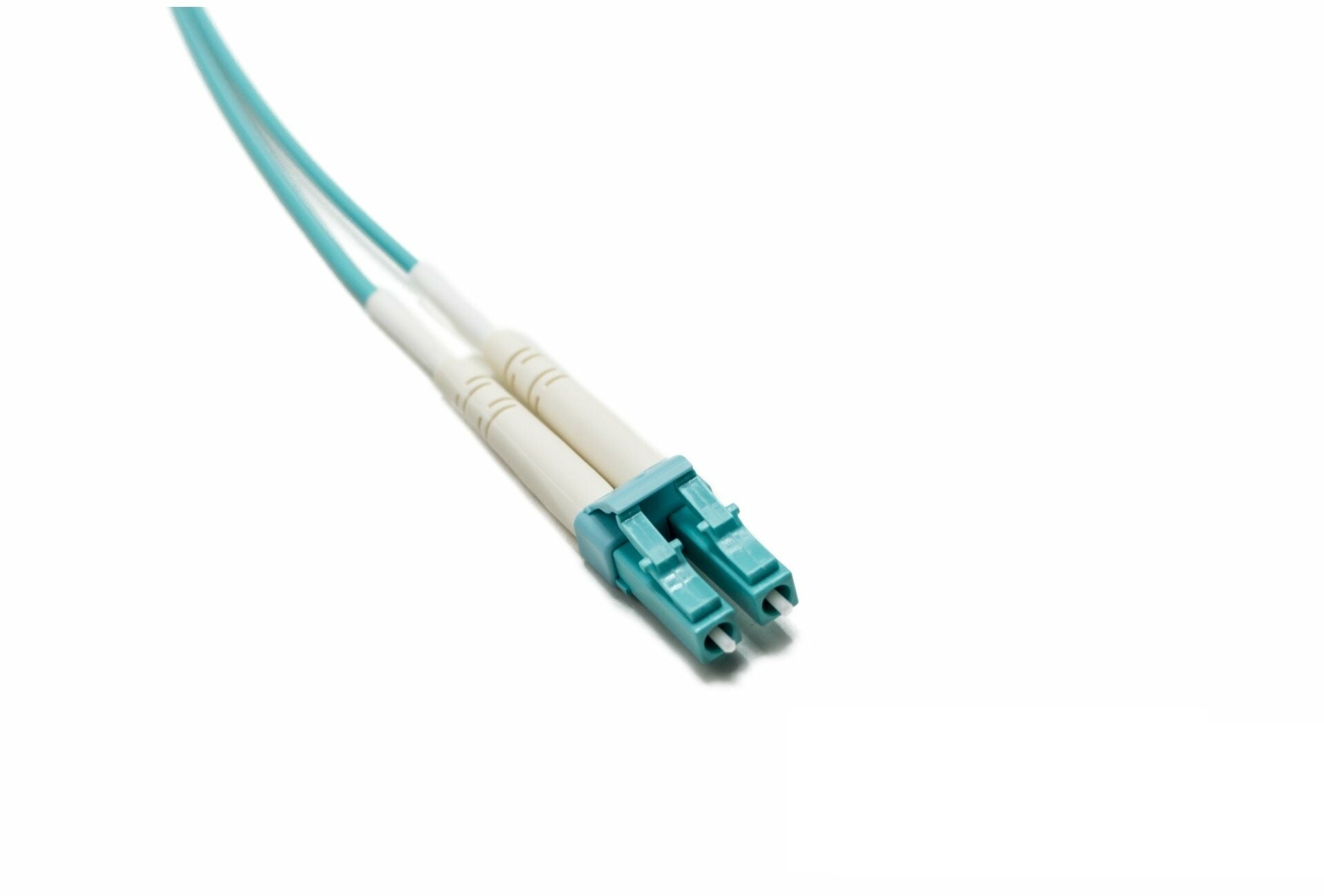

MTP QSFP to LCD SFP fanout

Temperature range	Indoor controlled environment (-10°C/+60°C)
Cable parameters	Jacket material	LSZH
	Cable construction	Round cable
	Outer diameter	3,0mm
	Fiber count	12
	Fiber type	SM OS2 or MMF OM3/OM4
	Temperature range	Operation: -10°C to +70°C
		Storage: -25°C to +70°C
		Installion: -5°C to +50°C
	CPR	Cca-s1a, d1, a1 / B2ca-s1a, d1, a2
Connector parameters		MTP/MTP PRO SM / MM	LC SM / LC MM
	Compliance	US CONEC standard	Telcordia GR-326
	Colour of housing	SM – Green (APC) MM – Aqua/Magenta	SM – Blue (PC)/Green (APC) MM – Aqua/Magenta
	Colour of boot	Black	Green (APC)/White
	Polish	Angled (APC) / Flat (PC)	Angled (APC) / Flat (PC)
	Insertion Loss (acc. IEC 61300-3-4 method B)	<0,35dB (@1310/1550nm / @850/1300nm)	<0,25dB (@1310/1550nm / @850/1300nm)
	Return Loss (acc. IEC 61300-3-6)	>50dB(APC) / >20dB (@1310/1550nm / @850/1300nm)	>50dB(UPC)/>60dB(APC) / >30dB (@1310/1550nm / @850/1300nm)
Fanout	Material (body / other parts)	ABS* / metal
	Duralino body diameter	15.5mm
	IP Rating	IP40
Identification	Traceability label with unique serial number on both ends of cable assembly.
Packaging	Each assembly in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on cardboard/wooden reel.

* Fanout metal body optional

Description	Partnumber/Ordering code
1x12f MTP(F) to 04xLC/PC duplex 08-fiber OM3 Duralino fanout, QSFP/SFP	F083-FLD-XXX-Q
1x12f MTP(F) to 04xLC/PC duplex 08-fiber OM4 Duralino fanout, QSFP/SFP	F084-FLD-XXX-Q
1x12f MTP(F) to 04xLC/UPC duplex 08-fiber OS2 Duralino fanout, QSFP/SFP	F089-FLD-XXX-Q

*also available with MTP PRO connector. For more information see the drawing.
