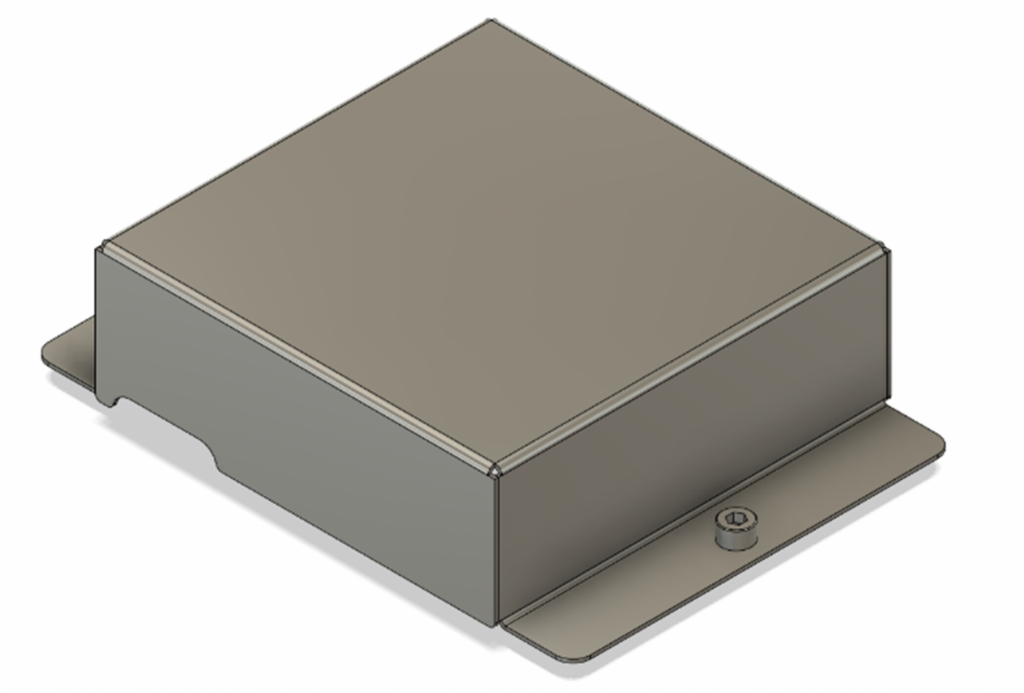

OPC-03 Outdoor Protective Cover for SAA-04 accelerometer

OPC-03 Outdoor Protective Cover for SAA-04 accelerometer

Downloads

Datasheet
Drawing
Installation Manual
Standard WL configuration
Cleaning and Mating Manual
Calibration sheet
Packaging specification
Product manual
S-line Sentinel D software
S-line Sentinel 2.0 datalog example
3D file .STEP
Energy cross table

Share this entry

Characteristics

Metallic or white color
Stainless steel 1.4301
Minamalist dimmensions
IP 66 or IP 67¹⁾ protection
Wide temperature range -20 to +70⁰C
Inner insulation: none

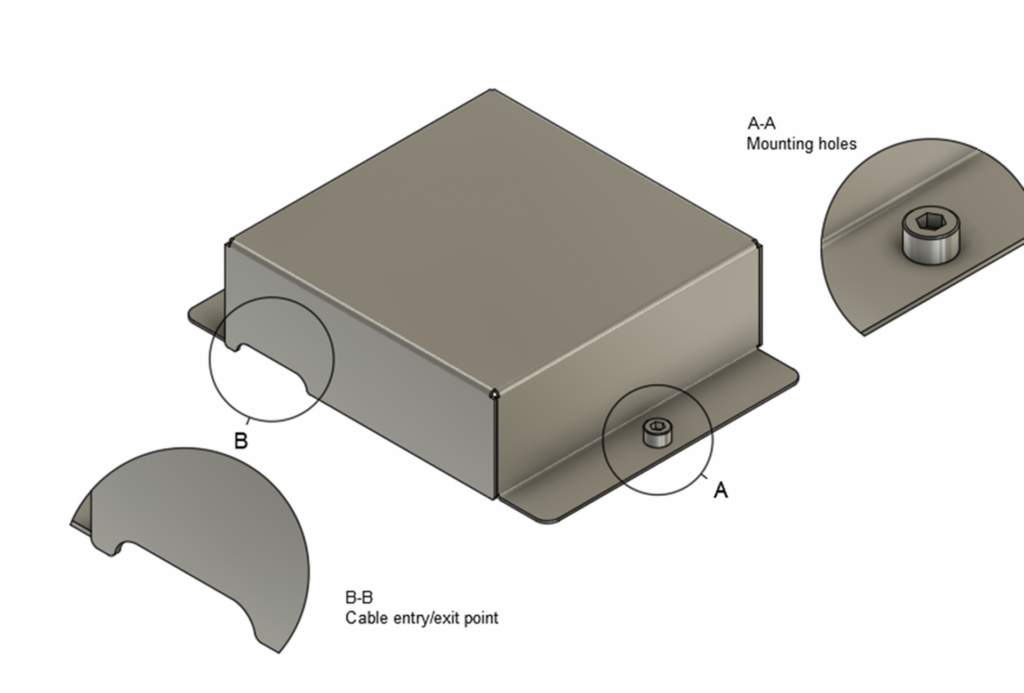

Cable isolation: the cable entry/exit points are open to allow water to escape the inner space of the cover. Additional isolation material can be added to the cover to
increase the IP protection of the solution

Product specification

Physical properties	Material	1.4301
	Protection grade	IP 33 / IP 66¹⁾
	Dimensions (L x W x H)	115 x 155 x 40mm
	Compatible sensors	SAA-04, SAA-02, and SAA-01
	Weight	300g
Packaging	Typically integrated into the sensor packaging / Included in the sensor’s cardboard box
Quality Statement	All products are 100% tested and calibrated at SYLEX All products are manufactured according to ISO 9001:2015 and ISO 14001:2015

Related products

SAA-01 Single Axis Accelerometer

Type: Fiber Bragg Grating-based single-axis accelerometer, specifically designed to measure high acceleration values up to 200g.

Application: Can be mounted on different surfaces including walls, etc.

Installation method: Screws or using a mounting block

Temperature compensation: Integrated

SAA-02 Single Axis Accelerometer

Type: Fiber Bragg Grating-based single-axis accelerometer, specifically designed to measure acceleration values up to 30g with high sensitivity and large frequency bandwidth.

Application: Can be mounted on different surfaces including walls, etc.

Installation method: Screws or using a mounting block

Temperature compensation: External

SAA-04 Single Axis Accelerometer

Type: Fiber Bragg Grating based single-axis accelerometer, specifically designed to measure acceleration values up to 2g with unmatched sensitivity.

Application: Detection of ultra-low-level vibrations, can be mounted on different surfaces including walls, etc.

Installation method: Screws or using a mounting block

Temperature compensation: External
