Product specification
| Physical properties |
Material |
PA12 – Black
|
|
| Mounting method (primary) | Magnets | ||
|
Dimensions (L x W x H) |
117x80x17,2mm | ||
|
Compatible sensors |
TP-03 | ||
|
Weight |
110g
|
||
| Packaging | Typically integrated into the sensor packaging / Included in the sensor’s cardboard box | ||
| Quality Statement | All products are 100% tested and calibrated at SYLEX All products are manufactured according to ISO 9001:2015 and ISO 14001:2015 | ||
Installation remarks

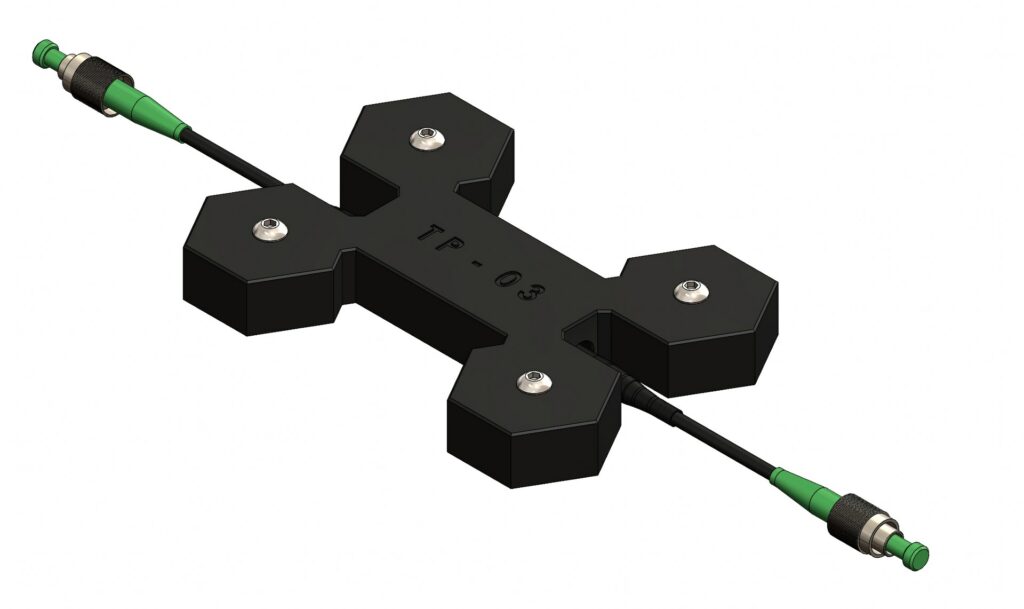

The TP-03 magnetic cover is possible to be installed using magnets, as shown in the image below. The neodymium magnets are included and pre-mounted on the cover.

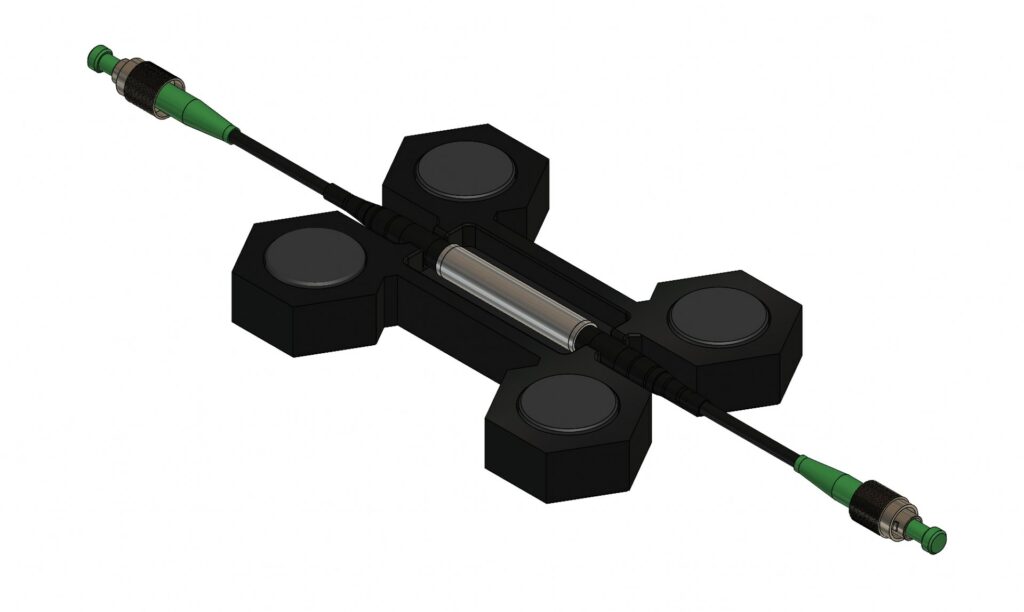

Magnets are installed into each corner of the cover, as shown in the image below.
Subsequently, you can attach the cover over the sensor to a steel construction. In addition, it is possible to apply a layer of silicone adhesive around the edge of the cover
