    OPC-33 Outdoor Protective Cover for TP-03 sensor – Plastic (non-magnetic)

    The OPC-33 Outdoor Protective Cover for TP-03 sensor – Plastic (non-magnetic) is a cover to protect the TP-03 sensor

    Downloads
    • Datasheet
    • Drawing
    • Installation Manual
    • Standard WL configuration
    • Cleaning and Mating Manual
    • Calibration sheet
    • Packaging specification
    • Product manual
    • S-line Sentinel D software
    • S-line Sentinel 2.0 datalog example
    • 3D file .STEP
    • Energy cross table
    Ask a question
    Share this entry

    Characteristics

    • Great outdoor protection against mechanical impact, and sunshine
    • Temperature and UV resistances
    • Minimalistic design
    • Robust, reliable, and lightweight concept.
    • Black color
    • Nylon (PA12) material
    • Compact dimensions: 65x35x14mm
    • Wide temperature range -20 to +70⁰C

    Product specification

    Physical properties
    Material
    PA12 – Black
    Mounting method (primary) Silicone
    Dimensions (L x W x H)
    		 65x35x14mm
    Compatible sensors
    		 TP-03
    Weight
    22g
    Packaging Typically integrated into the sensor packaging / Included in the sensor’s cardboard box
    Quality Statement All products are 100% tested and calibrated at SYLEX All products are manufactured according to ISO 9001:2015 and ISO 14001:2015

    Installation remarks

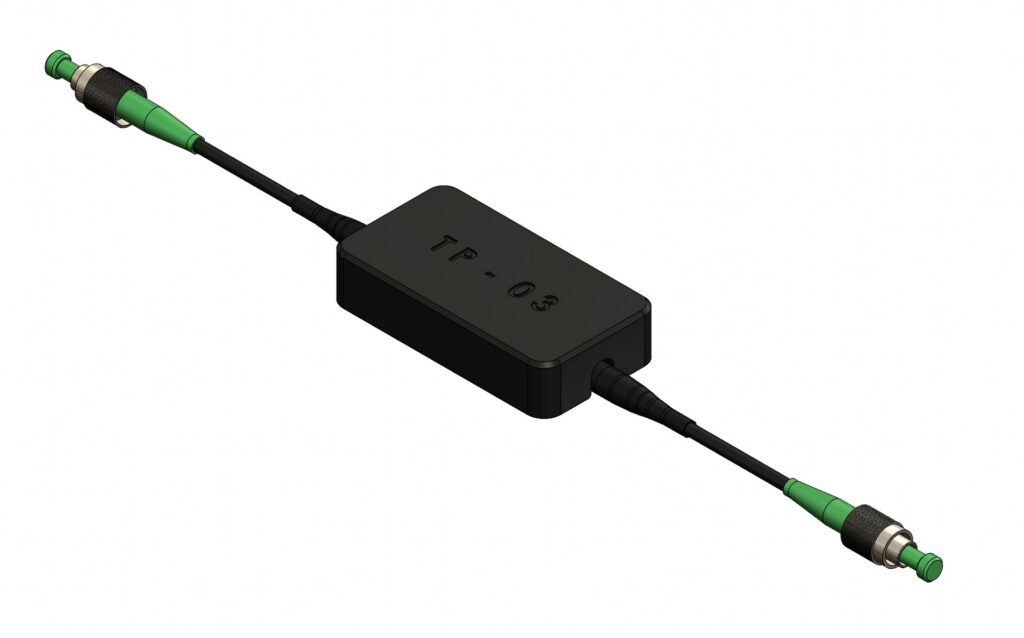

    The TP-03 non-magnetic cover is possible to be installed using silicone, as shown in the image below. Using appropriate silicone install cover to surface.

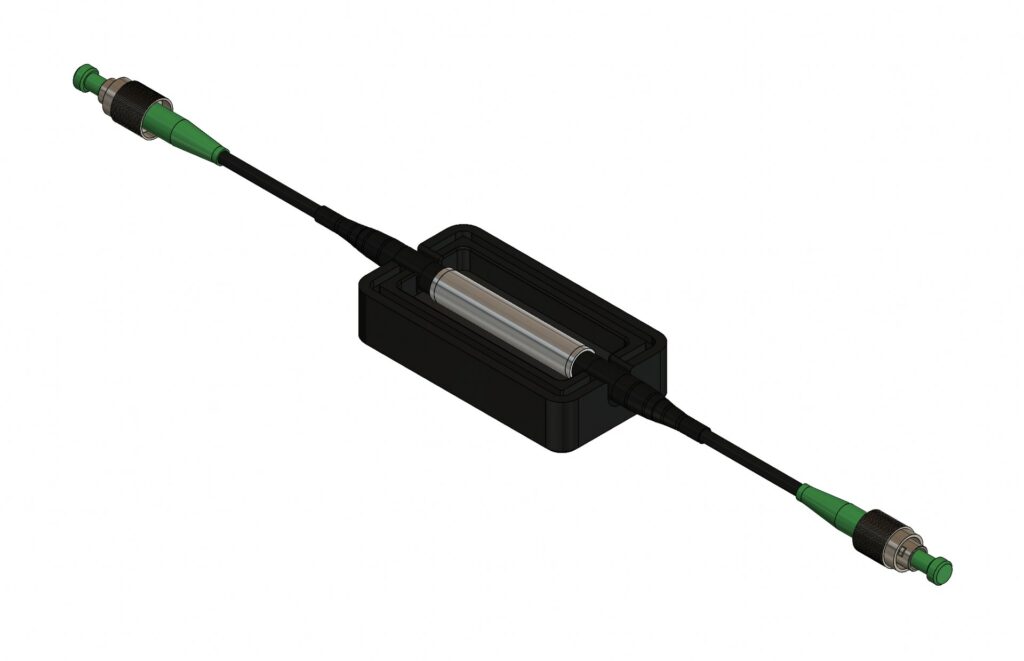

    Groove for silicone is placed around the edges of the non-magnetic cover, as shown in the image below.

    Subsequently, you can attach the cover over the sensor to desired place. In addition, it is possible to apply a layer of silicone adhesive around the edge of the cover.

    OPC-33 Outdoor Protective Cover for TP-03 sensor - Plastic (non-magnetic) - 2

    Related products

    OPC-32 Outdoor Protective Cover for TP-03 sensor - Plastic (magnetic) - 1

    The OPC-32 Outdoor Protective Cover for TP-03 sensor – Plastic (magnetic) is a cover to protect the TP-03 sensor

    TP-03 Temperature Probe

    Type: Ruggedized temperature sensor

    Application: Temperature compensation or local temperature measurement

    Installation method: Concrete or grout embeddable, surface mountable

    The previous generation of the product is TP-02
