Temperature range |
Indoor controlled environment (-10°C /+60°C) | ||
| Cable parameters |
Jacket material |
LSZH
|
|
| Cable construction | Buffered fiber | ||
| Outer diameter | 0.9mm / 2.0mm / 3.0mm | ||
| Fiber count | 1 | ||
| Fiber type | SM OS2 or MMF OM1/OM2/OM3/OM4 | ||
| Temperature range | Operation: -10°C to +70°C | ||
| Storage: -25°C to +70°C | |||
| Installation: -5°C to +50°C | |||
| Connector parameters |
LC, SC, ST, FC, E2000 (SM)
|
LC, SC, ST, FC, E2000 (MM)
|
|
| Insertion Loss (acc. IEC 61300-3-4 method B) |
<0,25dB
(@1310/1550nm)
|
<0,25dB
(@850/1300nm)
|
|
| Return Loss (acc. IEC 61300-3-6) |
>50dB (UPC)/>60dB (APC)
(@1310/1550nm)
|
>30dB
(@850/1300nm)
|
|
| Identification | Traceability label with unique serial number. | ||
| Packaging |
Each assembly in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on cardboard/wooden reel. |
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
|
Description |
Partnumber/Ordering code |

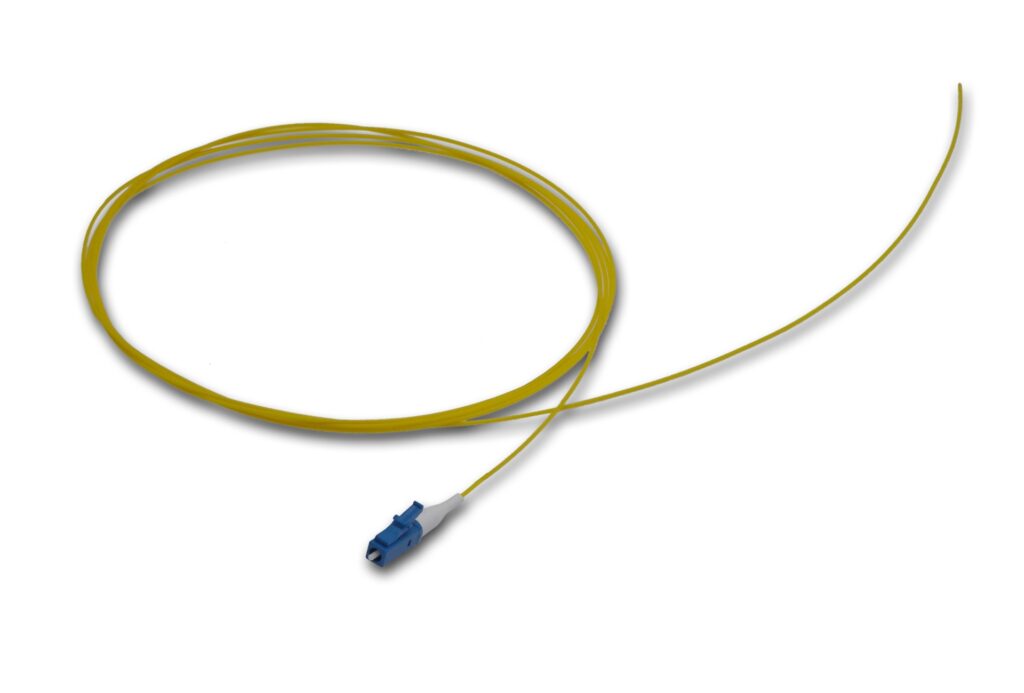

| LC/UPC OS2 simplex pigtail 0.9mm | C199-LX1-xxx |
| LC/APC OS2 simplex pigtail 0.9mm | C199-AX1-xxx |

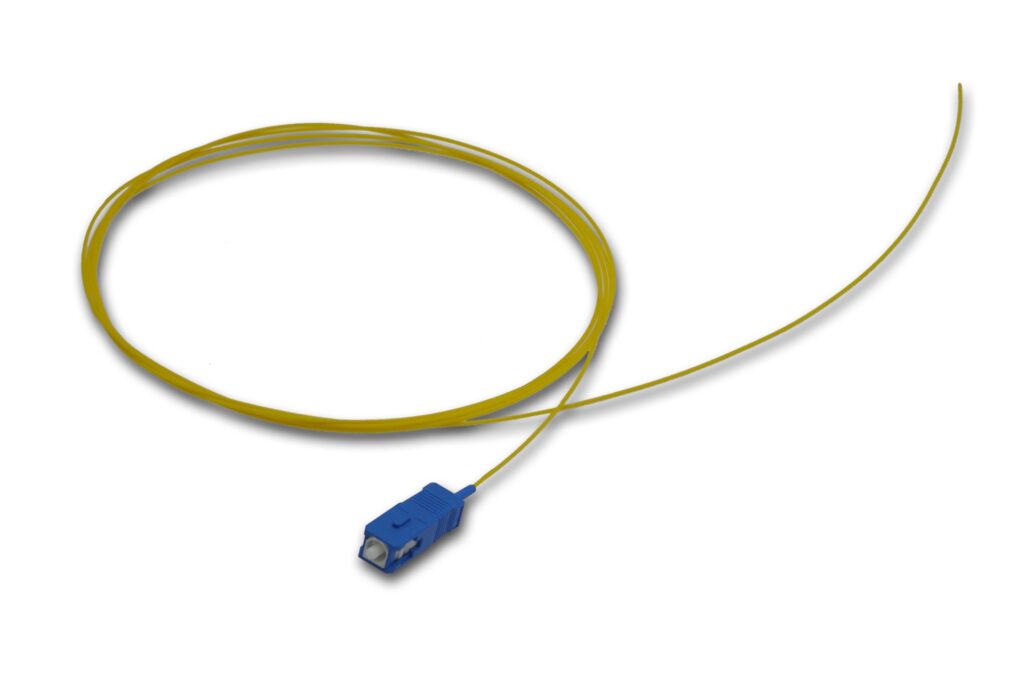

| SC/UPC OS2 simplex pigtail 0.9mm | C199-SX1-xxx |

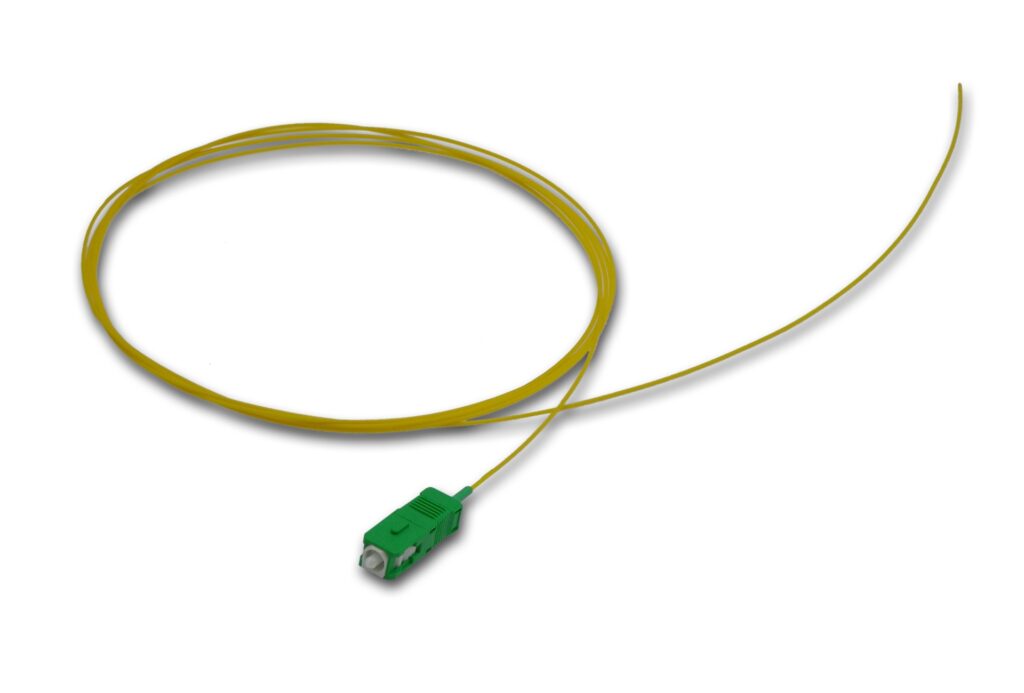

| SC/APC OS2 simplex pigtail 0.9mm | C199-BX1-xxx |
| E2000/UPC OS2 simplex pigtail 0.9mm | C199-EX1-xxx |

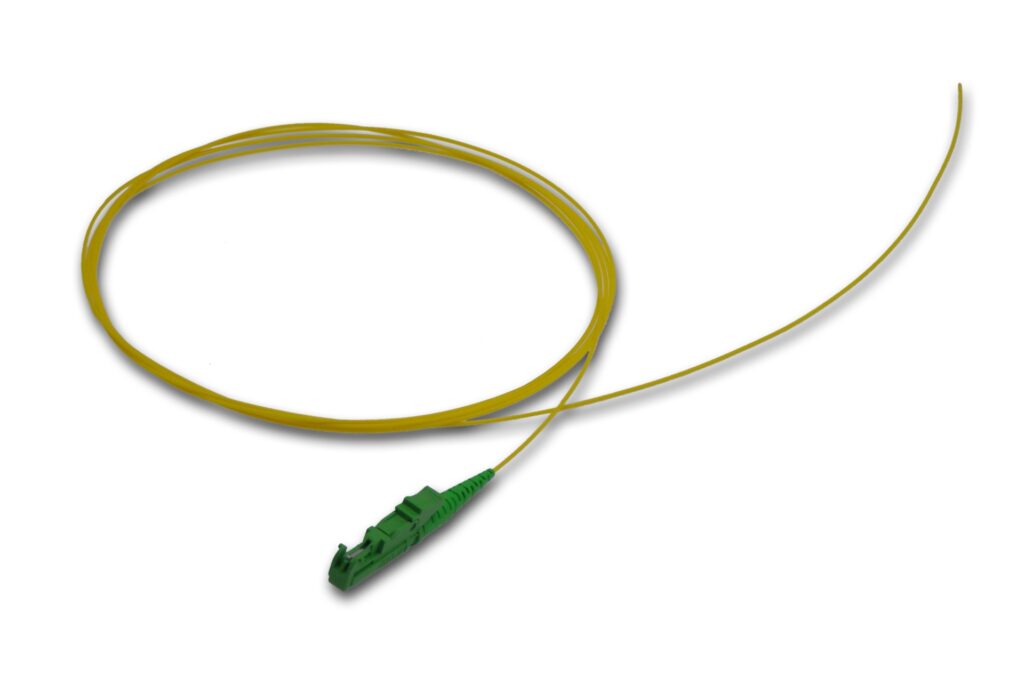

| E2000/APC OS2 simplex pigtail 0.9mm | C199-CX1-xxx |
| ST/UPC OS2 simplex pigtail 0.9mm | C199-TX1-xxx |
| FC/UPC OS2 simplex pigtail 0.9mm | C199-DX1-xxx |
| FC/APC OS2 simplex pigtail 0.9mm | C199-HX1-xxx |
| LC/UPC OS2 simplex pigtail 1.8mm | C129-LX1-xxx |
| LC/APC OS2 simplex pigtail 1.8mm | C129-AX1-xxx |
| SC/UPC OS2 simplex pigtail 1.8mm | C129-SX1-xxx |
| SC/APC OS2 simplex pigtail 1.8mm | C129-BX1-xxx |
| E2000/UPC OS2 simplex pigtail 1.8mm | C129-EX1-xxx |
| E2000/APC OS2 simplex pigtail 1.8mm | C129-CX1-xxx |
| ST/UPC OS2 simplex pigtail 1.8mm | C129-TX1-xxx |
| FC/UPC OS2 simplex pigtail 1.8mm | C129-DX1-xxx |
| FC/APC OS2 simplex pigtail 1.8mm | C129-HX1-xxx |
| LC/PC OM3 simplex pigtail 0.9mm | C193-LX1-xxx |

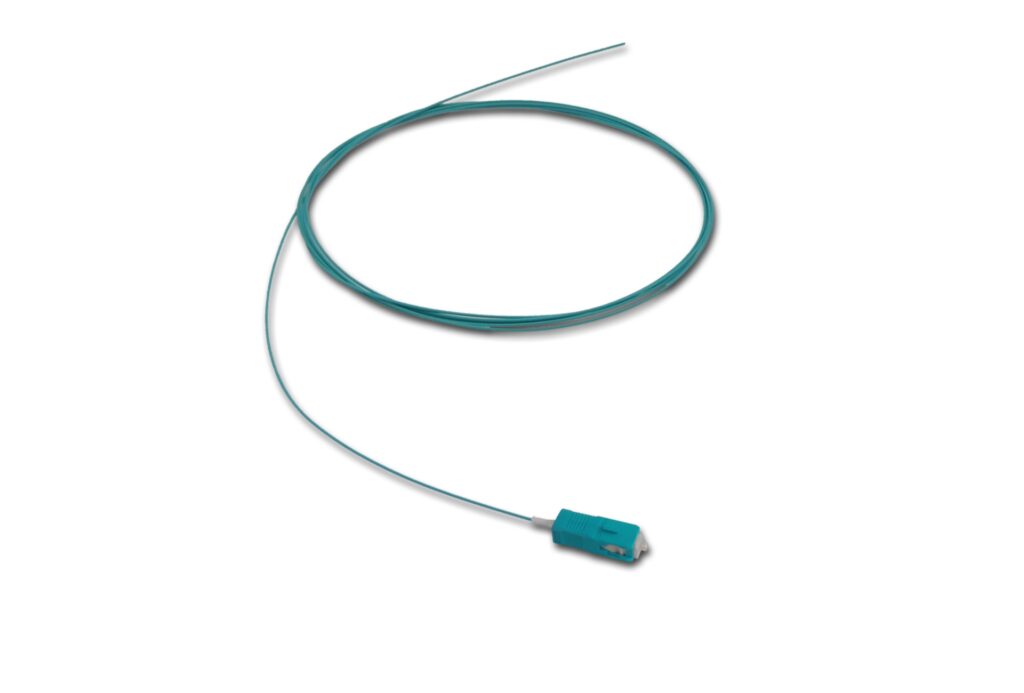

| SC/PC OM3 simplex pigtail 0.9mm | C193-SX1-xxx |
| E2000/PC OM3 simplex pigtail 0.9mm | C193-EX1-xxx |
| ST/PC OM3 simplex pigtail 0.9mm | C193-TX1-xxx |
| FC/PC OM3 simplex pigtail 0.9mm | C193-DX1-xxx |
| LC/PC OM3 simplex pigtail 1.8mm | C123-LX1-xxx |
| SC/PC OM3 simplex pigtail 1.8mm | C123-SX1-xxx |
| E2000/PC OM3 simplex pigtail 1.8mm | C123-EX1-xxx |
| ST/PC OM3 simplex pigtail 1.8mm | C123-TX1-xxx |
| FC/PC OM3 simplex pigtail 1.8mm | C123-DX1-xxx |
| LC/PC OM4 simplex pigtail 0.9mm | C194-LX1-xxx |
| SC/PC OM4 simplex pigtail 0.9mm | C194-SX1-xxx |
| E2000/PC OM4 simplex pigtail 0.9mm | C194-EX1-xxx |
| ST/PC OM4 simplex pigtail 0.9mm | C194-TX1-xxx |
| FC/PC OM4 simplex pigtail 0.9mm | C194-DX1-xxx |
| LC/PC OM4 simplex pigtail 1.8mm | C124-LX1-xxx |
| SC/PC OM4 simplex pigtail 1.8mm | C124-SX1-xxx |
| E2000/PC OM4 simplex pigtail 1.8mm | C124-EX1-xxx |
| ST/PC OM4 simplex pigtail 1.8mm | C124-TX1-xxx |
| FC/PC OM4 simplex pigtail 1.8mm | C124-DX1-xxx |
