Temperature range |
Indoor controlled environment (-10°C /+60°C) | ||
| Cable parameters |
Jacket material |
LSZH
|
|
| Cable construction | Buffered fiber | ||
| Outer diameter | 0.9mm / 2.0mm / 3.0mm | ||
| Fiber count | 12 | ||
| Fiber type | SM OS2 or MMF OM1/OM2/OM3/OM4 | ||
| Temperature range | Operation: -10°C to +70°C | ||
| Storage: -25°C to +70°C | |||
| Installation: -5°C to +50°C | |||
| Connector parameters |
LC, SC, ST, FC, E2000 (SM)
|
LC, SC, ST, FC, E2000 (MM)
|
|
| Insertion Loss (acc. IEC 61300-3-4 method B) |
<0,25dB
(@1310/1550nm)
|
<0,25dB
(@850/1300nm)
|
|
| Return Loss (acc. IEC 61300-3-6) |
>50dB (UPC)/>60dB (APC)
(@1310/1550nm)
|
>30dB
(@850/1300nm)
|
|
| Identification | Traceability label with unique serial number. | ||
| Packaging |
12 pigtails in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on cardboard/wooden reel. |
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
Description | Partnumber/Ordering code |
| Set 12x: LC/UPC OS2 simplex pigtail 0.9mm | CS99-LX1-xxx |
| Set 12x: LC/APC OS2 simplex pigtail 0.9mm | CS99-AX1-xxx |
| Set 12x: SC/UPC OS2 simplex pigtail 0.9mm | CS99-SX1-xxx |

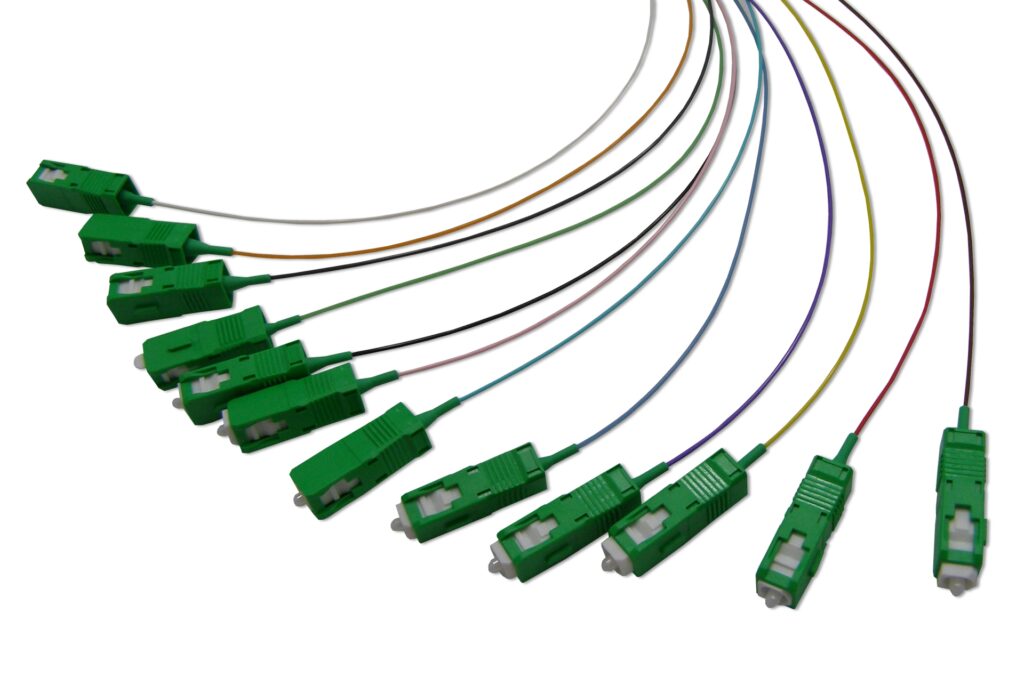

| Set 12x: SC/APC OS2 simplex pigtail 0.9mm | CS99-BX1-xxx |
| Set 12x: E2000/UPC OS2 simplex pigtail 0.9mm | CS99-EX1-xxx |
| Set 12x: E2000/APC OS2 simplex pigtail 0.9mm | CS99-CX1-xxx |
| Set 12x: ST/UPC OS2 simplex pigtail 0.9mm | CS99-TX1-xxx |
| Set 12x: FC/UPC OS2 simplex pigtail 0.9mm | CS99-DX1-xxx |
| Set 12x: FC/APC OS2 simplex pigtail 0.9mm | CS99-HX1-xxx |
| Set 12x: LC/PC OM3 simplex pigtail 0.9mm | CS93-LX1-xxx |
| Set 12x: SC/PC OM3 simplex pigtail 0.9mm | CS93-SX1-xxx |
| Set 12x: E2000/PC OM3 simplex pigtail 0.9mm | CS93-EX1-xxx |
| Set 12x: ST/PC OM3 simplex pigtail 0.9mm | CS93-TX1-xxx |
| Set 12x: FC/PC OM3 simplex pigtail 0.9mm | CS93-DX1-xxx |
| Set 12x: LC/PC OM4 simplex pigtail 0.9mm | CS94-LX1-xxx |
| Set 12x: SC/PC OM4 simplex pigtail 0.9mm | CS94-SX1-xxx |
| Set 12x: E2000/PC OM4 simplex pigtail 0.9mm | CS94-EX1-xxx |
| Set 12x: ST/PC OM4 simplex pigtail 0.9mm | CS94-TX1-xxx |
| Set 12x: FC/PC OM4 simplex pigtail 0.9mm | CS94-DX1-xxx |
