Temperature range |
Indoor controlled environment (-10°C/+60°C) | ||
| Cable parameters |
Jacket material |
PE / PVC
|
|
| Cable construction | Simplex / Duplex | ||
| Outer diameter | 2,2mm | ||
| Fiber count | 1 / 2 | ||
| Fiber type | 980 / 1000 | ||
| Temperature range | Operation: -40°C to +80°C | ||
| Storage: -40°C to +80°C | |||
| Installation: -5°C to +50°C | |||

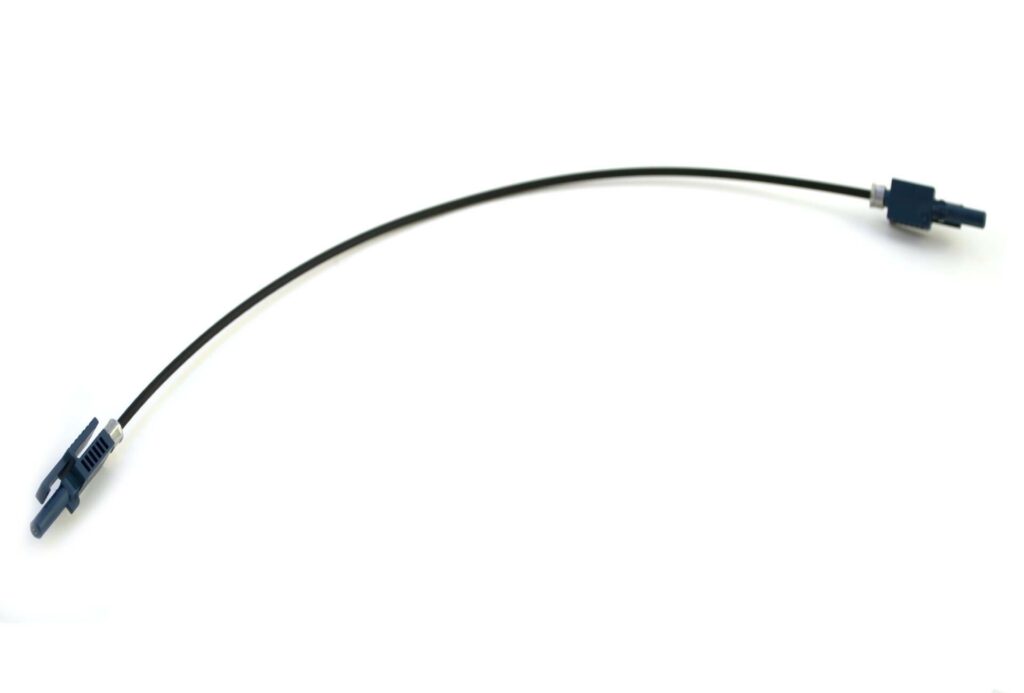

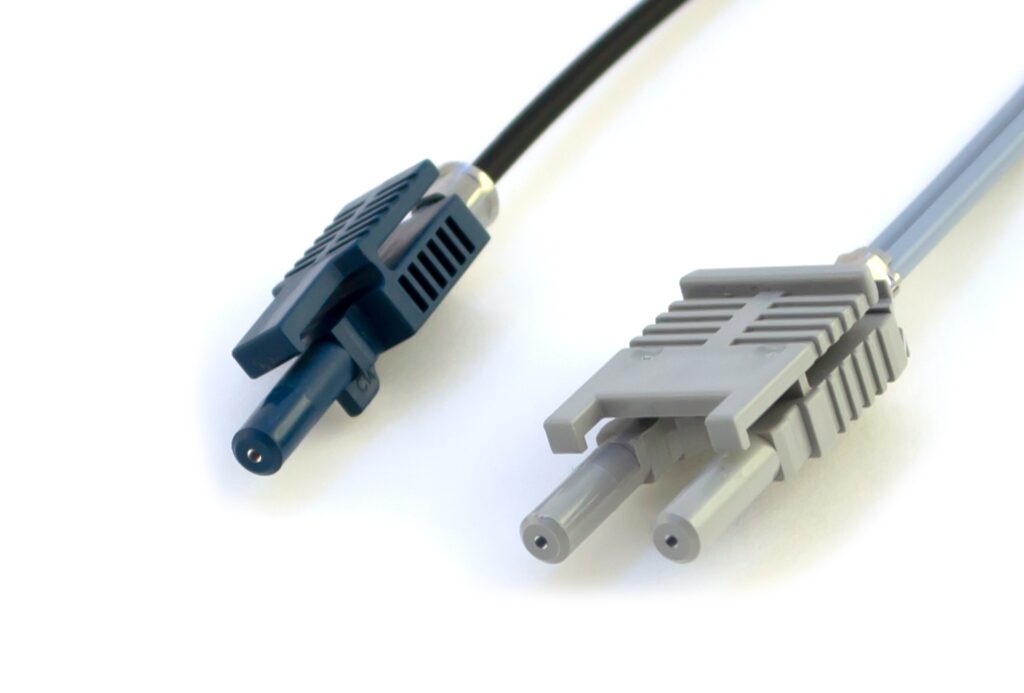

| Connector parameters | HFBR | ||
| Colour of housing | Dark blue / Gray | ||
| Insertion Loss | <2,8dB (@650/850nm) | ||
| Identification | Traceability label with unique serial number on both ends of cable assembly. | ||
| Packaging |
Each assembly in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on cardboard reel. |
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
|
Description |
Partnumber/Ordering code |
| HFBR 4501Z – HFBR 4501Z duplex patchcord | S2XP-UU2-xxx |
| HFBR 4511Z – HFBR 4511Z duplex patchcord | S2XP-VV2-xxx |
| HFBR 4506Z – HFBR 4506Z duplex patchcord | S2XP-WW2-xxx |
| HFBR 4516Z – HFBR 4516Z duplex patchcord | S2XP-YY2-xxx |
| HFBR 4501Z – HFBR 4501Z simplex patchcord | S1XP-UU1-xxx |
| HFBR 4511Z – HFBR 4511Z simplex patchcord | S1XP-VV1-xxx |
| HFBR 4503Z – HFBR 4503Z simplex patchcord | S1XP-OO1-xxx |
| HFBR 4513Z – HFBR 4513Z simplex patchcord | S1XP-QQ1-xxx |
*For more combination please see the drawing.
