    PRIZM LT – LC 900um 12F round cable fanout

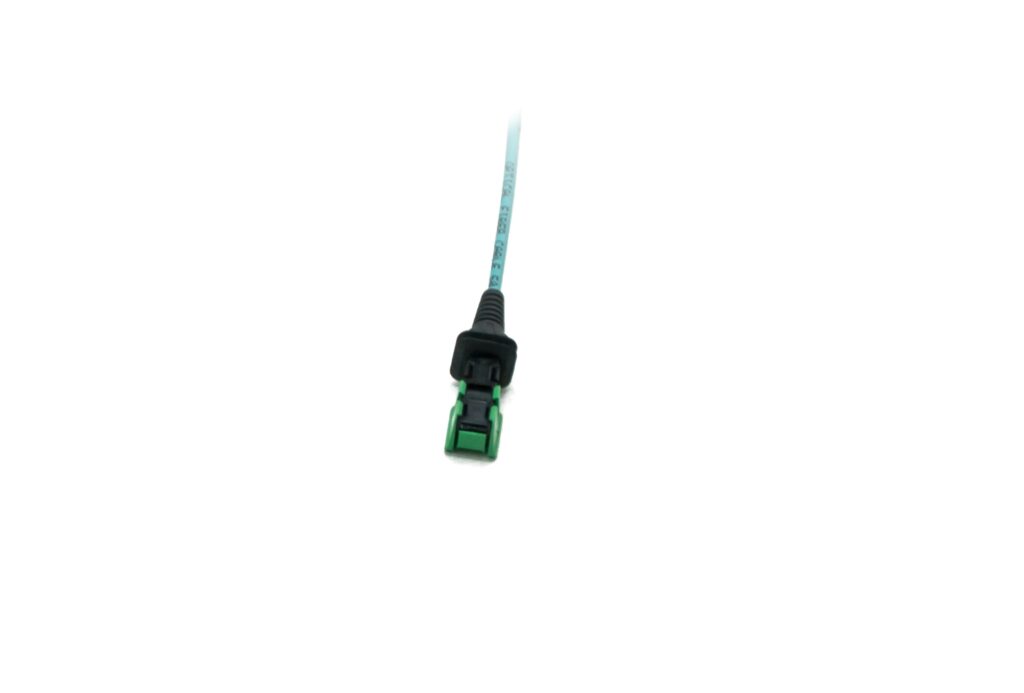

    • PRIZM® LightTurn® is designed as a miniature detachable connector for high-speed, board-mounted Avago MicroPOD and MiniPOD modules, or for direct mounting on PCB using a mechanical-optical interface (MOI). The PRIZM® LT assembly with LC connectors on the second end is typically used during the design phase and testing of optical parameters.
    Ask a question
    DATASHEET
    DRAWING
    Share this entry
    Temperature range
    		 Indoor controlled environment (-10°C/+60°C)
    Cable parameters
    Jacket material
    LSZH
    Cable construction
    		 Round cable
    Outer diameter
    		 1,8mm
    Fiber count
    		 12
    Fiber type
    MMF OM3 / OM4
    Temperature range
    Operation: -0°C to +70°C
    Storage: -20°C to +70°C
    Installion: 0°C to +70°C
    Connector parameters
    		PRIZM LT LC MM
    Compliance
    US CONEC standard
    		 Telcordia GR-326
    Colour of housing
    N/A
    		 Aqua / Magenta
    Colour of boot
    		 N/A White
    Polish
    		 N/A Flat (PC)
    Insertion Loss (acc. IEC 61300-3-4 method B)
    <2,0dB (@850nm)
    		 <0,25dB (@850nm)
    Return Loss (acc. IEC 61300-3-6)
    N/A
    		 >30dB (@850nm)
    Identification Marking sleeve with unique serial number.
    Packaging
    Each assembly in antistatic bag, bulk pack in cardboard box.
    Description
    Partnumber/Ordering code

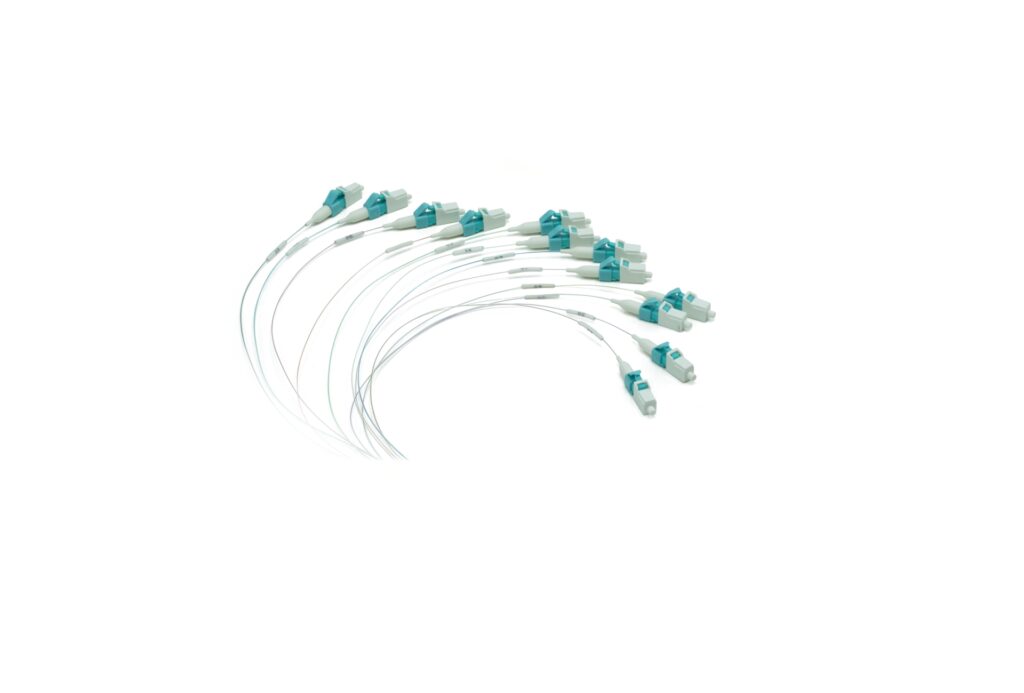

    01x PRIZM LT – 12x LC/PC 900um 12-fiber OM3 round cable fanout
    B123-LO3-xxx-3
    01x PRIZM LT – 12x LC/PC 900um 12-fiber OM4 round cable fanout
    B124-LO3-xxx-3
