Temperature range
|
Indoor controlled environment (-10°C/+60°C) | ||
| Cable parameters |
Jacket material |
N/A
|
|

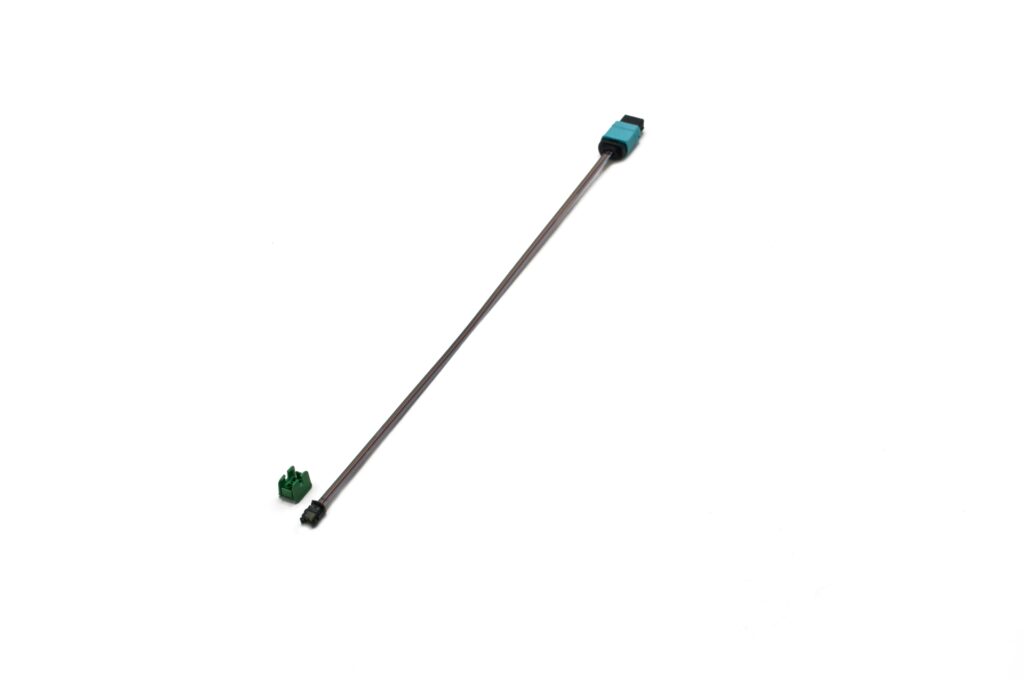

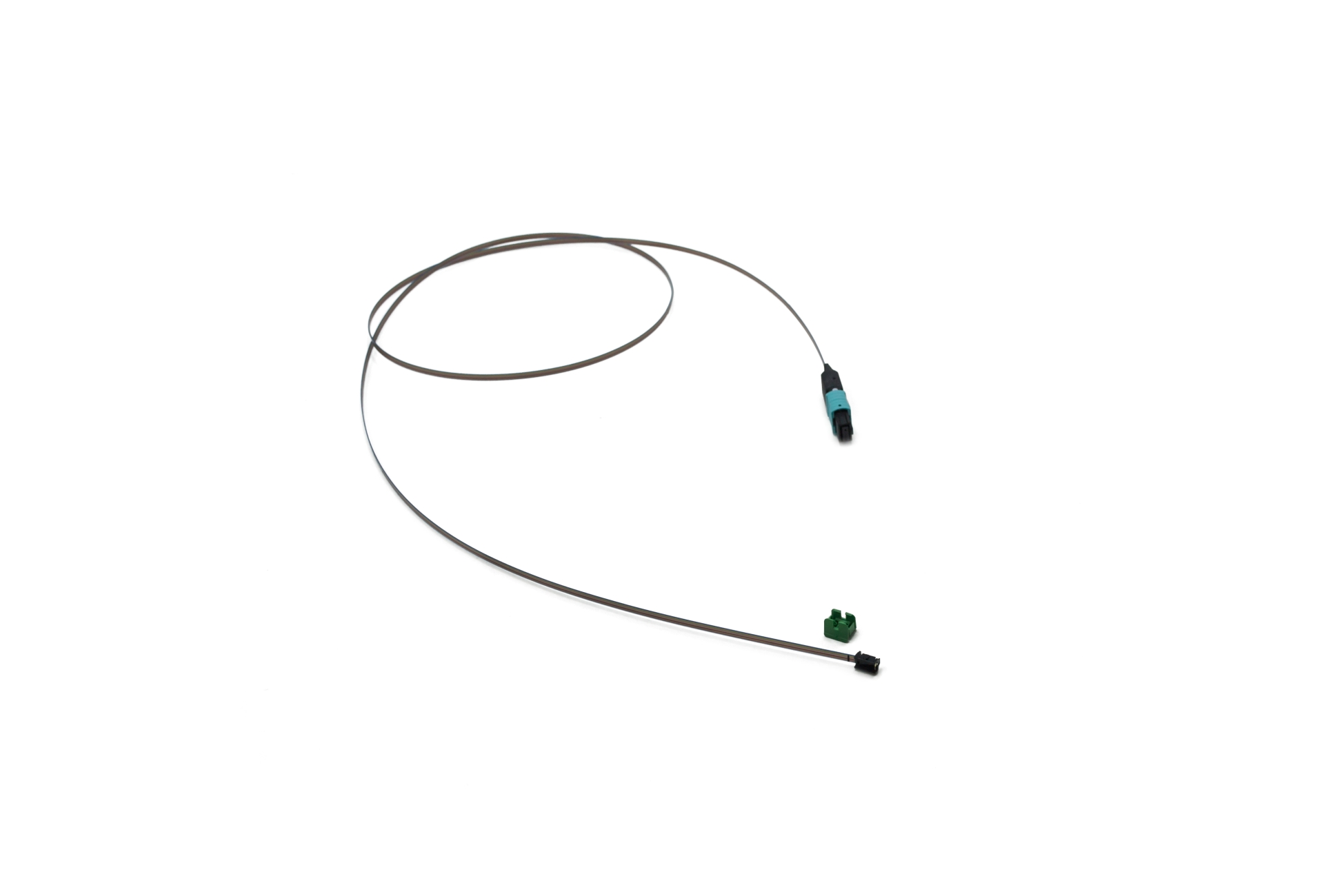

| Cable construction | Bare ribbon | ||
|
Outer diameter |
approx. 3,22mm x 0,34mm | ||
|
Fiber count |
12 | ||
|
Fiber type |
MMF OM3 / OM4
|
||
|
Temperature range |
Operation: -20°C to +70°C
|
||
|
Storage: -20°C to +70°C
|
|||
|
Installation: 0°C to +70°C
|

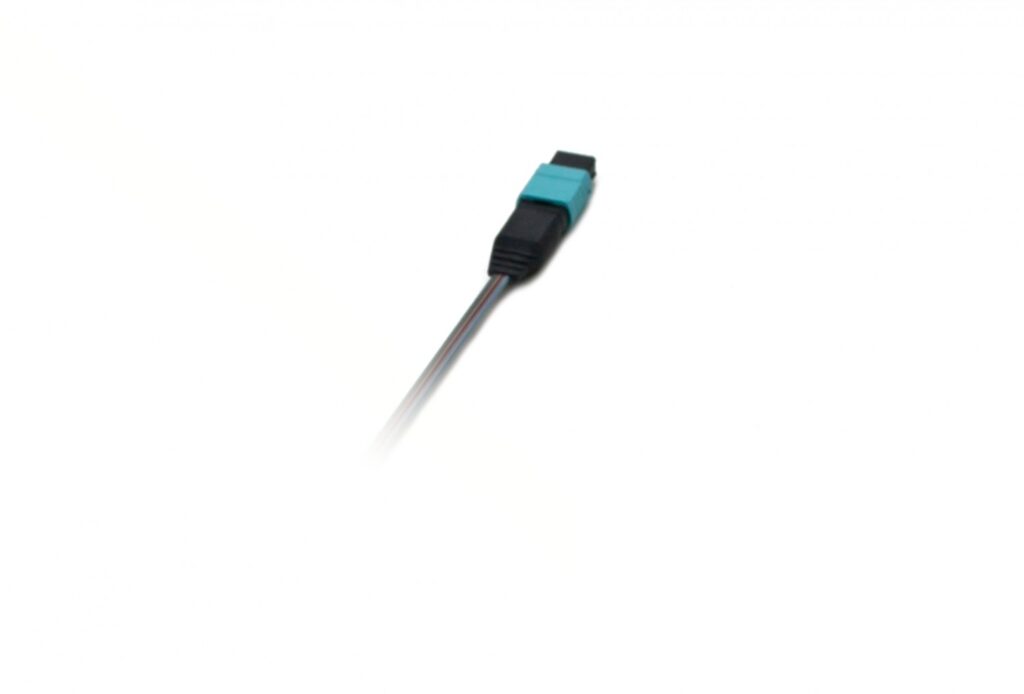

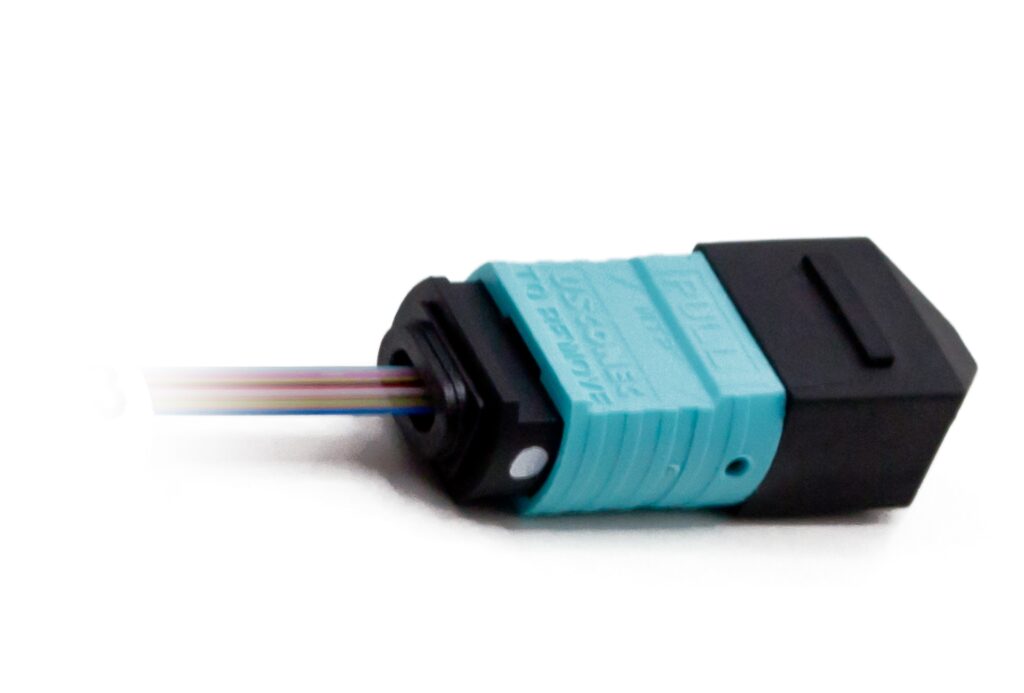

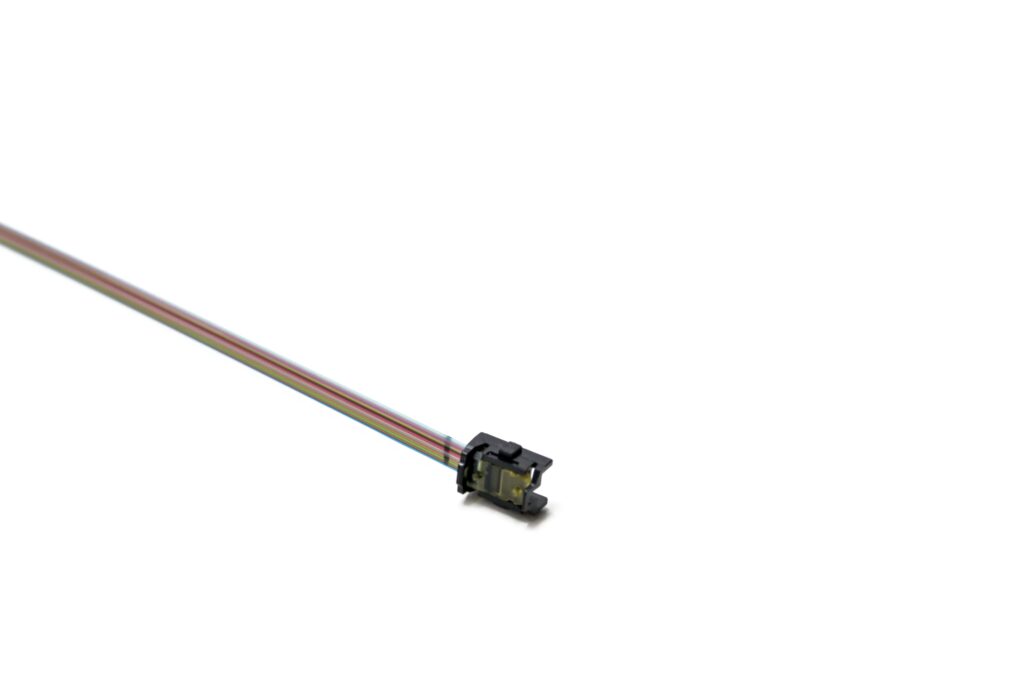

|||
| Connector parameters | PRIZM LT | MTP | |
|
Compliance |
US CONEC standard |
US CONEC standard | |
|
Colour of housing
|
N/A |
Aqua/ Magenta | |
|
Colour of boot
|
N/A | N/A | |
|
Polish
|
N/A | Flat (PC) | |
|
Insertion Loss
(acc. IEC 61300-3-4 method B)
|
<2,0dB (@850nm)
|
<0,35dB (@850nm) | |
|
Return Loss
(GUARANTEED VALUE) |
N/A
|
>20dB (@850nm) | |
| Identification | Traceability label with unique serial number on both ends of cable assembly. | ||
| Packaging |
Each assembly in sealed PE bag, bulk pack in cardboard box. |
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
| Description | Partnumber/Ordering code |
| 01x MTP(F) – 01x PRIZM LT 12F OM3 JUMPER TYPE A (RIBBON PEELABLE) | B123-OF2-xxxx-1A |
| 01x MTP(M) – 01x PRIZM LT 12F OM3 JUMPER TYPE A (RIBBON PEELABLE) | B123-OM2-xxxx-1A |
| 01x MTP(F) – 01x PRIZM LT 12F OM3 JUMPER TYPE A (RIBBON NON-PEELABLE) | B123-OF2-xxxx-2A |
| 01x MTP(M) – 01x PRIZM LT 12F OM3 JUMPER TYPE A (RIBBON NON-PEELABLE) | B123-OM2-xxxx-2A |
| 01x MTP(F) – 01x PRIZM LT 12F OM4 JUMPER TYPE A (RIBBON PEELABLE) | B124-OF2-xxxx-1A |
| 01x MTP(M) – 01x PRIZM LT 12F OM4 JUMPER TYPE A (RIBBON PEELABLE) | B124-OM2-xxxx-1A |
| 01x MTP(F) – 01x PRIZM LT 12F OM4 JUMPER TYPE A (RIBBON NON-PEELABLE) | B124-OF2-xxxx-2A |
| 01x MTP(M) – 01x PRIZM LT 12F OM4 JUMPER TYPE A (RIBBON NON-PEELABLE) | B124-OM2-xxxx-2A |
* For more information see the drawing.
