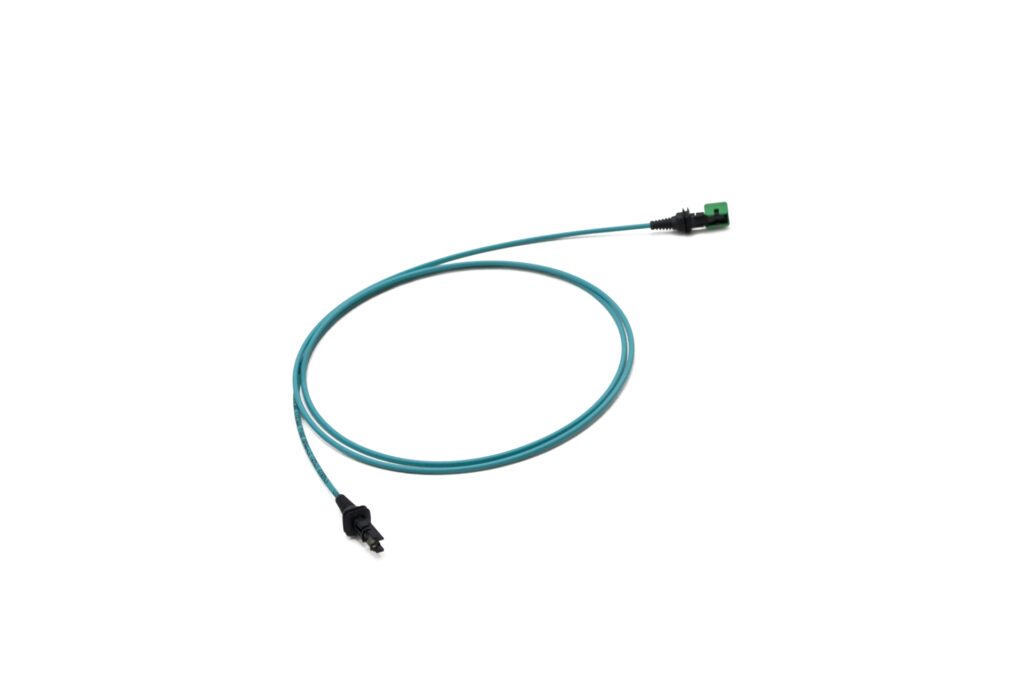

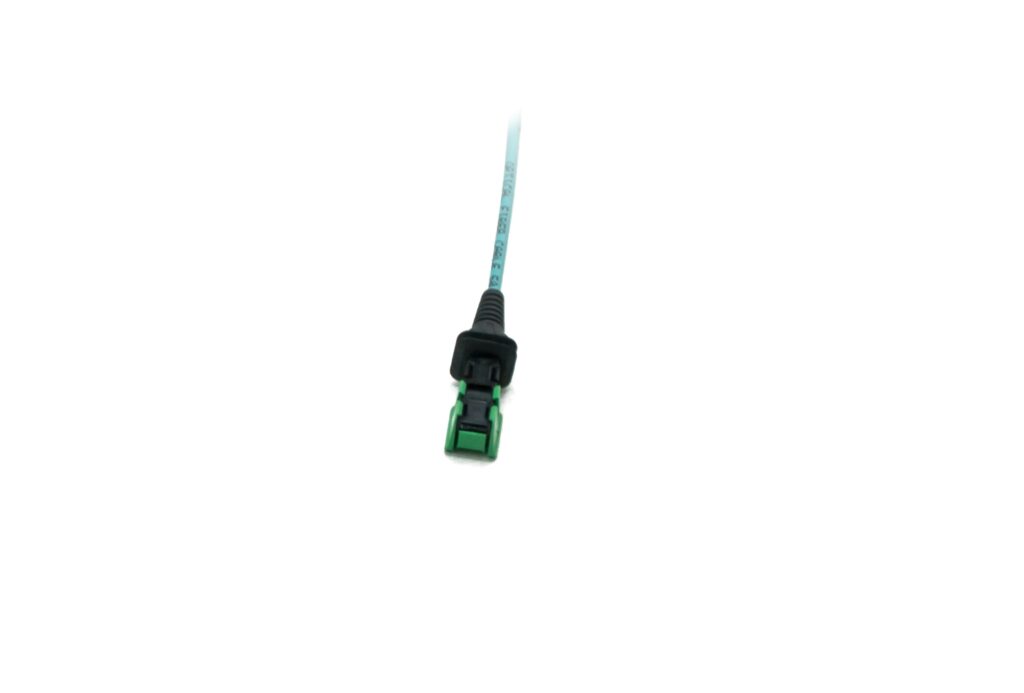

    PRIZM LT – PRIZM LT 12F round jumper

    • PRIZM® LightTurn® is designed as a miniature detachable connector for high-speed, board-mounted Avago MicroPOD and MiniPOD modules, or for direct mounting on PCB using a mechanical-optical interface (MOI). In combination with standard MTP connectors, it is suitable for a wide range of applications such as use in transceivers, parallel optics and supercomputing.
    Ask a question
    DATASHEET
    DRAWING
    Share this entry
    Temperature range
    		 Indoor controlled environment (-10°C/+60°C)
    Cable parameters
    Jacket material
    OFNG-LS
    Cable construction
    		 Round cable
    Outer diameter
    		 1,8mm
    Fiber count
    		 12
    Fiber type
    MMF OM3 / OM4
    Temperature range
    Operation: 0°C to +70°C
    Storage: -20°C to +70°C
    Installion: 0°C to +70°C
    Connector parameters
    		PRIZM LT PRIZM LT
    Compliance
    US CONEC standard
    		 US CONEC standard
    Colour of housing
    Black
    		 Black
    Colour of boot
    		 Black Black
    Polish
    		 N/A N/A
    Insertion Loss (acc. IEC 61300-3-4 method B)
    <2,2dB (@850nm)
    		 <2,2dB (@850nm)
    Identification Traceability label with unique serial number on both ends of cable assembly.
    Packaging
    Each assembly in antistatic bag, bulk pack in cardboard box.
    Description
    Partnumber/Ordering code
    01x PRIZM LT – 01x PRIZM LT 12F OM3 JUMPER TYPE A
    B123-OOX-xxx-3A
    01x PRIZM LT – 01x PRIZM LT 12F OM3 JUMPER TYPE B
    B123-OOX-xxx-3B
    01x PRIZM LT – 01x PRIZM LT 12F OM4 JUMPER TYPE A
    B124-OOX-xxx-3A
    01x PRIZM LT – 01x PRIZM LT 12F OM4 JUMPER TYPE B
    B124-OOX-xxx-3B
