Temperature range |
Indoor controlled environment (-10°C/+60°C) | ||
| Parameters |
Dimensions |
482 x 251 x 44 mm (1U)
|
|
|
Material |
powdered coating steel | ||
| Colour | light gray RAL7035 | ||
| deep black RAL9005 | |||
|
Capacity |
up to 48 fibers | ||
| Cable entry ports |
grommet/gland |
2x PG13,5/M20 or 4x PG7/M12
|
|
|
Duralino fanout® |
2xDuralino fanout® size XL/L or
4xDuralino fanout® size S
|
||
| Identification | Label with unique serial number. | ||
| Packaging |
Each patchpanel in cardboard box, bulk pack on palette. |
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
|
Description |
Partnumber/Ordering code |
|

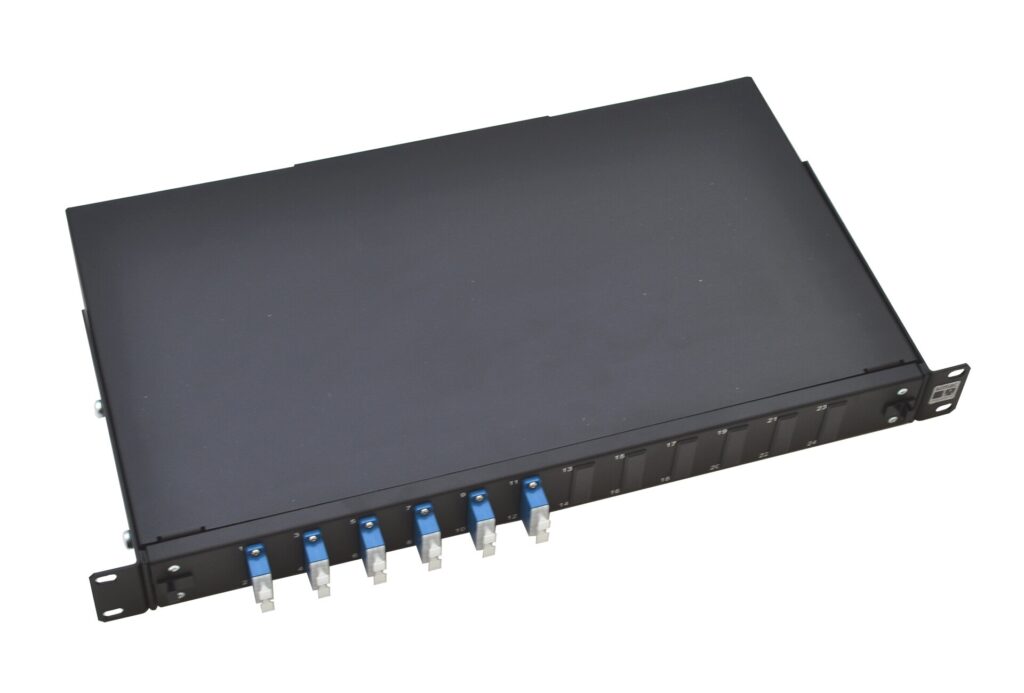

PATCHPANEL 1U with 12x SC blue adapter (12 SC port) |
O12B-SX1-GRY (grey) / O12B-SX1-BLK (black) |
| PATCHPANEL 1U with 12x SC green adapter (12 SC port) | O12G-SX1-GRY (grey) / O12G-SX1-BLK (black) |
| PATCHPANEL 1U with 12x SC aqua adapter (12 SC port) | O12A-SX1-GRY (grey) / O12A-SX1-BLK (black) |
|
PATCHPANEL 1U with 12x SC magenta adapter (12 SC port) |
O12M-SX1-GRY (grey) / O12M-SX1-BLK (black) |
|

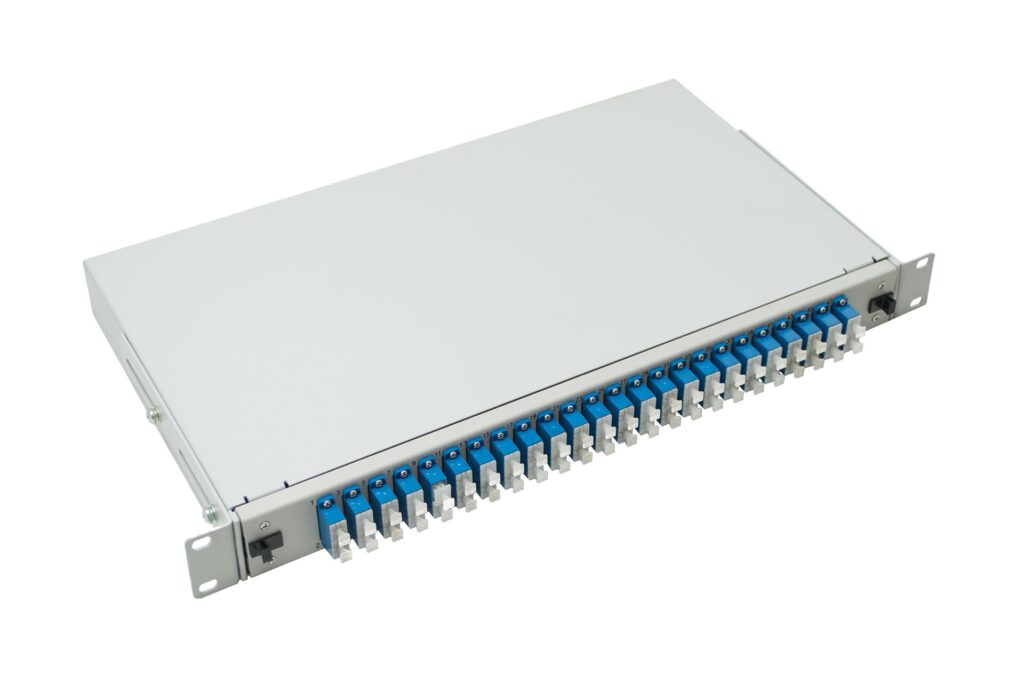

PATCHPANEL 1U with 24x SC blue adapter (24 SC port) |
O24B-SX1-GRY (grey) / O24B-SX1-BLK (black) |
|
PATCHPANEL 1U with 24x SC green adapter (24 SC port) |
O24G-SX1-GRY (grey) / O24G-SX1-BLK (black) |
|
PATCHPANEL 1U with 24x SC aqua adapter (24 SC port) |
O24A-SX1-GRY (grey) / O24A-SX1-BLK (black) |
|
PATCHPANEL 1U with 24x SC aqua adapter (24 SC port) |
O24M-SX1-GRY (grey) / O24M-SX1-BLK (black) |
| PATCHPANEL 1U with 06x SCD blue adapter (24 SC port) | O12B-SX2-GRY (grey) / O12B-SX2-BLK (black) |
| PATCHPANEL 1U with 06x SCD green adapter (24 SC port)) | O12G-SX2-GRY (grey) / O12G-SX2-BLK (black) |
| PATCHPANEL 1U with 06x SCD aqua adapter (24 SC port | O12A-SX2-GRY (grey) / O12A-SX2-BLK (black) |
|

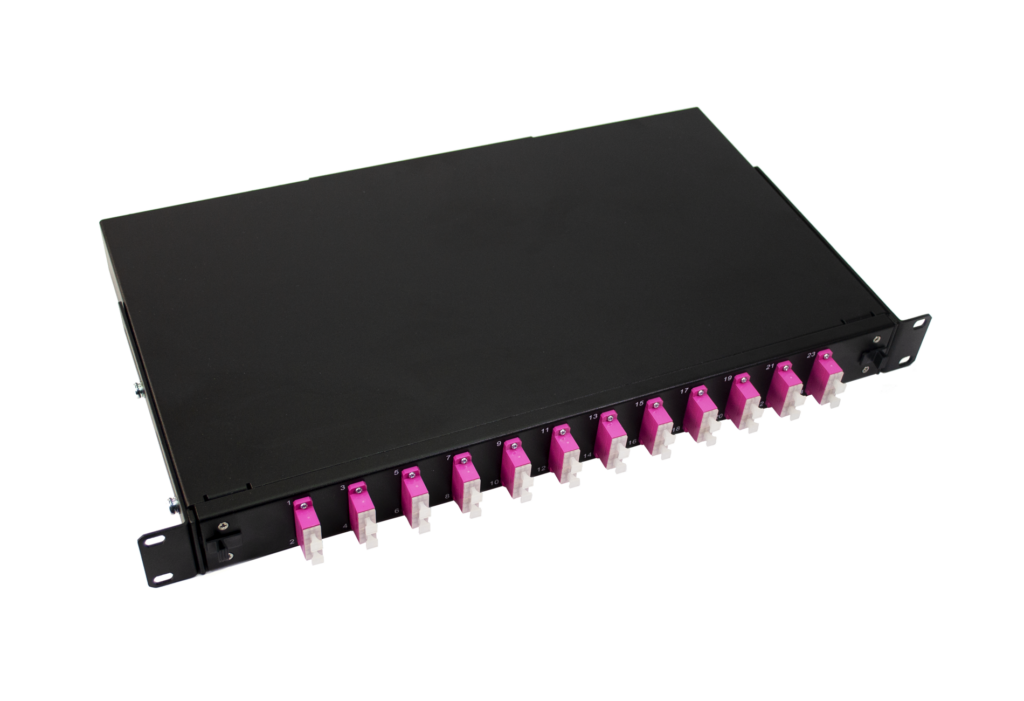

PATCHPANEL 1U with 06x SCD magenta adapter (24 SC port) |
O12M-SX2-GRY (grey) / 1O2M-SX2-BLK (black) |
|
PATCHPANEL 1U with 12x SCD blue adapter (24 SC port) |
O24B-SX2-GRY (grey) / O24B-SX2-BLK (black) |
|
PATCHPANEL 1U with 12x SCD green adapter (24 SC port) |
O24G-SX2-GRY (grey) / O24G-SX2-BLK (black) |
|
PATCHPANEL 1U with 12x SCD aqua adapter (24 SC port) |
O24A-SX2-GRY (grey) / O24A-SX2-BLK (black) |
|
PATCHPANEL 1U with 12x SCD magenta adapter (24 SC port) |
O24M-SX2-GRY (grey) / O24M-SX2-BLK (black) |
|
PATCHPANEL 1U with 24x SCD blue adapter (48 SC port) |
O48B-SX2-GRY (grey) / O48B-SX2-BLK (black) |
|
PATCHPANEL 1U with 24x SCD green adapter (48 SC port) |
O48G-SX2-GRY (grey) / O48G-SX2-BLK (black) |
|
PATCHPANEL 1U with 24x SCD aqua adapter (48 SC port) |
O48A-SX2-GRY (grey) / O48A-SX2-BLK (black) |
|
PATCHPANEL 1U with 24x SCD magenta adapter (48 SC port) |
O48M-SX2-GRY (grey) / O48M-SX2-BLK (black) |
