SC 2U patch panel – with adapters

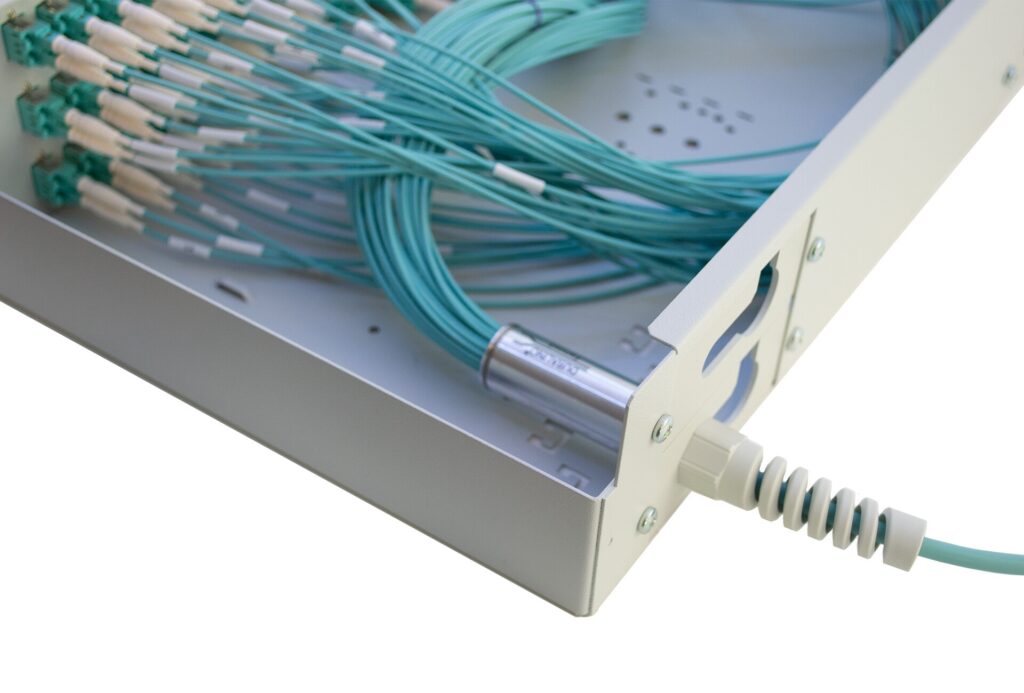

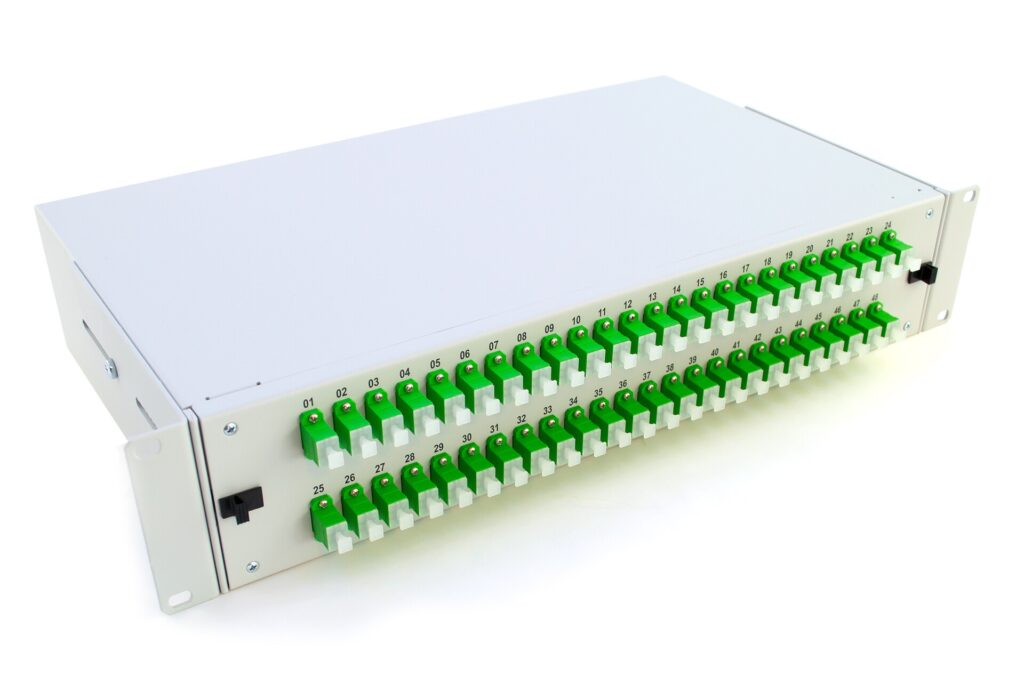

2U 19” sliding patchpanel offered by our company with SC front panel with simplex or duplex holes and back plates. Inside is a central spike, which is used as a fixing element for splice cassettes. Loaded with SC simplex or duplex adapters. It is easy to open them by a pair of plastic latches. Ejected patchpanel is hanging down in angle of 40 degrees and is easily accessible by operating staff.

Share this entry

Temperature range	Indoor controlled environment (-10°C/+60°C)
Parameters	Dimensions	482 x 251 x 88 mm (2U)
	Material	powdered coating steel
	Colour	light gray RAL7035
	Capacity	up to 96 fibers
	Cable entry ports	grommet/gland	4x PG13,5/M20 or 8x PG7/M12

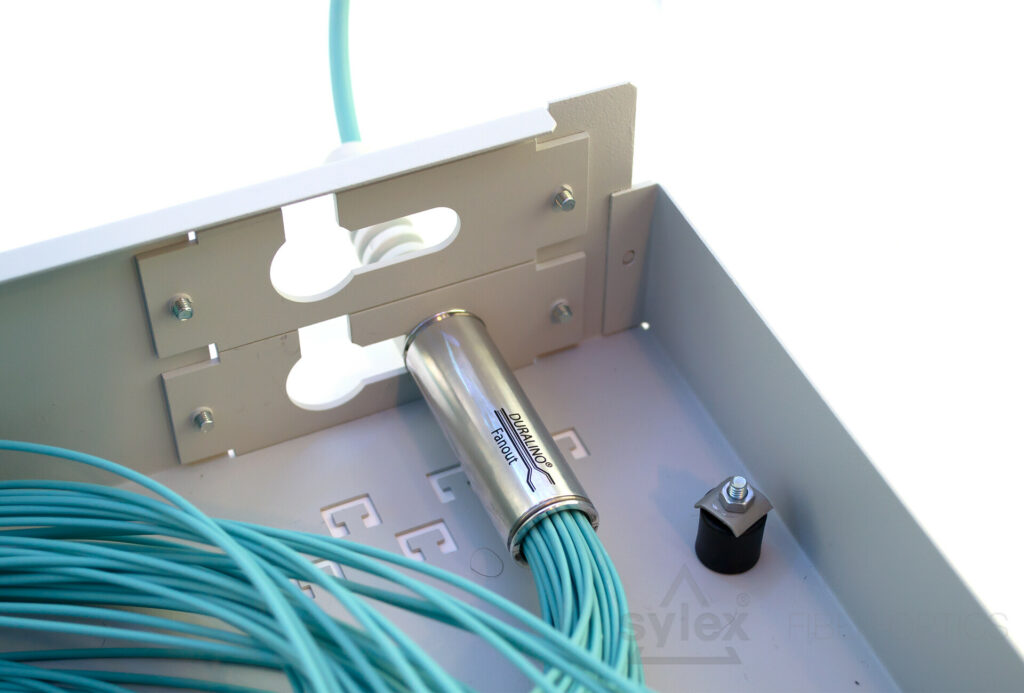

		Duralino fanout®	4x Duralino fanout® size XL/L or 8x Duralino fanout® size S
Identification	Label with unique serial number.
Packaging	Each patchpanel in cardboard box, bulk pack on palette.

Product drawing
Product drawing
Product sheet
Product sheet
Product sheet
Product sheet
Product sheet
Product sheet
Cable Datasheet
Cable Datasheet
Packaging specification
Optical Connector cleaning procedure
Polarities
Cable installation
Cable installation
Cable installation

Description	Partnumber/Ordering code
PATCHPANEL 2U 48x SC/UPC OS2 blue adapter	O48B-SX1-GR2
PATCHPANEL 2U 48x SC/APC OS2 green adapter	O48G-SX1-GR2
PATCHPANEL 2U 48x SC/PC OM3 aqua adapter	O48A-SX1-GR2
PATCHPANEL 2U 48x SC/PC OM4 magenta adapter	O48M-SX1-GR2
PATCHPANEL 2U 72x SC/UPC OS2 blue adapter	O72B-SX1-GR2
PATCHPANEL 2U 72x SC/APC OS2 green adapter	O72G-SX1-GR2
PATCHPANEL 2U 72x SC/PC OM3 aqua adapter	O72A-SX1-GR2
PATCHPANEL 2U 72x SC/PC OM4 magenta adapter	O72M-SX1-GR2
PATCHPANEL 2U 96x SC/UPC (48x SCD) OS2 blue adapter	OABB-LX2-GR2
PATCHPANEL 2U 96x SC/APC (48x SCD) OS2 green adapter	OABG-LX2-GR2
PATCHPANEL 2U 96x SC/PC (48x SCD) OM3 aqua adapter	OABA-LX2-GR2
PATCHPANEL 2U 96x SC/PC (48x SCD) OM4 magenta adapter	OABM-LX2-GR2
