Temperature range |

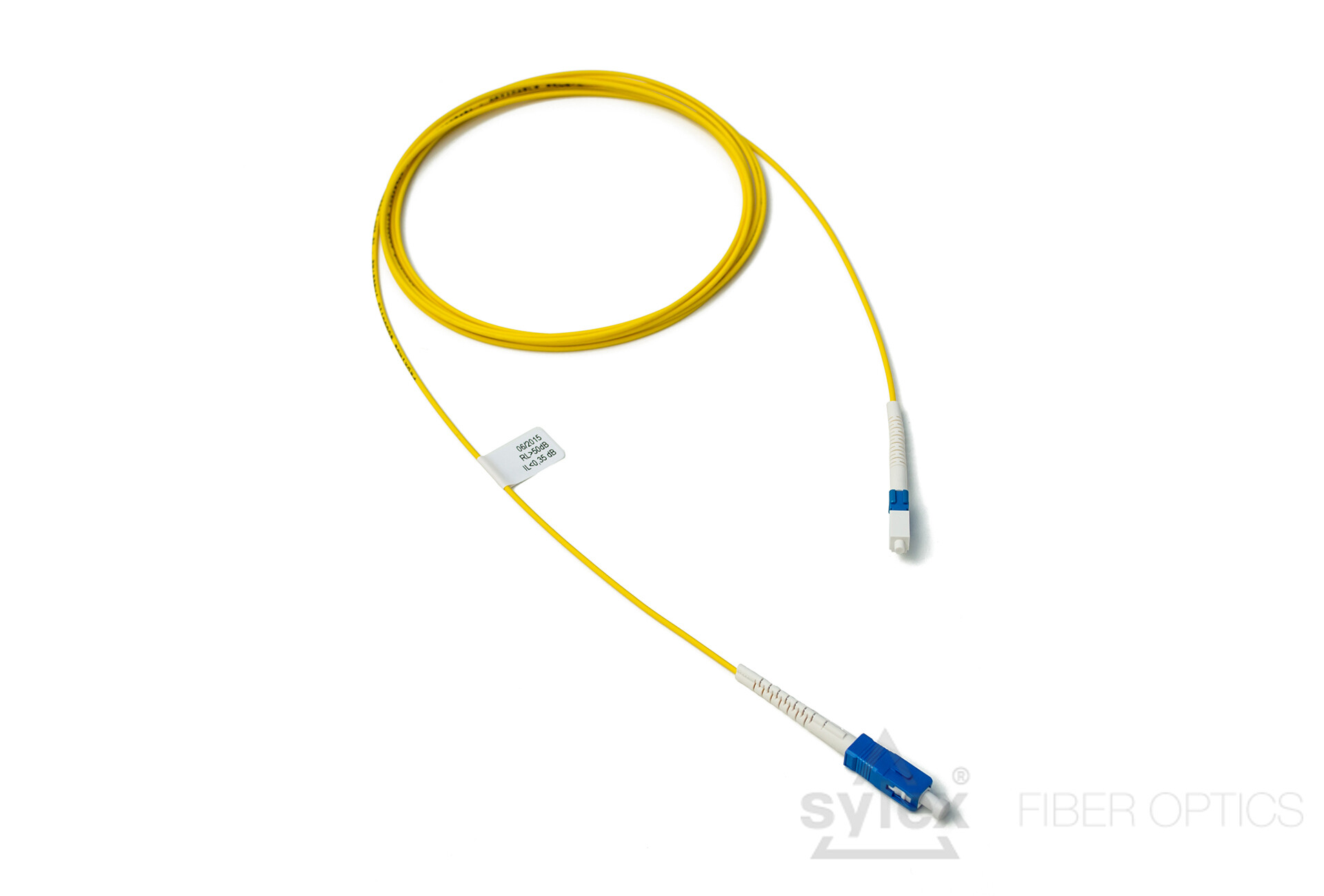

Indoor controlled environment (-10°C /+60°C) | ||
| Cable parameters |
Jacket material |
LSZH
|
|
| Cable construction | Simplex cable | ||
| Outer diameter | approx. 2.0mm | ||
| Fiber count | 1 | ||
| Fiber type | SM OS2 or MMF OM1/OM2/OM3/OM4 | ||
| Temperature range | Operation: -10°C to +70°C | ||
| Storage: -25°C to +70°C | |||
| Installation: -5°C to +50°C | |||
| Connector parameters |
LC, SC, ST, FC, E2000 (SM)
|
LC, SC, ST, FC, E2000 (MM)
|
|
| Insertion Loss (acc. IEC 61300-3-4 method B) |
<0,25dB
(@1310/1550nm)
|
<0,25dB
(@850/1300nm)
|
|
| Return Loss (acc. IEC 61300-3-6) |
>50dB (UPC)/>60dB (APC)
(@1310/1550nm)
|
>30dB
(@850/1300nm)
|
|
| Identification | Traceability label with unique serial number. | ||
| Packaging |
Each assembly in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on cardboard/wooden reel. |
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
|
Description |
Partnumber/Ordering code |
| LC/UPC-LC/UPC OS2 simplex patchcord 0.9mm | C199-LL1-xxx |
| LC/APC-LC/APC OS2 simplex patchcord 0.9mm | C199-AA1-xxx |
| SC/UPC-SC/UPC OS2 simplex patchcord 0.9mm | C199-SS1-xxx |
| SC/APC-SC/APC OS2 simplex patchcord 0.9mm | C199-BB1-xxx |
| E2000/UPC-E2000/UPC OS2 simplex patchcord 0.9mm | C199-EE1-xxx |
| E2000/APC-E2000/APC OS2 simplex patchcord 0.9mm | C199-CC1-xxx |
| ST/UPC-ST/UPC OS2 simplex patchcord 0.9mm | C199-TT1-xxx |
| FC/UPC-FC/UPC OS2 simplex patchcord 0.9mm | C199-DD1-xxx |
| FC/APC-FC/APC OS2 simplex patchcord 0.9mm | C199-HH1-xxx |
| LC/UPC-LC/UPC OS2 simplex patchcord 1.8mm | C129-LL1-xxx |
| LC/APC-LC/APC OS2 simplex patchcord 1.8mm | C129-AA1-xxx |
| SC/UPC-SC/UPC OS2 simplex patchcord 1.8mm | C129-SS1-xxx |
| SC/APC-SC/APC OS2 simplex patchcord 1.8mm | C129-BB1-xxx |
| E2000/UPC-E2000/UPC OS2 simplex patchcord 1.8mm | C129-EE1-xxx |
| E2000/APC-E2000/APC OS2 simplex patchcord 1.8mm | C129-CC1-xxx |
| ST/UPC-ST/UPC OS2 simplex patchcord 1.8mm | C129-TT1-xxx |
| FC/UPC-FC/UPC OS2 simplex patchcord 1.8mm | C129-DD1-xxx |
| FC/APC-FC/APC OS2 simplex patchcord 1.8mm | C129-HH1-xxx |
| LC/UPC-LC/UPC OS2 simplex patchcord 2.8mm | C139-LL1-xxx |
| LC/APC-LC/APC OS2 simplex patchcord 2.8mm | C139-AA1-xxx |
| SC/UPC-SC/UPC OS2 simplex patchcord 2.8mm | C139-SS1-xxx |
| SC/APC-SC/APC OS2 simplex patchcord 2.8mm | C139-BB1-xxx |
| E2000/UPC-E2000/UPC OS2 simplex patchcord 2.8mm | C139-EE1-xxx |
| E2000/APC-E2000/APC OS2 simplex patchcord 2.8mm | C139-CC1-xxx |
| ST/UPC-ST/UPC OS2 simplex patchcord 2.8mm | C139-TT1-xxx |
| FC/UPC-FC/UPC OS2 simplex patchcord 2.8mm | C139-DD1-xxx |
| FC/APC-FC/APC OS2 simplex patchcord 2.8mm | C139-HH1-xxx |
| LC/PC-LC/PC OM3 simplex patchcord 0.9mm | C193-LL1-xxx |
| SC/PC-SC/PC OM3 simplex patchcord 0.9mm | C193-SS1-xxx |
| E2000/PC-E2000/PC OM3 simplex patchcord 0.9mm | C193-EE1-xxx |
| ST/PC-ST/PC OM3 simplex patchcord 0.9mm | C193-TT1-xxx |
| FC/PC-FC/PC OM3 simplex patchcord 0.9mm | C193-DD1-xxx |
| LC/PC-LC/PC OM3 simplex patchcord 1.8mm | C123-LL1-xxx |
| SC/PC-SC/PC OM3 simplex patchcord 1.8mm | C123-SS1-xxx |
| E2000/PC-E2000/PC OM3 simplex patchcord 1.8mm | C123-EE1-xxx |
| ST/PC-ST/PC OM3 simplex patchcord 1.8mm | C123-TT1-xxx |
| FC/PC-FC/PC OM3 simplex patchcord 1.8mm | C123-DD1-xxx |
| LC/PC-LC/PC OM3 simplex patchcord 2.8mm | C133-LL1-xxx |
| SC/PC-SC/PC OM3 simplex patchcord 2.8mm | C133-SS1-xxx |
| E2000/PC-E2000/PC OM3 simplex patchcord 2.8mm | C133-EE1-xxx |
| ST/PC-ST/PC OM3 simplex patchcord 2.8mm | C133-TT1-xxx |
| FC/PC-FC/PC OM3 simplex patchcord 2.8mm | C133-DD1-xxx |
| LC/PC-LC/PC OM4 simplex patchcord 0.9mm | C194-LL1-xxx |
| SC/PC-SC/PC OM4 simplex patchcord 0.9mm | C194-SS1-xxx |
| E2000/PC-E2000/PC OM4 simplex patchcord 0.9mm | C194-EE1-xxx |
| ST/PC-ST/PC OM4 simplex patchcord 0.9mm | C194-TT1-xxx |
| FC/PC-FC/PC OM4 simplex patchcord 0.9mm | C194-DD1-xxx |
| LC/PC-LC/PC OM4 simplex patchcord 1.8mm | C124-LL1-xxx |
| SC/PC-SC/PC OM4 simplex patchcord 1.8mm | C124-SS1-xxx |
| E2000/PC-E2000/PC OM4 simplex patchcord 1.8mm | C124-EE1-xxx |
| ST/PC-ST/PC OM4 simplex patchcord 1.8mm | C124-TT1-xxx |
| FC/PC-FC/PC OM4 simplex patchcord 1.8mm | C124-DD1-xxx |
| LC/PC-LC/PC OM4 simplex patchcord 2.8mm | C134-LL1-xxx |
| SC/PC-SC/PC OM4 simplex patchcord 2.8mm | C134-SS1-xxx |
| E2000/PC-E2000/PC OM4 simplex patchcord 2.8mm | C134-EE1-xxx |
| ST/PC-ST/PC OM4 simplex patchcord 2.8mm | C134-TT1-xxx |
| FC/PC-FC/PC OM4 simplex patchcord 2.8mm | C134-DD1-xxx |
