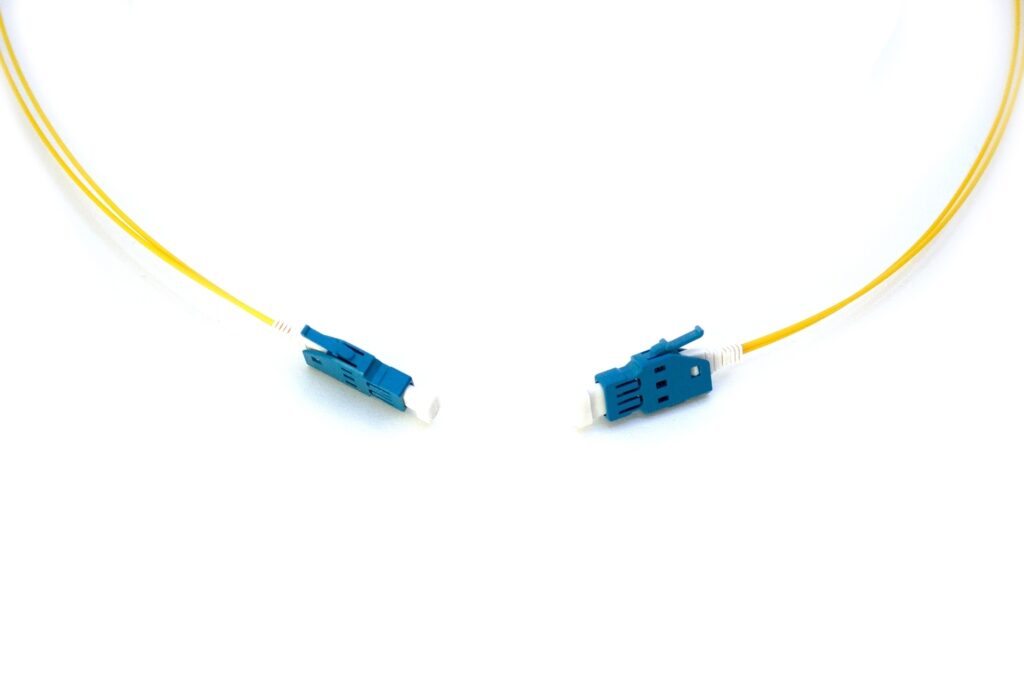

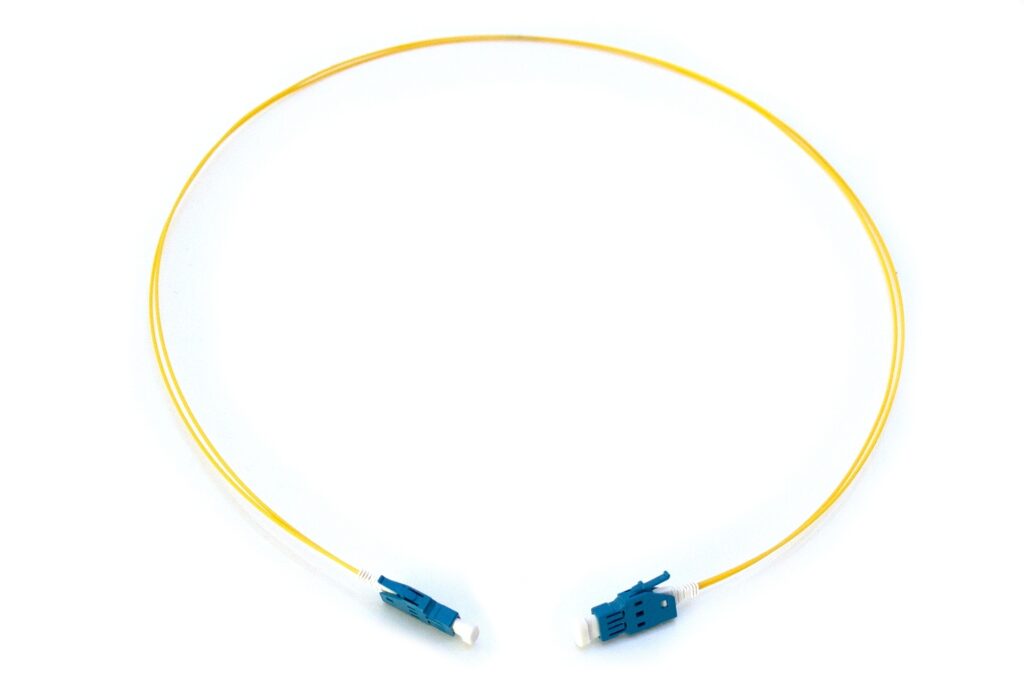

Temperature range |
Indoor controlled environment (-10°C/+60°C) | ||
| Cable parameters |
Jacket material |
LSZH
|
|

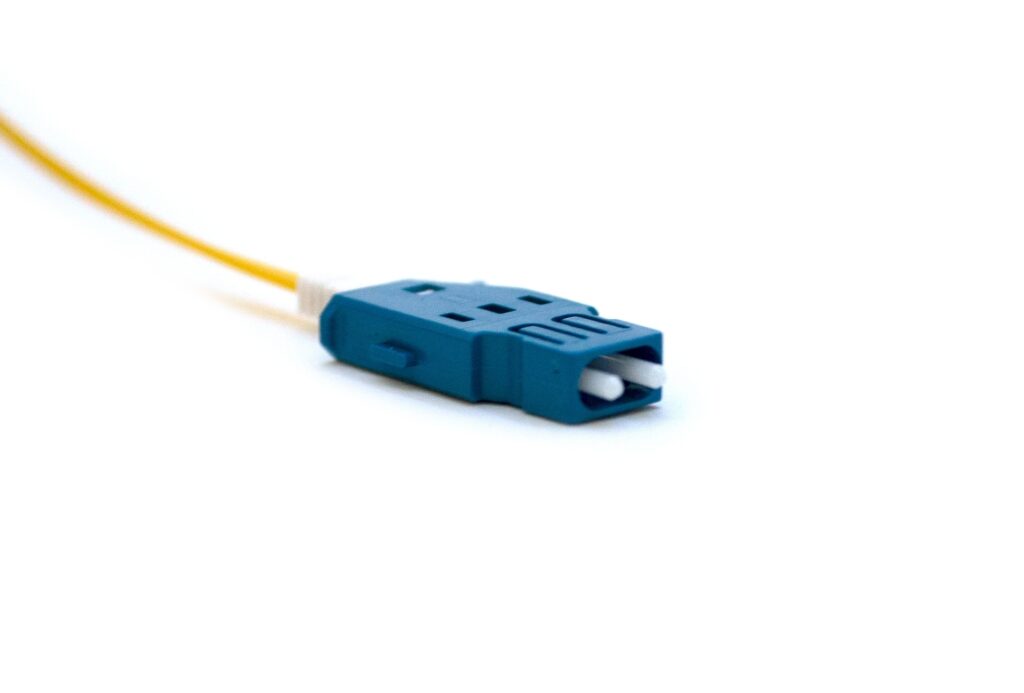

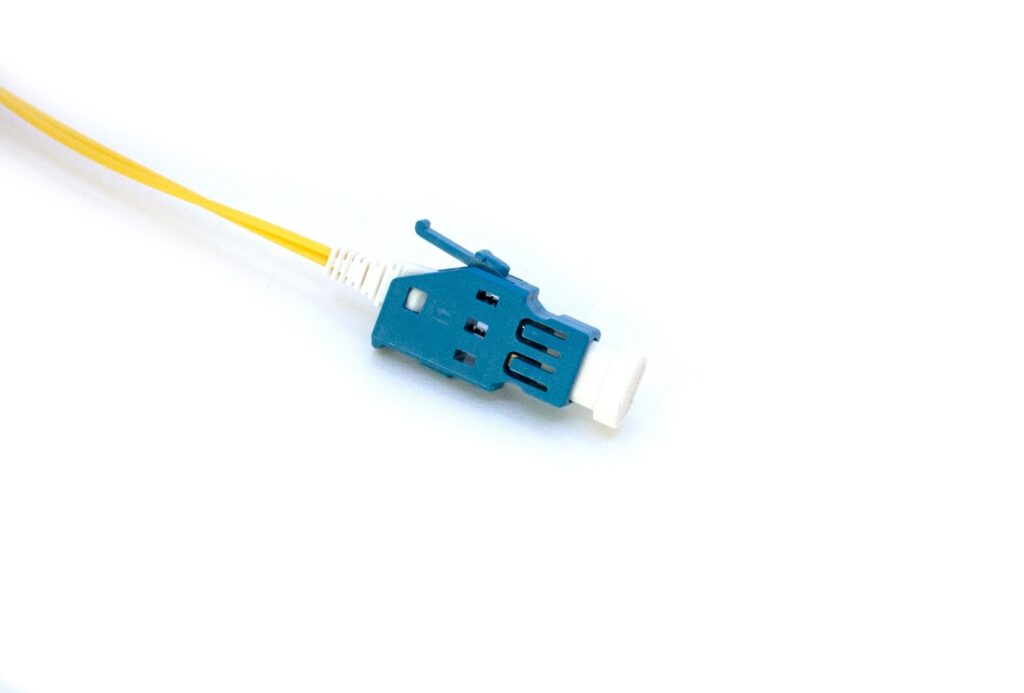

| Cable construction | Buffered fiber | ||
| Outer diameter | 0,9mm | ||
| Fiber count | 2 | ||
| Fiber type | SMF OS2, MMF OM3/OM4/OM5 | ||
| Temperature range | Operation: -10°C to +70°C | ||
| Storage: -25°C to +70°C | |||
| Installation: -5°C to +50°C | |||
| Connector parameters |
SN BTW SM/MM
|
||
| Compliance | Telecordia GR-326 | ||
| Colour of housing | SM – Blue (PC)MM – Aqua / Magenta / Lime Green | ||
| Colour of boot | White | ||
| Polish | Flat SM (PC) / Flat MM (PC) | ||
| Insertion Loss (acc. IEC 61300-3-4 method B) | <0,25dB (@850/1300nm & @1310/1550nm) | ||
| Return Loss (acc. IEC 61300-3-6) | >50dB (UPC) (@1310/1550nm) >20dB (@850/1300nm) |
||
| Identification | Traceability label with unique serial number. | ||
| Packaging |
Each assembly in sealed PE bag, bulk pack in cardboard box. |
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
|
Description |
Partnumber/Ordering code |
| SN/UPC – SN/UPC OS2 duplex patchcord | C299-99X-xxx |
| SN/UPC – LC/APC OS2 duplex patchcord | C299-9AU-xxx |
| SN/UPC – LC/UPC OS2 duplex patchcord | C299-9LU-xxx |
| SN/PC – SN/PC OM3 duplex patchcord | C293-99X-xxx |
| SN/PC – LC/PC OM3 duplex patchcord | C293-9LU-xxx |
| SN/PC – SN/PC OM4 duplex patchcord | C294-99X-xxx |
| SN/PC – LC/PC OM4 duplex patchcord | C294-9LU-xxx |
| SN/PC – SN/PC OM5 duplex patchcord | C295-99X-xxx |
| SN/PC – LC/PC OM5 duplex patchcord | C295-9LU-xxx |
* For more information see the drawing.
