SPW-01 Spot-Welding Equipment

Voltage requirement: 220V, 50Hz, 3A breaker protection

Nominal weld energy: 1 – 300 Joules

Operating temperature range: -5 °C to +40 °C

Net weight (w/o cables): 5 kg

Downloads

Datasheet
Drawing
Installation Manual
Standard WL configuration
Cleaning and Mating Manual
Calibration sheet
Packaging specification
Product manual
S-line Sentinel D software
S-line Sentinel 2.0 datalog example
3D file .STEP
Energy cross table

Share this entry

Characteristics

How to make your installation of SYLEX spot-weldable sensors quick and perfect at the same time ? Choose a monthly rental-based option of SPW-01, a dedicated spot welding equipment with a Rent and Buy program that will enable you choosing your desired rental period with the option to buy and keep the welding device for a special price afterwards.

This spot welding equipment requires a 220V power supply and a short practice only.

Here are few useful short introductory videos below.

Questions ? Drop us a line here or contact us directly.

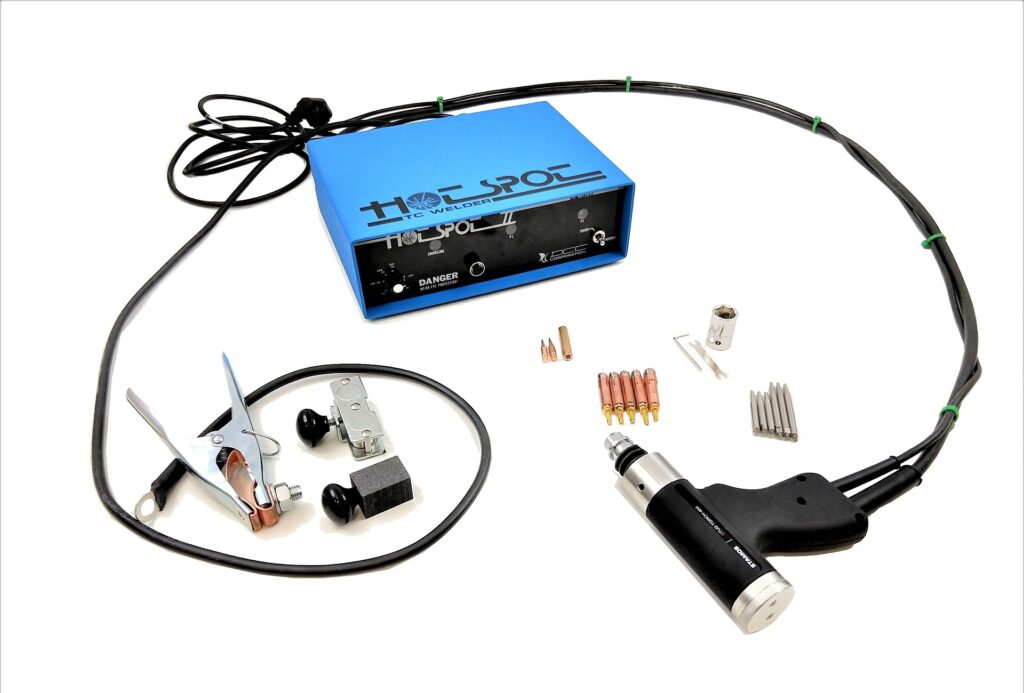

What is included ?

Spot welder with a welding gun, cables, grounding clamps and welding tips
Eye protection goggles
Set of tools for welding tips exchange
Rugged plastic carry case

VIDEO TUTORIALS

This video gallery contains 3 videos, all focused on correct spot welding process, testing and final result.

For correct spot welding energy setup, please refer to cross table.

Content of the video gallery:

Video 1: Spot weld procedure (start up – setup – weld)
Video 2: Quick check (how does a correct weld looks like)
Video 3: Spot weld testing removal (spot weld destructive test)

Product Specification

Performance properties	Voltage Rating	220V; 50Hz; 3Amp breaker protection
	Weld Energy ¹⁾	5 to 300 Joules
	Charging Time ²⁾	< 10 seconds @ Max Energy Setting
	Indication / Displays ³⁾	LED for Charging / Energy Storage Status
	Controls ⁴⁾	Output energy adjustment, 2 position switch
	Storage Temperature range	-10 °C to +50 °C
	Operating Temperature range	-5 °C to +40 °C
Physical properties	Dimensions (without cable) ⁵⁾	285 x 215 x 95 mm
	Power cord length	1,5 mtr
	Weight (without cables)	5 kg
	Gun cables weight ⁶⁾	2 kg
	Gun cables length ⁷⁾	1,5 mtr
	Spot welding tip material	CW103C
Packaging	Ruggedized transportation case
Quality Statement	100% tested at SYLEX Interrogator is manufactured according to ISO 9001:20015 and ISO 14001:20015

Notes:

¹⁾ For the actual weld energy at the welding gun tip see the cross table with nominal/actual values
²⁾ With weld energy set @250 Joules
³⁾ Status indication is displayed by a LED located on the welding gun and LED located on chassis front panel as well
⁴⁾ Maximum achievable weld energy with turbo off: 50J, maximum achievable weld energy with turbo on: 300J
⁵⁾ For further dimensions details see the product drawing
⁶⁾ Gun cable weight includes the spot-welding gun, electrode cable and ground cable
⁷⁾ Gun cable length is extendable on request
