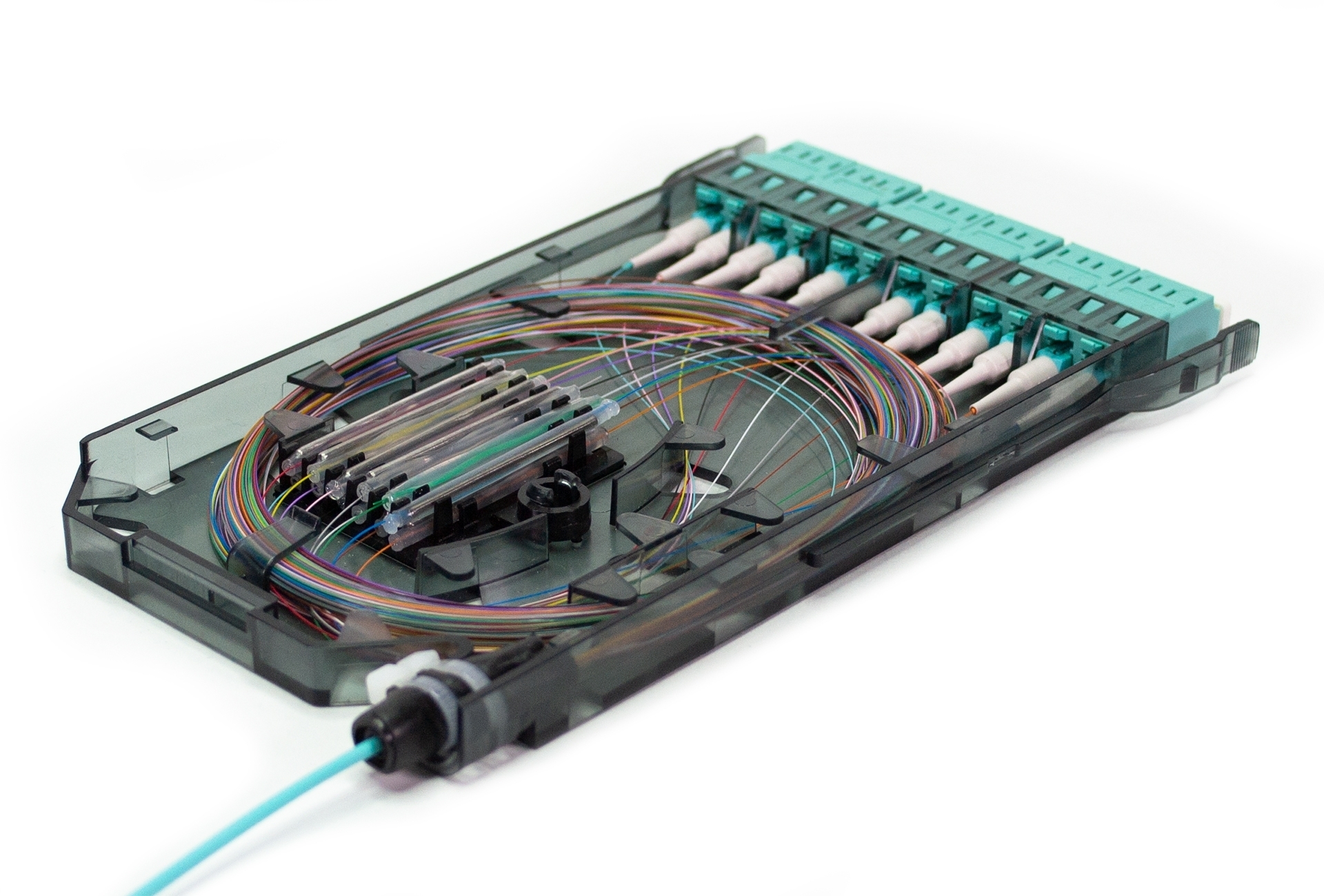

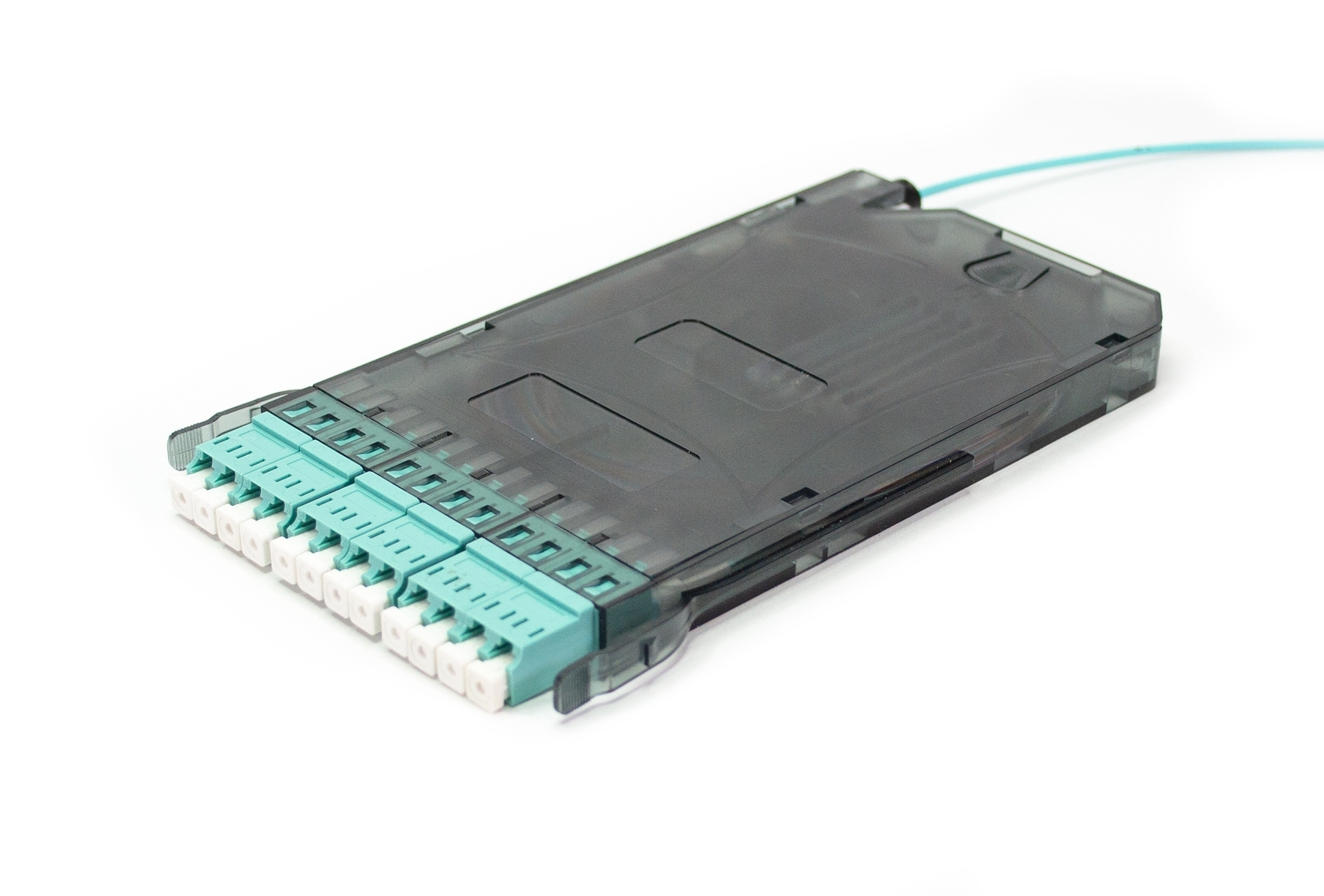

Temperature range |
Indoor controlled environment (–10°C / +60°) | ||
| Parameters |
Dimensions |
84,6 x 142 x 11,8mm
|
|
|
Material |
Plastic | ||
|
Colour |
Transparent black | ||
| Capacity | 12 fibres | ||
| Colour of adapters |
blue (UPC), green (APC), aqua (OM3), magenta (OM4), lime (OM5) |
||
| Colour of connectors |
blue (UPC), green (APC), aqua (OM3), magenta (OM4), lime (OM5) |
||
| Colour of boot | white | ||
| Colour of fibers |
Twelve standard 250um coloured fibers |
||
| Pigtail length |
1.5m |
||
| Polish |
Flat SM (UPC), Angled SM (APC), Flat MM (PC) |
||
|
Insertion Loss
(acc. IEC 61300-3-4 method B) |
<0,25dB
(@1310/1550nm / @850/1300nm)
|
||
|
Return Loss
(acc. IEC 61300-3-6)
|
>50dB (UPC)/>65dB (APC) (@1310/1550nm)
>20dB (@850/1300nm)
|
||
| Identification | Label with unique serial number | ||
|
Packaging |
Each module in cardboard box, bulk pack in master cardboard box. |
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
|
Description |
Partnumber/Ordering code |
| VERTEX MODULE 6x LCD/UPC OS2 splicing | E129-LS2-BLH |
| VERTEX MODULE 6x LCD/APC OS2 splicing | E129-AS2-BLH |
| VERTEX MODULE 6x LCD/PC OM3 splicing | E123-LS2-BLH |
| VERTEX MODULE 6x LCD/PC OM4 splicing | E124-LS2-BLH |
| VERTEX MODULE 6x LCD/PC OM5 splicing | E125-LS2-BLH |
